Step 1Oa,Install Overlay Panels - GE 36" Built-In Bottom-Freezer Installation Instructions Manual

Installation Instructions

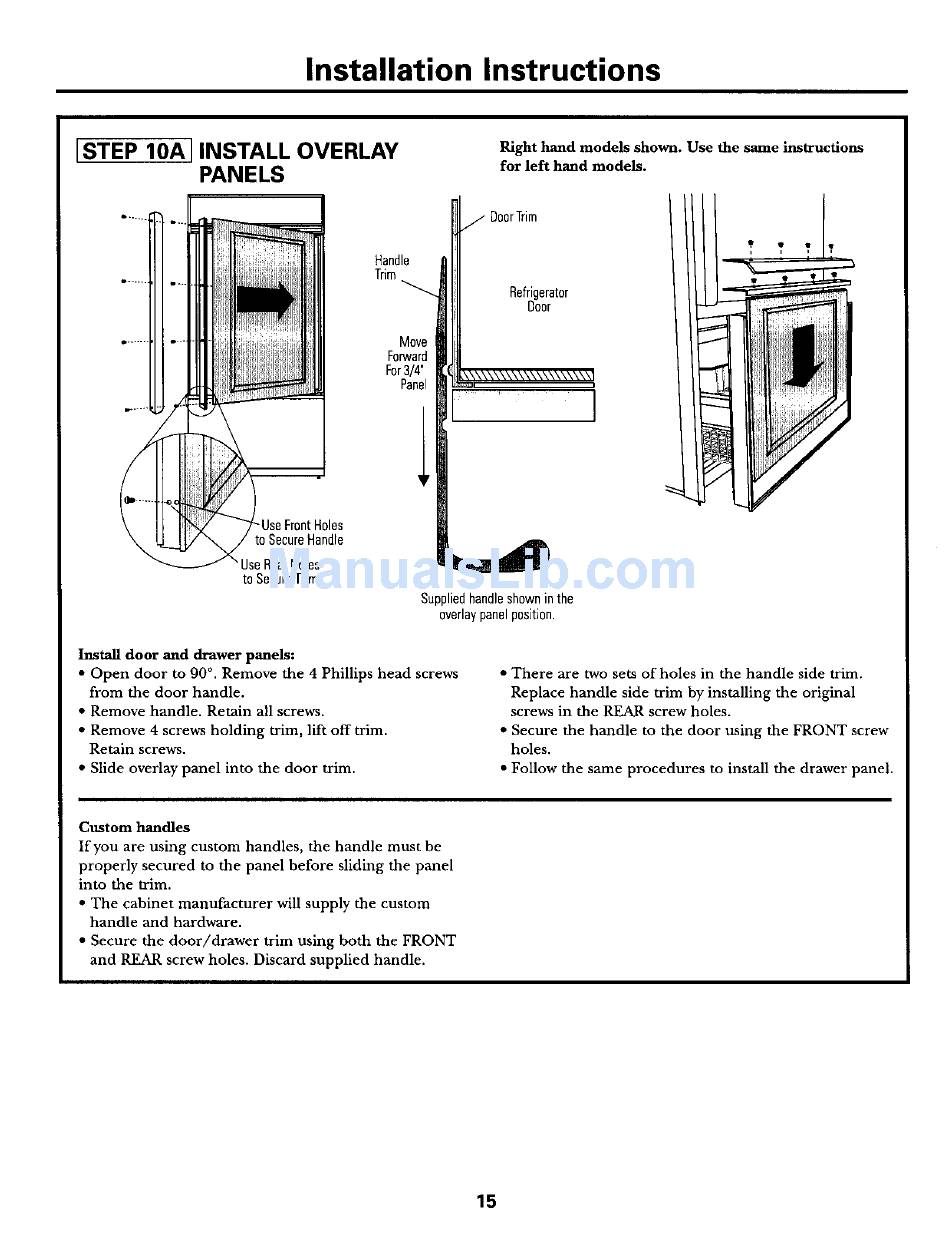

ISTEP 10A I INSTALL OVERLAY
PANELS
Handle
Trim
Move
Forward
For3/4'
Panel
-UseFrontHoles
to Secure Handle
UseRearHoles
to Secure Trim
Right hand models shown. Use the same instructions
for left hand models.
trTrim
Refrigerator
Doer
i i i i
Supplied handleshowninthe
overlaypanelposition.
Install door and drawer panels:
• Open door to 90 °. Remove the 4 Phillips head screws
from the door handle.
• Remove handle. Retain all screws.
• Remove 4 screws holding trim, lift off trim.
Retain screws.
• Slide overlay panel into the door trim.
• There are two sets of holes in the handle side trim.
Replace handle side trim by installing the original
screws in the REAR screw holes.
• Secure the handle to the door using the FRONT screw
holes.
• Follow the same procedures to install the drawer panel.
Custom handles
If you are using custom handles, the handle must be
properly secured to the panel before sliding the panel
into the trim.
• The cabinet manufacturer will supply the custom
handle and hardware.
• Secure the door/drawer trim using both the FRONT
and REAR screw holes. Discard supplied handle.
15
