Installation Instructions

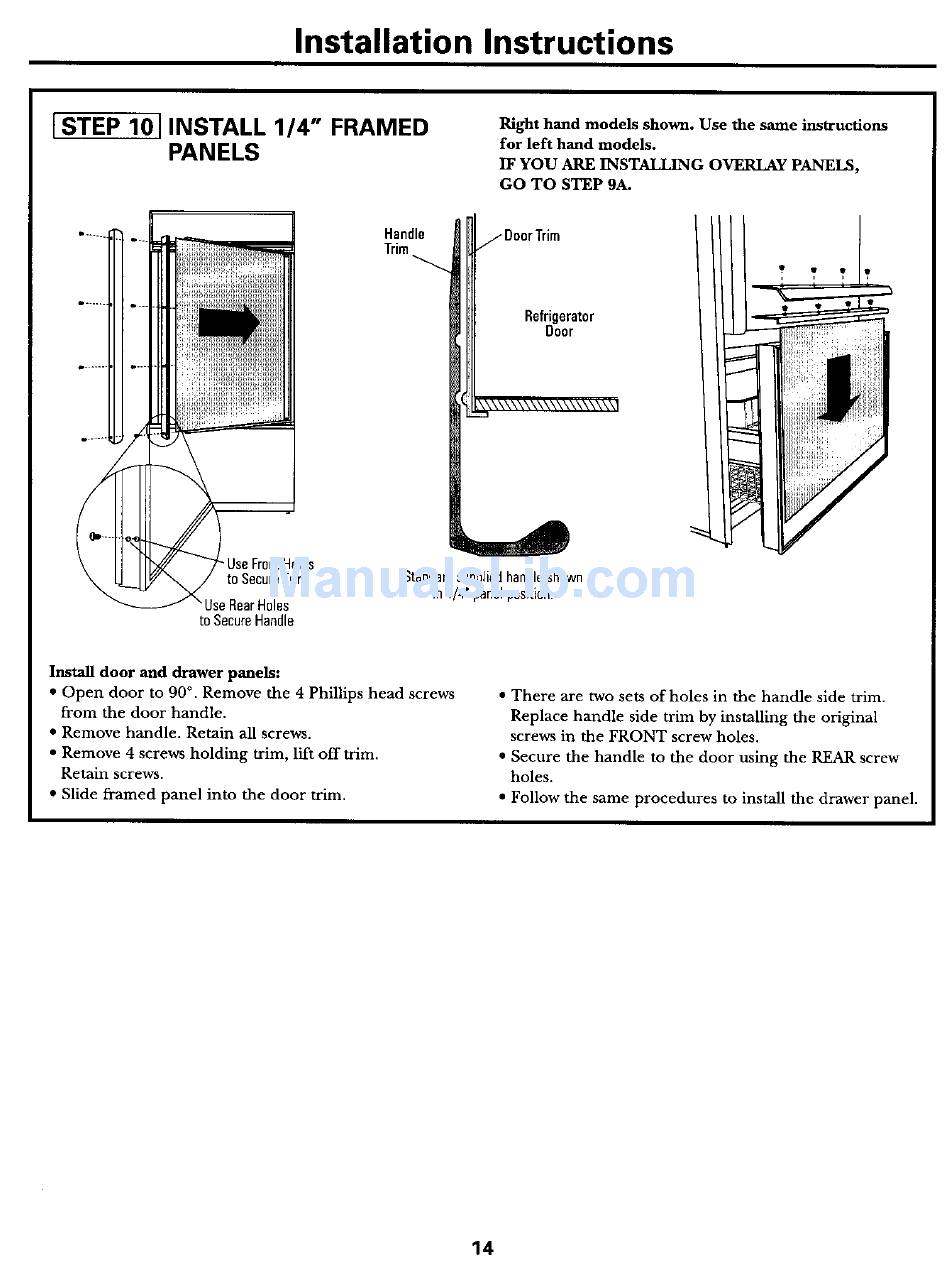

[STEP 10] INSTALL 1/4" FRAMED
PANELS
Right hand models shown. Use the same instructions
for left hand models.
IF YOU ARE INSTALLING OVERLAY PANELS,
GO TO STEP 9A.
•UseFront H oles
to Secure Trim
UseRearHoles
to SecureHandle
Handle
Trim
Refrigerator
Door
Standard suppliedhandleshown
in1/4" panelposition.
Install door and drawer panels:
• Open door to 90 °. Remove the 4 Phillips head screws
from the door handle.
• Remove handle. Retain all screws.
• Remove 4 screws holding trim, lift off trim.
Retain screws.
• Slide framed panel into the door trim.
• There are two sets of holes in the handle side trim.
Replace handle side trim by installing the original
screws in the FRONT screw holes,
• Secure the handle to the door using the REAR screw
holes.
• Follow the same procedures to install the drawer panel.
14
