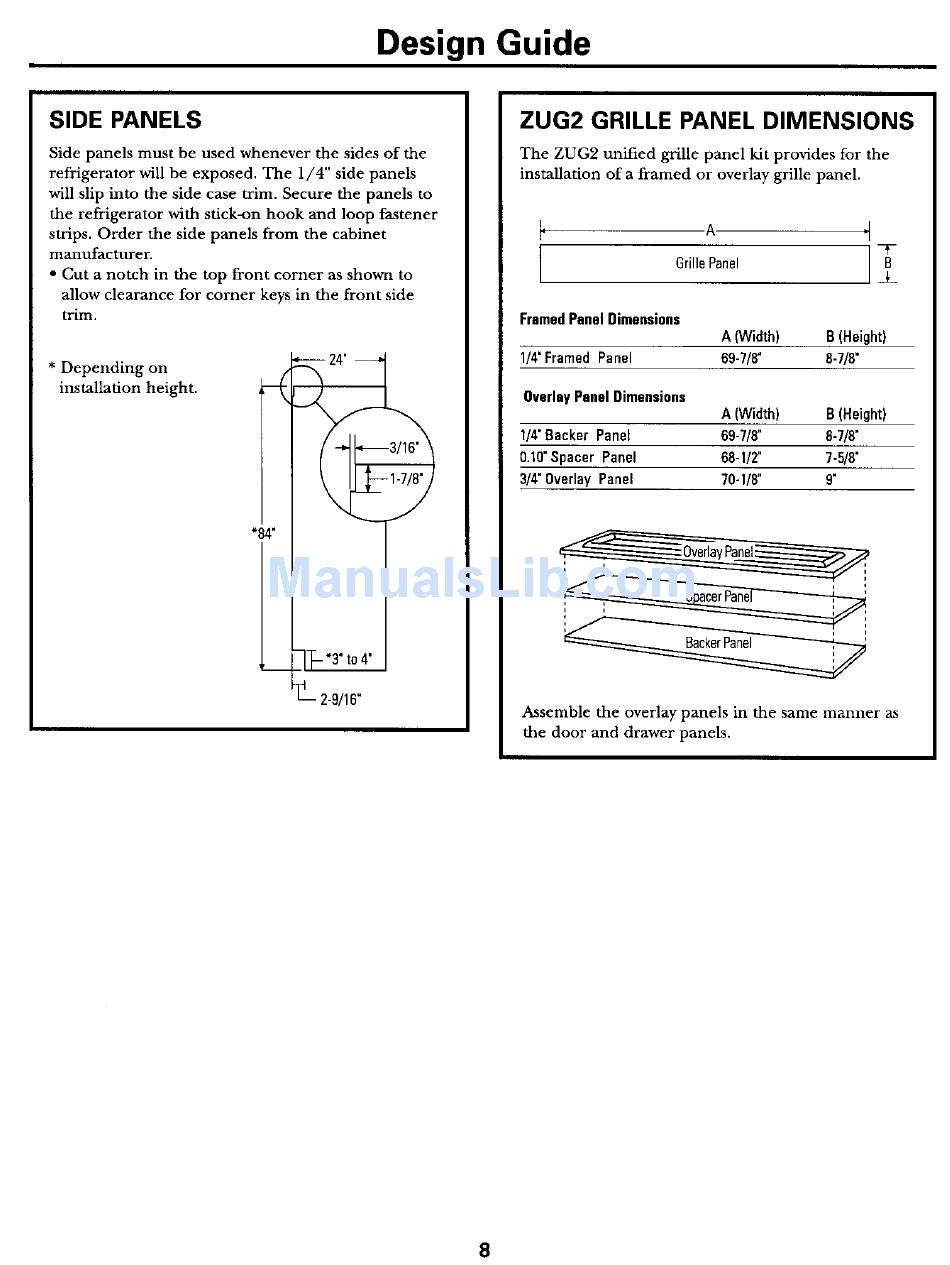

Design Guide
SIDE PANELS
Side panels
must
be used whenever
the sides of the
refrigerator
will be exposed.
The 1/4" side panels
will slip into the side case trim. Secure
the panels
to
the refrigerator
with stick-on
hook and loop fastener
strips. Order
the side panels
from the cabinet
manufacturer.
• Cut a notch
in the top front
corner
as shown
to
allow clearance
for corner
keys in the front
side
trim.
* Depending
on
installation
height.
"84"
ZUG2 GRILLE PANEL DIMENSIONS
The ZUG2 unified
grille panel
kit provides
for the
installation
of a framed
or overlay grille panel.
I
Grille Panel
IT
_ L
FramedPanel Dimensions
A (Width)
B (Height)
1/4"Framed Panel
69-7/8"
8-7/8"
OverlayPanelDimensions
A (Width)
B (Height)
1/4"Backer Panel
69-7/8"
8-7/8"
0.10"Spacer Panel
68-1/2"
7-5/8"
3/4"Overlay Panel
70-1/8"
9"
Assemble
the overlay panels
in the same manner
as
the door and drawer
panels.
