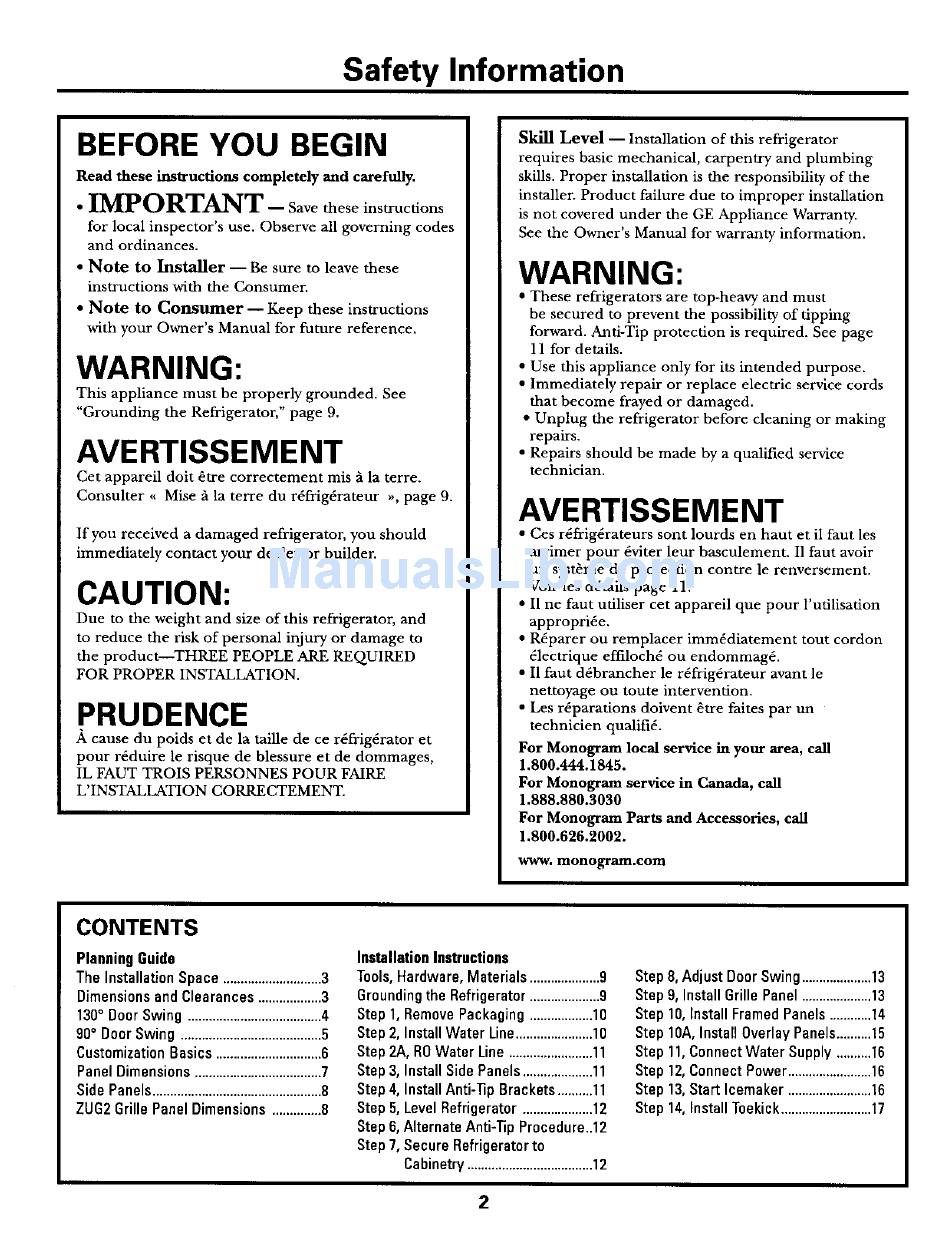

Safety Information
BEFORE YOU BEGIN
Read these ins_uctions completely and carefully.
• IMPORTANT - Save t hese i nstructions
for local inspector's use. Observe all governing codes
and ordinances.
• Note to Installer -- Be sure to leave these
instructions with the Consumer.
• Note to Consumer -- Keep these instructions
with your Owner's Manual for future reference.
WARNING:
This appliance must be properly grounded. See
"Grounding the Refrigerator," page 9.
AVERTISSEMENT
Cet appareil dolt 6tre correctement mis _ la terre.
Consulter, Mise fi la terre du rdfrig6rateur ,,, page 9.
If you received a damaged refrigerator, you should
immediately contact your dealer or builder.
CAUTION:
Due to the weight and size of this refrigerator, and
to reduce the risk of personal injury or damage to
the product--THREE PEOPLE ARE REQUIRED
FOR PROPER INSTALLATION.
PRUDENCE
A. cause du poids et de la taille de ce r6frig_rator et
pour r6duire le risque de blessure et de dommages,
IL FAUT TROIS PERSONNES POUR FAIRE
L'INSTALLATION CORRECTEMENT.
Skill Level -- Installation of this refrigerator
requires basic mechanical, carpentry and plumbing
skills. Proper installation is the responsibility of the
installer. Product failure due to improper installation
is not covered under the GE Appliance Warranty.
See the Owner's Manual for warranty information.
WARNING:
• These refrigerators are top-heavy and must
be secured to prevent the possibility of tipping
forward. Anti-Tip protection is required. See page
11 for details.
• Use this appliance only for its intended purpose.
• Immediately repair or replace electric service cords
that become frayed or damaged.
• Unplug the refrigerator before cleaning or making
repairs.
• Repairs should be made by a qualified service
technician.
AVERTISSEMENT
• Ces rdfrigdrateurs sent lourds en haut et il faut les
arrimer pour 6viter leur basculement, I] faut avoir
un syst_me de protection centre le renversement.
Voir les d6tails page 11,
• Il ne faut ufiliser cet appareil que pour l'utilisation
appropride.
• R6parer ou remplacer imm6diatement tout cordon
dlectrique effilochd ou endommag6.
• Il faut ddbrancher le r6frig6rateur avant le
nettoyage ou toute intervention.
• Les r_parations doivent 6tre faites par un
technicien qualifi6.
For Monogram local service in your area, call
1.800.444.1845.
For Monogram service in Canada, call
1.888.880.3030
For Monogram Parts and Accessories, call
1.800.626.2002.
www. monogram.com
CONTENTS
PlanningGuide
The Installation Space ............................ 3
Dimensions and Clearances .................. 3
130 ° DoorSwing...................................... 4
90° DoorSwing ........................................ 5
Customization B asics.............................. 6
PanelDimensions .................................... 7
Side Panels ................................................ 8
ZUG2GrillePanelDimensions .............. 8
Installation Instructions
Tools, Hardware, Materials .................... 9
Groundingthe Refrigerator .................... 9
Step 1, Remove Packaging ..................10
Step 2, Install Water Line......................10
Step 2A,
R0 Water Line ........................ 1 1
Step 3, Install Side Panels .................... 1 1
Step 4, Install Anti-lip Brackets ..........11
Step 5, Level Refrigerator .................... 1 2
Step 6, Alternate Anti-Tip Procedure,,12
Step 7, Secure Refrigerator to
Cabinetry .................................... 12
Step8, Adjust Door Swing.................... 1 3
Step9, Install GrillePanel .................... 13
Step 10,Install FramedPanels............ 14
Step 1OA,Install Overlay Panels.......... 1 5
Step 11,ConnectWater Supply .......... 1 6
Step 12,ConnectPower........................ 16
Step 13,Start leemaker ........................ 16
Step 14,Install Teekick.......................... 17
