Expanded Traffic Flow Portlet

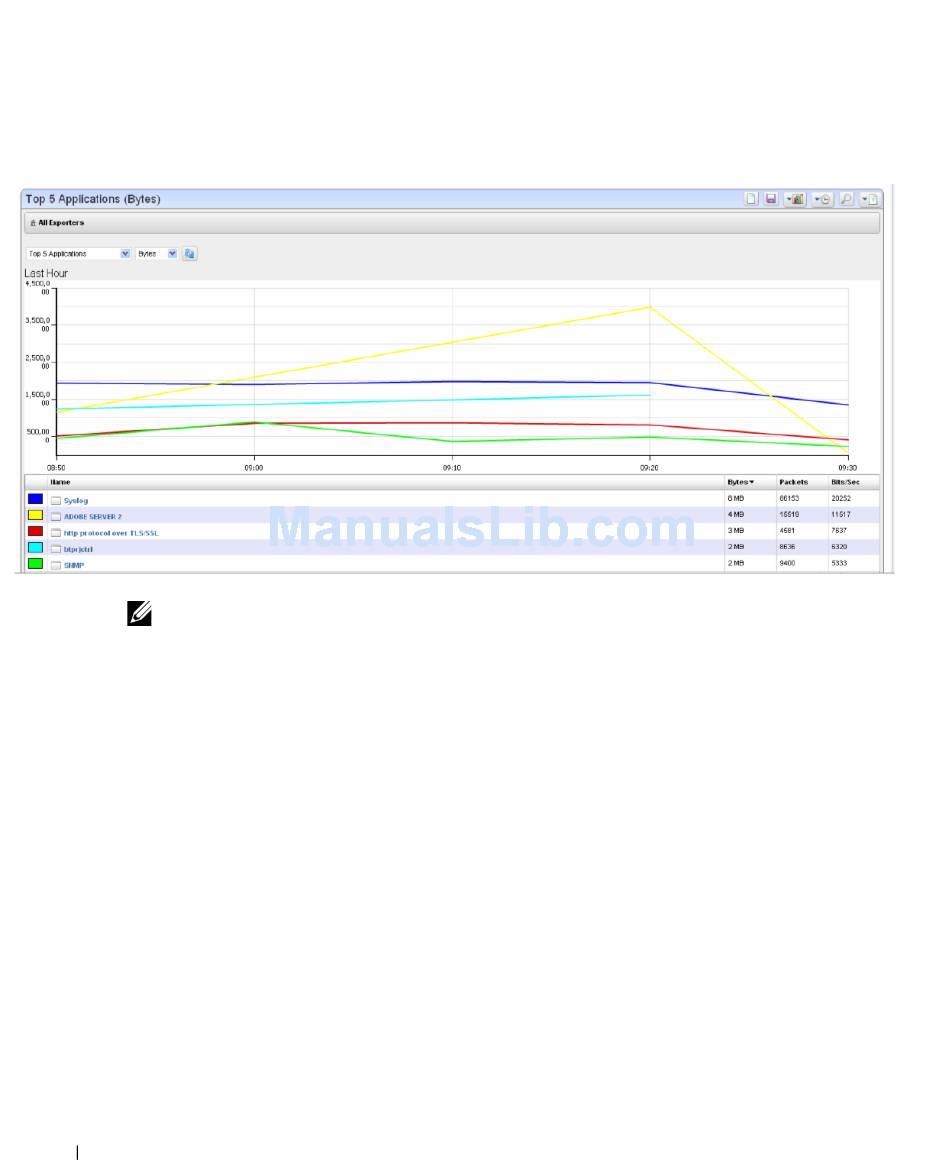

When you expand the portlet, a more complex interactive view appears. Initially, it displays a line
graph for the selected period.
NOTE:
It may seem a device reporting the same value as others is not graphed properly, but mousing over the
graph displays the value.
The following controls appear in its title bar:
Select Chart Type— Lets you change the chart type. Available chart types include Pie, Line, Bar,
Stacked Bar and Column.
Select Timeframe— Lets you change the period between Last 15 Minutes, Last Hour, Last 24
Hours, Last 5 Days and Last 30 Days.
Search—Displays a search dialogue to find specific traffic data.
Report Type—Lets you change the report type between Top 5, 10 or 25 and Bottom 5, 10 or 25.
Load View—Loads a saved traffic flow view, created with the Save button.
Save— Saves the current view to a named view.
Below the title bar a navigation bar displays the context path. See Drill Down, below, for more
about this.
Below that navigation bar a row containing the following controls appear:
Entity Type— Selects the type of entity to report on (Conversations, End points, and so on).
Attribute—Selects which attribute to graph (Bytes, Packets, Bits/Sec).
