Configuring the Discrete Batch Application

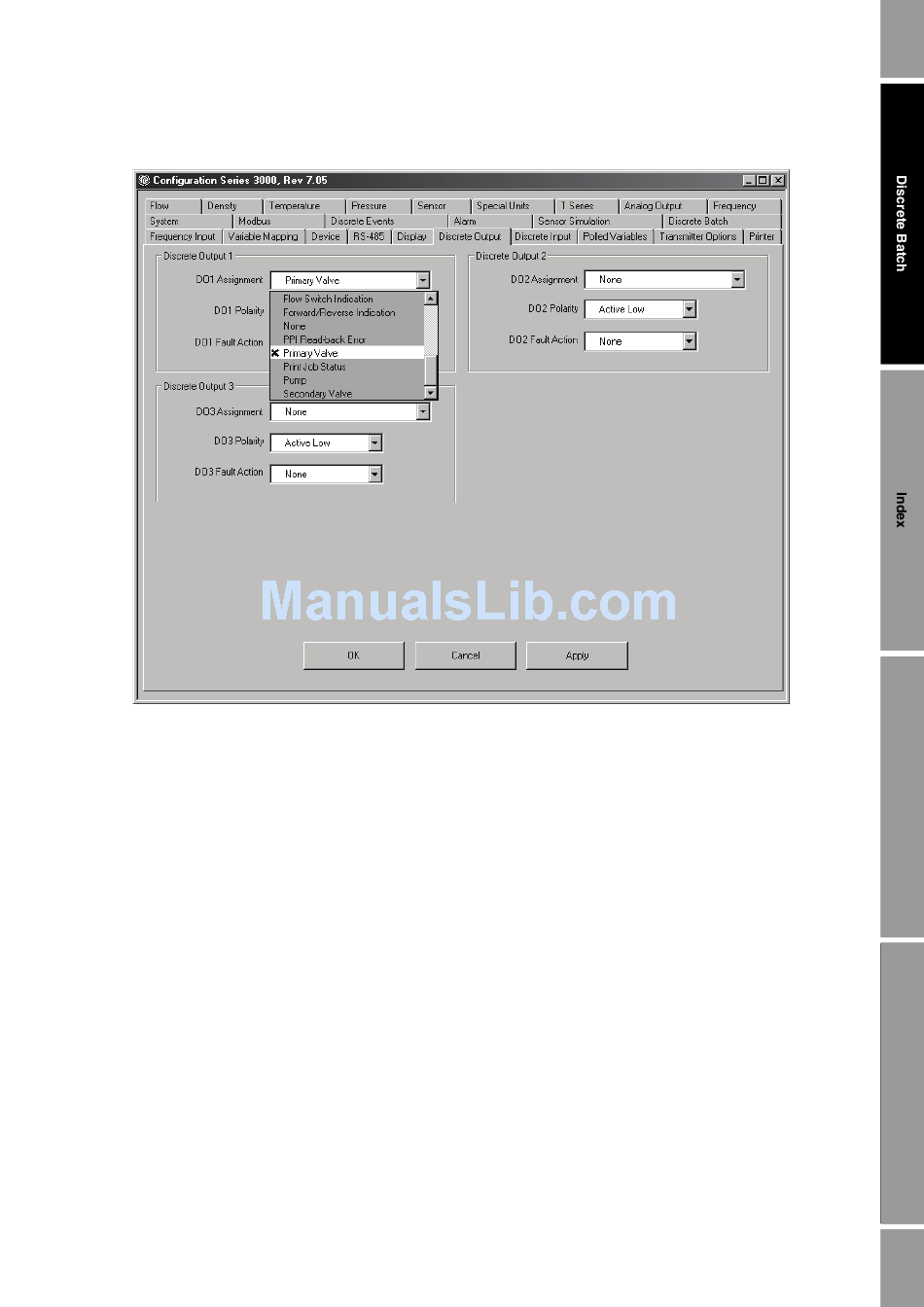

Figure B-2 Discrete Output tab
4. If desired, you can assign a batch control function to a discrete input or discrete event. See
Section B.3.4.
5. If you enabled the Batch AOC control option, you should perform batch AOC (automatic
overshoot compensation) calibration. Batch AOC is used to minimize the amount of overshoot
per batch. See Section B.5.
6. You may optionally configure the batch ticket and ticket printing. Printer and ticket options
are displayed on the
Series 3000 transmitter manual.
Installation and Use Manual
tab. For more information on printer and ticket setup, see the
Printer
75
