Using ProLink II Software

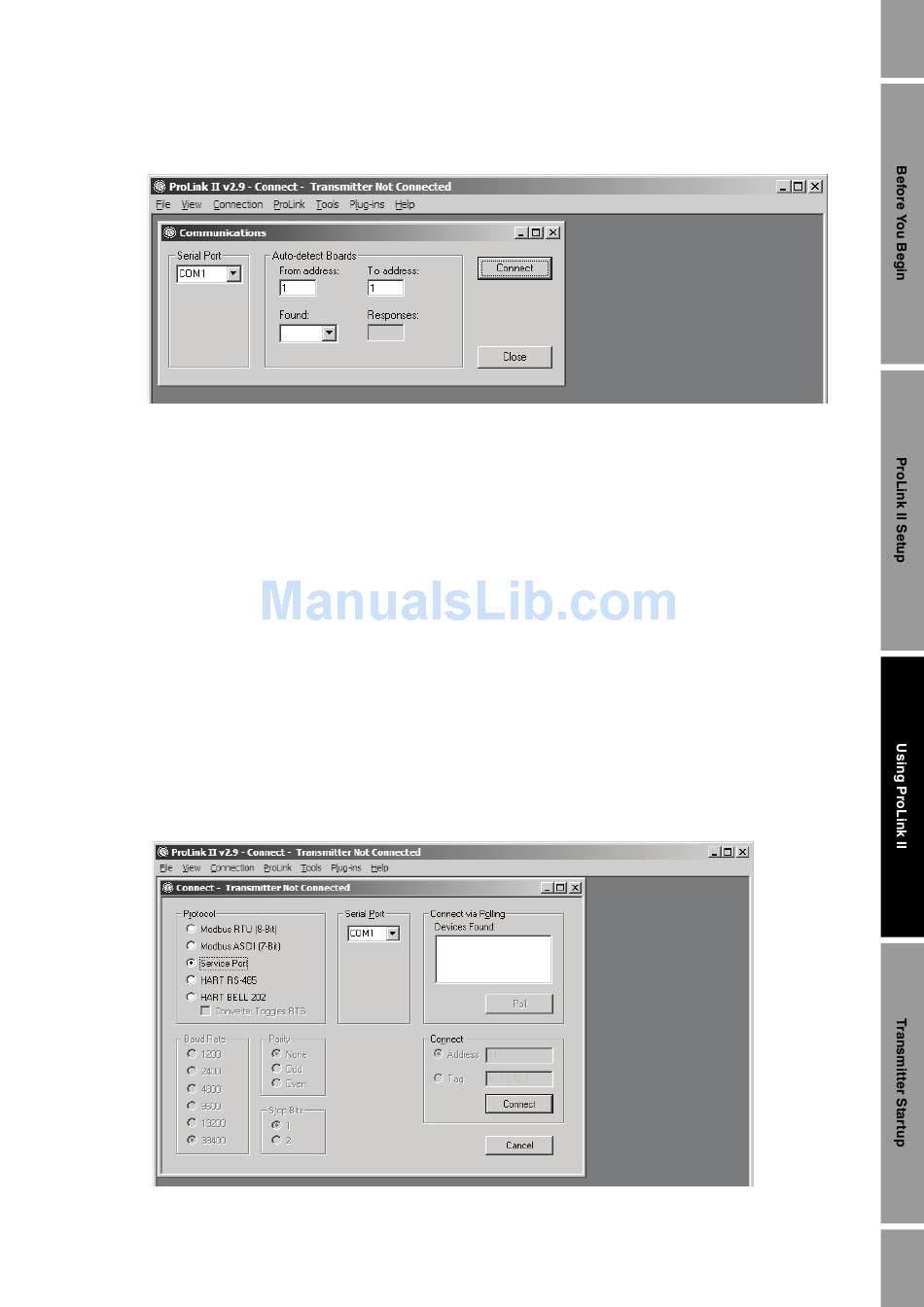

Figure 3-1 Connect to Densitometer/Viscometer window
Making the connection – all other transmitters
1. Ensure that your PC is connected to a transmitter, using one of the methods described in
Chapter 2.
2. Choose
Connection > Connect to Device
3. Select the protocol to use. Depending on the
communications options will be available for configuration.
4. Specify
Baud Rate
connection and transmitter. See Section 2.6 for more information on these parameters.
5. If you are using the USB HART Interface, select
6. Click
Connect
Alternately, if you do not know the address of your transmitter:
1. Click
Poll
list of all transmitters found.
2. Select the transmitter to connect to, and click
Figure 3-2 Connection window (all other transmitters)
Installation and Use Manual
, ,
Parity Stop Bits
.
. ProLink II will poll the network for all Micro Motion transmitters, and display a
. See Figure 3-2.
option that you choose, different
Protocol
, , and
COM Port Address/Tag
Converter Toggles RTS
OK.
as appropriate for your
.
