Initial Transmitter Startup Procedures
Note the following:
• If you have two mA outputs, you should trim both.
• You must trim the output at both the 4 mA and 20 mA points to ensure appropriate
compensation across the entire output range.
• If you are trimming the primary mA output, and you are connected to the transmitter via the
primary mA output (HART/Bell 202), the communication signal to ProLink II will affect the
reading. Disconnect ProLink II before reading the output, then reconnect and resume the trim,
after taking the reading. If you are using any other protocol, this is not required.
• Any trimming performed on the output should not exceed ±200 microamps. If more trimming
is required, contact Micro Motion customer support.
To trim mA outputs, choose
. You can also initiate mA trim from the Commissioning Wizard:
Milliamp 1 Trim
1. Choose
Tools > Commissioning Wizard
2. Click
Task 6: Trim mA outputs
3. Click
Next

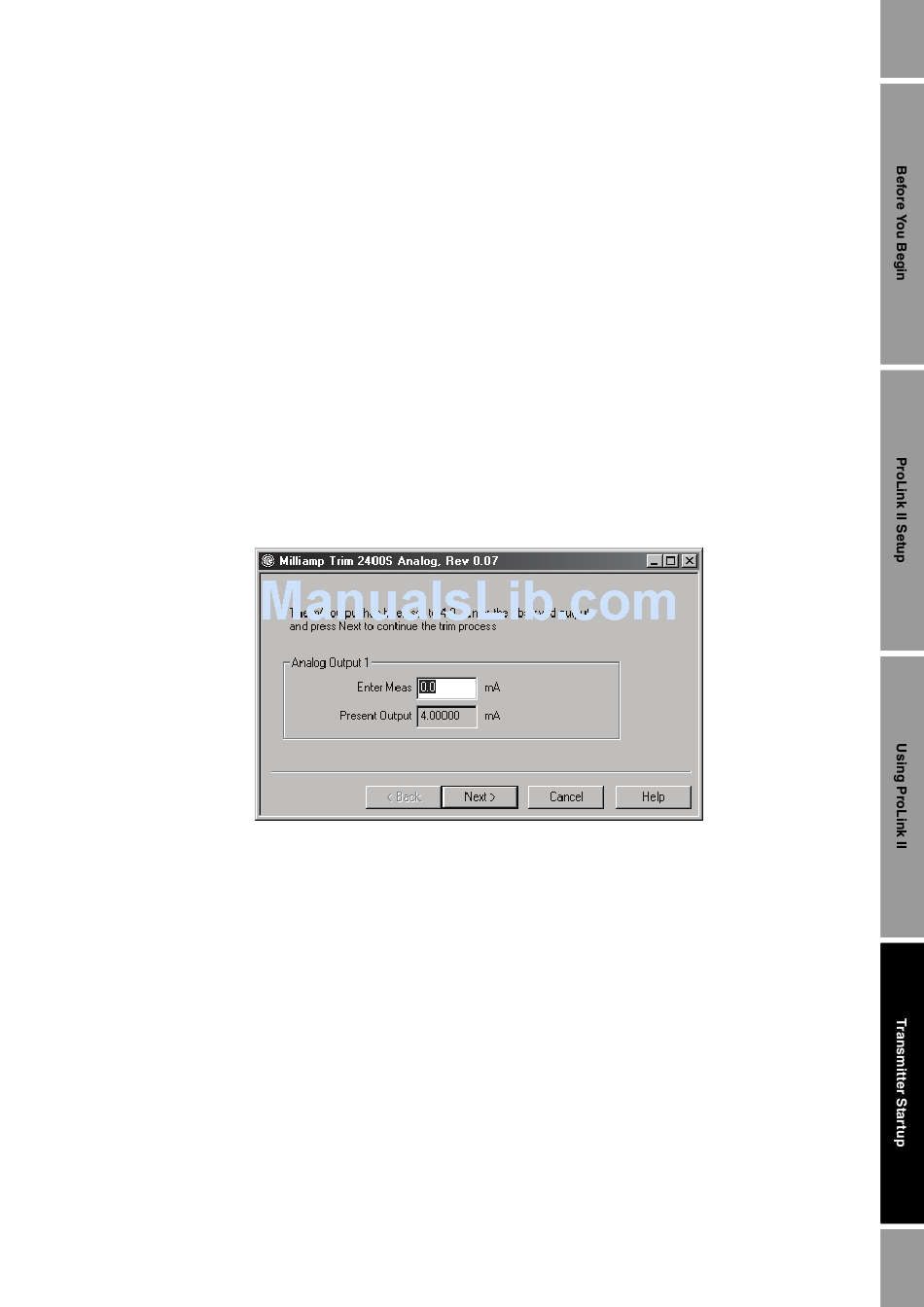

Figure 4-2 Milliamp trim wizard – Screen 1
This screen allows you to compare the transmitter output (the
output level being received at an external device.
4. Read the mA output level at the receiving device.
5. Type the value that you read at the receiving device in the
6. Click
Next
output in the following screen:
Installation and Use Manual
ProLink > Calibration > Milliamp 1 Trim
.
.
. At this point, the transmitter trims the milliamp output and displays the adjusted
or
ProLink > Calibration >
.
Present Output
Enter Meas
value) to the
box.
