Installation and Setup

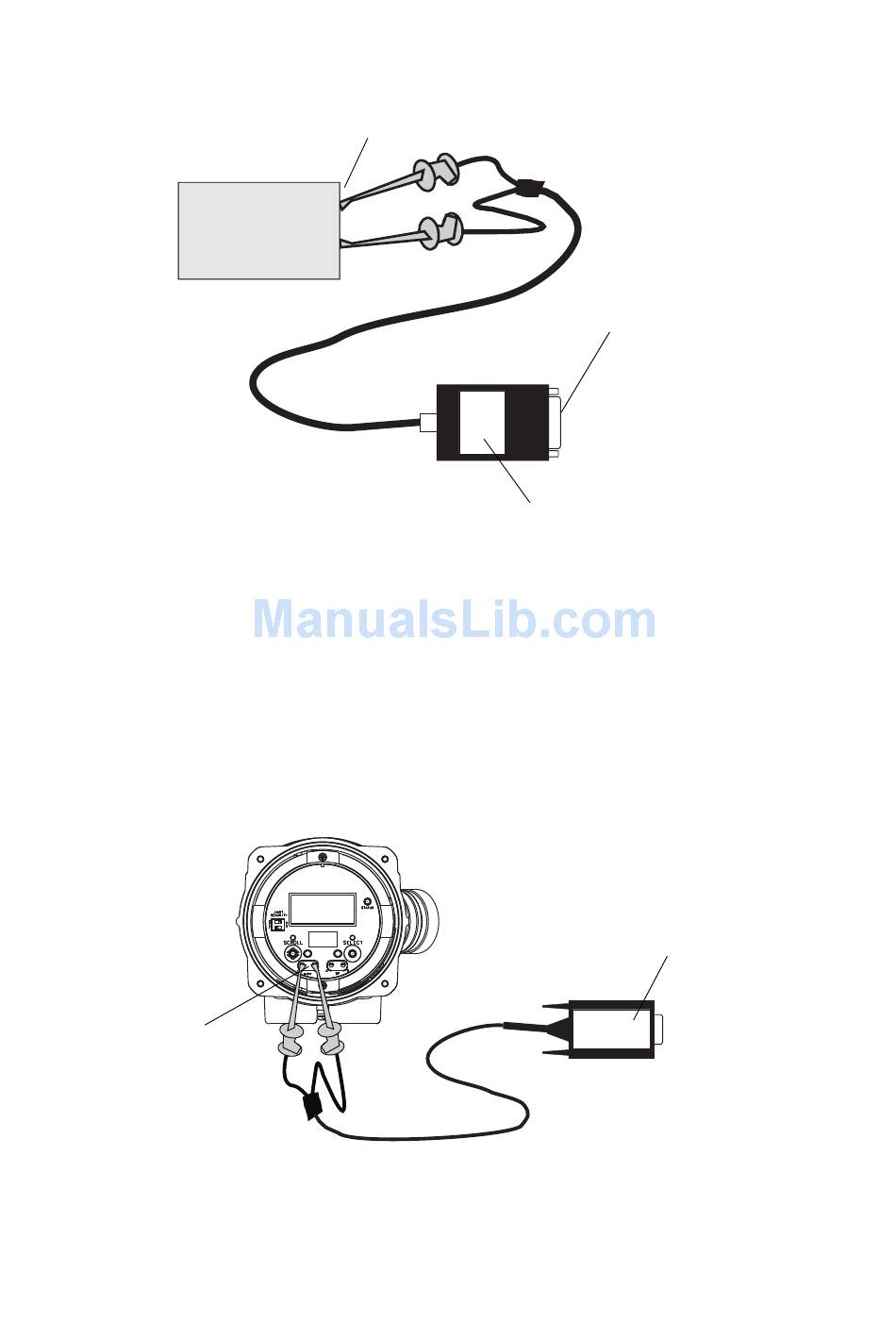

Figure 2-8 Modbus/RS-485 temporary connection to the service port
Notes:
• For Model 1700/2700, Model 2400S, and LF-Series field-mount transmitters, the service port is available at any
time.
• For Model 1500/2500, Series 3000, and LF-Series DIN rail transmitters, the service port is available during a
10-second interval after power-up. If a service port connection is made during this time, the ports will remain in
service port mode.
• Ensure that no other Modbus master devices are currently active on the network.
• All service ports are accessed using the default address of 111. If you are connecting over a multidrop network
with multiple service ports, it is not possible to specify which device to connect to.
Figure 2-9 HART/Bell 202 temporary connection to HART clips
HART clips
Notes:
• If necessary, add resistance across the HART clips to bring the total resistance within 250–600 Ω.
16
Service port terminals
Transmitter
Attach serial port or USB adapter
if necessary (not shown)
RS-232 <-> 2-wire RS-485
Interface Converter
Bell 202 signal
converter
®
ProLink II Software for Micro Motion
®
Transmitters
