Power Supply Interface Signals

The BMC controls the POWER_ON signal. It connects to the chassis power subsystem and is
used to request power state changes (asserted = request power on). The PS_PWRGD signal
from the chassis power subsystem indicates the current power state (asserted = power is on).
Figure 26 shows the power supply control signals and their sources. To turn the system on, the
BMC asserts the PS_ON signal and waits for the PS_PWRGD signal to assert in response,
indicating DC power is on.
The PS_PWRGD signal is normally asserted within 1.5 seconds, but the timeout interval can be
set longer to add flexibility in manufacturing test environments. The POWER_GOOD signal
must remain stable and not glitch when asserted. The BMC uses the state of the PS_PWRGD
signal to monitor whether the power supply is on and operational, and to confirm whether the
system power state matches the intended system on/off power state that was commanded with
the PS_ON signal.
5.2.2

Power-Good Dropout

De-assertion of the PS_PWRGD signal generates an interrupt that the BMC uses to detect
either power subsystem failure or loss of AC power. A power-good dropout is defined as the
PS_PWRGD signal de-asserting when the system should be in the DC power-on state as
determined by the state of the PS_ON signal. If the BMC detects a power-good dropout, the
following occurs:
1. Hardware powers down the system.
2. The BMC asserts the Power Unit Failure offset of the Power Unit sensor and logs a SEL
event.
Revision 1.3

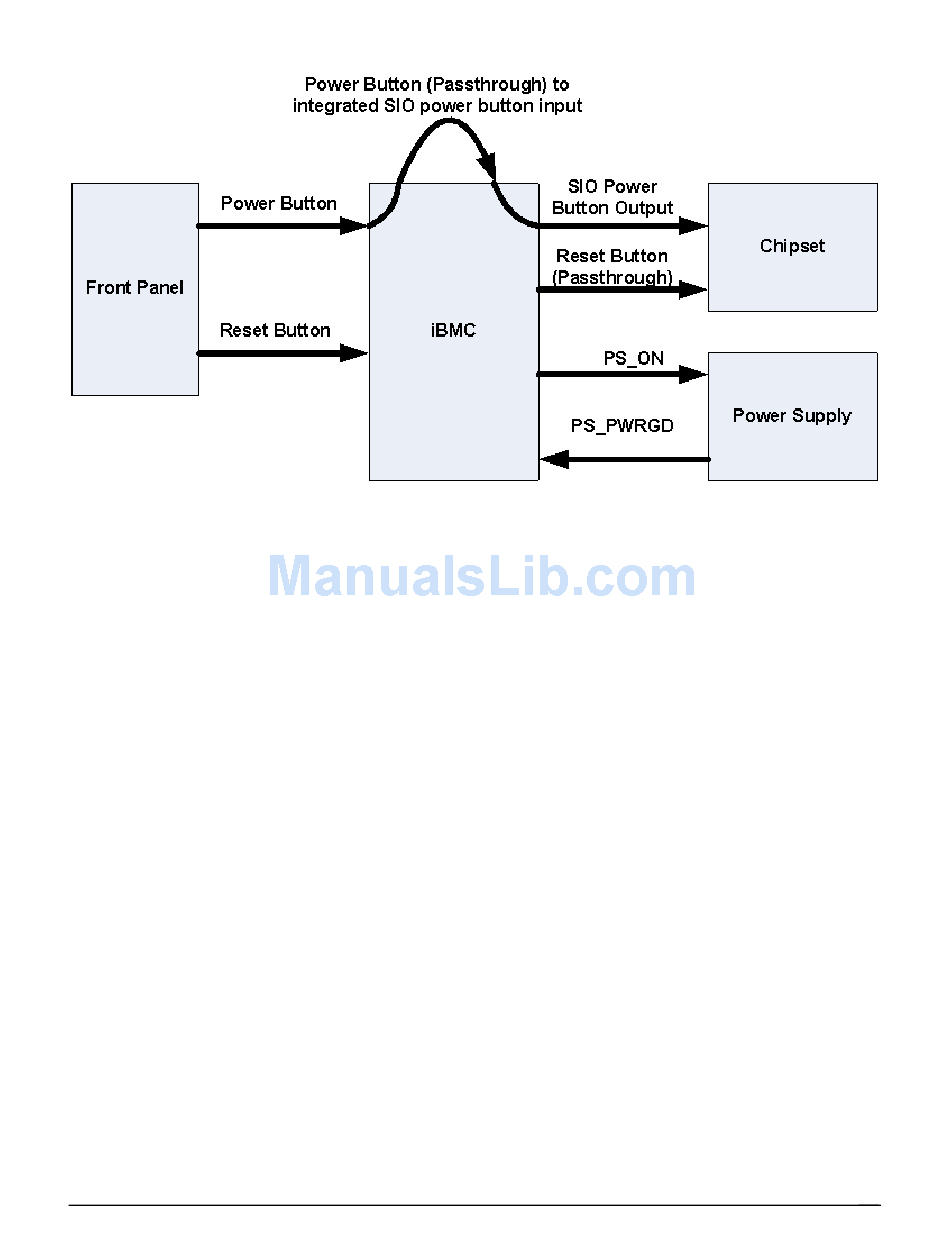

Figure 26. BMC Power/Reset Signals
