Server Board Overview
Power management
-
o Support for power management of all capable components
o ACPI compliant motherboard and BIOS
Manufacturing
-
o Surface mount technology, double-sided assembly
o Eight layer PCB
Form factor
-
o 13-inch by 5.9-inch, 1U thermally optimized design
2.2

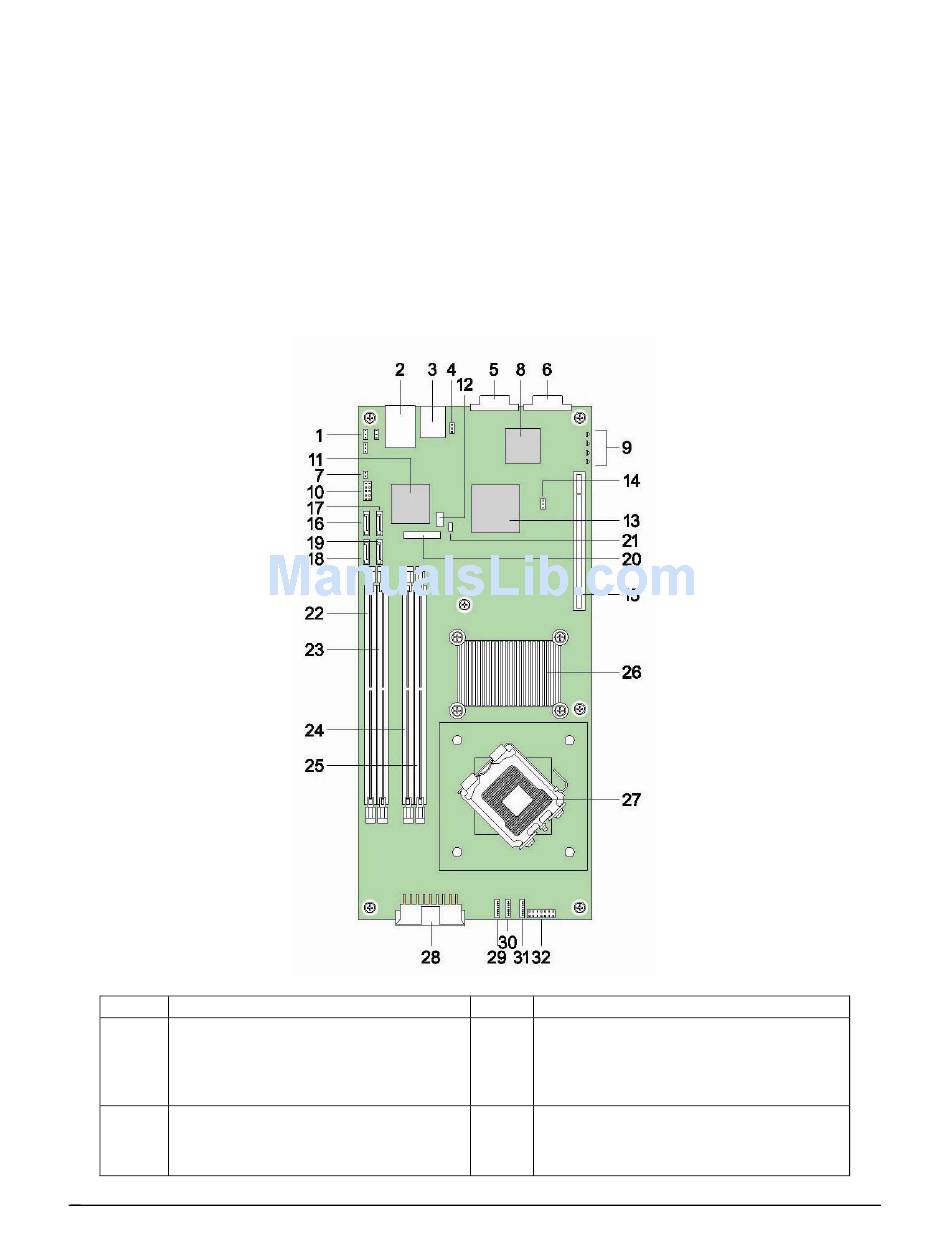

Server Board Layout

Ref #
1 (J1A2) BIOS Recovery Mode jumper
(J1A3) CMOS Clear jumper
(J1A4) Integrated BMC Boot Block Write
Protect jumper
2 (Bottom) USB Port 0
(Middle) USB Port 1
(Top) NIC1 RJ-45 connector
4
Description
Intel order number E15331-006
Ref # Description
17 SATA Port 3
18 SATA Port 0
Intel® Server Board X38ML
Revision 1.3
