Replacing a Hot Swap Power Supply (BRP configuration
only)
Warning: Hazardous conditions, power supply: Hazardous voltage, current, and energy levels are
present inside the power supply. There are no user-serviceable parts inside it; servicing of
the power supply should be done only by technically qualified personnel.
1. Observe the safety and ESD precautions listed in
2. Remove power cable from defective power supply.
3. Press up on green latch (see letter "A" in the following figure) while pulling on handle
(see letter "B") to remove hot swap power supply from chassis.

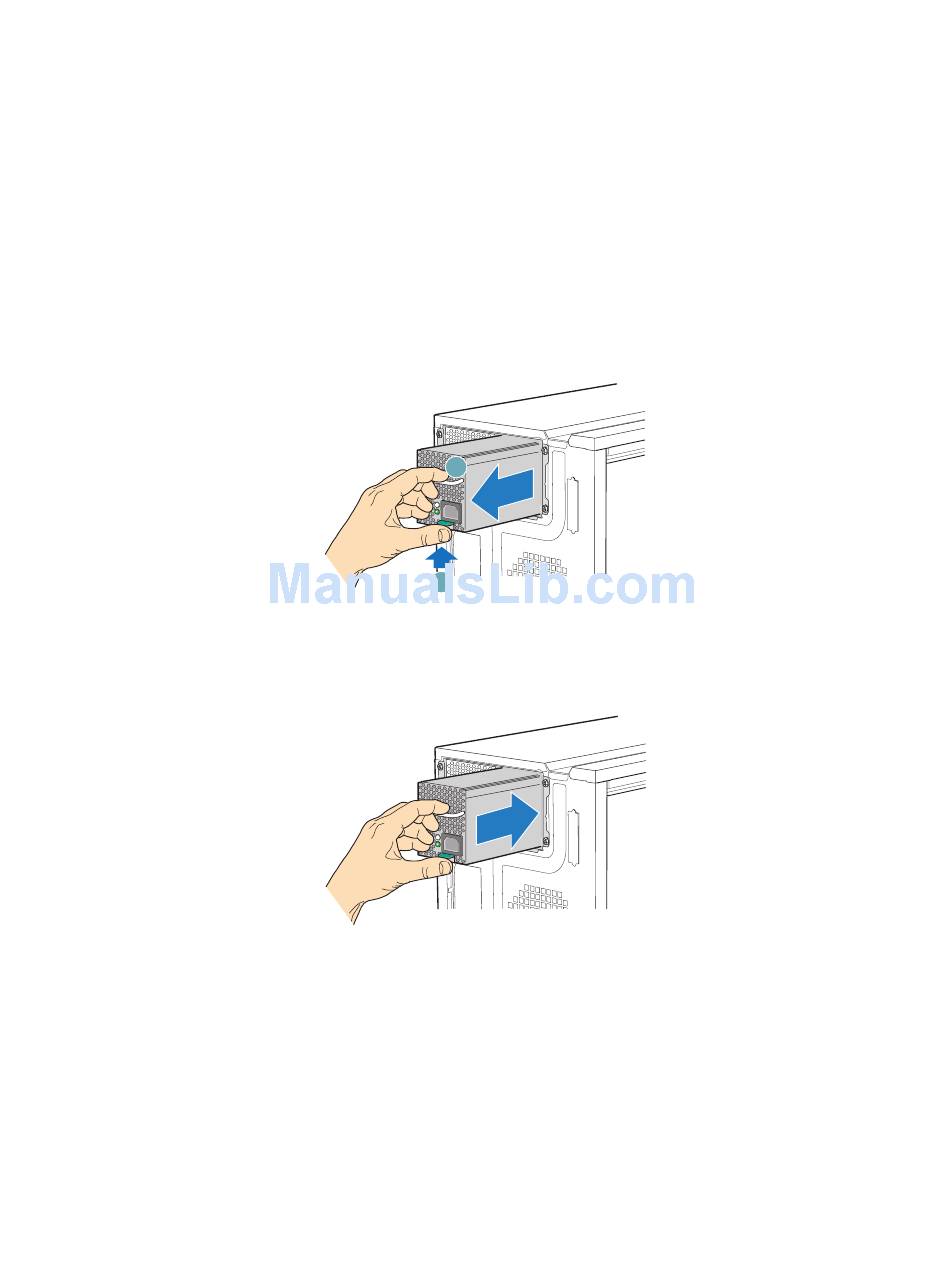

Figure 66. Removing Hot Swap Power Supply Module from Chassis
4. Insert new hot swap power supply module.
Figure 67. Inserting Hot Swap Power Supply Module in Chassis
5. Connect power cable to replaced hot swap power supply.
Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide
Hardware Installations and Upgrades
Appendix A, "Safety
B
A
TP00856
TP00854
Information".
