Connectors

2.8.1

Rear panel connectors

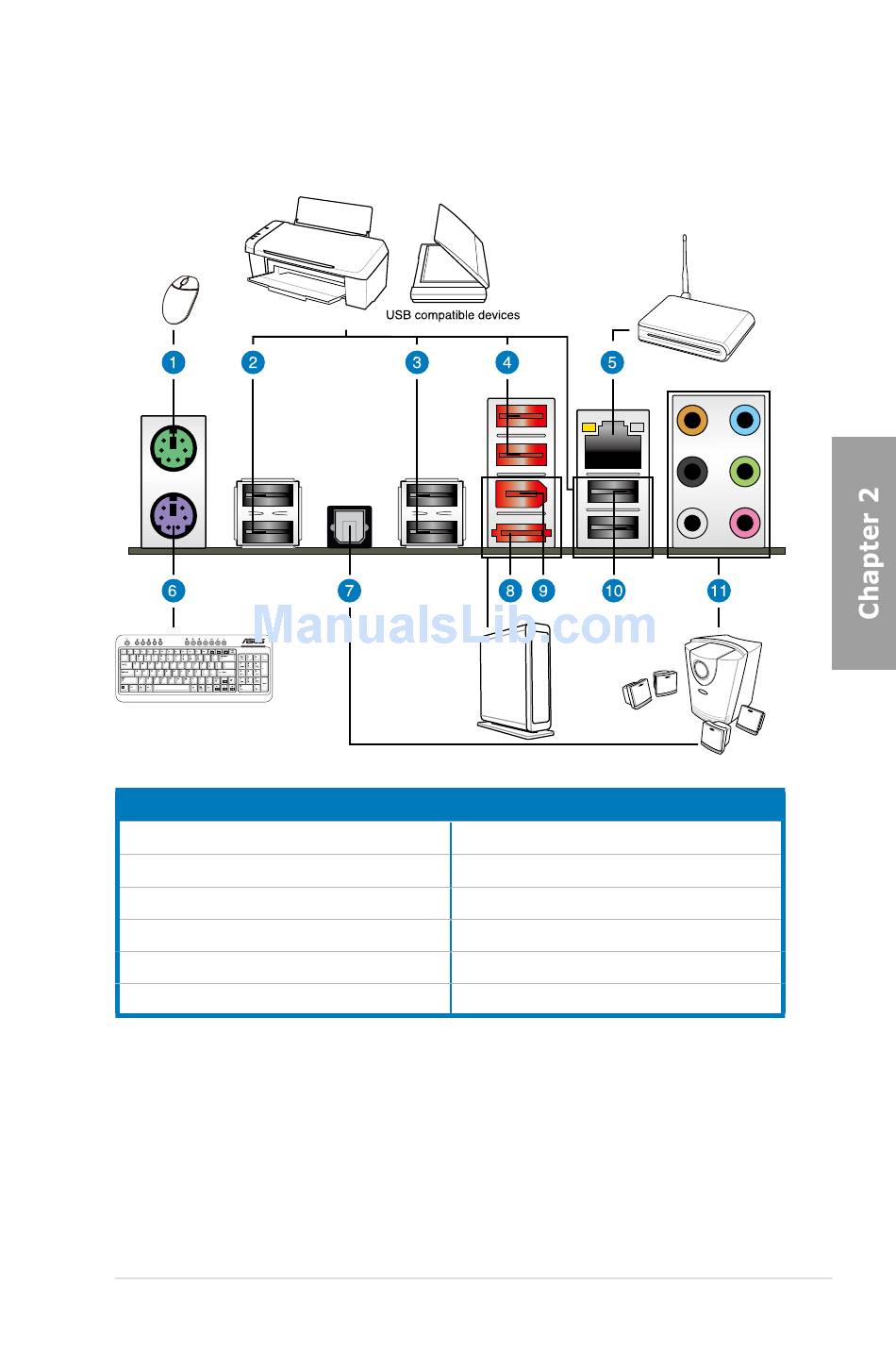

Rear panel connectors
1. PS/2 mouse port (green)
2. USB 2.0 ports 7 and 8
3. USB 2.0 ports 5 and 6
4. USB 2.0 ports 3 and 4
5. LAN (RJ-45) port*
6. PS/2 keyboard port (purple)
* Refer to the LAN port table on the next page.
** Refer to the audio port definitions table on the next page.
ASUS P7P55D
7. Optical S/PDIF Out port
8. External SATA port
9. IEEE 1394a port
10. USB 2.0 ports 1 and 2
11. Audio I/O ports**
