PCI slots

The PCI slots support cards such as a LAN card, SCSI card, USB card, and other cards that
comply with PCI specifications. Refer to the figure below for the location of the slot.
2.5.5

PCI Express x1 slots

This motherboard supports PCI Express x1 network cards, SCSI cards, and other cards that
comply with the PCI Express specifications. Refer to the figure below for the location of the
slots.
2.5.6

PCI Express 2.0 x16 slots

This motherboard has two PCI Express 2.0 x16 slots that support PCI Express x16 2.0
graphic cards complying with the PCI Express specifications. Refer to the figure below for the
location of the slots.

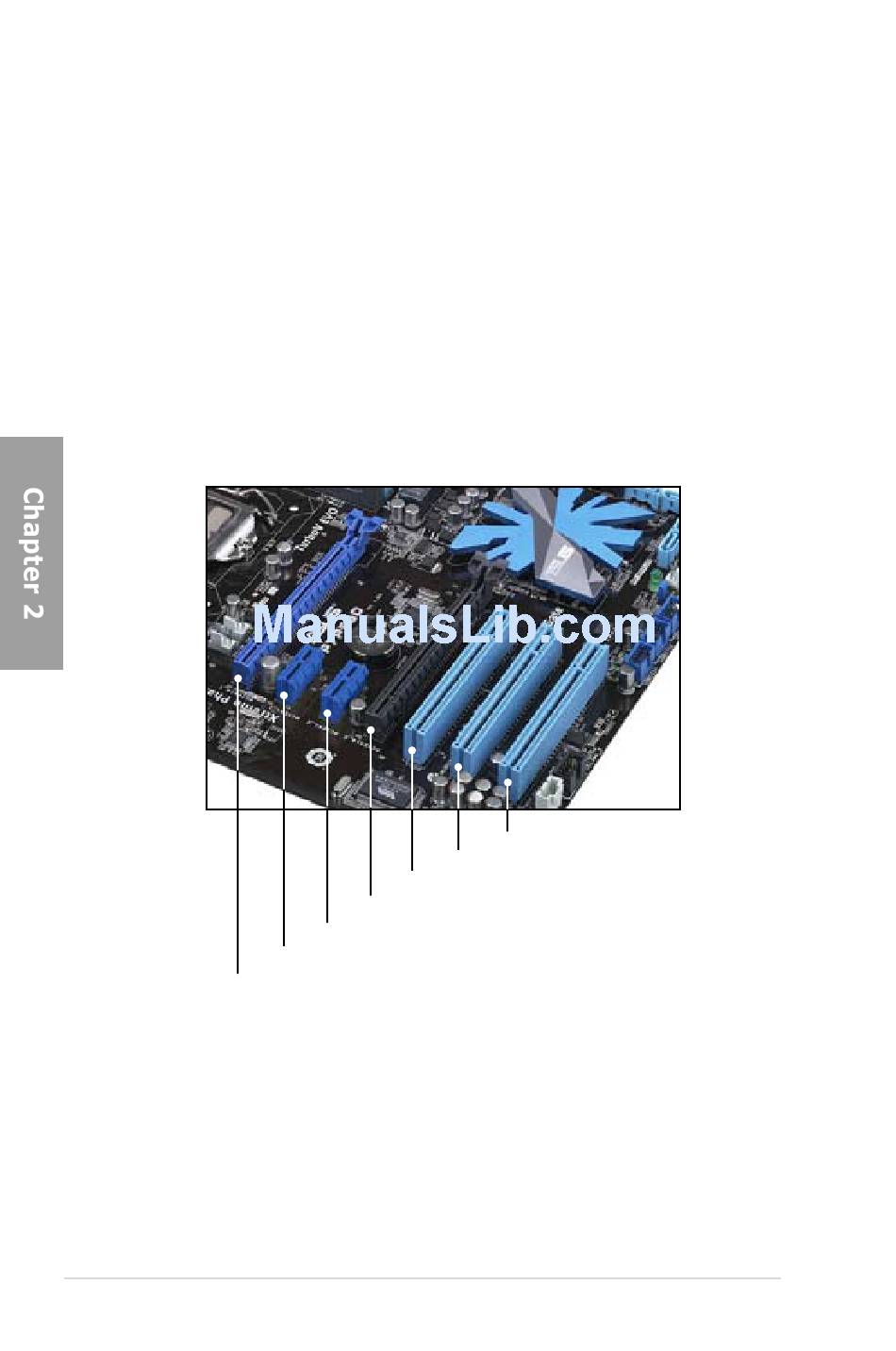

PCIe 2.0 x16_1 slot (blue, at x16 link)
2-22
PCI slot 1
PCIe 2.0 x16_2 slot (black, at x4 link)
PCI Express x1_2 slot
PCI Express x1_1 slot
PCI slot 3
PCI slot 2
Chapter 2: Hardware information
