Intel Desktop Boards D850MD and D850MV Product Guide

Back Panel Connectors

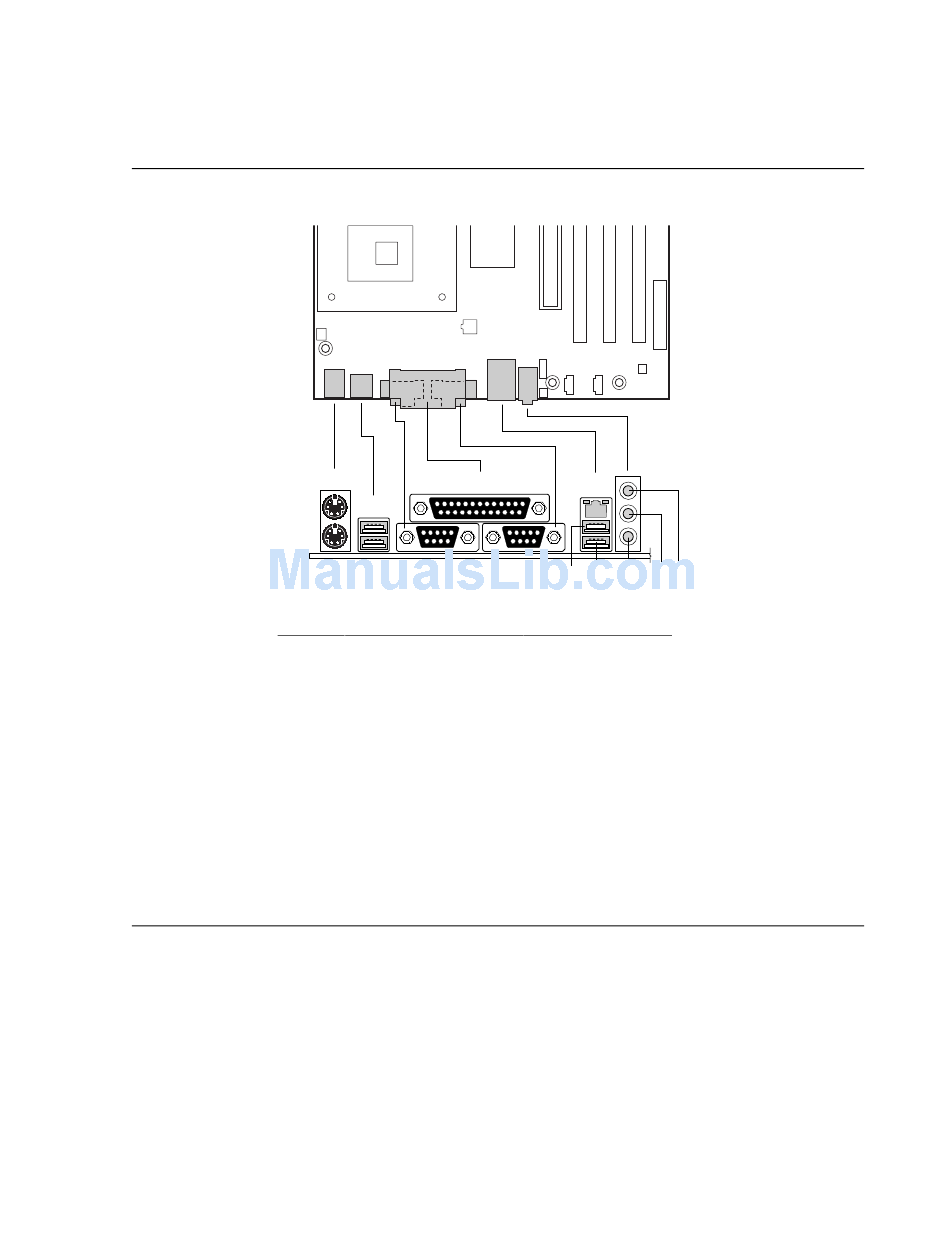

Figure 21 shows the back panel connectors on the board.
✏
NOTE
The audio line out connector, located on the back panel, is designed to power either headphones
or amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.
66
A
C
B D F
Item Description
A PS/2 mouse port
B PS/2 keyboard port
C USB port 0
D USB port 1
E Parallel port
F Serial port
G Serial port
H RJ-45 (optional)
I USB port 2
J USB port 3
K Mic in
L Audio line out
M Audio line in
Figure 21. Back Panel Connectors
E
H
G I J K
OM11830
Color
Green
Purple
Black
Black
Burgundy
Teal
Teal
Black
Black
Black
Pink
Lime green
Light blue
L M
