9. Remove the socket protective cover. Grasp the socket protective cover tab and pull
away from the load plate (see letter "A" in the following figure). Remove the socket
protective cover (see letter "B") and store for future use.
Note: Retain the socket protective cover for later use when removing a processor
10. Lower the processor load plate (see letter "A" in the following figure). With your
finger, push down on the load plate (see letter "B"). Lower the socket lever until it is
fully latched (see letter "C").
11. Ensure that the thermal material is intact on the bottom of the heatsink.
12. Align the heatsink over the processor, thermal material side down, with the captive
screws in line with the holes on the heatsink retention module. Press down firmly on
the heatsink.
14
that will not be replaced.

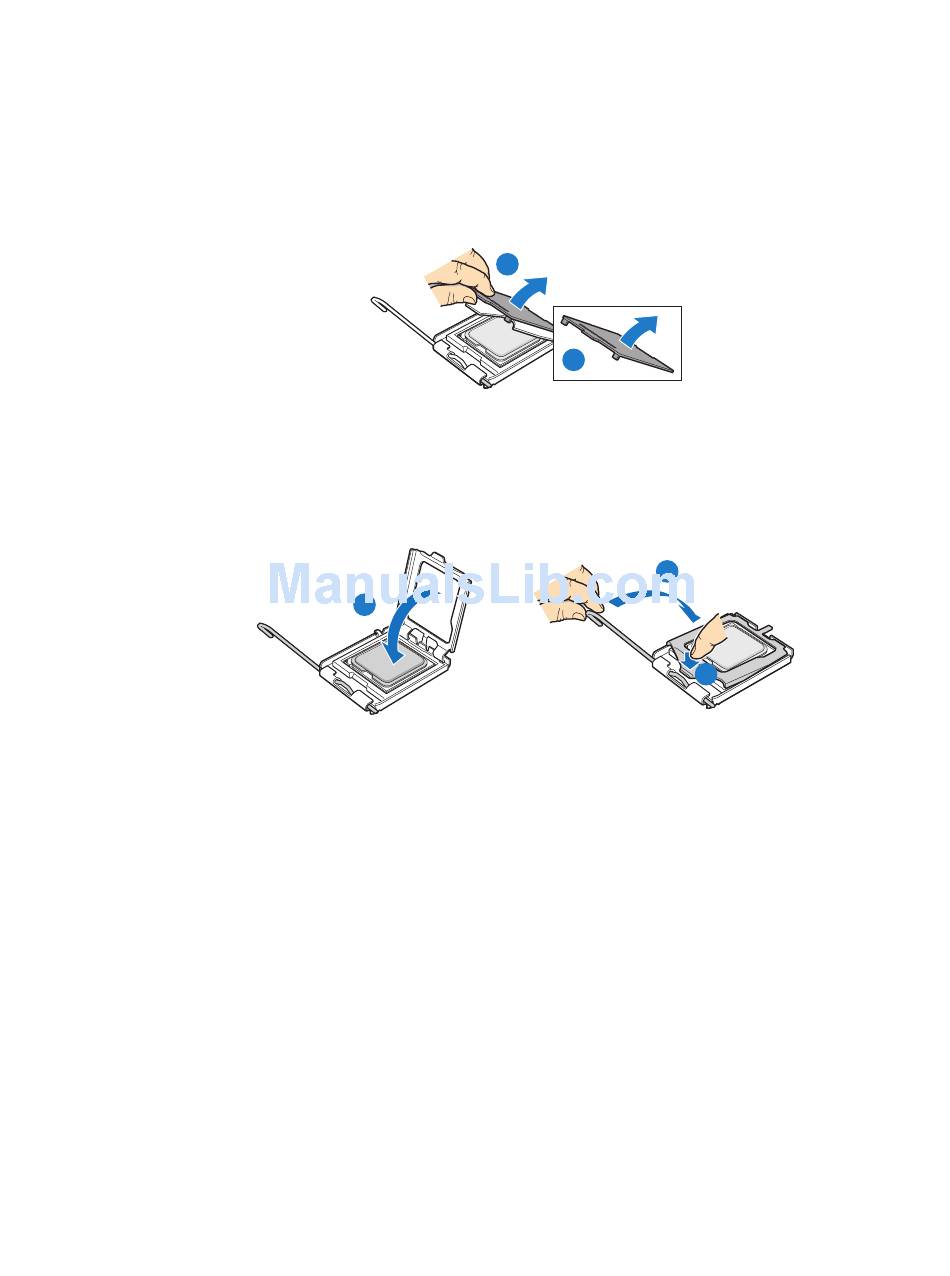

Figure 13. Removing Socket Protective Cover

A

Figure 14. Lowering Load Plate and Socket Lever

A
B
TP02076
C
Intel® Compute Module MFS5000SI User Guide
B
AF002224
