Installing or Replacing a Processor
Caution: Only processors validated for use in the Intel® Compute Module MFS5000SI should be
installed. You may damage the compute module if an inappropriate processor is installed.
Installing a Processor
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2. If the compute modulecompute module is installed in a server system, see
a Compute Module from the Server System" on page 7
3. Remove the top cover. For instructions, see
on page
4. Remove the processor air duct.
Intel® Compute Module MFS5000SI User Guide
8.
1
I/ O
2
1
2
ID

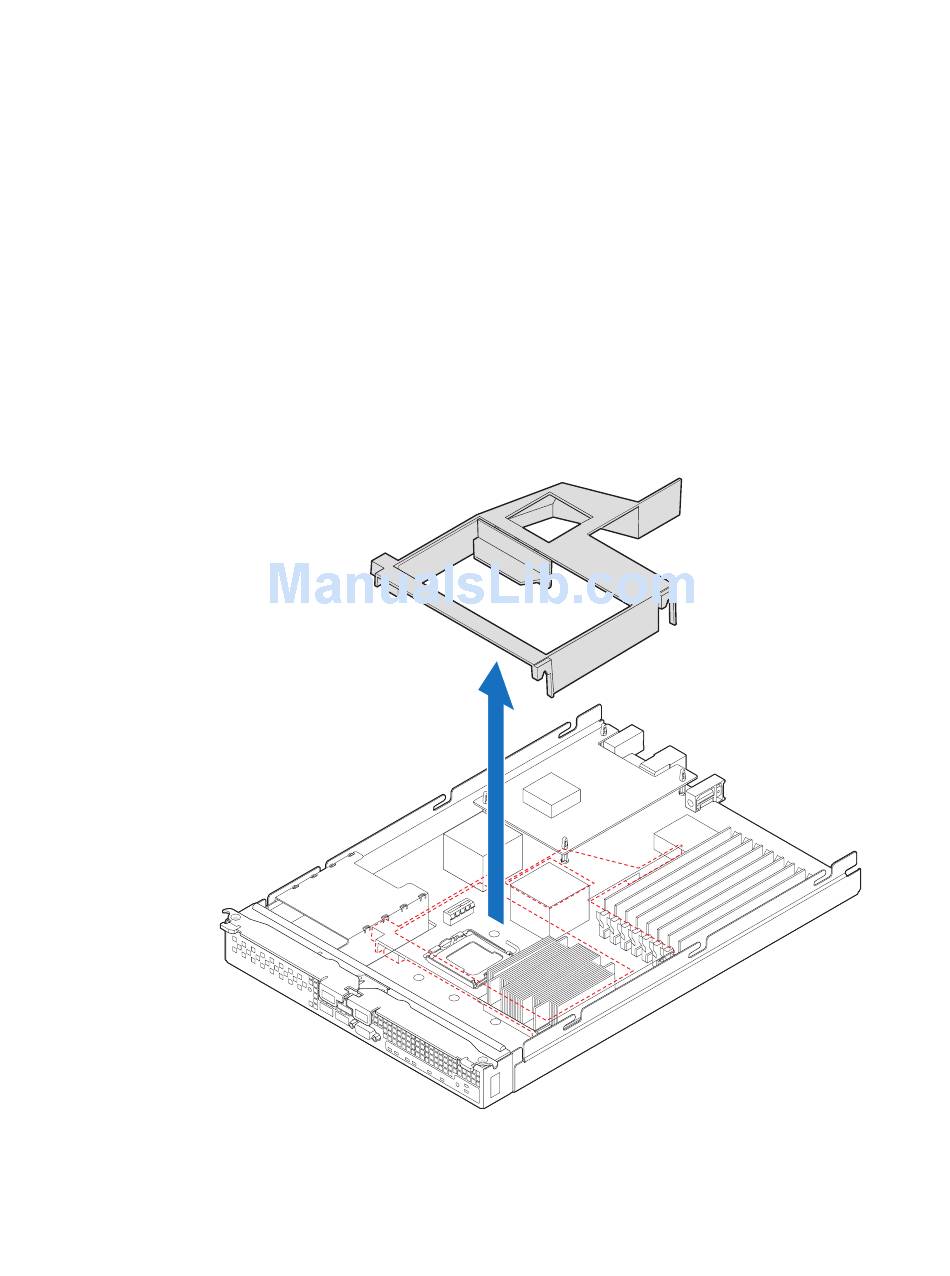

Figure 8. Removing Processor Air Duct
for removal instructions.
"Opening and Removing the Top Cover"
"Removing
AF002404
11
