9. Secure the mezzanine card to the standoffs with the four screws previously removed.
10. Reinstall the top cover. For instructions, see
on page
11. Reinstall the server compute blade in the server system. For instructions, see
"Installing a Compute Module into the Server System" on page
Removing a Mezzanine Card
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2. If the compute module is installed in a server system, see
Module from the Server System" on page 7
3. Remove the top cover. For instructions, see
on page
Intel® Compute Module MFS5000SI User Guide
1
1
I/ O
I/ O
2
2
1
1
2
2
ID
ID

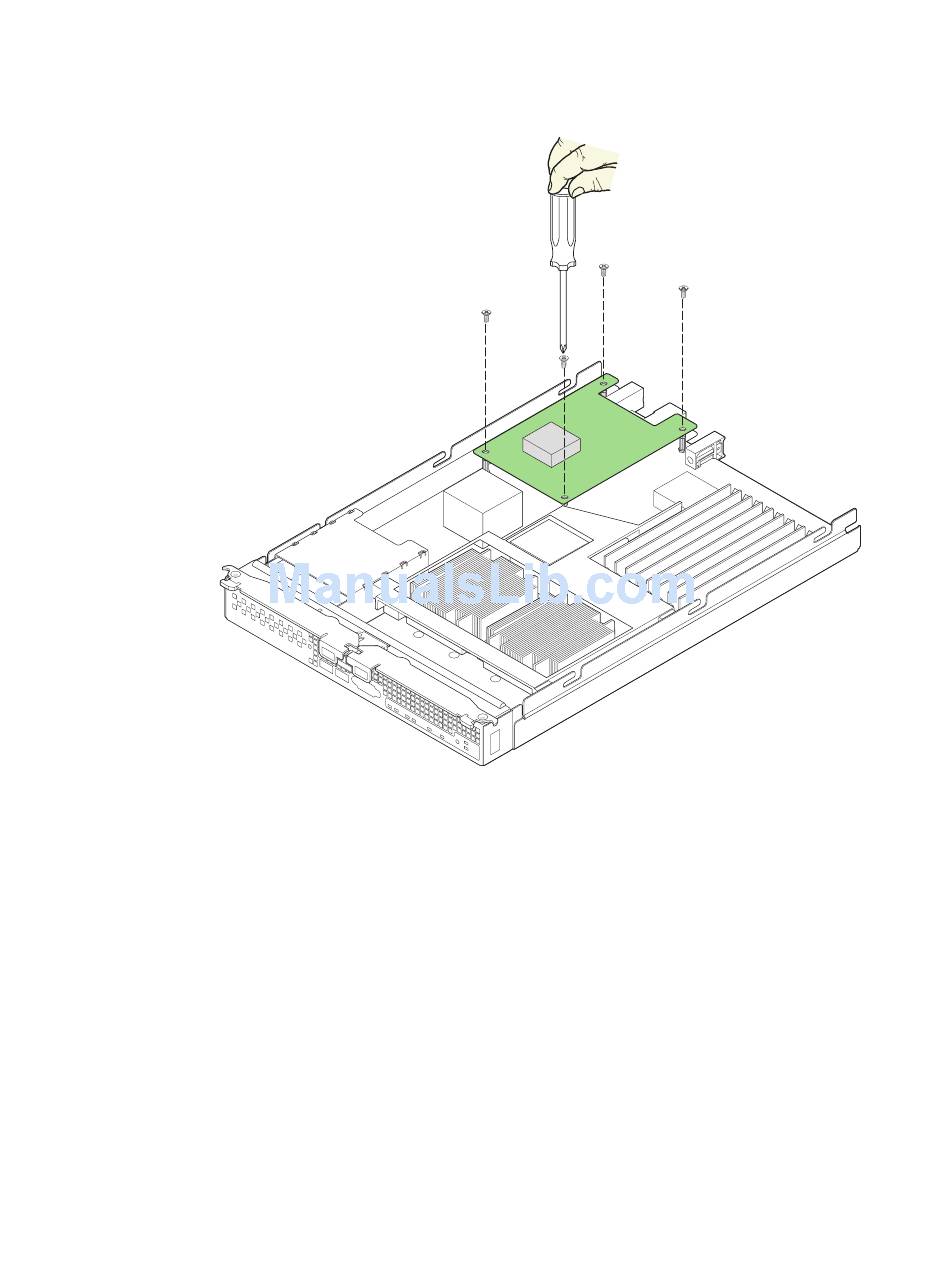

Figure 38. Securing Mezzanine Card to Standoffs
10.
8.
"Replacing and Closing the Top Cover"
8.
"Removing a Compute
for removal instructions.
"Opening and Removing the Top Cover"
AF002458
