Configuration Jumpers

Fi
BIOS Bank Select
3
Default BOOT FROM
PASSWORD CLR
2
3
BMC Force Update
Enabled
CMOS CLR
3
CLEAR
CMOS
AF002220
Jumper Name
J7A1: BMC Force
Update
J4A1: Password
Clear
J1F2: CMOS
Clear
4
2
EMERGENCY
BIOS IMAGE
J3A3
Default
CLEAR
PASSWORD
J4A1
2 3
Default
Disabled
J7A1
2
Default
J1F2

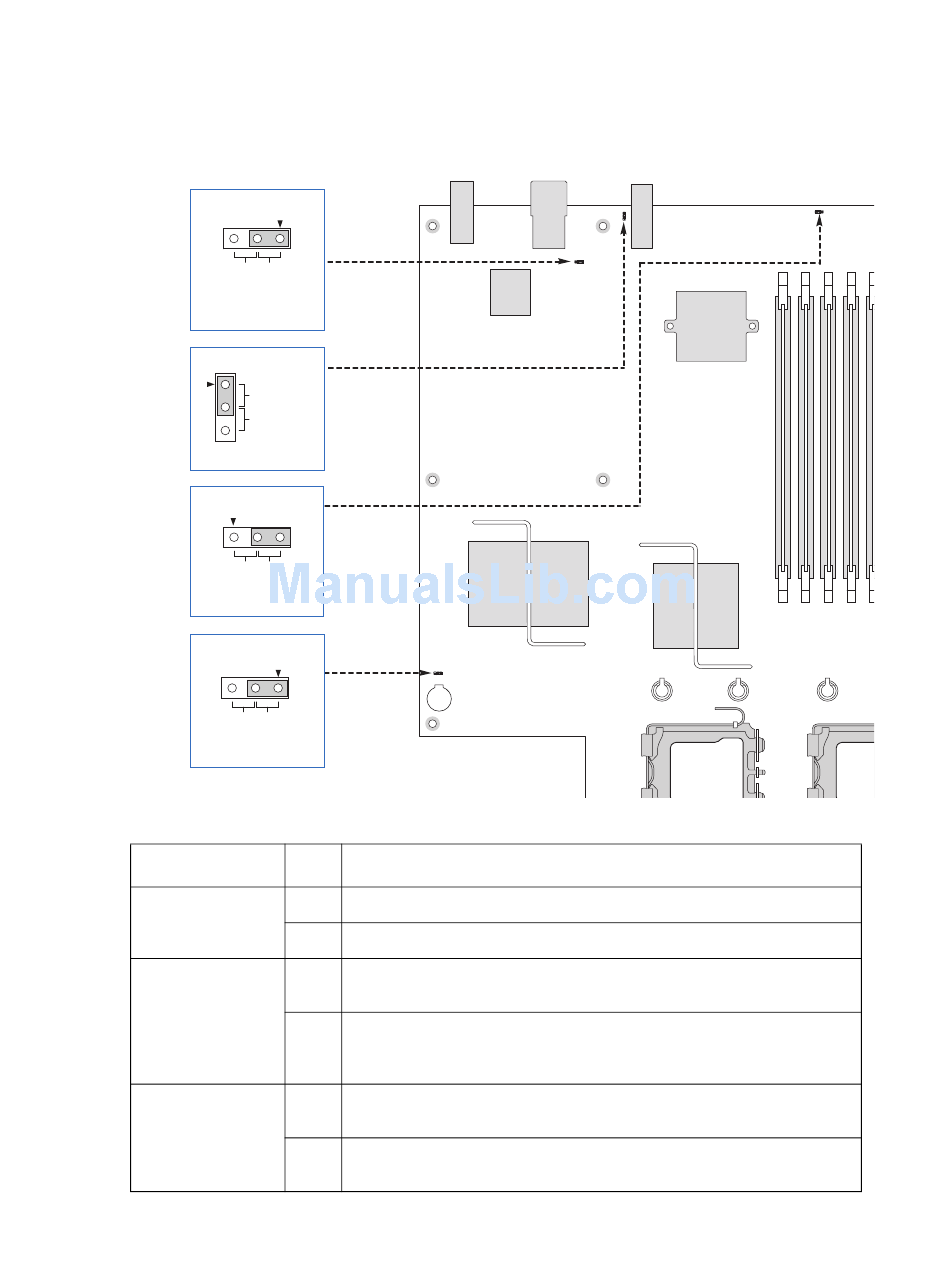

Figure 4. Configuration Jumper Locations

Pins
1-2 BMC Firmware Force Update Mode - Enabled
2-3 BMC Firmware Force Update Mode - Disabled (Default)
1-2 These pins should have a jumper in place for normal system operation
(Default)
2-3 If these pins are jumpered, administrator and user passwords will be
cleared immediately. These pins should not be jumpered for normal
operation.
1-2 These pins should have a jumper in place for normal system
operation. (Default)
2-3 If these pins are jumpered, the CMOS settings will be cleared
immediately. These pins should not be jumpered for normal operation.
