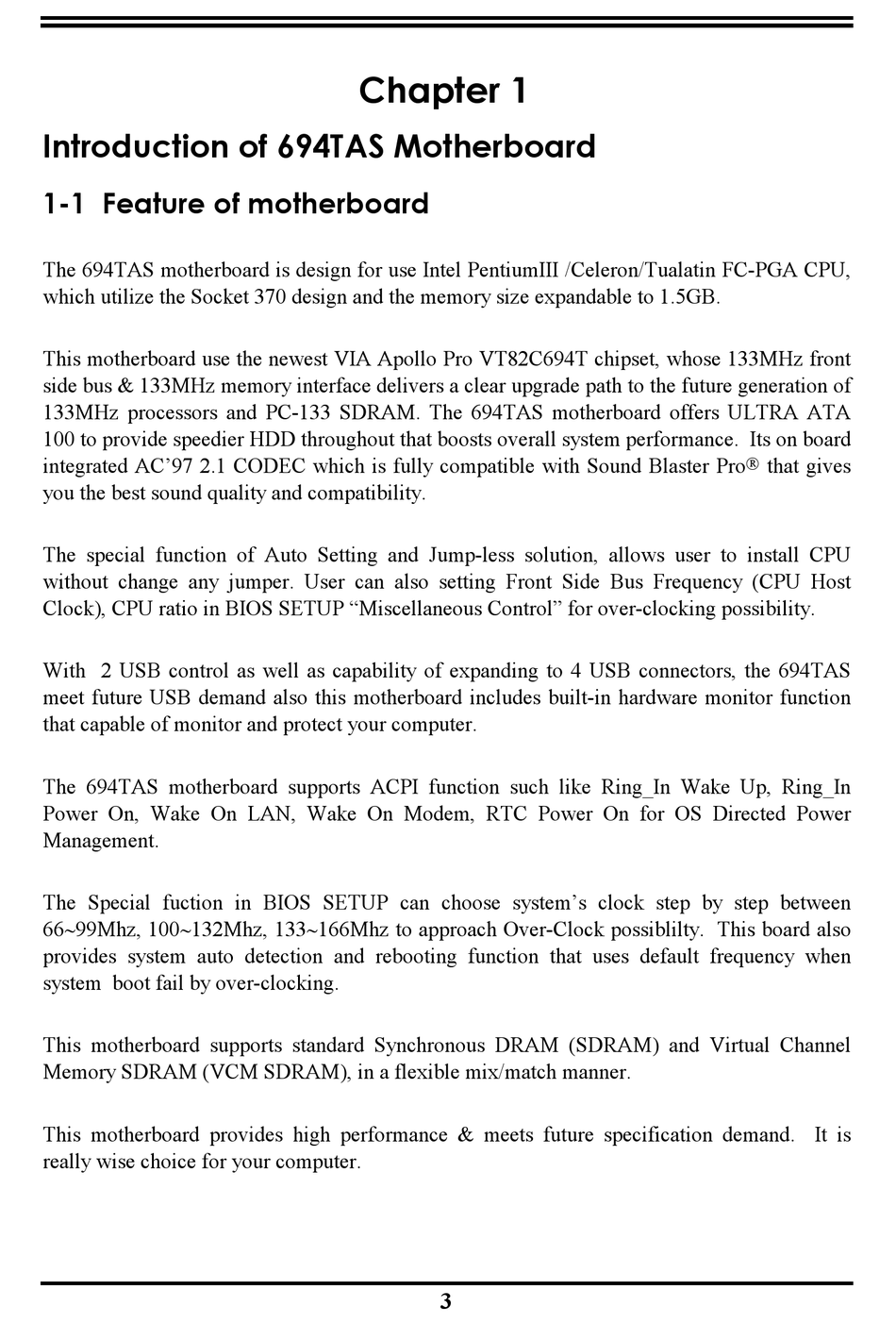

Chapter 1
Introduction of 694TAS Motherboard
1-1 Feature of motherboard
The 694TAS motherboard is design for use Intel PentiumIII /Celeron/Tualatin FC-PGA CPU,
which utilize the Socket 370 design and the memory size expandable to 1.5GB.
This motherboard use the newest VIA Apollo Pro VT82C694T chipset, whose 133MHz front
side bus & 133MHz memory interface delivers a clear upgrade path to the future generation of
133MHz processors and PC-133 SDRAM. The 694TAS motherboard offers ULTRA ATA
100 to provide speedier HDD throughout that boosts overall system performance. Its on board
integrated AC'97 2.1 CODEC which is fully compatible with Sound Blaster Pro
that gives
you the best sound quality and compatibility.
The special function of Auto Setting and Jump-less solution, allows user to install CPU
without change any jumper. User can also setting Front Side Bus Frequency (CPU Host
Clock), CPU ratio in BIOS SETUP "Miscellaneous Control" for over-clocking possibility.
With 2 USB control as well as capability of expanding to 4 USB connectors, the 694TAS
meet future USB demand also this motherboard includes built-in hardware monitor function
that capable of monitor and protect your computer.
The 694TAS motherboard supports ACPI function such like Ring_In Wake Up, Ring_In
Power On, Wake On LAN, Wake On Modem, RTC Power On for OS Directed Power
Management.
The Special fuction in BIOS SETUP can choose system's clock step by step between
66∼99Mhz, 100∼132Mhz, 133∼166Mhz to approach Over-Clock possiblilty. This board also
provides system auto detection and rebooting function that uses default frequency when
system boot fail by over-clocking.
This motherboard supports standard Synchronous DRAM (SDRAM) and Virtual Channel
Memory SDRAM (VCM SDRAM), in a flexible mix/match manner.
This motherboard provides high performance & meets future specification demand. It is
really wise choice for your computer.
3
