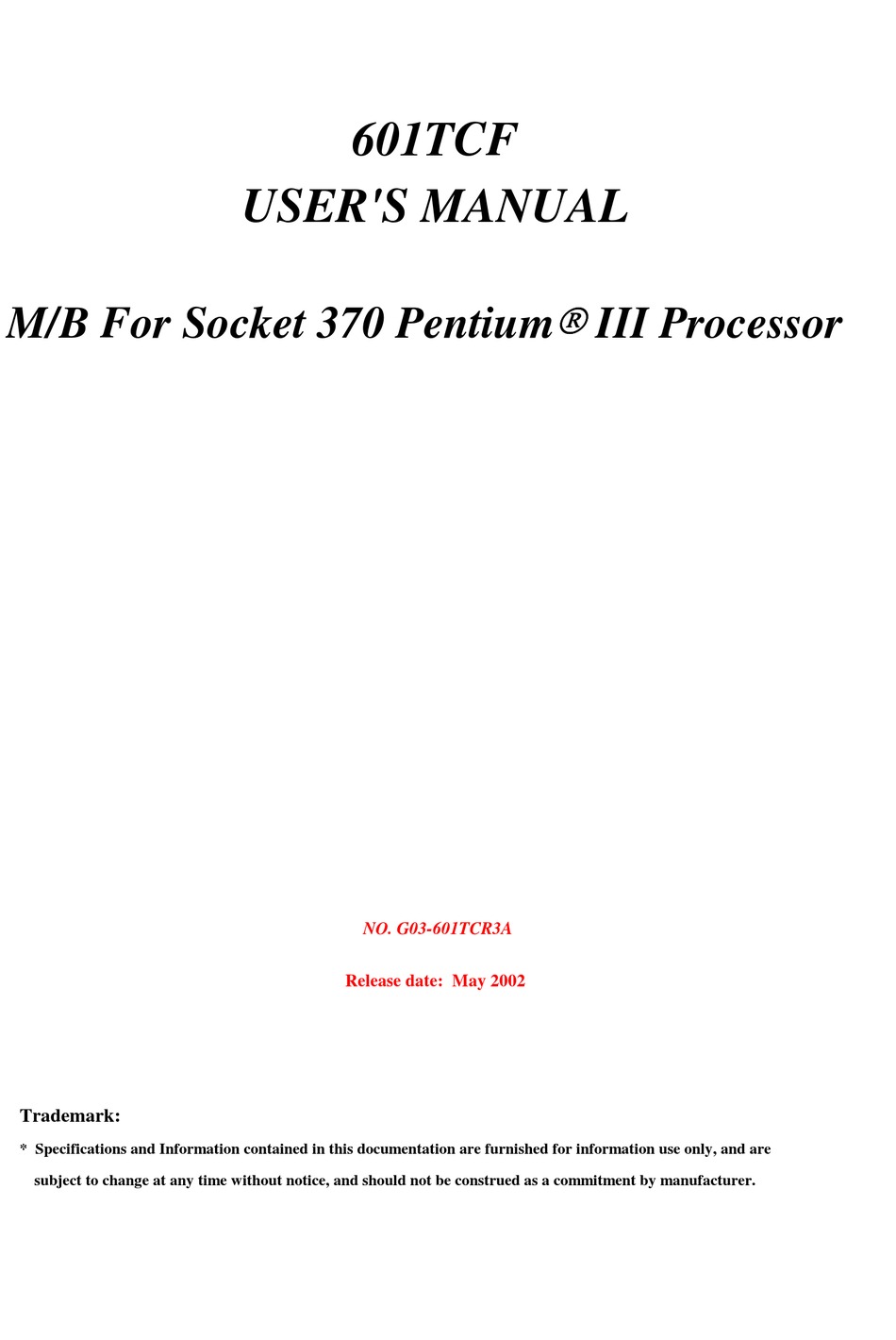

601TCF
USER'S MANUAL
M/B For Socket 370 Pentium
III Processor
NO. G03-601TCR3A
Release date: May 2002
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Advertisement
Table of Contents
Related Manuals for JETWAY 601TCFR3A
Summary of Contents for JETWAY 601TCFR3A
- Page 1 601TCF USER'S MANUAL M/B For Socket 370 Pentium III Processor NO. G03-601TCR3A Release date: May 2002 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
-
Page 2: Table Of Contents
TABLE OF CONTENT USER’S NOTICE ................ii MANUAL REVISION INFORMATION ..........1 THERMAL SOLUTIONS..............1 CHAPTER 1 INTRODUCTION OF 601TCF MOTHERBOARD 1-1 FEATURE OF MOTHERBOARD............... 2 1-2 SPECIFICATION ..................3 1-3 PERFORMANCE LIST ................4 1-4 LAYOUT DIAGRAM & JUMPER SETTING ........... 5 CHAPTER 2 HARDWARE INSTALLATION 2-1 HARDWARE INSTALLATION STEPS ............. -
Page 3: User's Notice
3-8-2.1 IRQS ACTIVITY MONITORING ............PNP/PCI CONFIGURATION SETUP............30 3-10 PC HEALTH STATUS................. 31 3-11 MISCELLANEOUS CONTROL ..............32 3-12 LOAD STANDARD/OPTIMIZED DEFAULTS ........32 3-13 SET SUPERVISOR/USER PASSWORD ........... 33 CHAPTER 4 DRIVER & FREE PROGRAM INSTALLATION MAGIC INSTALL SUPPORTS WINDOWS 95/98/98SE/NT4.0/2000 ..... 34 4-1 IDE .... -
Page 4: Manual Revision Information
Manual Revision Information Reversion Revision History Date Third Edition May 2002 Item Checklist 601TCF Motherboard Cable for IDE/Floppy CD for motherboard utilities 601TCF User’s Manual Intel Processor Family Thermal Solutions As processor technology pushes to faster speeds and higher performance, thermal management becomes increasingly crucial when building computer systems. -
Page 5: Chapter 1 Introduction Of 601Tcf Motherboard
Introduction of 601TCF Motherboard 1-1 Feature of motherboard The 601TCF motherboard is design for use Intel’s new generation Pentium processors, which utilize the Socket 370 supports Penitum III Coppermine/ Tualatin CPU design and the memory size expandable to 1GB (using 256Mb technology). This motherboard integrated VGA, Audio, and PC Health Function with Micro ATX form factor to support total solution for today’s computer market. -
Page 6: Performance List
Spec Description ∗ Micro ATX form factor 4 layers PCB size: 24.4 x 19.0 cm Design ∗ VIA Apollo PLE133T VT8601T and VT82C686B Chipset Chipset Clock Generator ∗ Winbond W83194BR-39B Support 66/100/133MHz system Bus Clock (CPU Bus Clock) Support 100/133 MHz system memory clock Support 33MHz PCI Bus clock ∗... -
Page 7: Layout Diagram & Jumper Setting
The following performance data list is the testing result of some popular benchmark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users (the different Hardware & Software configuration will result in different benchmark testing results.) ... - Page 8 PRINT GAME/MIDI PORT PS/2 MOUSE PS/2 Keyboard COM1 LINE-IN LINE-OUT PS2 KB/Mouse Port (JMP1) USB Port CPU F.S.B. Clock COM2 Connector CPU Socket CPU FAN PC133 DIMMX2 PC99 Back Panel Floppy Connector VIA 8601T Chip ATX Power ATA 100 IDE Connector Connector CD Audio...
-
Page 9: Hardware Installation
JMP1 CPU Front Side Bus Frequency Setting 2x4-pin Block JBAT1 CMOS RAM Clear 3-pin Block Connectors Connector Name Description Page ATX Power Connector 20-pin Block p.13 PS/2 Mouse & PS/2 Keyboard Connector 6-pin Female p.13 USB1 USB Port Connector 4-pin Connector p.14 PRINT Parallel Port Connector... -
Page 10: Hardware Installation Steps
2-1 Hardware installation Steps Before using your computer, you had better complete the following steps: 1. Check motherboard jumper setting 2. Install CPU and Fan 3. Install System Memory (DIMM) 4. Install Expansion cards 5. Connect IDE and Floppy cables, Front Panel /Back Panel cable 6. - Page 11 2. Remove ATX power cable from ATX power connector 3. Locate JBAT1 and short pins 2-3 for a few seconds 4. Return JBAT1 to its normal setting by shorting pins 1-2 5. Connect ATX power cable back to ATX power connector Note: When should clear CMOS 1.
-
Page 12: Install Cpu
566 : CPU internal frequency, where here is 566MHz 128 : the size of L2 cache, where here is 128K : front side bus frequency, where here is 66MHz 1.5V : the voltage for the CPU 2-3-2 Setting CPU Bus Clock Jumper Setting the CPU Front Side Bus Frequency The motherboard uses jumper JMP1 for the front side bus frequency setting as shown from the table below:... -
Page 13: Overclock Running
Colden Arrow Pentium III Socket 370 CPU ZIF Socket 370 When you put the CPU into the ZIF socket. No forces require to insert of the CPU, then press the level to locate position slightly without any extra force. 2-3-4 Over clock Running WARNING! This section is for experienced motherboard installer only. -
Page 14: Expansion Card
Valid Memory Configurations Total Memory DIMM1 DIMM2 System Accept or Not Min. ∼ Max. DS/SS Accept 32MB∼512MB DS/SS Accept 32MB∼512MB DS/SS DS/SS Accept 32MB∼1GB DS : Double Sided DIMM SS : Single Sided DIMM NOTE! Make sure the total installed memory does not exceeds 1GB, otherwise the system may hang during startup. -
Page 15: Procedure For Expansion Card Installation
2-5-1 Procedure For Expansion Card Installation 1. Read the documentation for your expansion card and make any necessary hardware or software setting for your expansion card such as jumpers. 2. Remove your computer’s cover and the bracket plate on the slot you intend to use. 3. -
Page 16: Connectors, Headers
Onboard VGA AC97/MC97 Shared Onboard USB Shared IMPORTANT! If using PCI cards on shared slots, make sure that the drivers support “Shared IRQ” or that the cards don’t need IRQ assignments. Conflicts will arise between the two PCI groups that will make the system unstable or cards inoperable. - Page 17 This connector is for on board VGA display connection only. If you insert any external VGA card in PCI slot, you should have the connection to your VGA card’s connector. And you have to set “Init Display First” to PCI under Integrated Peripherals option in BIOS Setup Utility to get display from PCI VGA card.
-
Page 18: Headers
setting its jumpers accordingly. Please refer to the documentation of your hard disk for the jumper settings. Primary IDE Connector Pin 1 (10) Secondary IDE Connector (40-pin block): IDE2 This connector connects to the next set of Master and Slave hard disks. Follow the same procedure described for the primary IDE connector. - Page 19 USB Port Headers (9-pin header): USB2 These headers are used for connecting the additional USB port plug. attaching an option USB cable, your can be provided with two additional USB plugs affixed to the back panel. Pin 1 USB2 − DATA −...
- Page 20 HDLED PWR IN EXT SMI System Case Connections FAN Speed Headers (3-pin) : JFAN1, FAN2 These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the fan manufacturer, the wire and plug may be different. The red wire should be positive, while the black should be ground.
-
Page 21: Starting Up Your Computer
C D-IN CD Audio-In Headers (12) Wake On-LAN Headers (3-pin) : WOL1 This connector connects to a LAN card with a WAKE ON-LAN output. This connector power up the system when a wake up signal is received through the LAN card. NOTE: This feature requires that BIOS Wake-Up by PCI Card is enabled. -
Page 22: Chapter 3 Introducing Bios
2. Be sure all the switch are off, and check that the power supply input voltage is set to proper position, usually in-put voltage is 220V∼240V or 110V∼120V depending on your country’s voltage used. 3. Connect the power supply cord into the power supply located on the back of your system case according to your system user’s manual. -
Page 23: Entering Setup
The BIOS is a program located on a Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program gain control. The BIOS first operates an auto-diagnostic test called POST (power on self test) for all the necessary hardware, it detects the entire hardware device and configures the parameters of the hardware synchronization. -
Page 24: The Main Menu
Status Page Setup Menu/Option Page Setup Menu Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>. 3-3 The Main Menu Once you enter Award ... -
Page 25: Standard Cmos Features
Power Management Setup Use this menu to specify your settings for power management. PnP/PCI configurations This entry appears if your system supports PnP/PCI. PC Health Status This entry shows your PC health status. Miscellaneous Control Use this menu to specify your settings for Miscellaneous Control. Load Optimized Defaults Use this menu to load the BIOS default values that are factory settings for optimal performances system operations. -
Page 26: Advanced Bios Features
Date (mm:dd:yy) Thu, Apr, 26 2001 Item Help Time (hh:mm:ss) 13 : 45 : 03 IDE Primary Master Press Enter None Menu Level > IDE Primary Slave Press Enter None IDE Secondary Master Press Enter None Change the day, moth, IDE Secondary Slave Press Enter None year and century... -
Page 27: Advanced Chipset Features
Enabled Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector of hard disk partition table. 3-6 Advanced Chipset Features The Advanced Chipset Features Setup option is used to change the values of the chipset registers. -
Page 28: Advanced Dram Control
parameter settings to improve system performance. However, it may cause your system to be unstable if the setting is not correct for your system configuration. CMOS Setup Utility – Copyright(C) 1984-2001 Award Software Advanced DRAM Control Auto Configuration [Optimized] Item Help Precharge Command Active to CMD Command Write Recovery Time... -
Page 29: Integrated Peripherals
3-7 Integrated Peripherals CMOS Setup Utility – Copyright(C) 1984-2001 Award Software Integrated Peripherals > OnChip IDE Function [Press Enter] Item Help > OnChip DEVICE Function Press Enter > OnChip SUPERIO Function Press Enter Init Display First PCI Slot Menu Level > :Move Enter:Select +/-/PU/PD:Value... - Page 30 IDE 32bit Transfer Mode Disabled Menu Level >> Primary Master Auto Primary Slave Auto Secondary Master PIO Auto Secondary Slave Auto Primary Master UDMA Auto Primary Slave UDMA Auto Secondary Master UDMA Auto Secondary Slave UDMA Auto IDE HDD Block Mode Enabled IDE Prefetch Mode Disabled...
-
Page 31: Power Management Setup
Onboard FDD Function [Enable] Item Help Onboard Serial Port 1 Auto Onboard Serial Port 2 Auto UART 2 Mode Normal Menu Level >> IR Duplex Mode Half TX,RX Inverting enable Ho, Yes Onboard Parallel Port 378/IRQ7 Onboard Parallel Mode ECP Mode Use DMA Parallel Port EPP Type EPP1.9 :Move... -
Page 32: Power Management
Power Management [User Define] Item Help HDD Power Down Disabled Doze Mode Disabled Suspend Mode Disabled Menu Level >> ¡ ü ¡ ý ¡ ú ¡ û :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Optimized Defaults F7:Standard Defaults 3-8-2 Wake Up Events CMOS Setup Utility –... -
Page 33: Pnp/Pci Configuration Setup
Primary INTR [ON] Item Help IRQ3 (COM 2) Enabled IRQ4 (COM 1) Enabled IRQ5 (LPT 2) Enabled Menu Level >>> IRQ6 (Floppy Disk) Enabled IRQ7 (LPT 1) Enabled IRQ8 (RTC Alarm) Disabled IRQ9 (IRQ2 Redir) Disabled IRQ10 (Reserved) Disabled IRQ11 (Reserved) Disabled IRQ12... -
Page 34: Pc Health Status
nothing unless you are using a Plug and Play operating system such as Windows 95/98. If you set this field to “manual” choose specific resources by going into each of the sub menu that follows this field (a sub menu is preceded by a “>”). The settings are: Auto (ESCD), Manual. -
Page 35: Miscellaneous Control
CMOS Setup Utility – Copyright(C) 1984-2001 Award Software Miscellaneous Control CyrixIII Clock Ratio Default Item Help Auto Detect DIMM/PCI Clock Enabled Spread Spectrum Disabled Menu Level > ** Current Host Clock is 66MHz ** Host Clock at Next Boot is [66MHz/33MHz] ** Current DRAM Clock is 66Mhz ** DRAM Clock at Next Boot is [66]MHz :Move... -
Page 36: Chapter 4 Driver & Free Program Installation
Supervisor password: Can enter and change the options of the setup menus. User password: Can only enter but do not have the right to change the options of the setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password. -
Page 37: Magic Install Supports Windows 95/98/98Se/Nt4.0/2000
addition, this CD also include an auto detect software which can tell you which hardware is installed, and which DRIVERS needed so that your system can function properly. We call this auto detect software MAGIC INSTALL. MAGIC INSTALL Supports WINDOWS 95/98/98SE/ME/NT4.0/2000 Insert CD into your CD-ROM drive and the MAGIC INSTALL Menu should appear as below. - Page 38 TO YOUR VGA DRIVER AND INTERFACE DIRECTLY TO HARDWARE, PROVIDING FAST GRAPHIC ACCESS IRQ ROUTING : VIA PCI IRQ MINIPORT DRIVER IS TO BE INSTALLED UNDER WIN98 ONLY, IT WILL FIX PCI IRQ ROUTING SEQUENCE INF : VIA REGISTRY DRIVER IS TO BE INSTALLED UNDER WINDOWS THE DRIVER WILL ENABLE VIA POWER MANAGERMENT CONTROLLER 1.
- Page 39 5. Click NEXT to Install ATAPI Vender 6. Click NEXT to choose enabled DMA Mode Support Driver 7. Click NEXT to Install VIA AGP VXD Driver 8. Click NEXT to Install VIA IRQ Routing Mini port Driver 9. Click Finish to restart computer NOTE: MAGIC INSTALL will auto detect file path X:\VIA\ This driver supports WINDOWS 95/98/98SE/NT4.0/2000...
-
Page 40: Vga Install Via 8601 Vga Driver
4-2 VGA Install VIA 8601 VGA Driver A. For WINDOWS 95/98/98SE/ME/NT4.0/2000 1. Click VGA when MAGIC INSTALL MENU Click NEXT when VIA Display Driver appears Setup appears 3. Click FINISH to Restart Computer NOTE: The path of the file For WINDOWS 95/98/98SE is X:\VIA\8601VGA\WIN9X\SETUP.EXE For WINDOWS ME is X:\VIA\8601VGA\WINME\SETUP.EXE For NT4.0 is X:\VIA\8601VGA\NT4\SETUP.EXE For WINDOWS 2000 is X:\VIA\8601VGA\WIN2000\SETUP.EXE... - Page 41 3. Click Next to Install Avance for VIA Audio 4. When ask Remove old Device Driver, Click Driver 5. Click Go 6. Click Finish and Restart windows 7. Sound Effect select and KaraOK Mode 8. Manual Sound Effect Setting Function Note: The path of the file For WIN98/NT4.0/WIN2K is X:\CODEC\ALCCODEC\SETUP.EXE For WIN95 is X:\VIA\VIAUDIO\SETUP.EXE...
-
Page 42: Pc-Health Install Via Hardware Monitor Driver
4-4 PC-HEALTH Install VIA Hardware Monitor Driver 1. Click PC-HEALTH when Magic Install 2. Click NEXT when VIA Hardware Monitor MENU appears Wizard appears 3. Click Next to install Driver in C:\VIAHM 4. Click Next to use default Program Folders name 4-4-1 How To Use VIA Hardware Monitor Application Software 1. -
Page 43: Magic Bios Install Bios Live Update Utility
4-5 MAGIC BIOS Install BIOS Live Update Utility Click Magic BIOS when Magic Install Click Next to install the Magic BIOS in MENU appears Destination Folder After finish Setup you will have a Magic Double click the Magic BIOS icon you will BIOS icon in your screen have this picture, choose from internet you can upgrade BIOS On-line... -
Page 44: Pc-Cillin Install Pc-Cillin 2000 Anti-Virus Program
Click Yes if you want to update the BIOS When System programming BIOS don’t turn otherwise choose No to exit off power, after finish update BIOS, the system will clear CMOS and automatically Restart When choose From Local Driver to update 10. - Page 45 3. Click NEXT and Enter User Information, 4. Click NEXT and Choose all Internet Click NEXT or choose BROWSE to change Protection the path For the file to be stored 5. Click OK and If You Have Proxy Server, 6. Click NEXT when Start Copy Files, Start to Enter Your Setting.
-
Page 46: How To Disable On-Board Sound
9. Enter Your name and E-mail address Register 10. After install PC-cillin 2000 complete we PC-cillin 2000 or Click Cancel recommend select update item to download Register Later newest virus code and setting Auto refresh virus code 4-7 HOW TO DISABLE ON-BOARD SOUND Enter BIOS SETUP choose INTEGRATE PERIPHERALS choose ON-CHIP DEVICE FUNCTION choose AC97 AUDIO Disable on-board sound function by press PAGE DOWN KEY to Disable...
