The Host Drive Information Window
Double click on the host drive icon. This window contains information on a host drive
terms_host_drive)
(
Drive No
The host drive number. The host drives are reported to the system in order,
beginning with the lowest Drive Number. If the corresponding Intel RAID
Controller SRCU31 is the first controller in the system, the system will boot from
the host drive with the lowest number.
Name
The name of the host drive. A host drive is automatically given a name during
the configuration. It can be renamed by selecting the menu Drive Name
(logical_name) of the menu list you get after clicking with the right mouse button
on the host drive icon.
Capacity
The host drive capacity reported to the operating system. The size of a host drive
can be smaller than the size of the logical drive or the array drive the host drive is
a part of.
Partition Table
The partition table of a host drive can contain up to four partition entries.
Partition type, its location on the host drive, its size and the percentage of space
used by this partition are shown.
Storage Console Plus
. See Figure 85.

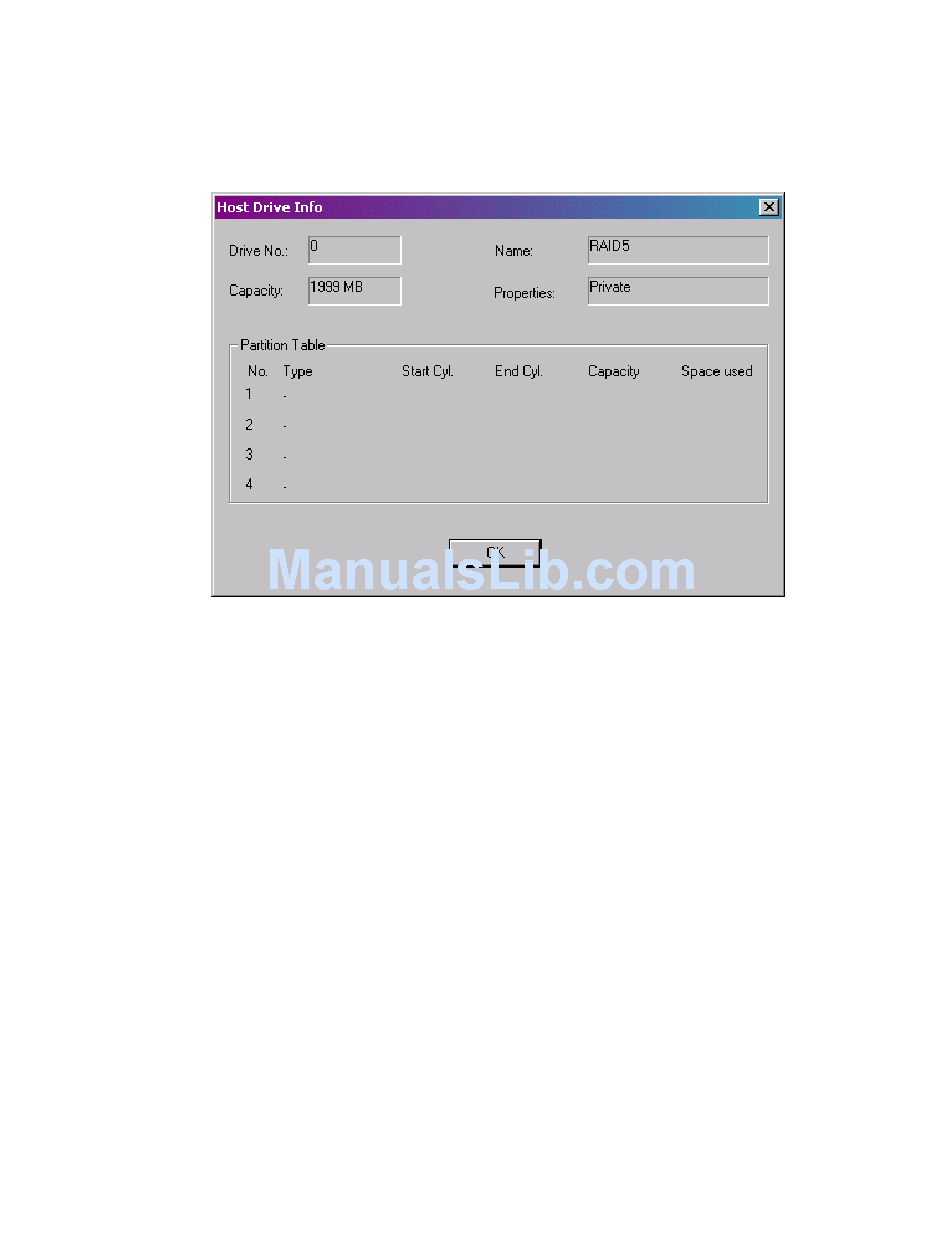

Figure 85. Host Drive Information Window
145
