The StorCon+ Controls

The Toolbar

The toolbar can be made visible or hidden by selecting "Toolbar" from the "View" menu.
Click on the buttons to open and close the windows of the corresponding programs of StorCon+.
The toolbar can be moved away from the top of the StorCon+ window and shown in a small
window. To place the toolbar back under the menu bar you can double click on the top window bar
of the toolbar or drag and drop the toolbar back under the menu bar. You can also place the toolbar
on the bottom of the StorCon+ window.
Table 18.

Toolbar Icons

Icon Opens / Closes
Select Controller
Physical Configuration
Logical Configuration
Statistics
Events
Help
Context Sensitive Help
124

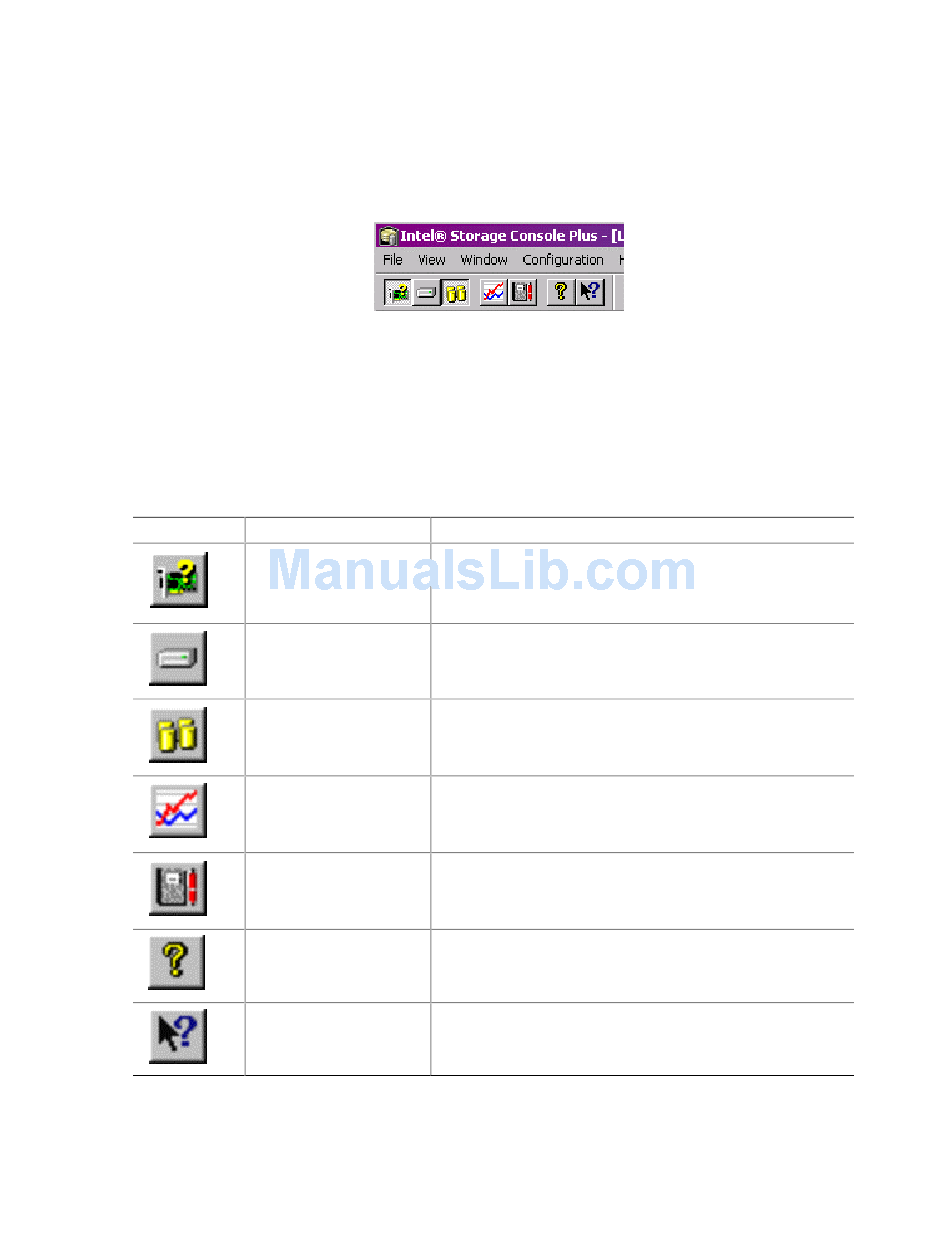

Figure 65. StorCon+ Plus Toolbar
Description
Select a local or remote Intel RAID Controller SRCU31 for
further actions.
Show and/or modify the Intel RAID Controller SRCU31 and
device settings.
Show and/or modify the logical drive configuration.
Show statistics.
Show the Intel RAID Controller SRCU31 events.
Show Information and the StorCon+.
Click on this icon and then on the icon you want online help.
