RAID Mail Utility
The RAID Mail Utility gathers messages from the RAID Configuration Service, generates standard mail
messages, and sends them to pre-defined workstations.
To start the RAID Mail Utility:
1. Select Start / Programs / RAID Tools / RAID Mail Utility.
2. In the RAIDMail box (left box in Figure 107) select RAIDMail / Settings.
3. Configure the RAID Mail Utility (right box in Figure 107).
If you select "Local System" all messages are displayed on the server itself. If you select "Log
file," you are asked for a log file path/name. See Figure 108. All messages are recorded into this
file (Figure 108). "Remote System" allows you to add workstations to which messages are sent.
See Figure 110.
Storage Console Plus

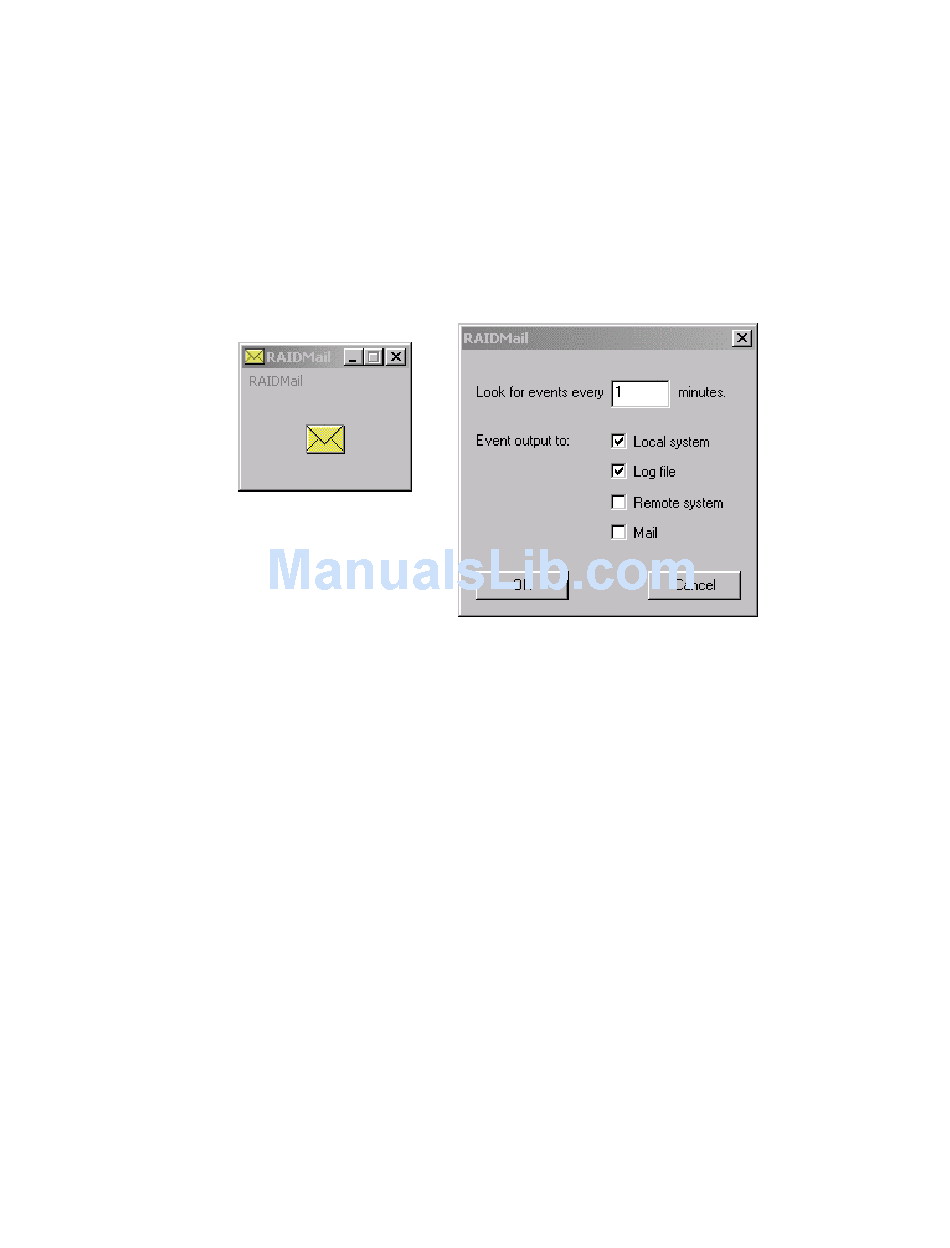

Figure 107. RAID Mail
167
