Server RAID Controller U2-1 (SRCU21)
Quick Start Guide
FCC/ Emissions Disclaimer......................................................................2
Cautions and Warnings.............................................................................3
Product Check List ...................................................................................4
(bootable)..................................................................................................4
Hardware/Software Installation Overview................................................4
Create a RAID Volume for the Operating System....................................7
World Wide Web....................................................................................21

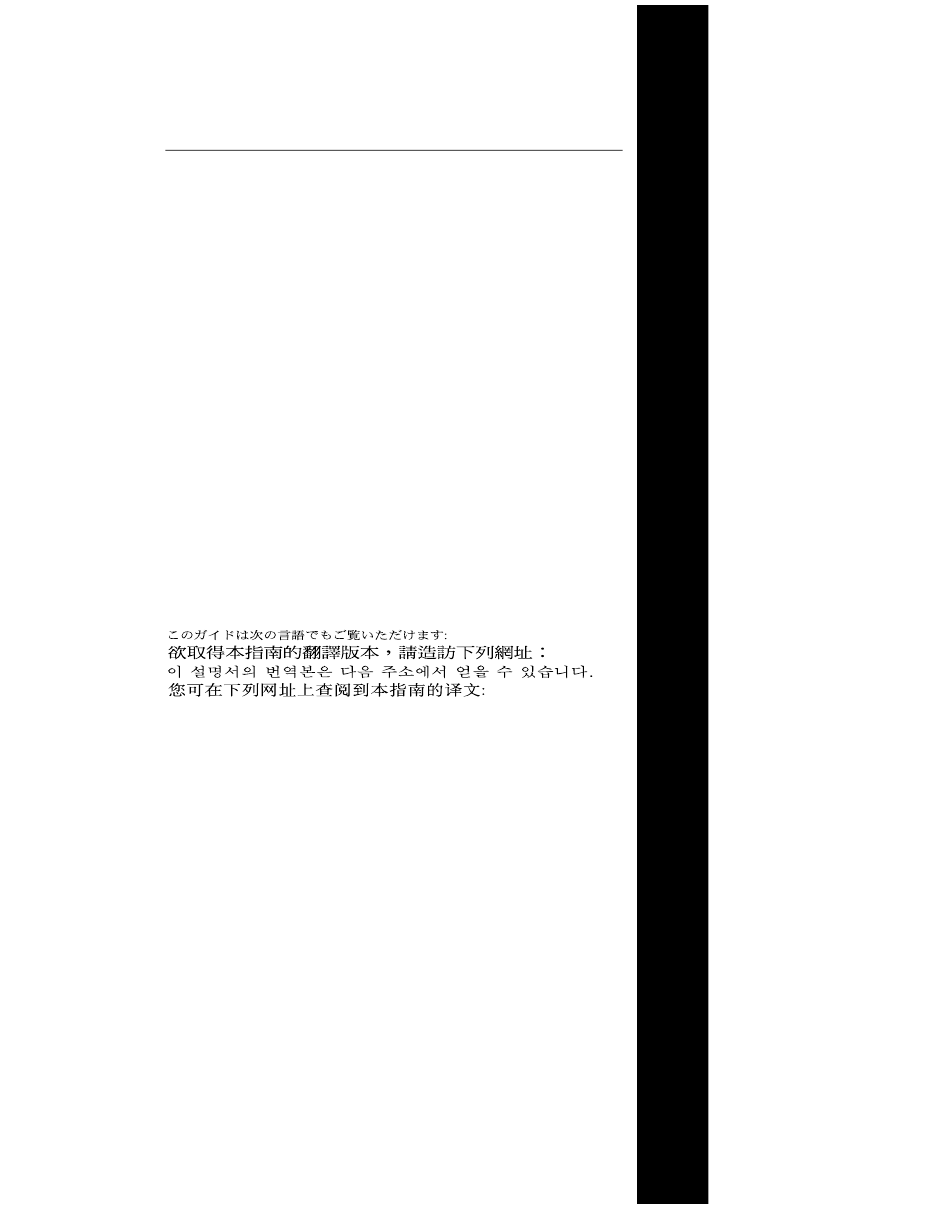

Translations of this guide are available at:
Übersetzungen dieses Handbuchs sind erhältlich bei:
Versiones traducidas de esta guía se encuentran disponibles en:
Des traductions de ce guide sont disponibles à l'adresse:
Le versioni tradotte di questa Guida sono disponibili presso:
As traduções deste guia estão disponíveis em:
Переводы данного руководства можно найти по адресу:
http://support.intel.com/support/motherboards/server/srcu21/manual.htm
Copyright © 1999 Intel Corporation. All rights reserved. No part of this document may be
copied, or reproduced in any form, or by any means without prior written consent of Intel.
Intel Corporation (Intel) makes no warranty of any kind with regard to this material, including,
but not limited to, the implied warranties of merchantability and fitness for a particular
purpose. Intel assumes no responsibility for any errors that may appear in this document.
Intel makes no commitment to update nor to keep current the information contained in this
document.
† Third-party brands and trademarks are the property of their respective owners.
Order Number: A06952-002
Download from Www.Somanuals.com. All Manuals Search And Download.
®
†
Server......................9
†
...........................................13
†
7.1...............................................17

Advertisement

Table of Contents
loading

Related Manuals for Intel U2-1

Summary of Contents for Intel U2-1

  • Page 1: Table Of Contents

    Copyright © 1999 Intel Corporation. All rights reserved. No part of this document may be copied, or reproduced in any form, or by any means without prior written consent of Intel. Intel Corporation (Intel) makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

  • Page 2: Before You Begin

    This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appariel num'erique de la Class B respect toutes les exigences du Reglement sur materiel brouilleur du Canada. Intel Server RAID Controller U2-1 (SRCU21) Quick Start Guide Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 3: Cautions And Warnings

    CAUTION Take precautions to prevent electrostatic discharge (ESD) damage before handling the Intel Server RAID Controller U2-1 Adapter Card. Electrostatic discharge (ESD) can damage adapter card components. Perform the described procedures only at an ESD workstation. If no such...

  • Page 4: Introduction

    Intel SRCU21. For detailed information on installing and configuration the Intel SRCU21, please refer to the Intel Server RAID Controller U2-1 User's Manual located on the CD-ROM included with this product.
  • Page 5 Intel i960 RM I/O Processor Ultra2 SCSI 100MHz Core 1 Channel Hardware XOR LSI Logic SYM53C895 SCSI Activity LED SDRAM DIMM 16 Mb Flash Intel Server RAID Controller U2-1 (SRCU21) Quick Start Guide Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 6: Intel Server Raid Controller U2-1 Hardware Setup

    PCI 2.2 Compliant BIOS Installing Intel Server RAID Controller U2-1 into a System The Intel Server RAID Controller U2-1 comes with the Intel Integrated RAID firmware already programed into the flach memory. All that is necessary before installing the SRCU21 adapter into the Intel server board is to install an approved SDRAM ECC DIMM into the memory socket.

  • Page 7: Intel Integrated Raid Software Setup And Installation

    For operating system installation instructions on pass-through drives and drives attached to another controller, refer to the Intel Server RAID Controller U2-1 User's Manual. Create a RAID Volume for the Operating System A volume (or logical drive) must be set up prior to installing an operating system.
  • Page 8 Do not install OSMs (Operation System Service Modules) downloaded from OS vendor websites. An OSM is the operating system half of the I²O split driver model. The OSMs provided on the Intel Integrated RAID CD-ROM are a later version than the OSMs currently provided by OS vendors.

  • Page 9: Setup And Installation For Microsoft Windows Nt Server

    These servers typically require the advanced features and security provided with Microsoft Internet Information Server 4.0. See the Intel Server RAID Controller U2-1 User's Manual for instructions on setting up SRCU21 with Microsoft Internet Information Server 4.0.
  • Page 10 Manual for details on configuring a browser to bypass the proxy server for local addresses. NOTE Due to added security in Intel Integrated RAID, anonymous connections must be disabled in Microsoft Internet Information Server in order to execute the Intel Integrated RAID Storage Console in NT.
  • Page 11 NOTE If you use Netscape Navigator as the default browser on an NT system where Intel Integrated RAID is installed, you will have to enable Basic Authentication in Microsoft Internet Information Server to use the Intel Integrated RAID Storage Console. Netscape Navigator does not support Windows NT Challenge/Response authentication.
  • Page 12 Install the Intel Integrated RAID software (run the Intel Integrated RAID setup). The system should be powered on and logged into NT with an administrators account before proceeding. NOTE You must have administrative level permissions to install Intel Integrated RAID software.

  • Page 13: Setup And Installation For Novell Netware

    NOTE Refer to section “Intel Integrated RAID Software Component Installation” in chapter 4 of the Intel Server RAID Controller U2-1 User's Manual for information on HP Openview and RAID Monitor. See Section 4.5 in the Intel Server RAID Controller U2-1 User's Manual to customize your RAID volumes using Storage Console.
  • Page 14 Enter. Select “BKSTROSM.HAM” from the list. Continue with the NetWare installation as normal by following the screen prompts. 10 Once the server installation is finished, complete the installation of the Intel Integrated RAID software suite by following the steps below. 11 Run "LOAD INSTALL".
  • Page 15 PK411.NLM. Remove the extra line. 14 After the installation is complete, reboot the server to load the new drivers. 15 See Section 4.5 in the Intel Server RAID Controller U2-1 User's Manual to customize your RAID volumes using Storage Console.
  • Page 16 STARTUP.NCF files are modified as necessary. 16 After the installation is complete, reboot the server to load the new drivers. 17 See Section 4.5 in the Intel Server RAID Controller U2-1 User's Manual to customize your RAID volumes using Storage Console.

  • Page 17: Setup And Installation For Unixware † 7.1

    Not supplied Installing UnixWare on a RAID Volume Follow the required procedure below to install Intel Integrated RAID. Create a UnixWare Installation Diskette: Insert the Intel Integrated RAID CD-ROM into the target system and restart the system to boot from the CD-ROM.
  • Page 18 After completing the UnixWare installation insert the Intel Server RAID Controller U2-1 CD-ROM in the CD-ROM drive and mount the CD-ROM. Create a directory to mount the file. For example, type “mkdir cdfiles” at the prompt. Mount the CD-ROM to the folder by typing “mount –F cdfs –r /dev/cdrom/cdrom1 /cdfiles”...
  • Page 19 Launched Scripts Select option 1 (by typing 1) to install the requirements and components. See the figure above. Intel Server RAID Controller U2-1 (SRCU21) Quick Start Guide Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 20 Type “raiddoc” (if path is set) or Type “netscape /opt/rss/docs/cover.htm” Storage Launch the browser and type the following in Console the http address box: “http://localhost:360/” Intel Server RAID Controller U2-1 (SRCU21) Quick Start Guide Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 21: Getting Help

    Or contact your local dealer or distributor. Technical Training & Support If you are registered in the Intel Processor Dealer Program (North America), the Genuine Intel Dealer Program (Asia-Pacific Region), or the Intel Processor Integrator Program (Europe/Latin America), you are eligible for technical training and support.
