3 CONNECTIONS

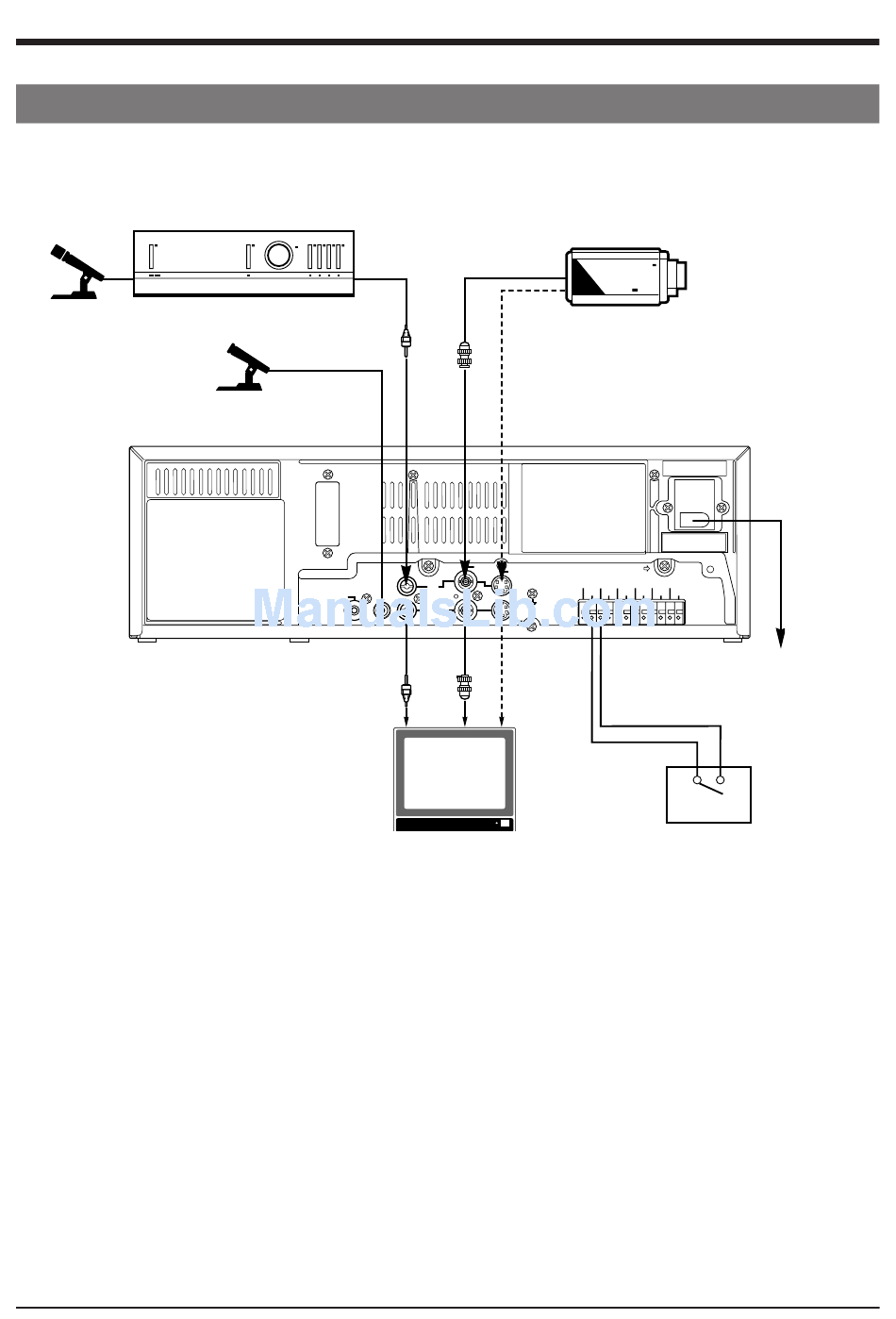

3-1 Connecting to a Camera

Microphone
1
Connect the monitor's video/audio input connectors to the SR-9090U's video/audio output connectors.
2
Connect the video camera's video output connector to the SR-9090U's video input connector.
3
Input audio signals to the audio input connectors via an amplifier.
4
When connecting an alarm sensor, connect it to the SR-9090U's alarm input terminal.
5
When the connection is complete, connect the power plug to an AC 120 V, 50/60 Hz outlet.
14
Amplifier
RCA
Microphone
M3.5 mini-
jack
R S - 2 3 2 C
REMOTE
RCA
BNC
4pin
VIDEO
AUDIO
Y/C
IN
MIC
OUT
4pin
BNC
Monitor TV
CCD
Video camera
AC~IN
AC120V~50/60Hz
CAM SW ALARM ALARM COM CLOCK SERIES
OUT IN REC OUT RESET IN REC IN
ALARM WARNING CLOCK SERIES
TAPE
COM RESET OUT REC OUT
END OUT RESET OUT
ALARM IN
COM
Alarm sensor
Provided
power cord
AC 120 V
50/60 Hz
