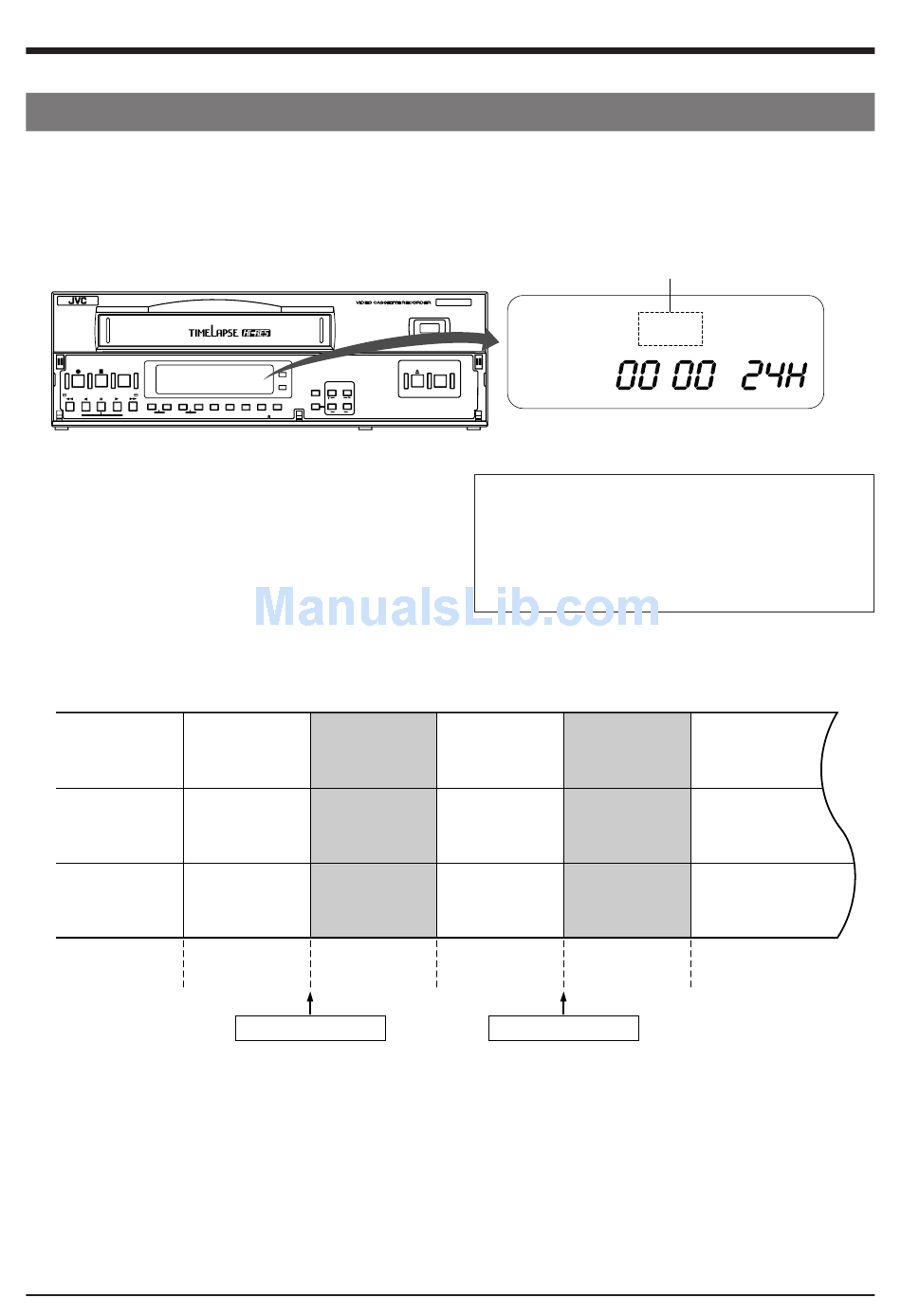

6 RECORDING

6-4 Alarm Recording

Alarm recording functions during timelapse recording. When an alarm signal is input to the rear panel's ALARM IN terminal, an
index code is recorded on the tape and the VCR automatically switches to the 2H (SP) or 6H (EP) mode for realtime recording
of the alarm situation. Normal timelapse recording is restored after the preset alarm recording duration has passed.
* Alarm recording will not start from the Pause mode.
REC STOP REC
CHECK
REW REVERSE PAUSE PLAY FF
TRACKING V. LOCK
– + –
FIELD REV FIELD ADV
Menu switches are provided for alarm recording mode,
5
alarm recording duration, buzzer ON/OFF in alarm
recording, and Forced Stop mode ON/OFF at tape end.
5 During alarm recording, the [AL] indication is lit on the
VCR and the [ALARM] indication is lit on the monitor
display. After alarm recording is complete, the "AL"
indication blinks on the display to show that an alarm
signal has been input.
On-screen
"ALARM"
indication
Display "AL"
indication
Record mode
* An index code (VISS) is recorded at the start point of the alarm recording as an alarm cue signal.
* During alarm recording, a +12 V signal is output from the rear panel's ALARM REC OUT terminal.
* If a new alarm signal is input during alarm recording, alarm recording restarts from that point.
38
OPERATE
HDR
RESET/
CANCEL ON SCREEN
SHIFT
TIMER SEARCH DISPLAY LOCK CNT RESET MENU TIME MODE
+ – +
S E T
Extinguished
Shown
Extinguished Lit
Timelapse
2H (SP)
mode
/6H (EP)
Timelapse
Alarm
recording
recording
Alarm signal input
SR-9090U
REC
EJECT OPERATE
* If the alarm recording function is activated a hundred
times a day or more, a malfunction may occur because
the guaranteed range is exceeded.
If you want to use this unit more than a hundred times
a day, set the recording speed mode to 2H/6H and
perform regular maintenance, replacing parts as
necessary.
Extinguished
Blinking
Timelapse
mode
Timelapse
recording
Alarm signal input
"AL" indication
AL
TIME MODE
Shown Extinguished
Lit
Blinking
2H (SP)
Timelapse
/6H (EP)
mode
Timelapse
Alarm
recording
recording
