2 CONTROLS AND CONNECTORS

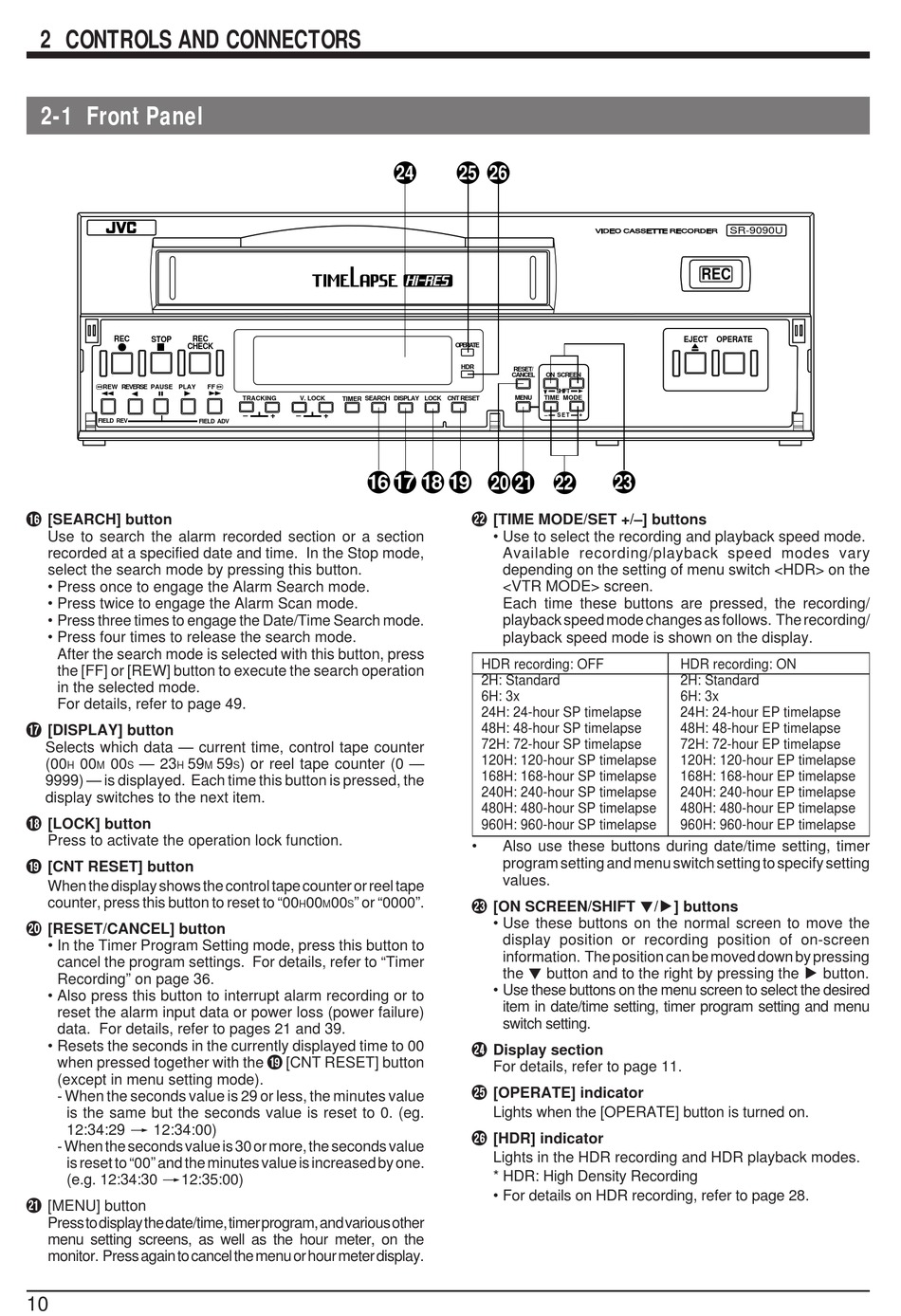

2-1 Front Panel
REC REC
STOP
CHECK
REW REVERSE PAUSE PLAY
FIELD REV
^
[SEARCH] button
Use to search the alarm recorded section or a section
recorded at a specified date and time. In the Stop mode,
select the search mode by pressing this button.
• Press once to engage the Alarm Search mode.
• Press twice to engage the Alarm Scan mode.
• Press three times to engage the Date/Time Search mode.
• Press four times to release the search mode.
After the search mode is selected with this button, press
the [FF] or [REW] button to execute the search operation
in the selected mode.
For details, refer to page 49.
&
[DISPLAY] button
Selects which data — current time, control tape counter
(00 00 00 — 23 59
H M S H
9999) — is displayed. Each time this button is pressed, the
display switches to the next item.
*
[LOCK] button
Press to activate the operation lock function.
(
[CNT RESET] button
When the display shows the control tape counter or reel tape
counter, press this button to reset to "00
)
[RESET/CANCEL] button
• In the Timer Program Setting mode, press this button to
cancel the program settings. For details, refer to "Timer
Recording" on page 36.
• Also press this button to interrupt alarm recording or to
reset the alarm input data or power loss (power failure)
data. For details, refer to pages 21 and 39.
• Resets the seconds in the currently displayed time to 00
when pressed together with the
(except in menu setting mode).
- When the seconds value is 29 or less, the minutes value
is the same but the seconds value is reset to 0. (eg.
12:34:29 [ 12:34:00)
- When the seconds value is 30 or more, the seconds value
is reset to "00" and the minutes value is increased by one.
(e.g. 12:34:30 [12:35:00)
q
[MENU] button
Press to display the date/time, timer program, and various other
menu setting screens, as well as the hour meter, on the
monitor. Press again to cancel the menu or hour meter display.
10
FF
TRACKING V. LOCK TIMER SEARCH
+ +
– –
FIELD ADV
16
59 ) or reel tape counter (0 —
M S
00 00 " or "0000".
H M S
(
[CNT RESET] button
24 25 26
OPERATE
HDR
RESET/
CANCEL ON SCREEN
SHIFT
DISPLAY LOCK CNT RESET MENU TIME MODE
–
S E T
17 18 19 20 21
22
w
[TIME MODE/SET +/–] buttons
• Use to select the recording and playback speed mode.
Available recording/playback speed modes vary
depending on the setting of menu switch <HDR> on the
<VTR MODE> screen.
Each time these buttons are pressed, the recording/
playback speed mode changes as follows. The recording/
playback speed mode is shown on the display.
HDR recording: OFF
2H: Standard
6H: 3x
24H: 24-hour SP timelapse
48H: 48-hour SP timelapse
72H: 72-hour SP timelapse
120H: 120-hour SP timelapse
168H: 168-hour SP timelapse
240H: 240-hour SP timelapse
480H: 480-hour SP timelapse
960H: 960-hour SP timelapse
• Also use these buttons during date/time setting, timer
program setting and menu switch setting to specify setting
values.
e
[ON SCREEN/SHIFT 7/t] buttons
• Use these buttons on the normal screen to move the
display position or recording position of on-screen
information. The position can be moved down by pressing
the 7 button and to the right by pressing the t button.
• Use these buttons on the menu screen to select the desired
item in date/time setting, timer program setting and menu
switch setting.
r
Display section
For details, refer to page 11.
t
[OPERATE] indicator
Lights when the [OPERATE] button is turned on.
y
[HDR] indicator
Lights in the HDR recording and HDR playback modes.
* HDR: High Density Recording
• For details on HDR recording, refer to page 28.
SR-9090U
REC
EJECT OPERATE
+
23
HDR recording: ON
2H: Standard
6H: 3x
24H: 24-hour EP timelapse
48H: 48-hour EP timelapse
72H: 72-hour EP timelapse
120H: 120-hour EP timelapse
168H: 168-hour EP timelapse
240H: 240-hour EP timelapse
480H: 480-hour EP timelapse
960H: 960-hour EP timelapse
