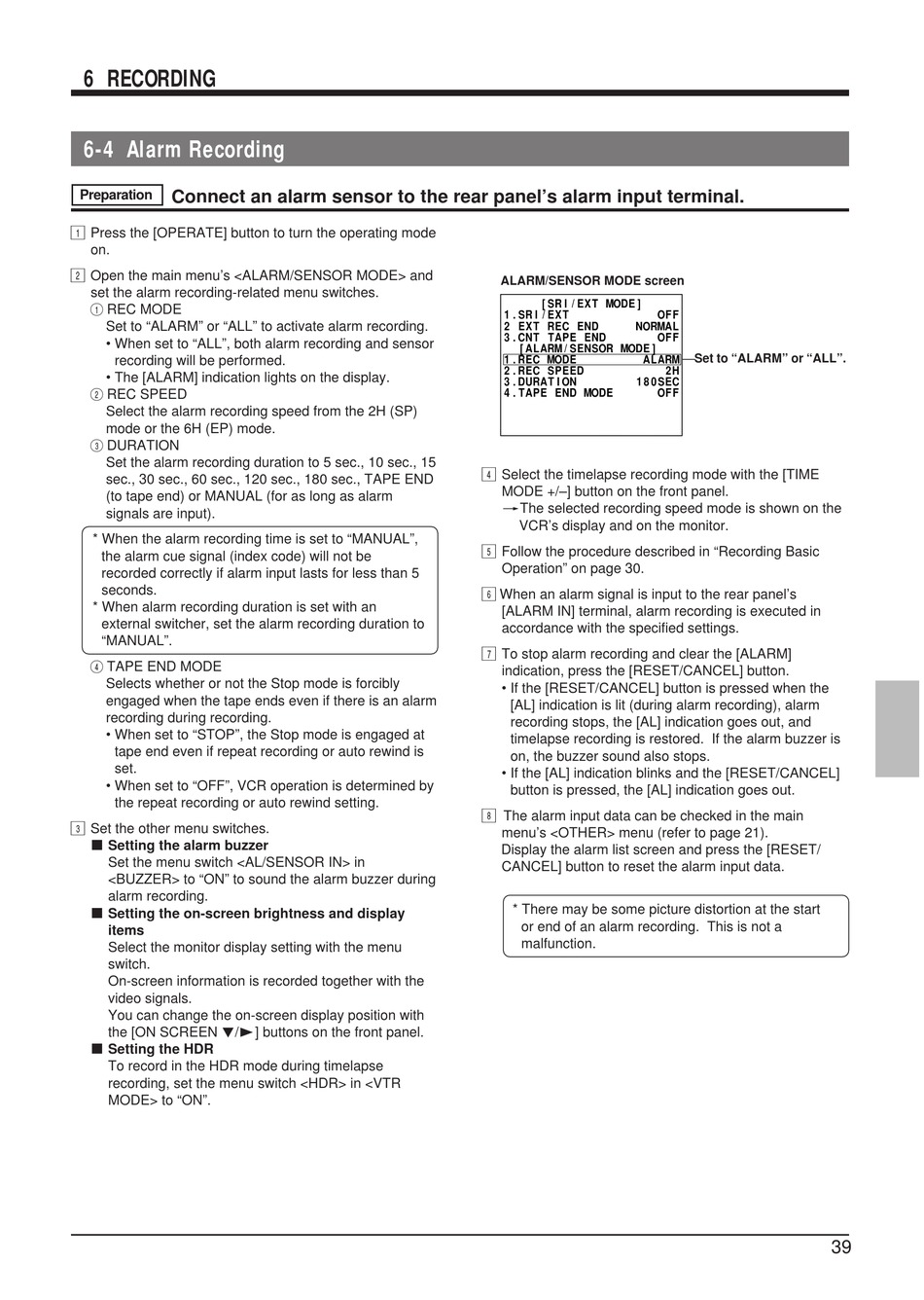

6 RECORDING
6-4 Alarm Recording
Connect an alarm sensor to the rear panel's alarm input terminal.
Preparation
1
Press the [OPERATE] button to turn the operating mode
on.
2
Open the main menu's <ALARM/SENSOR MODE> and
set the alarm recording-related menu switches.
1 REC MODE
Set to "ALARM" or "ALL" to activate alarm recording.
• When set to "ALL", both alarm recording and sensor
recording will be performed.
• The [ALARM] indication lights on the display.
2 REC SPEED
Select the alarm recording speed from the 2H (SP)
mode or the 6H (EP) mode.
3 DURATION
Set the alarm recording duration to 5 sec., 10 sec., 15
sec., 30 sec., 60 sec., 120 sec., 180 sec., TAPE END
(to tape end) or MANUAL (for as long as alarm
signals are input).
* When the alarm recording time is set to "MANUAL",
the alarm cue signal (index code) will not be
recorded correctly if alarm input lasts for less than 5
seconds.
* When alarm recording duration is set with an
external switcher, set the alarm recording duration to
"MANUAL".
4 TAPE END MODE
Selects whether or not the Stop mode is forcibly
engaged when the tape ends even if there is an alarm
recording during recording.
• When set to "STOP", the Stop mode is engaged at
tape end even if repeat recording or auto rewind is
set.
• When set to "OFF", VCR operation is determined by
the repeat recording or auto rewind setting.
3
Set the other menu switches.
5
Setting the alarm buzzer
Set the menu switch <AL/SENSOR IN> in
<BUZZER> to "ON" to sound the alarm buzzer during
alarm recording.
5
Setting the on-screen brightness and display
items
Select the monitor display setting with the menu
switch.
On-screen information is recorded together with the
video signals.
You can change the on-screen display position with
the [ON SCREEN 7/f] buttons on the front panel.
5
Setting the HDR
To record in the HDR mode during timelapse
recording, set the menu switch <HDR> in <VTR
MODE> to "ON".
ALARM/SENSOR MODE screen
*
*
*
*
*
[
S
R
I
/
E
X
T
*
M
O
D
E
]
*
*
1
.
S
R
I
/
E
X
T
*
*
*
*
*
*
*
*
*
*
*
*
2
.
E
X
T
*
R
E
C
*
E
N
D
*
*
*
*
*
N
O
R
3
.
C
N
T
*
T
A
P
E
S
E
N
D
*
*
*
*
*
*
*
*
*
[
A
L
A
R
M
/
S
E
N
S
O
R
*
M
O
D
E
]
1
.
R
E
C
*
M
O
D
E
*
*
*
*
*
*
*
*
*
A
L
2
.
R
E
C
*
S
P
E
E
D
*
*
*
*
*
*
*
*
*
*
3
.
D
U
R
A
T
I
O
N
*
*
*
*
*
*
*
*
1
8
0
4
.
T
A
P
E
*
E
N
D
*
M
O
D
E
*
*
*
*
*
*
5
.
A
U
T
O
*
R
E
W
*
*
*
*
*
*
*
*
*
*
*
6
.
R
E
P
E
A
T
*
P
L
A
Y
*
*
*
*
*
*
*
*
7
.
R
E
P
E
A
E
*
R
E
C
*
*
*
*
*
*
*
*
*
4
Select the timelapse recording mode with the [TIME
MODE +/–] button on the front panel.
[The selected recording speed mode is shown on the
VCR's display and on the monitor.
5
Follow the procedure described in "Recording Basic
Operation" on page 30.
6
When an alarm signal is input to the rear panel's
[ALARM IN] terminal, alarm recording is executed in
accordance with the specified settings.
7
To stop alarm recording and clear the [ALARM]
indication, press the [RESET/CANCEL] button.
• If the [RESET/CANCEL] button is pressed when the
[AL] indication is lit (during alarm recording), alarm
recording stops, the [AL] indication goes out, and
timelapse recording is restored. If the alarm buzzer is
on, the buzzer sound also stops.
• If the [AL] indication blinks and the [RESET/CANCEL]
button is pressed, the [AL] indication goes out.
8
The alarm input data can be checked in the main
menu's <OTHER> menu (refer to page 21).
Display the alarm list screen and press the [RESET/
CANCEL] button to reset the alarm input data.
* There may be some picture distortion at the start
or end of an alarm recording. This is not a
malfunction.
*
*
*
O
F
F
M
A
L
O
F
F
*
*
*
Set to "ALARM" or "ALL".
A
R
M
*
2
H
S
E
C
O
F
F
O
F
F
O
F
F
O
F
F
