Mirrors - BMW R 1200 R CLASSIC Rider's Manual

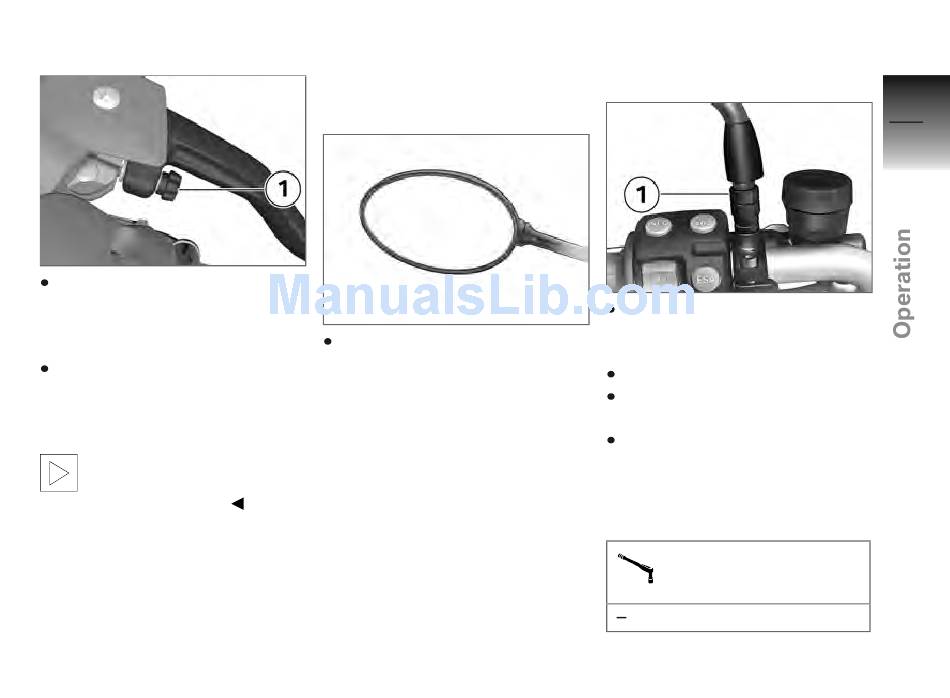

Turn adjusting screw 1
clockwise to increase the span
between the brake lever and
the handlebar grip.
Turn adjusting screw 1
counter-clockwise to reduce
the span between the brake
lever and the handlebar grip.
The adjusting screw is easi-
er to turn if you push the
handbrake lever forward.

Mirrors

Adjust the mirrors
Turn the mirror to the correct
position.
Adjusting mirror arm
Push the protective cap up
over the threaded fastener on
the mirror arm.
Slacken nut 1.
Turn the mirror arm to the ap-
propriate position.
Tighten the nut to the spe-
cified tightening torque, while
holding the mirror arm to en-
sure that it does not move out
of position.
Locknut (mirror) to ad-
apter
22 Nm
