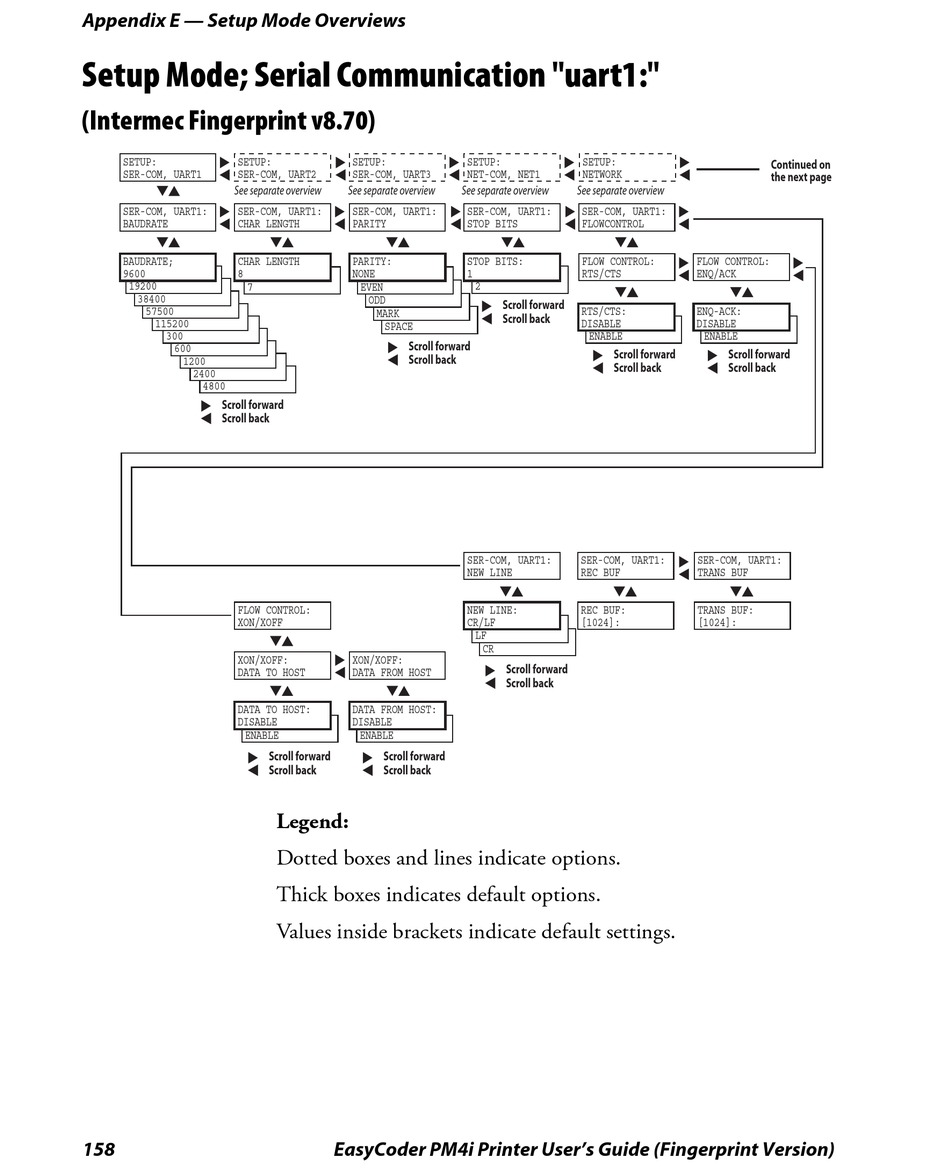

Appendix E — Setup Mode Overviews

Setup Mode; Serial Communication "uart1:"

(Intermec Fingerprint v8.70)

SETUP: SETUP:
SER-COM, UART1 SER-COM, UART2
See separate overview
SER-COM, UART1: SER-COM, UART1:
BAUDRATE CHAR LENGTH
BAUDRATE; CHAR LENGTH
9600 BAUDRATE; 8 CHAR LENGTH
19200 BAUDRATE;
7
38400 BAUDRATE;
57500
BAUDRATE;
115200 BAUDRATE;
300 BAUDRATE;
600
BAUDRATE;
1200 BAUDRATE;
2400 BAUDRATE;
4800
Scroll forward
Scroll back
FLOW CONTROL:
XON/XOFF
XON/XOFF:
DATA TO HOST
DATA TO HOST:
DISABLE
DATA TO HOST:
ENABLE
158
SETUP:
SER-COM, UART3
See separate overview
SER-COM, UART1:
PARITY
PARITY:
NONE PARITY:
EVEN
PARITY:
ODD
PARITY:
MARK
PARITY:
SPACE
Scroll forward
Scroll back
XON/XOFF:
DATA FROM HOST
DATA FROM HOST:
DISABLE
DATA FROM HOST:
ENABLE
Scroll forward Scroll forward
Scroll back Scroll back
Legend:
Dotted boxes and lines indicate options.
Thick boxes indicates default options.
Values inside brackets indicate default settings.
EasyCoder PM4i Printer User's Guide (Fingerprint Version)
SETUP: SETUP:
NET-COM, NET1 NETWORK
See separate overview See separate overview
SER-COM, UART1: SER-COM, UART1:
STOP BITS FLOWCONTROL
STOP BITS: FLOW CONTROL:
1 STOP BITS: RTS/CTS
2
Scroll forward
RTS/CTS:
Scroll back
DISABLE ENQ/ACK:
ENABLE
Scroll forward
Scroll back
SER-COM, UART1: SER-COM, UART1:
NEW LINE REC BUF
NEW LINE: REC BUF:
CR/LF NEW LINE: [1024]:
LF
NEW LINE:
CR
Scroll forward
Scroll back
Continued on
the next page
FLOW CONTROL:
ENQ/ACK
ENQ-ACK:
DISABLE ENQ/ACK:
ENABLE
Scroll forward
Scroll back
SER-COM, UART1:
TRANS BUF
TRANS BUF:
[1024]:
