Chapter 11 — Maintenance

Printhead Replacement

106
Clean here
Print mechanism
(lower part only)

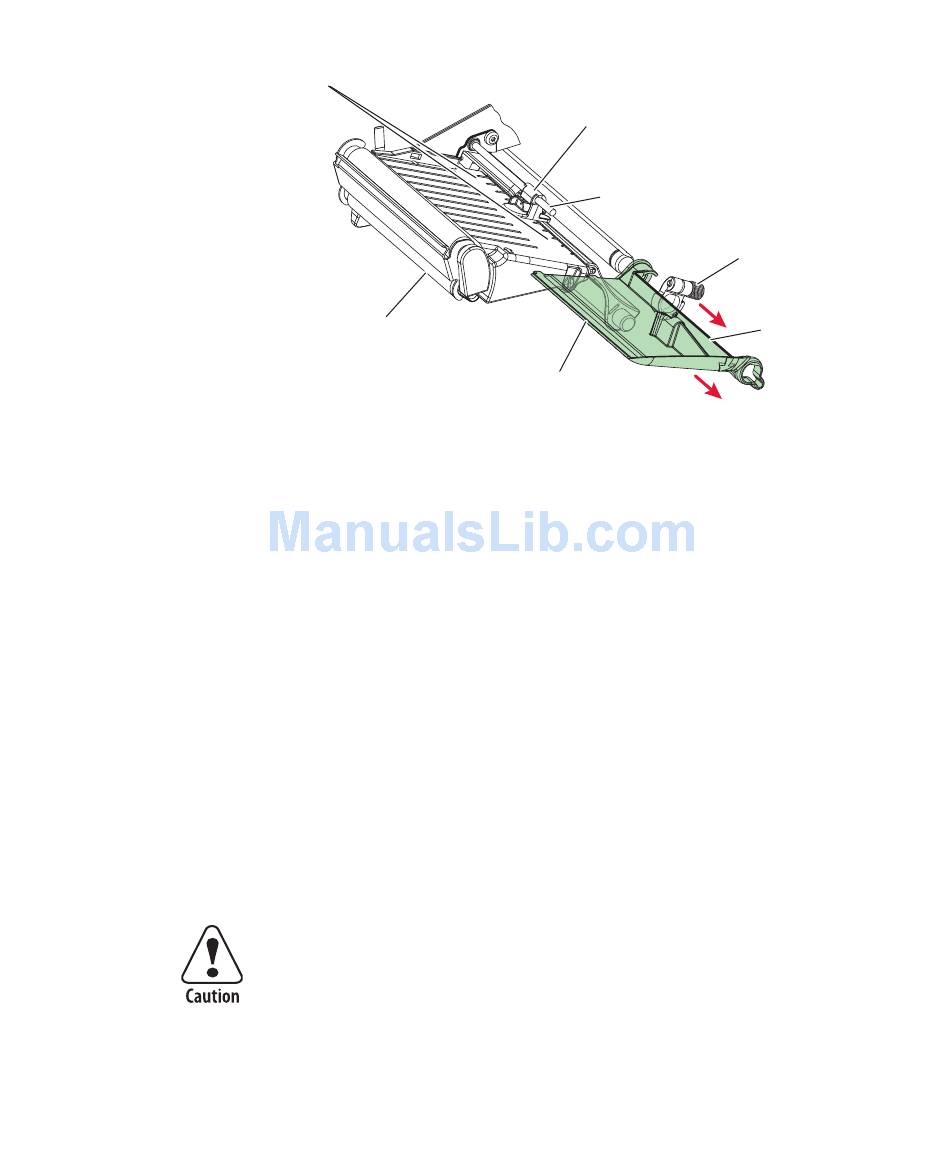

To clean the media guide
1 Loosen the screw on the edge guide.
2 Pull both the upper LSS guide and the edge guide straight
out.
3 After cleaning, put back the parts in reverse order making sure
that the LSS shafts fits into the holder on the upper LSS
guide.
The printhead is subject to wear both from the direct thermal
media or ribbon and from the rapid heating and cooling process
during printing. Thus, the printhead will require periodic
replacement.
Time between printhead replacements depends on the print
images, the type of direct thermal media or ribbon in use, the
amount of energy to the printhead, the print speed, the ambient
temperature, and several other factors.
While replacing the printhead, the power must be off. The
firmware will not detect the new printhead resistance until the
printer has been restarted.
EasyCoder PM4i Printer User's Guide (Fingerprint Version)
Upper label
stop sensor
Shaft
Upper LSS guide
Edge
guide
Holder
