Temperature Sensor Units

3-2

Temperature Sensor Units

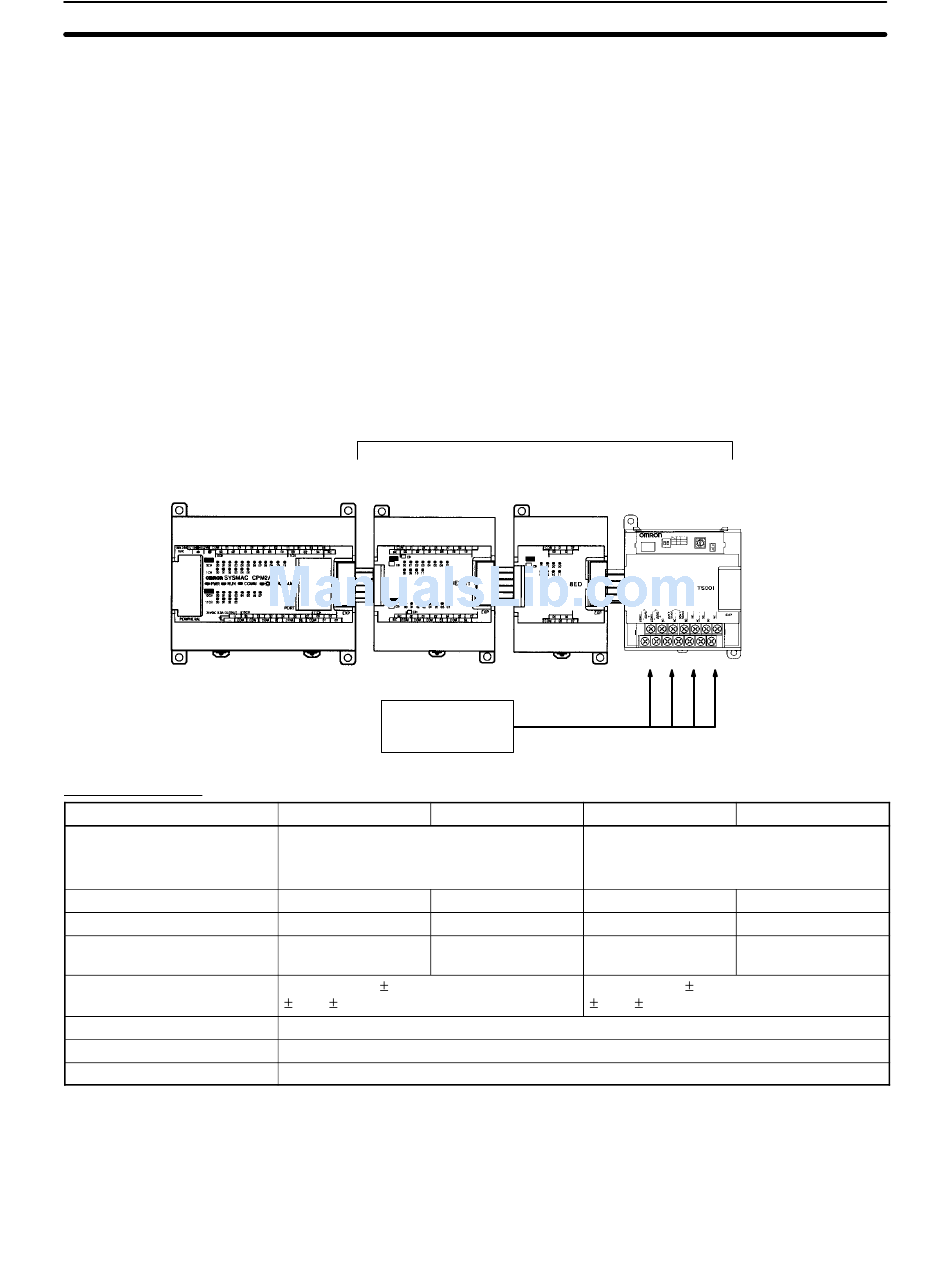

3-2-1 CPM1A/CPM2A Temperature Sensor Units

CPM1A or CPM2A CPU Unit
Specifications
Item
Temperature sensors
Number of inputs
Allocated input words
Max. number of Units
(See note 1.)
Accuracy
Conversion time
Converted temperature data
Isolation
With the CPM1A or CPM2A, up to three Expansion Units or Expansion I/O Units
can be connected to the CPU Unit. One, two, or three of these Units can be
CPM1A-TS001 or CPM1A-TS101 Temperature Sensor Units. If a CPM1A-
TS002 or CPM1A-TS102 Temperature Sensor Unit is connected to the CPU
Unit, then only one other Expansion Unit or Expansion I/O Unit can be con-
nected. The other Unit can be a CPM1A-TS001/TS101 Temperature Sensor
Unit.
The CPM1A-TS001/TS101 Temperature Sensor Units each provide 2 input
points and the CPM1A-TS002/TS102 Temperature Sensor Units each provide 4
input points, meaning up to 6 temperature input points can be used on one
CPM1A or CPM2A PC. The inputs can be from thermocouples or platinum resis-
tance thermometers.
Up to 3 Units, including Expansion I/O Units and other Expansion
Units. (Only 2 Units if CPM1A-TS002/TS102 is used.)
CPM1A-20EDR1
Expansion I/O Unit
Thermocouples or
platinum resistance
thermometers
CPM1A-TS001
Thermocouples
Switchable between K and J, but same
type must be used for all inputs.
2 4
2 4
3 1
(The larger of 0.5% of converted value or
2_C) 1 digit max. (See note 2.)
250 ms for 2 or 4 input points
16-bit binary data (4-digit hexadecimal)
Photocouplers between all temperature input signals
Note 1. If only the CPM1A-TS001 and CPM1A-TS101 are connected, then up to 3
Units including Expansion I/O Units and other Expansion Units can be con-
nected. If the CPM1A-TS002 or CPM1A-TS102 is connected, then only one
other Expansion I/O Unit or Expansion Unit can be connected. The CPM1A-
TS001 or CPM1A-TS101 may be the other Unit, but another CPM1A-TS002
or CPM1A-TS102 cannot be connected.
CPM1A-8ED
CPM1A-TSjjj
Expansion I/O Unit
Temperature Sensor Unit
Temperature inputs
CPM1A-TS002 CPM1A-TS101
Platinum resistance thermometer
Switchable between Pt100 and JPt100, but
same type must be used for all inputs.
2
2
3
(The larger of 0.5% of converted value or
1_C) 1 digit max.
Section 3-2
CPM1A-TS102
4
4
1
