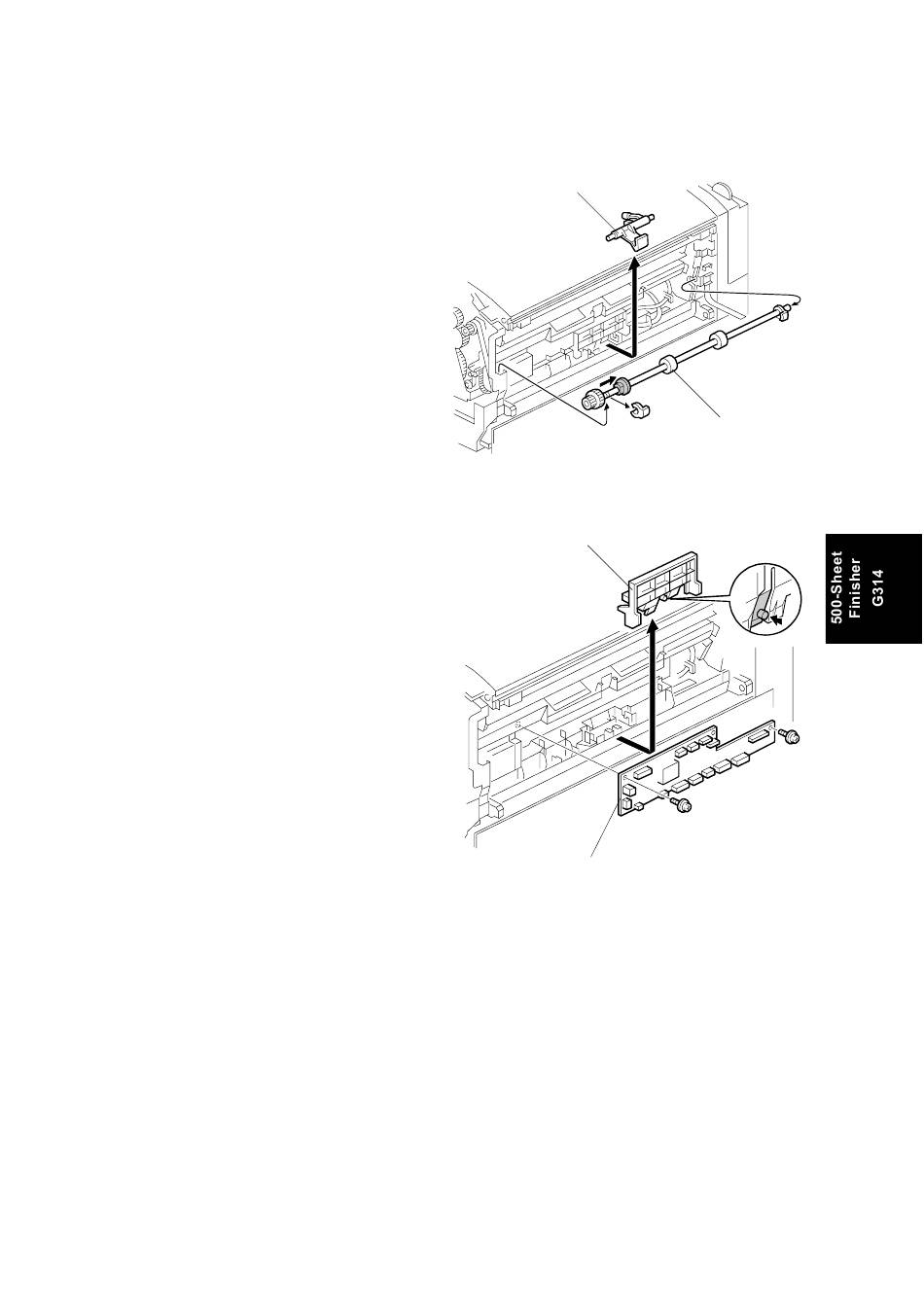

1.6 MAIN CONTROL PCB

1. Right cover, inner cover (! 1.1)
2. Transport roller [A] ( x 1)
3. Feeler [B]
4. Protector [C]
5. Main control PCB [D] ( x 15,
 x 2, 1 projection)
