Air to Water Heat Pump
Installation manual

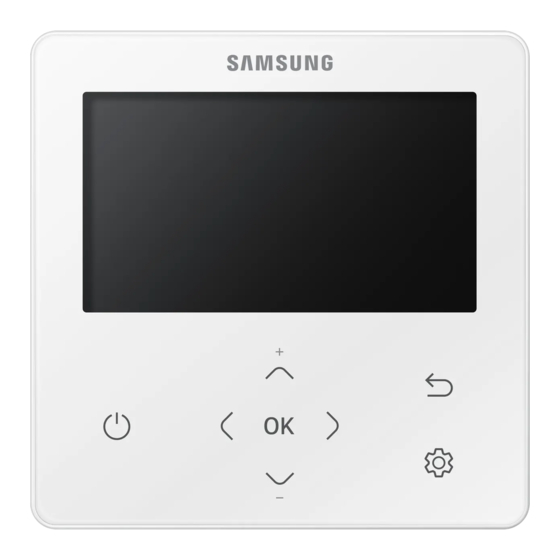

Wired remote controller MWR-WW10UN
• Thank you for purchasing this Samsung Product.
• Before operating this unit, please read this installation manual carefully and retain it for
future reference.
DB68-12533A-00_IM_EHS Wired Remote_CV_Book_EN_.indd 1
2023-08-07 오후 2:12:27
Advertisement
Table of Contents
Related Manuals for Samsung MWR-WW10UN
Summary of Contents for Samsung MWR-WW10UN
- Page 1 Air to Water Heat Pump Installation manual Wired remote controller MWR-WW10UN • Thank you for purchasing this Samsung Product. • Before operating this unit, please read this installation manual carefully and retain it for future reference. DB68-12533A-00_IM_EHS Wired Remote_CV_Book_EN_.indd 1...
-
Page 2: Table Of Contents
Contents Safety Information Safety Information Wired Remote Controller Installation Wired Remote Controller Installation External Dimensions Wired Remote Controller Installation Tracking Your Indoor Unit from the Wired Remote Controller [See the image Individual control with your wired remote controller Group control with your wired remote controller Controlling 2-remote controller Sharing the temperature of hot water tank sensor Initializing Your Wired Remote Controller Communication... -
Page 3: Safety Information
This installation manual explains how to install a Wired Remote Controller connected to the indoor unit of your Samsung system air conditioner. Please read this manual thoroughly before installing the product. (Please refer to appropriate installation for any optional product installation.) WARNING Hazards or unsafe practices that may result in severe personal injury or death. -
Page 4: Wired Remote Controller Installation
Wired Remote Controller Installation Wired Remote Controller Installation Wired Remote Controller Installation External Dimensions [Unit : mm(inch)] 120.0 (4.72) 19.0(0.75) 4 English DB68-12533A-00_IM_EHS Wired Remote_CV_Book_EN_.indd 4 2023-08-07 오후 2:12:28... -
Page 5: Wired Remote Controller Installation
Wired Remote Controller Installation Insert the flat-head screwdriver into two square grooves at the bottom of the Wired Remote Controller and rotate it to lift the front cover for removal from the rear cover. Arrange the power cable and the communication cable so that they fit in the housing along the edges of the rear cover. - Page 6 Wired Remote Controller Installation Wired Remote Controller Installation Using two or more screws, firmly affix the rear cover of the remote controller to the wall, and then cut off the grooves of the front covers for communication and power cables, making sure these cables have reasonable length.
- Page 7 Reassemble the Wired Remote Controller. NOTE • Align the controller with the upper groove first, and then insert it by turning it downwards as shown in the figure. After assembly, check and confirm that no wires are stuck in the gap between the back and front covers.
-
Page 8: Tracking Your Indoor Unit From The Wired Remote Controller [See The Image A ]
Wired Remote Controller Installation Wired Remote Controller Installation • The following are the specs of the compression ring terminal connected to your Wired Remote Controller PCB. Stud ØD Range of Permitted Wires Rated Size Stud Size Basic Size [mm (inch)] mm²... -
Page 9: Individual Control With Your Wired Remote Controller
Individual control with your wired remote controller Individual control means that you are using one remote controller to control one indoor unit or one DVM Hydro unit/Hydro unit HT When connecting the Tank integrated Hydro Unit Outdoor unit COM1 (F1, F2) Tank integrated Hydro Unit Wired Remote... -
Page 10: Group Control With Your Wired Remote Controller
Wired Remote Controller Installation Wired Remote Controller Installation Group control with your wired remote controller Group control means that you are using one wired remote controller to control two or more DVM Hydro unit/Hydro unit HTs at the same time. When connecting the DVM Hydro unit/Hydro unit HT only Using one wired remote controller to control three DVM Hydro unit/Hydro unit HTs Outdoor unit... -
Page 11: Controlling 2-Remote Controller
Controlling 2-remote controller 2-Remote controller is controlling one DVM Hydro unit/Hydro unit HT with two remote controllers. When setting the wired remote controller as ‘Indoor temperature standard/wired remote controller sensor use’ , please install the main remote controller at indoor places. Outdoor unit COM1 (F1, F2) DVM Hydro unit/... -
Page 12: Sharing The Temperature Of Hot Water Tank Sensor
Wired Remote Controller Installation Wired Remote Controller Installation Sharing the temperature of hot water tank sensor Connecting one wired remote controller Outdoor unit Hot water tank sensor Hot water tank COM1 (F1, F2) COM1 (F1, F2) COM1 (F1, F2) DVM Hydro unit/ DVM Hydro unit/ DVM Hydro unit/ Hydro unit HT... - Page 13 Connecting 2 or more wired remote controller Hot water tank Outdoor unit sensor Hot water tank COM1 (F1, F2) COM1 (F1, F2) COM1 (F1, F2) DVM Hydro unit/ DVM Hydro unit/ DVM Hydro unit/ Hydro unit HT Hydro unit HT Hydro unit HT Unit No.
-
Page 14: Initializing Your Wired Remote Controller Communication
Wired Remote Controller Installation Wired Remote Controller Installation Initializing Your Wired Remote Controller Communication Wired remote controller must be initialized if installation status changes. • Changing number of indoor unit or their address Press the buttons at the same time for more than 5 seconds. •... -
Page 15: Installation/Service Mode
Installation/Service mode Additional functions of the Wired Remote Controller [See the image If you want to use the various additional functions for your Wired Remote Controller, press the buttons at the same time for more than 3 seconds. • The password entry screen appears. Enter the password, “0202,”... -
Page 16: Installation/Service Mode
Installation/Service mode Installation/Service mode Installation/Service mode NOTE • Unavailable functions are marked inactive and they cannot be set. • If communication initialization is needed after the setting, the system will reset automatically and communication will be initialized. Step 1 Step 2 Step 3 Description Default... - Page 17 Step 1 Step 2 Step 3 Description Default Number of 0 to 16 Connection View Master Indoor Address Unit Serial No.: Indoor Unit Eva In Temperature Temp.(Teva_in) : Indoor Unit Eva Out Connection Temperature Temp.(Teva_out) : Information Indoor Unit PHE Master Indoor Zone Temperature IN(Tw1) :...
- Page 18 Installation/Service mode Installation/Service mode Step 1 Step 2 Step 3 Description Default Water Inlet Temp.: Temperature Water Outlet Temp. Temperature (Zone 1) : Backup Heater Temperature Outlet Temp.: Mixing Valve Outlet Temperature Temp.: Tank Temp.: Temperature Indoor Ambient Temperature Temp.: Self-Test Mode Display Indoor Ambient...
- Page 19 Step 1 Step 2 Step 3 Description Default Main Address 00 to 4F Address RMC Address 00 to FE Refer to the installation Product Option 2)* manual of the connected indoor unit. Indoor Unit Option Installation Option 1 2)* Installation Option 2 2)* MCU Address 00 to 15...
- Page 20 Installation/Service mode Installation/Service mode NOTE • Address is displayed in hexadecimal. Please refer to the following table. Hexadecimal Decimal Hexadecimal Decimal Hexadecimal Decimal Hexadecimal Decimal Hexadecimal Decimal 20 English DB68-12533A-00_IM_EHS Wired Remote_CV_Book_EN_.indd 20 2023-08-07 오후 2:12:32...
-
Page 21: The Example Of Wired Remote Controller Option Setting Method
The example of Wired Remote Controller option setting method Press the buttons at the same time for more than 3 seconds. Enter the password, “0202,” and then press the button. Press the buttons to select “Indoor Unit Option,” and then press the button. - Page 22 Installation/Service mode Installation/Service mode When the microSD Card is removed during download When you remove the microSD Card during download, the “INSERT MICROSD CARD AND SYSTEM RESET” screen appears and the download is stopped. When you insert the microSD Card and press the buttons for system reset, download starts again after finishing the reset.
-
Page 23: Self-Test Mode Of Wired Remote Controller
Self-test mode of wired remote controller Use of self-test mode [See the image If you want to use the various additional functions for your Wired Remote Controller, press the buttons at the same time for more than 3 seconds. • The password entry screen appears. - Page 24 DB68-12533A-00_IM_EHS Wired Remote_CV_Book_EN_.indd 24 2023-08-07 오후 2:12:33...
