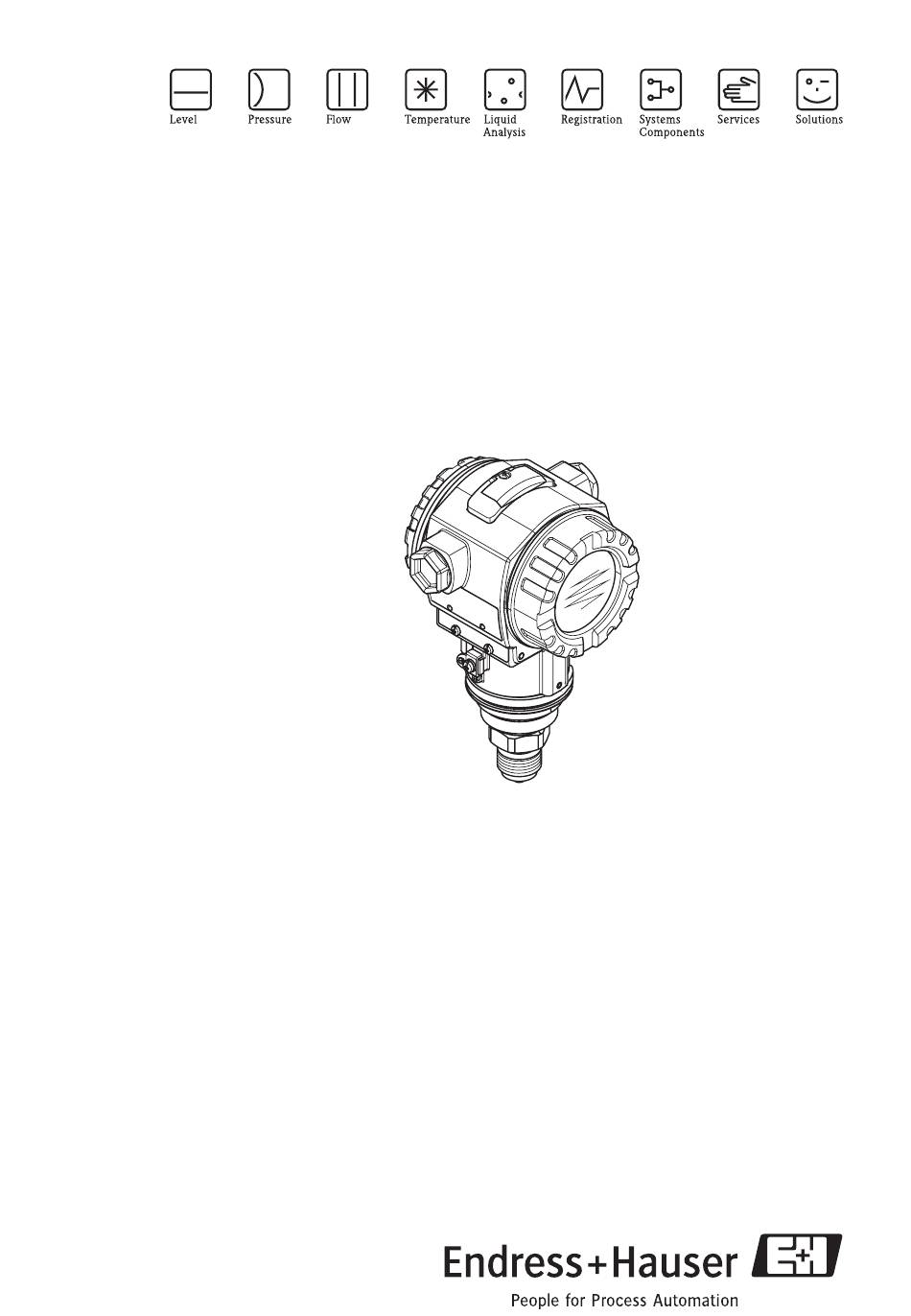

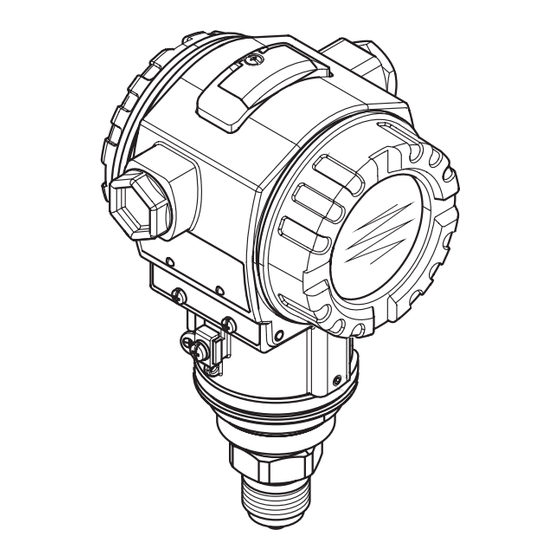

Brief Operating Instructions
Cerabar S
PMC71, PMP71, PMP72, PMP75
Process pressure measurement
9
These are Brief Operating Instructions.
For more detailed information, please refer to the Operating Instructions and the
additional documentation on the CD-ROM provided.
These Brief Operating Instructions are not intended to replace the Operating
Instructions provided in the scope of supply.
The complete device documentation consists of:
• these Brief Operating Instructions
• Approvals and safety certificates
• a CD-ROM with:
– the Operating Instructions
– Technical Information
KA1025P/00/EN/06.09
71095444

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Cerabar S PMC71

Summary of Contents for Endress+Hauser Cerabar S PMC71

  • Page 1 Brief Operating Instructions Cerabar S PMC71, PMP71, PMP72, PMP75 Process pressure measurement These are Brief Operating Instructions. For more detailed information, please refer to the Operating Instructions and the additional documentation on the CD-ROM provided. These Brief Operating Instructions are not intended to replace the Operating Instructions provided in the scope of supply.

  • Page 2: Table Of Contents

    5.6 Scaling the OUT parameter ..............32 Endress+Hauser...

  • Page 3: Safety Instructions

    Safety Instructions listed in this Ex document must be observed. The documentation number of the related Safety Instructions is also indicated on the additional nameplate. Return Follow the instructions on returning the device as outlined in the Operating Instructions on the CD-ROM provided. Endress+Hauser...

  • Page 4: Safety Icons

    (1). If this is the case, mount the sensor with the pressure compensation (1) pointing downwards. ® • Keep the pressure compensation and GORE-TEX filter (1) free from contaminations. • Do not clean or touch process isolating diaphragm of the diaphragm seals with hard or pointed objects. Endress+Hauser...

  • Page 5: Installation Instructions For Devices Without Diaphragm Seals Pmp71, Pmp72, Pmc71

    • To ensure optimal readability of the on-site display, it is possible to rotate the housing up to 380°. • The on-site display can be rotated in 90° stages. • Endress+Hauser offers a mounting bracket for installing on pipes or walls. Installation instructions for devices without diaphragm seals PMP71, PMP72, PMC71 Cerabar S without diaphragm seal are mounted as per the norms for a manometer (DIN EN 837-2).

  • Page 6: Installation Instructions For Devices With Diaphragm Seals Pmp75

    • vibration-free (in order to avoid additional pressure fluctuations) • not in the vicinity of heating or cooling lines • insulate if the ambient temperature is below ore above the reference temperature • with a bending radius of ≥100 mm. Endress+Hauser...
  • Page 7 Cerabar S FOUNDATION Fieldbus Installation 2.3.1 Vacuum application For applications under vacuum, Endress+Hauser recommends mounting the pressure transmitter underneath the diaphragm seal. A vacuum load of the diaphragm seal caused by the presence of filling oil in the capillary is hereby prevented.

  • Page 8: Assembling And Mounting The "Separate Housing" Version

    Mount the housing on a wall or pipe using the mounting bracket (item 7). When mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at least 5 Nm. Mount the cable with a bending radius (r) ≥ 120 mm. Endress+Hauser...

  • Page 9: Wiring

    Fig. 4: Electrical connection FOUNDATION Fieldbus → Observe also the following section. For devices with 7/8" plug see Operating Instructions. Housing Internal earth terminal External earth terminal Supply voltage, for version in non-hazardous area = 9...32 V DC Devices with integrated overvoltage protection are labelled OVP (overvoltage protection) here. Endress+Hauser...

  • Page 10: Connecting The Measuring Unit

    Cerabar S must be earthed, for example by means of the external earth terminal. Different earthing and screening installation methods are available for FOUNDATION Fieldbus networks such as: • Isolated installation (see also IEC 61158-2) • Installation with multiple earthing • Capacitive installation Endress+Hauser...

  • Page 11: Operation

    Parameter Measured value display Identification Function name Value number Header line Main line Unit Information line Symbol – Bargraph Bargraph Editing modes Operating keys Selection options Value that can be edited Current measured value P01-xxxxxxxx-07-xx-xx-xx-011 Endress+Hauser...
  • Page 12 The primary value of the Transducer Block is increasing. Tendency symbol (decreasing) The primary value of the Transducer Block is decreasing. Tendency symbol (constant) The primary value of the Transducer Block has remained constant over the past few minutes. Endress+Hauser...

  • Page 13: Operating Elements

    Green LED to indicate value is accepted (zero point-correction) or total reset Operating key for position adjustment (zero point-correction) Slot for optional display ® Slot for optional HistoROM /M-DAT DIP-switch for locking/unlocking measured-value-relevant parameters DIP switch for simulation mode Endress+Hauser...
  • Page 14 – You are in a menu at a selection level. Each time you press the keys simultaneously, you go up a level in the menu. Note: The terms function group, level and selection level are explained in Section 4.3.1, → ä 15. Endress+Hauser...

  • Page 15: On-Site Operation Via On-Site Display

    MEASURING MODE ➀ ➁ SETTINGS DISPLAY POSITION ADJUSTMENT BASIC SETUP EXTENDED SETUP POS. ZERO ADJUST ➂ ➃ POS. INPUT VALUE CALIB. OFFSET P01-xxxxxxxx-19-xx-xx-xx-145 Fig. 7: Structure of the operating menu 1. Selection level 2. Selection level Function groups Parameter Endress+Hauser...
  • Page 16 The on-site display shows the parameter to be changed. The value highlighted in black can be changed. The "s" unit is fixed and cannot be changed. P01-xxxxxxxx-19-xx-xx-xx-023 Press "+" or "–" to get to the editing mode. The first digit is highlighted in black. P01-xxxxxxxx-19-xx-xx-xx-027 Endress+Hauser...
  • Page 17 Use "E" to save the new value and exit the editing mode. → See next graphic. P01-xxxxxxxx-19-xx-xx-xx-031 The new value for the damping is now 30.0 s. – Jump to the next parameter with "E". – You can get back to the editing mode with "+" or "–". P01-xxxxxxxx-19-xx-xx-xx-032 Endress+Hauser...
  • Page 18 Use "E" to assign the value (3.9 mbar) to the POS. ZERO ADJUST parameter. The device confirms the calibration and jumps back to the parameter, here POS. ZERO ADJUST (see next graphic). P01-xxxxxxxx-19-xx-xx-xx-037 Switch to the next parameter with "E". P01-xxxxxxxx-19-xx-xx-xx-160 Endress+Hauser...

  • Page 19: Locking/Unlocking Operation

    Menu path: OPERATING MENU → OPERATION → INSERT PIN No. To lock operation, enter "0" for the parameter. Unlocking operation Operation via FF configuration program: select SWLOCK parameter in the Resource Block. Operation via FieldCare: select INSERT PIN No. parameter. To unlock operation, enter "100" for the parameter. Endress+Hauser...

  • Page 20: Commissioning

    Load Cff and device description files into the host system or the configuration program. Make sure you are using the right system files. Identify the device using the DEVICE_ID. Assign the desired tag name to the device by means of the PD_TAG parameter. Endress+Hauser...
  • Page 21 – CHANNEL = 2: Secondary value, here the sensor temperature Factory setting: – Analog Input Block 1: CHANNEL = 1: Primary Value (pressure measured value) – Analog Input Block 2: CHANNEL = 2: Secondary Value (sensor temperature) Endress+Hauser...

  • Page 22: Selecting The Language And Measuring Mode

    The LANGUAGE and MEASURING MODE parameters are on the 1st selection level. See → ä 15, Section 4.3.1 "Structure of the operating menu". The following languages are available: • Deutsch • English • Français • Español • Chinese (CHS) • Japanese (JPN) Endress+Hauser...

  • Page 23: Position Adjustment

    • Onsite display menu path: GROUP SELECTION → OPERATING MENU → SETTINGS → POSITION ADJUSTMENT • FieldCare menu path: OPERATING MENU → SETTINGS → POSITION ADJUSTMENT In addition, the "Position adjust" method is available if operating by means of a configuration program. Endress+Hauser...
  • Page 24 To correct the MEASURED VALUE to 0.0 mbar, you must enter the value 2.2 here. (The following applies: MEASURED VALUE = MEASURED VALUE – CALIB. OFFSET) – MEASURED VALUE (after entry for calib. offset) = 0.0 mbar Factory setting: Endress+Hauser...

  • Page 25: Pressure Measurement

    QUICK SETUP OPERATING MENU MEASURING MODE Pressure Level Gauge pressure Absolut pressure sensors sensors POS. ZERO ADJUST POS. INPUT VALUE 1) On-site display only DAMPING VALUE 2) FieldCare only P01-PMx7xxxx-19-xx-xx-en-078 Fig. 8: Quick Setup menu for the "Pressure" measuring mode Endress+Hauser...
  • Page 26 Input Block react to a change in the pressure. Note! For local operation, see also → ä 14, Section 4.2.3 "Function of the operating elements – on-site display connected" and → ä 15, Section 4.3 "On-site operation via on-site display". Endress+Hauser...

  • Page 27: Level Measurement

    – Customer-specific units of level, volume and mass, or a linearization table, can only be entered in the "Level standard" level mode. • For a detailed description of the parameters and configuration examples, see Operating Instructions BA303P "Cerabar S/Deltabar S/Deltapilot S, Description of Device Functions". Endress+Hauser...
  • Page 28 – Customer-specific BEFORE LIN. Linear – Level Operating parameter display – Volume Instructions units of level, the measured – Mass BA303P. volume and value. – Calibration mass are without possible reference pressure – dry calibration, see Operating Instructions BA303P. Endress+Hauser...
  • Page 29 A Operating linearization table Instructions has to be entered BA303P. for the 2nd measured variable. The 2nd measured variable is assigned to the 1st measured variable by means of this table. Endress+Hauser...
  • Page 30 3) – LEVEL SELECTION "Level Easy Pressure" FULL CALIB. and CALIBRATION MODE "Wet" – LEVEL SELECTION = "Level Standard", LEVEL MODE = "Linear" and DAMPING VALUE CALIBRATION MODE = "Wet" P01-FMB70xxx-19-xx-xx-en-015 Fig. 9: Quick Setup menu for the "Level" measuring mode" Endress+Hauser...
  • Page 31 – LEVEL SELECTION "Level standard", LEVEL MODE "Linear" and CALIBRATION MODE "Wet" Note! For local operation see also → ä 14, Section 4.2.3 "Function of the operating elements – on-site display connected" and → ä 15, Section 4.3 "On-site operation via on-site display". Endress+Hauser...

  • Page 32: Scaling The Out Parameter

    FieldCare. • Result: At a pressure of 350 mbar, the value 70 is output to a downstream block or to the PCS as the OUT value. L_TYPE: Indirect UNITS_INDEX: mbar EU_100 EU_0 UNITS_ INDEX: EU_0 EU_100 P01-xMx7xxxx-05-xx-xx-en-008 Endress+Hauser...
  • Page 33 • The L_TYPE, XD_SCALE and OUT_SCALE parameters can only be changed in the OOS block mode. • Make sure that the output scaling of the Pressure Transducer Block SCALE_OUT matches the input scaling of the Analog Input Block XD_SCALE. Endress+Hauser...
  • Page 34 Commissioning Cerabar S FOUNDATION Fieldbus Endress+Hauser...
  • Page 35 Cerabar S FOUNDATION Fieldbus Commissioning Endress+Hauser...
  • Page 36 www.endress.com/worldwide KA1025P/00/EN/06.09 71095444 CCS/FM+SGML 6.0 71095444...
