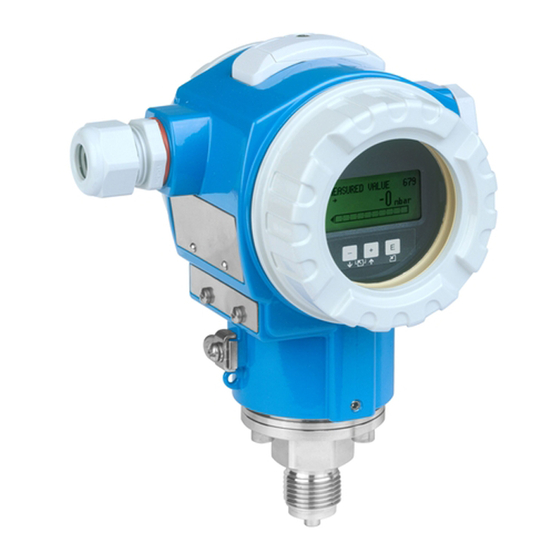

Endress+Hauser Cerabar S PMC71 Operating Instructions Manual

Process pressure measurement
Hide thumbs Also See for Cerabar S PMC71:
Table of Contents

Advertisement

Quick Links

Download this manual
BA00302P/00/EN/18.16
71335667
Valid as of software version
04.00.zz
Products
Operating Instructions
Cerabar S PMC71, PMP71,
PMP75
Process pressure measurement
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Cerabar S PMC71

Summary of Contents for Endress+Hauser Cerabar S PMC71

  • Page 1 Products Solutions Services BA00302P/00/EN/18.16 71335667 Valid as of software version 04.00.zz Operating Instructions Cerabar S PMC71, PMP71, PMP75 Process pressure measurement...
  • Page 2 The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser Sales Center will supply you with current information and updates to these Instructions. Endress+Hauser...

  • Page 3: Table Of Contents

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Table of contents Document information ....4 Pressure measurement ..... 61 Level measurement .

  • Page 4: Document Information

    Document information Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Document information Document function These Operating Instructions contain all the information that is required in various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.

  • Page 5: Registered Trademarks

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Document information 1.2.4 Symbols for certain types of information Symbol Meaning Permitted Indicates procedures, processes or actions that are permitted. A0011182 Forbidden Indicates procedures, processes or actions that are forbidden. A0011184 Indicates additional information.

  • Page 6: Terms And Abbreviations

    Document information Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Terms and abbreviations A0029505 Position Term/Abbreviation Explanation The OPL (over pressure limit = sensor overload limit) for the sensors depends on the lowest-rated element, with regard to pressure, of the selected components, i.e.

  • Page 7: Turn Down Calculation

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Document information Turn down calculation 1 = 2 A0029545 Fig. 1: Calibrated/Adjusted measuring span Zero-based span Upper range limit Example • Sensor: 10 bar (150 psi) • Calibrated/Adjusted measuring span: 0...5 bar •...

  • Page 8: Basic Safety Instructions

    The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.

  • Page 9: Hazardous Area

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Basic safety instructions Hazardous area To eliminate a danger for persons or for the facility when the device is used in the hazardous area (e.g. explosion protection, pressure vessel safety): • Based on the nameplate, check whether the ordered device is permitted for the intended use in the hazardous area.

  • Page 10: Identification

    Identification Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Identification Product identification The following options are available for identification of the measuring device: • Nameplate specifications • Order code with breakdown of the device features on the delivery note • Enter serial numbers from nameplates in W@M Device Viewer (www.endress.com/deviceviewer): All information about the measuring device is...
  • Page 11 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Identification Devices for use in hazardous areas are fitted with an additional nameplate. A0021222 Fig. 3: Additional nameplate Approval-specific information Document number for safety instructions or drawing number Devices suitable for oxygen applications or with PVDF process connection are fitted with an additional nameplate.

  • Page 12: Scope Of Delivery

    The devices comply with the applicable standards and regulations as listed in the EC Declaration of Conformity and thus comply with the statutory requirements of the EC Directives. Endress+Hauser confirms the conformity of the device by affixing to it the CE mark.

  • Page 13: Installation

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Installation Installation Incoming acceptance and storage 4.1.1 Incoming acceptance • Check the packaging and the contents for damage. • Check the shipment, make sure nothing is missing and that the scope of supply matches your order.

  • Page 14: General Installation Instructions

    • To ensure optimal readability of the onsite display, it is possible to rotate the housing up to 380°.  ä 24, "Rotating the housing". • Endress+Hauser offers a mounting bracket for installing on pipes or walls.  ä 21, Section 4.4.5 "Wall and pipe mounting (optional)".
  • Page 15 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Installation ‣ If this is the case, mount the Cerabar S with the pressure compensation (1) pointing downwards. ® • Keep the pressure compensation and GORE-TEX filter (1) free from contamination and water.
  • Page 16 Installation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Pressure measurement in steams ➀ ➃ ➁ ➁ ➂ ➀ P01-PMx7xxxx-11-xx-xx-xx-002 Fig. 7: Measuring arrangement for pressure measurement in steams Cerabar S Shutoff device U-shaped siphon Circular siphon • Use siphons for pressure measurement in steam. The siphon reduces the temperature to almost ambient temperature.
  • Page 17 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Installation Level measurement P01-PMP75xxx-11-xx-xx-xx-000 Fig. 9: Measuring arrangement for level • Always mount Cerabar S below the lowest measuring point. • Do not mount the device at the following positions:In the fill flow or at a point in the tank which could be affected by pressure pulses from an agitator.
  • Page 18 Installation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Vacuum application For applications under vacuum, Endress+Hauser recommends mounting the pressure transmitter below the diaphragm seal. This prevents vacuum loading of the diaphragm seal caused by the presence of fill fluid in the capillary.
  • Page 19 Installation Mounting with temperature isolator Endress+Hauser recommends the use of temperature isolators in the event of constant extreme medium temperatures which lead to the maximum permissible electronics temperature of +85 °C (+185°F) being exceeded. Depending on the filling oil used, diaphragm seal systems with temperature isolators can be used for maximum temperatures of up to +400 °C (+752 °F).
  • Page 20 Installation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus 4.4.3 Seal for flange mounting NOTICE Corrupted measurement results. The seal is not allowed to press against the process isolating diaphragm as this could affect the measurement result. ‣ Ensure that the seal is not touching the process isolating diaphragm.
  • Page 21 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Installation 4.4.5 Wall and pipe mounting (optional) Endress+Hauser offers a mounting bracket for installation on pipes or walls (for pipe diameters from 1 ¼" to 2"). ø42...60 (1.65...2.36) 122 (4.8) 140 (5.51) 158 (6.22)
  • Page 22 Installation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus 4.4.6 Assembling and mounting the "separate housing" version r ³ 120 (4.72) mm (in) P01-PMx7xxxx-11-xx-xx-xx-011 Fig. 15: "Separate housing" version In the "separate housing" version, the sensor is supplied with the process connection and cable ready-fitted.
  • Page 23 See the "Welding recommendation" table below Engineering unit mm (in) Endress+Hauser recommends welding on the diaphragm seal as follows for the "XSJ - Prepared for diaphragm seal mount" version in feature 110 "Process connections" in the order code up to, and including, 40 bar (600 psi) sensors: the total welding depth of the fillet weld is 1 mm (0.04 in) with an outer diameter of 16 mm (0.63 in).
  • Page 24 Installation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus 4.4.8 Rotating the housing The housing can be rotated up to 380° by loosening the Allen screw. A0019996 1. T14 housing: Loosen setscrew with a 2 mm (0.08 in) Allen key.

  • Page 25: Post-Installation Check

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Installation Post-installation check After installing the device, carry out the following checks: • Are all screws firmly tightened? • Are the housing covers screwed down tight? Endress+Hauser...

  • Page 26: Wiring

    Wiring Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Wiring Connecting the device WARNING Risk of electric shock! If the operating voltage is > 35 VDC: Dangerous contact voltage at terminals. ‣ In a wet environment, do not open the cover if voltage is present.

  • Page 27: Connecting The Measuring Unit

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Wiring 5.1.1 Connecting devices with 7/8" plug PIN assignment for 7/8" connector Meaning Meaning Signal – Signal + Shield Not assigned A0011176 Connecting the measuring unit For further information on the network structure and grounding and for further bus system components such as bus cables, see the relevant documentation, e.g.

  • Page 28: Overvoltage Protection (Optional)

    Wiring Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus • Installation with multiple grounding • Capacitive installation Overvoltage protection (optional) NOTICE Device could be destroyed! Devices with integrated overvoltage protection must be earthed. Devices showing version "M" in feature 100 "Additional options 1" or feature 110 "Additional options 2"...

  • Page 29: Operation

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Operation Operation Feature 20 "Output; operation" in the order code provides you with information on the operating options available to you. Versions in the order code Operation FOUNDATION Fieldbus; external operation, LCD Via onsite display or 1 key on the exterior of the device FOUNDATION Fieldbus;...
  • Page 30 Operation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Parameter Measured value display Identification Function name Value number Header line Main line Unit Information line Symbol – Bargraph Bargraph Editing modes Operating keys Selection options Value that can be edited...

  • Page 31: Operating Elements

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Operation Operating elements 6.2.1 Position of the operating elements The operating keys of the housing T14 (aluminum or stainless steel) are located either outside of the housing, under the protection cap or upon the electronic insert. The operating keys of the hygienic stainless steel housing T17 are located inside the housing upon the electronic insert.
  • Page 32 Operation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus 6.2.2 Function of the operating elements - onsite display not connected Key(s) Meaning – Position adjustment (zero point correction): press key for at least 3 seconds. The LED on the electronic insert lights up briefly if the pressure applied has been accepted for position adjustment.
  • Page 33 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Operation 6.2.3 Function of the operating elements – onsite display connected Key(s) Meaning – Navigate upwards in the picklist – Edit numerical values or characters within a function – Navigate downwards in the picklist –...

  • Page 34: Foundation Fieldbus Interface

    Operation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus FOUNDATION Fieldbus interface 6.3.1 System architecture The following diagram shows two typical examples of a FOUNDATION Fieldbus network with the associated components. Industrial Network FF-HSE FF-H1 FF-H1 P01-xxxxxxxx-02-xx-xx-xx-001 Fig. 21: FOUNDATION Fieldbus system architecture with associated components...
  • Page 35 Operation 6.3.2 Number of devices • Endress+Hauser Cerabar S devices meet the requirements of the FISCO model. • Due to the low current consumption, the following can be operated at one bus segment when installation is performed according to FISCO: Up to HW version 1.10:...
  • Page 36 Operation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus 6.3.5 Device identification and addressing FOUNDATION Fieldbus identifies the device using its ID code and automatically assigns it a suitable field address. The identity code cannot be changed. The device appears in the network display once you have started the FF configuration program and integrated the device into the network.
  • Page 37 Endress+Hauser Guideline BA00062S. The guideline provides an overview of the standard function blocks that are described in FOUNDATION Fieldbus Specifications FF 890 - 894. It is designed to help operators use the blocks implemented in the Endress+Hauser field devices. Endress+Hauser...
  • Page 38 Operation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Block configuration when device is delivered The block model shown below illustrates the block configuration when the device is delivered. Measured variable Sensor Display Resource Block Signal evaluation with scaling Primary value...
  • Page 39 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Operation 6.3.7 Assignment of Transducer Blocks (CHANNEL) Settings for the Analog Input Block Process variable Transducer Block Parameter name CHANNEL parameter in the Analog Input Block Primary Value, a pressure or Pressure Transducer...
  • Page 40 Operation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Discrete Input Block settings Alarm conditions Transducer Block Parameter name Parameter CHANNEL, Discrete Input Block General device error Configuration error Sensor overpressure Sensor underpressure Sensor overtemperature Sensor undertemperature Process isolating diaphragm broken...
  • Page 41 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Operation 6.3.8 Index tables of Endress+Hauser parameters The following tables list the manufacturer-specific device parameters for the Resource Block, the Transducer Blocks and the Analog Input Blocks. For the FF parameters, see either the FF specification or Operating Instructions BA00303P "Description of Device Functions,...
  • Page 42 Operation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Pressure Transducer Block Parameter name, Parameter name, Index Data type Size Storage Read Write MODE_BLK Reset codes option "Symbolic name" option "Label" (Byte) Class MEASURED_TEMPERATURE Temperature DS-65 MEASURED_TEMPERATURE_UNIT Temp. eng. unit...
  • Page 43 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Operation Parameter name, Parameter name, Index Data type Size Storage Read Write MODE_BLK Reset codes option "Symbolic name" option "Label" (Byte) Class SENSOR_MEAS_TYPE Sensor meas. type Unsigned16 LEVEL_SELECTION Level mode Unsigned8 7864, 333...
  • Page 44 Operation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Display Transducer Block Parameter name, Parameter name, Index Data type Size Storage Read Writ BLK_MODE Reset codes option "Symbolic name" option "Label" (Byte) Class DEVICE_DIALOG Device dialog Unsigned8 DISPLAY_MAINLINE_CONTENT Main line cont.
  • Page 45 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Operation Parameter name, Parameter name, Index Data type Size Storage Read Writ BLK_MODE Reset codes option "Symbolic name" option "Label" (Byte) Class FF912_STATUS_SELECT4 Status Select Event 717 Enumerated AUTO, OOS, 7864 FF912_STATUS_SELECT5...

  • Page 46: Local Operation - Onsite Display Connected

    Operation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Local operation – onsite display connected If the onsite display is connected, the three operating keys are used to navigate through the operating menu,  ä 33, Section 6.2.3 "Function of the operating elements – onsite display connected".
  • Page 47 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Operation 6.4.2 Selecting an option Example: Selecting the "Pressure" measuring mode. Onsite display Operation "Level" has been selected as the measuring mode. The option currently active is indicated by a 3 in front of the menu text.
  • Page 48 Operation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Onsite display Operation Press "+" or "–" until "0" is displayed. 2. Press the "E" key to confirm "0". The cursor goes to the next position.  is displayed and highlighted in black. See next graphic.

  • Page 49: Fieldcare

    FieldCare is Endress+Hauser' s plant asset management tool based on FDT technology. You can use FieldCare to configure all Endress+Hauser devices as well as third-party devices which support the FDT standard. Hardware and software requirements you can find on the internet: www.endress.com ...
  • Page 50 Operation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus 6.6.1 Copying configuration data ➁ ➀ Zero Display Sensor OUNDATION HW-Version: SW-Version: P01-xxxxxxxx-19-xx-xx-xx-123 ® Electronic insert with optional HistoROM /M-DAT memory module ® Optional HistoROM /M-DAT ® ® To copy configuration data from the HistoROM/...
  • Page 51 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Operation 10. Reestablish supply voltage to the device. ® Copying configuration data from a HistoROM /M-DAT to a device: Operation must be unlocked. Disconnect the device from the supply voltage. ® Attach the HistoROM /M-DAT to the electronic insert.

  • Page 52: Locking/Unlocking Operation

    Operation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Locking/unlocking operation Once you have entered all the parameters, you can lock your entries against unauthorized and undesired access. The operation can be locked/unlocked in the following ways: • Via a DIP switch on the electronic insert, locally on the display.

  • Page 53: Simulation

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Operation Simulation The function of the Analog Input Block, such as input and output scaling, can be simulated as follows: Set the "Simulation" DIP switch on the electronic insert to "On". In the Analog Input Block, select the "Active" option by means of the SIMULATION parameter, ENABLE_DISABLE element.
  • Page 54 Operation Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus 6.9.2 Performing reset via the FieldCare operating program If operating via FieldCare, enter the code via the ENTER RESET CODE parameter (menu path: OPERATING MENU OPERATION). The following table illustrates which parameters are reset by the particular reset codes.
  • Page 55 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Operation The table uses the group and parameter names as they appear in FieldCare.  ä 41, Section 6.3.8 "Index tables of Endress+Hauser parameters" for the assignment of the FieldCare parameter names and the FF configuration program. Endress+Hauser...

  • Page 56: Commissioning

    Commissioning Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Commissioning The device is configured for the Pressure measuring mode as standard. The measuring range and the unit in which the measured value is transmitted correspond to the specifications on the nameplate.
  • Page 57 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Commissioning Identify the device using the DEVICE_ID (see Point 2). Assign the desired tag name to the device by means of the PD_TAG parameter. Configuring the Resource Block Open the Resource Block.

  • Page 58: Selecting The Language And Measuring Mode

    Commissioning Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Specify the alarm priorities by means of the HI_HI_PRI, HI_PRI, LO_LO_PRI and LO_PRI parameters. Reporting to the field host system only takes place with alarms with a priority greater than 2.
  • Page 59 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Commissioning 7.4.2 Selecting the language and measuring mode by means of the FieldCare operating program Selecting the measuring mode The parameters for setting the measuring mode are displayed in the FieldCare "Measuring mode"...

  • Page 60: Position Adjustment

    Commissioning Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Position adjustment Due to the orientation of the device, there may be a shift in the measured value, i.e. when the container is empty or partly filled, the measured value parameter does not display zero.

  • Page 61: Pressure Measurement

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Commissioning Pressure measurement 7.6.1 Information on pressure measurement • A Quick Setup menu is available for each of the measuring modes pressure and level which guides you through the most important basic functions. With the setting in the MEASURING MODE parameter, you specify which Quick Setup menu should be displayed.
  • Page 62 Commissioning Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Local operation FieldCare POS. INPUT VALUE POS. INPUT VALUE Due to orientation of the device, there may be a shift Due to orientation of the device, there may be a shift in the measured value.

  • Page 63: Level Measurement

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Commissioning Level measurement 7.7.1 Information on level measurement • A Quick Setup menu is available for each of the measuring modes Pressure and Level which guides you through the most important basic functions. For the "Level" Quick Setup menu, ...
  • Page 64 Commissioning Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus 7.7.2 Overview of level measurement Measuring task LEVEL SELECTION/ Measured variable Description Comment Measured value display LEVEL MODE options The measured variable is LEVEL SELECTION: Via OUTPUT UNIT – Calibration with reference –...
  • Page 65 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Commissioning 7.7.3 Quick Setup menu for the Level measuring mode • Some parameters are only displayed if other parameters are appropriately configured. For example, the EMPTY CALIBRATION parameter is only displayed in the following instances: –...
  • Page 66 Commissioning Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Local operation FieldCare GROUP SELECTION Select QUICK SETUP menu. POS. ZERO ADJUST POS. ZERO ADJUST Due to orientation of the device, there may be a shift Due to orientation of the device, there may be a shift in the measured value.

  • Page 67: Scaling The Out Parameter

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Commissioning Scaling the OUT parameter In the Analog Input Block, the input value or input range can be scaled in accordance with the automation requirements. Example: The measuring range 0 to 500 (7.5 psi) mbar should be rescaled to 0 to 100 %.

  • Page 68: Configuring Event Behavior In Accordance With

    Commissioning Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Configuring event behavior in accordance with FOUNDATION Fieldbus Specification FF912 Field Diagnostic Profile The device complies with FOUNDATION Fieldbus Specification FF912. Among other things, this means that: • The diagnostic category according to NAMUR Recommendation NE107 is transmitted via the fieldbus in a format that is independent of the manufacturer: –...
  • Page 69 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Commissioning Event severity Default event category Event source Events in this group High severity Check (C) Sensor • 101: C>Sensor electronic EEPROM error • 725: C>Sensor connection error, cycle disturbance • 747: C>Sensor software not compatible to electronics Electronics •...
  • Page 70 Commissioning Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Event severity Default Event source Events in this group event category Lowest severity Maintenance required Sensor • 745: M>Sensor data unknown Electronics • 134: M>EEPROM lifetime WARNING • 700: M>Last configuration not stored •...
  • Page 71 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Commissioning Factory setting of assignment parameters Standard area Configurable area Event severity Highest severity High severity Low severity Lowest severity Event source 15...1 FD_FAIL_MAP FD_CHECK_MAP FD_OFFSPEC_MAP FD_MAINT_MAP S: Sensor; E: Electronics; C: Configuration; P: Process Proceed as follows to change the diagnostic behavior of an event group: Open the assignment parameter to which the group is currently assigned.
  • Page 72 Commissioning Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus In the Failure column search for the Highest Severity Electronic group and disable the associated check box (A). Enable the appropriate check box in the Function column (B). Please note that the "Accept" button must be pressed to confirm each entry.
  • Page 73 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Commissioning 7.9.3 Configurable area The event category can be individually defined for the following events - irrespective of the event group to which they are assigned in the factory setting: • 115: Sensor overpressure •...
  • Page 74 Commissioning Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Select the "Configurable area" tab. In the factory setting, all the bits in the Configurable Area Bits column have the value not assigned (A). (A) (B) Select one of these bits (here Configurable Area Bit 15, for instance) and select the Sensor overpressure (B) option from the associated picklist.
  • Page 75 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Commissioning The "Simulation" tab makes it possible to simulate an event. Endress+Hauser...
  • Page 76 Commissioning Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus 7.9.4 Transmission of independent event messages on the bus Event priority Event messages are only transmitted on the bus if their priority is between 2 and 15. Priority 1 events are displayed but are not transmitted on the bus. Events whose priority is 0 are ignored.
  • Page 77 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Commissioning 7.9.5 Overview of the settings made and the current events In the FieldCare navigation window navigate to Diagnose Alarm Indication (Polling) The following overview is displayed: – "Troubleshooting information" if an event has occurred –...
  • Page 78 Commissioning Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus • 740: Calculation Overflow, bad configuration To change the assigned status (Bad, Uncertain, Good) of an event, select the desired status from the associated picklist. Example The status of error 115 "Sensor overpressure" should no longer be indicated as "Uncertain"...

  • Page 79: Maintenance

    (1) free from contamination and water. P01-PMC71xxx-17-xx-xx-xx-001 Cleaning instructions Endress+Hauser offer flushing rings as accessories to clean process isolating diaphragms without taking the transmitters out of the process. For further information please contact your local Endress+Hauser Sales Center. 8.1.1...

  • Page 80: Diagnostics And Troubleshooting

    Diagnostics and troubleshooting Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Diagnostics and troubleshooting Troubleshooting 9.1.1 General errors Error Possible cause Remedy Device is not The supply voltage does not match the Apply correct voltage. responding. specifications on the nameplate.

  • Page 81: Diagnostic Information On Local Display

    For the error messages, see  ä 81, Section 9.2.2 "Onsite display error messages". • For support and further information, please contact Endress+Hauser Service. • See also Section 9.8, Section 9.9 and Section 9.10. • If the category of a diagnostic event is being changed, an empty field might be displayed instead of "F, C, S, M".

  • Page 82: Diagnostic Event In The Operating Tool

    Diagnostics and troubleshooting Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Message Measure Initialization, VU Electr. Defect A110 Exchange onsite display. Initialization, VU Electr. Defect A114 Initialization, VU Electr. Defect A281 Initialization, VU Checksum Err. A110 Initialization, VU Checksum Err. A112 Initialization, VU Checksum Err.

  • Page 83: Diagnostic Messages In The Diagnostic Transducer Block (Trddiag)

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Diagnostics and troubleshooting Diagnostic messages in the DIAGNOSTIC Transducer Block (TRDDIAG) • The Actual Diagnostics parameter shows the message with the highest priority. Every message is also displayed as per the FOUNDATION Fieldbus Specification by means of the XD_ERROR and BLOCK_ERROR parameters.
  • Page 84 Diagnostics and troubleshooting Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Alarm Electronics Failure 0 Other BAD_DEVICE_FAILURE Pressure, Level, Flow Electronics Failure 0 Other BAD_DEVICE_FAILURE Pressure, Level, Flow Electronics Failure 0 Other BAD_DEVICE_FAILURE Pressure, Level, Flow Electronics Failure 0 Other...
  • Page 85 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Diagnostics and troubleshooting Configuration Other GOOD Pressure, Level, Flow None Error Configuration Other GOOD Pressure, Level, Flow None Error Configuration Other GOOD Pressure, Level, Flow None Error Configuration Other GOOD Pressure, Level, Flow...

  • Page 86: Overview Of Diagnostic Events

    Diagnostics and troubleshooting Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Overview of diagnostic events 9.5.1 Failure (F) Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm F>Sensor electronic – Electromagnetic effects are –...
  • Page 87 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Diagnostics and troubleshooting Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm F>Sensor connection – Electromagnetic effects are – Block off electromagnetic error, cycle disturbance...
  • Page 88 Diagnostics and troubleshooting Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm F>Memory failure in – Electromagnetic effects are – Block off electromagnetic signal processor...
  • Page 89 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Diagnostics and troubleshooting Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm C>LRV or URV out of – Lower range value and/or – Reset the LRV and/or URV to...
  • Page 90 Diagnostics and troubleshooting Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Warning C>Configuration not – By means of the operation – Check configuration. permitted profile, options were selected –...
  • Page 91 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Diagnostics and troubleshooting 9.5.3 Maintenance required (M) Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Warning M>Checksum error in – Main electronics defect. – Replace main electronics.
  • Page 92 Diagnostics and troubleshooting Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm/ M>Calculation – Level measuring mode: the – Check configuration and warning overflow, bad...
  • Page 93 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Diagnostics and troubleshooting Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm/ S>Transmitter – The temperature measured in – Increase ambient warning under temperature the electronics is smaller than temperature.
  • Page 94 Diagnostics and troubleshooting Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm/ S>Pmax ALARM – Pressure measured value has – Check system/pressure Warning WINDOW overshot the value specified measured value.

  • Page 95: Response Of Outputs To Errors

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Diagnostics and troubleshooting Response of outputs to errors The device makes a distinction between the output behavior "Alarm", "Warning" and "Error".  See the following table and  ä 81, Section 9.2 "Diagnostic information on local display".

  • Page 96: Confirming Messages

    Diagnostics and troubleshooting Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus 9.6.1 Analog Input Block If the Analog Input Block receives an input or simulation value with the status BAD, the Analog Input Block uses the failsafe mode defined in the FSAFE_TYPE parameter.

  • Page 97: Repair

    • Carry out repairs according to the instructions. After repairs, the device must fulfill the requirements of the specified individual tests. • A certified device may only be converted into another certified variant by Endress+Hauser. • All repairs and modifications must be documented.

  • Page 98: Software History

    Technical data Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus 9.13 Software history Date Software version Changes to the software Documentation Operating Instructions Description of Device Functions 03.2005 02.00.zz Original software. BA302P/00/EN/04.05 BA303P/00/EN/04.05 52027501 52027502 Compatible with: – ToF Tool Field Tool Package, version 2.04 or higher BA302P/00/EN/11.05...

  • Page 99: Index

    Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Index Menu structure ........46 Methods .
  • Page 100 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Welding recommendation......23 Workplace safety ....... . . 8...
  • Page 101 Cerabar S PMC71, PMP71, PMP75 with FOUNDATION Fieldbus Endress+Hauser...
