Installation
•
Before touching integrated circuits, make sure that you are working in an ESD-safe
environment.
•
When plugging the board in or removing it, use the handles; do not press on the front panel.
3.5.1

Installation Procedure

Note: Connect interface cables to the on-board connectors first, since it may be difficult to reach them
when the Intel MPRTM4808 board is already installed into the CompactPCI backplane. Connect
interface cables to the front panel connectors after installing the Intel MPRTM4808 board.
1. Check all installed boards for steps to perform before turning off system power.
2. Turn off system power.
3. Check system documentation for switch settings.
4. The Intel MPRTM4808 board provides two on-board switches and one FP reset switch. Make
sure that switches are set to OFF (default position)
5. Connect interface cables to on-board connectors.
6. Insert the Intel MPRTM4808 board carefully from rear into same slot as the CPU board,
making sure not to bend any pins.

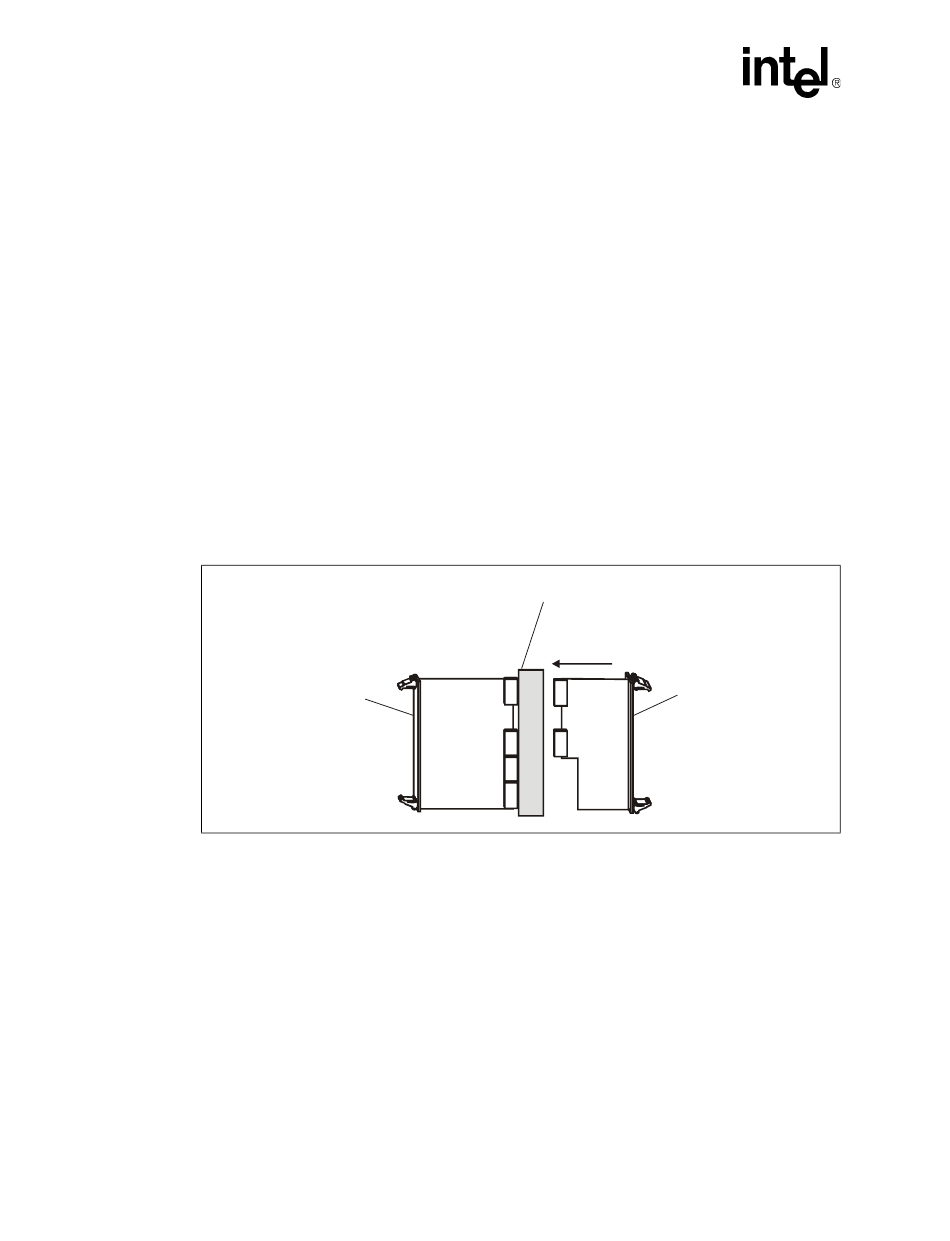

Figure 11. Connecting Intel
7. Press handles inward to lock Intel MPRTM4808 board on CompactPCI rack.
8. Fasten Intel MPRTM4808 board with screws.
9. Plug interface cables into front panel connectors, if applicable (see
Connectors and Controls" on page
10. Turn on system power.
18
Download from Www.Somanuals.com. All Manuals Search And Download.
®
NetStructure™ MPRTM4808 Rear Transition Board to Backplane
Front
CPU
Board
22).
®
Intel NetStructure™ MPRTM4808 Rear Transition Board Installation Guide
CompactPCI Backplane
Rear
J5 J5
J3 J3
J2
J1
RTB
Section 3.7, "Front Panel
