Summary of Contents for Victory CYCLONE

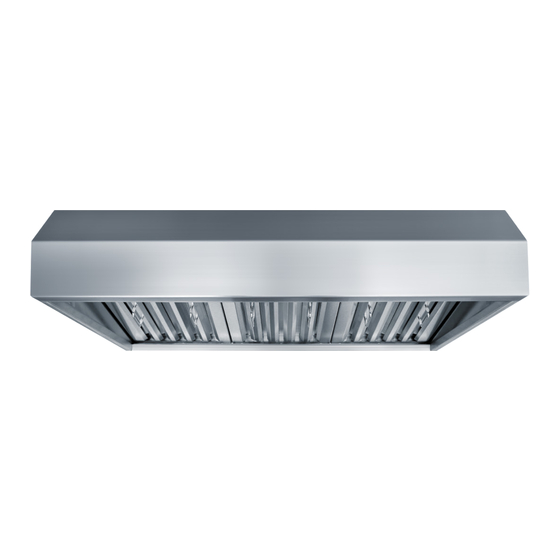

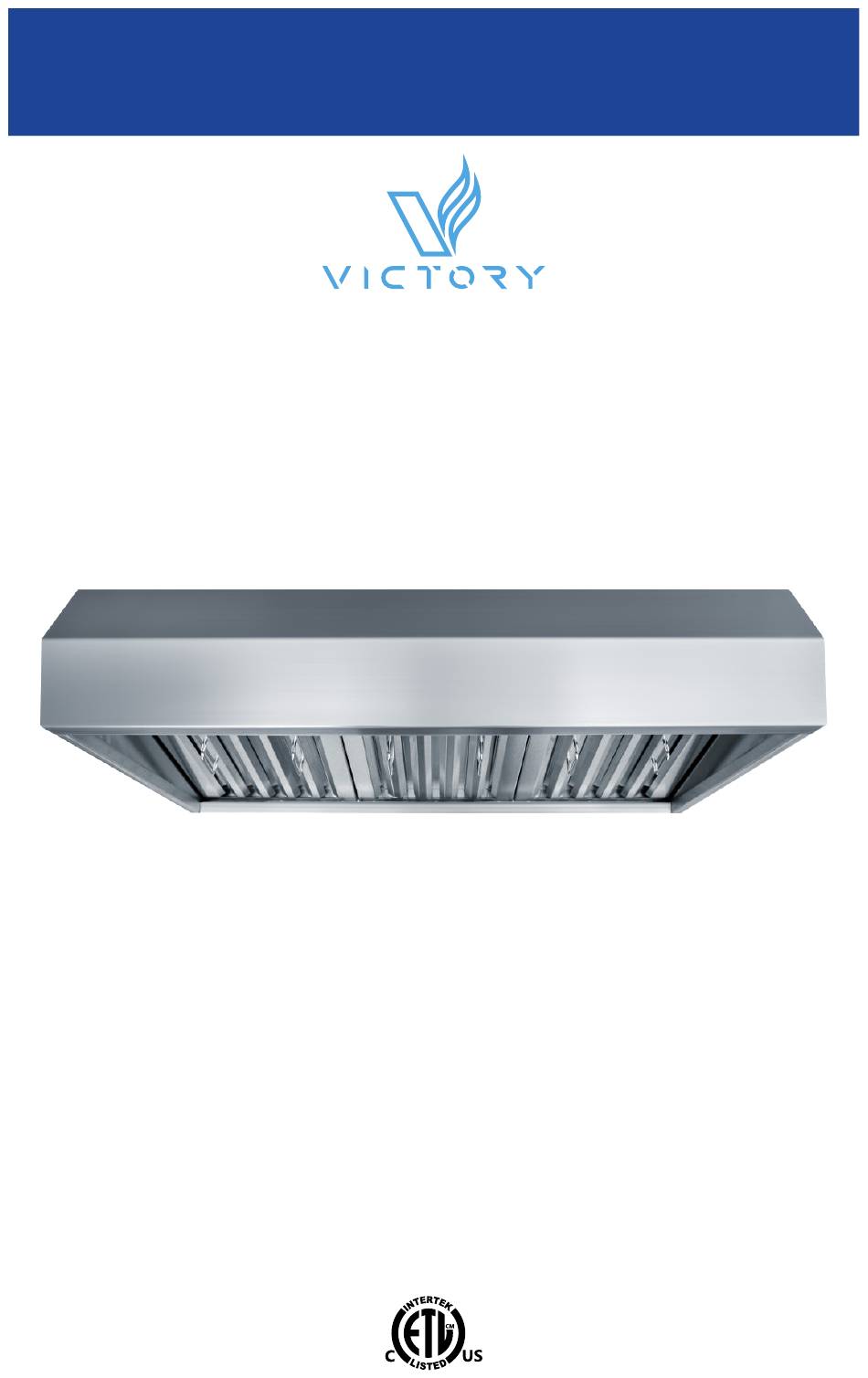

- Page 1 INSTALLATION GUIDE AND USERS MANUAL PROFESSIONAL BBQ RANGE HOOD CYCLONE Model Name: Available Sizes: 36”, 42”, 48” NOTICE: For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference. Rev.20230331...
-
Page 2: Table Of Contents
Venting Methods................19 Back Exhaust Option................ 20 Wiring Diagram................. 21 Range Hood Operations..............21 Troubleshooting................22 Do’s and Don’ts for Duct Venting............ 23 Use and Care Information..............23 Maintenance..................24 Bulb Replacement................25 Warranty..................... 27 Disclaimer..................28 Contact Us..................28 | CYCLONE... -
Page 3: Important Safety Notice
• Use high settings on cooking range only when necessary. • Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. CYCLONE | 3... - Page 4 The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. | CYCLONE...
-
Page 5: Electrical Requirements
(at the range hood and at the junction box). Copies of the standards listed may be obtained from: * National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575 CYCLONE | 5... -
Page 6: Venting Requirements
If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood mounting height above range. Minimum Duct Size: • Round - 8” minimum • Round - 10” recommended/optional * Due to different ceiling height configurations, recommended height may not be applicable. | CYCLONE... -
Page 7: Calculating Vent System Length
4 x 35W or 6 x 35w GU10, 120V Dimmable (LED Optional) Venting Size Top 8 Inches Round or 10” (Optional) Warranty 5 YEARS ( parts warranty ) Subject to change without notice, please contact your local reseller for details. CYCLONE | 7... -
Page 8: Required Tools
Tape Phillips Measure Screwdriver Level Aluminum Tape PARTS SUPPLIED Mounting “L” shape Brackets supports (x2) (x2) NOTE: Where necessary, additional screws will be needed for installation and added support, but is not included. Please review contents before installation. | CYCLONE... - Page 9 (x1 for 36” and 42”) (x2 for 48”) (x1 for 36” and 42”) (x2 for 48”) CYCLONE Range Hood Baffle Filters (x3 for 36” and 42”) (x4 for 48”) Grease Tunnel Handles (x6 for 36” and 42”) (x8 for 48”) CYCLONE | 9...
-
Page 10: Dimensions
DIMENSIONS ½ ” TOP VIEW ½ ” 8” 32” 4” ¾ ” ¾ ” 10” Optional Transition FRONT VIEW SIDE VIEW 7” 4” 14” BACK VIEW Model 36 shown here 14 ½” | CYCLONE... - Page 11 DIMENSIONS (Continued) Model: CYCLONE 36, 42 32” 4” 8”- Ø Transition (optional 10”- Ø) 4” 7” 14½” Available widths: 14” 35 ¾”, 41 ¾” Optional Vent Size 10” Model: CYCLONE 48 32” 4” 21 ¼” 8”- Ø Transition (optional 10”- Ø) 4”...
-
Page 12: Preparation
NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. 1. Disconnect power cord, remove the stainless steel baffle filter and grease tunnel. 2. Set aside the stainless steel baffle filters and grease tunnel until the range hood is properly installed. | CYCLONE... -
Page 13: Rough-In
Preferred area to install WALL vent ducting. WALL vent may be installed in these areas but not recommended. Cyclone BBQ Range Hood 14 ½” and 8” Transition placement (1) Measure the distance between the stove top and the bottom of range hood. - Page 14 (5) Apply spackle in between spaces of the plywood and drywall seamlessly. Sand down any Placement of rough spackle to smooth out. Range Hood Paint area if required. Apply spackle in between spaces of the plywood and drywall seamlessly. | CYCLONE...
-
Page 15: Installation
(1) Screw installation plates on to the back of the (2) Screw on 8” - Ø Transition on to the top range hood. exhaust of range hood (10” Optional). (3) Screw on “L” shape corner supports. M4 - 4mm Big Head CYCLONE | 15... - Page 16 (4) Fasten #8 2-½“ woodscrews (not included) (5) Use either chain link or steel rods for ceiling to mount the range hood based on your earlier support (heavy-duty, aircraft grade strength). Sold measurements already established. separately. Ensure range hood is level. | CYCLONE...
- Page 17 Use 8” round steel pipe (follow building codes in edge for 8” - Ø Transition will be ⅛” your area) to connect the exhaust on the hood to the ductwork above. Use aluminum tape to make all joints secure and air tight. CYCLONE | 17...
- Page 18 INSTALLATION (Grease Tunnel & Filters) BOTTOM VIEW SIDE VIEW | CYCLONE...
-
Page 19: Venting Methods
*Min height: 85½” rom bottom of duct to ground when range height to top of filters is 38” 36” typical * Due to different ceiling height configurations, recommended height may not be applicable. CYCLONE | 19... -
Page 20: Back Exhaust Option
Changing from the top vent to back vent onsite can be difficult. For best performance, a 10”- Ø transition and round duct must be used for rear-vent installations. Please contact Victory Range Hoods if you have any further questions. | CYCLONE... -
Page 21: Wiring Diagram
The switch has 5 positions: OFF, SPEED 1,2,3,4. LIGHT SWITCH: Rotate the switches clockwise to switch the lights ON. The light switch allows you to control the intensity of the light via Typical rotary switch rotary dimmer. CYCLONE | 21... -
Page 22: Troubleshooting
• The duct size must be 8”, or larger. Please make sure there are NO reducers or plenums in the duct work. • Refer to DO’S and DON’TS for DUCT VENTING page for illustrative examples. NOTE: For all other inquiries, please contact Victory Range Hoods. | CYCLONE... -
Page 23: Do's And Don'ts For Duct Venting
• DO NOT operate blowers when filters are removed. Never disassemble parts to clean without proper instructions. Disassembly is recommended to be performed by qualified personnel only. Read and understand all instructions and warnings in this manual before proceeding. CYCLONE | 23... -
Page 24: Maintenance
Dry the filters and re-install before using the hood. Replacing Filters: • Should filters wear out due to age and prolonged use, please contact Victory Range Hoods to order replacement filters. Replacing the light bulb: •... -
Page 25: Bulb Replacement
Twist the connector cap off, and dislodge from electrical tether. LED Bulb is model: GU10. Contact Victory Range Hood and place an order, or you may purchase at your nearest hardware store. CYCLONE | 25... - Page 26 To re-assemble, simply reverse the steps press the bulb housing carefully and firmly into the recess, until you hear a positive snap. *Observe all safety precautions before you proceed to turn ON breaker and range hood to test for operation. | CYCLONE...
-
Page 27: Warranty
Victory Range Hoods. The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. CYCLONE | 27... -
Page 28: Disclaimer
Toll Free: 1-800-394-4020 info@victoryrangehoods.com The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. | CYCLONE... - Page 29 NOTES CYCLONE | 29...
- Page 30 NOTES | CYCLONE...
- Page 31 NOTES CYCLONE | 31...
- Page 32 583 Nicola Avenue | Port Coquitlam | BC | Canada | V3B 0M3 www.victoryrangehoods.com...
