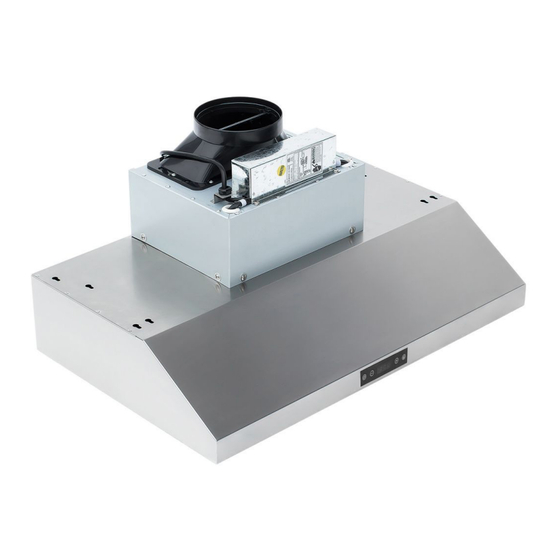

- Page 1 INSTALLATION GUIDE AND USERS MANUAL Professional Under Cabinet Range Hood UC800 Model Name: NOTICE: For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference. Rev.20230303b...
-
Page 2: Table Of Contents
Installation..................12 Venting Methods................16 Wiring Diagram................. 18 Range Hood Operations..............19 Troubleshooting................20 Do’s and Don’ts for Duct Venting............ 21 Use and Care Information..............21 Maintenance..................22 Bulb Replacement................23 Warranty..................... 24 Disclaimer..................25 Contact Us..................25 | UC800... -
Page 3: Important Safety Notice
• Use high settings on cooking range only when necessary. • Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. UC800 | 3... - Page 4 The manufacturer and/or distributor/reseller will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. | UC800...
-
Page 5: Electrical Requirements
(at the range hood and at the junction box). Copies of the standards listed may be obtained from: * National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269 ** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575 UC800 | 5... -
Page 6: Venting Requiremens
If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood mounting height above range. Minimum Duct Size: • Round - 6” * Due to different ceiling height configurations, recommended height may not be applicable. | UC800... -
Page 7: Calculating Duct System Length
Aluminium Filter Illumination 2 x 35W GU10 Halogen, 120V (12V LED Optional) Ducting Size Top 6” Round Warranty 1 YEAR ( parts warranty ) * Subject to change without notice, please contact your local reseller for details. UC800 | 7... -
Page 8: Required Tools
P lease r efer t o Bulb Replacement page for more information). NOTE: Where necessary, additional screws will be needed for installation and added support, but are not included. Please review contents before installation. Ø - 6” Transition Baffle Filters (x2) Range Hood UC800 | UC800... -
Page 9: Dimensions
DIMENSIONS UC800 - Model 30 TOP VIEW 12” 29 ½” ¼” 10 ½” FRONT SIDE VIEW VIEW 5” 1 ¾” 19” BOTTOM VIEW UC800 | 9... - Page 10 DIMENSIONS TOP VIEW UC800 - Model 24 12” 23 ½” ¼” 10 ½” FRONT SIDE VIEW VIEW 5” 1 ¾” 19” BOTTOM VIEW | UC800...
-
Page 11: Preparation
• Use aluminum tape to seal joints between pipe sections. THE HOOD MUST BE TESTED BEFORE INSTALLATION. Victory Range Hoods Inc. will not be responsible for additional labour costs related to reinstallation of the hood due to transportation internal damage or wiring issues. -
Page 12: Rough-In
Bottom panel of the top cabinet Bottom panel of the top cabinet Top view of range hood Top view of range hood | UC800... - Page 13 Connect the range hood’s electrical wiring and check the fan motor and lights are functioning. Be alert of any electrical hazards and refer to the product label for the suitable voltage of this unit. UC800 | 13...
- Page 14 Use 6” round steel pipe to connect the Ensure the cylinder duct passes through, exhaust on the hood to the ductwork above. leading to the roof cut out for exhaust Use aluminum foil tape to make all joints connecting duct. secure and air tight. | UC800...
- Page 15 INSTALLATION (Filters) BOTTOM VIEW SIDE VIEW Baffle Filters Retractable Tabs Lift Lever Tab Inserts UC800 | 15...
-
Page 16: Venting Methods
24” Min: 24” Max: 30” (30” min for 9’ ceiling) Min height: 83⅜” from bottom of duct to ground when range height to stove is 30” 36” (typical) | UC800... - Page 17 24” Wall Vent Min height: 82” (alongside joist) from power outlet to floor when range Wall Vent with height to stove is 30” Optional Remote Blower Roof Vent UC800 | 17...
-
Page 18: Wiring Diagram
WIRING DIAGRAM Plug to Outlet Black 110V AC-L White 110V AC-N White MO-n Blue MO-1 (FAN1) Yellow Pink MO-2 (FAN2) Capacitor MO-3 (FAN3) Yellow Black LAMP-L White LIGHTS LAMP-N | UC800... -
Page 19: Range Hood Operations
• When the fans are operating in normal mode (Power-Off Delay Timer inactivated), rapidly press the Power Control (On/Off) button twice to turn off the blower (motor). • Lights: • Press Light button once to turn on the lights, and once again to turn off the lights. UC800 | 19... -
Page 20: Troubleshooting
• The duct size must be 6”, or larger. Please make sure there are NO reducers or plenums in the duct work. • Refer to Duct Venting in the Venting Methods page for illustrative examples. NOTE: For all other inquiries, please contact Victory Range Hoods. | UC800... -
Page 21: Do's And Don'ts For Duct Venting
• DO NOT operate blowers when filters are removed. Never disassemble parts to clean without proper instructions. Disassembly is recommended to be performed by qualified personnel only. Read and understand all instructions and warnings in this manual before proceeding. NOTE: For all other inquiries, please contact Victory Range Hoods. UC800 | 21... -
Page 22: Maintenance
Dry filters and re-install before using hood. Replacing Filters: • Should filters wear out due to age and prolonged use, please contact Victory Range Hoods to order • Note: Also replace damaged filter that has punctured or broken mesh, bent or broken frame. -
Page 23: Bulb Replacement
Figure (1) Figure (2) both rings NOTE: For all other inquiries, please contact Victory Range Hoods. Replacing LED 3W 12V Light Fixture: 1. Make sure the range hood is unplugged or turn OFF breaker and the lights are cool to touch. -
Page 24: Warranty
Victory Range Hoods. The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. | UC800... -
Page 25: Disclaimer
583 Nicola Avenue, Port Coquitam, BC, Canada Toll Free: 1-800-394-4020 info@victoryrangehoods.com The information in this document is subject to change without notice, please contact Victory Range Hoods for updated details. UC800 | 25... - Page 26 NOTES | UC800...
- Page 27 NOTES UC800 | 27...
- Page 28 583 Nicola Avenue | Port Coquitlam | BC | Canada | V3B 0M3 www.victoryrangehoods.com...
