Summary of Contents for Victory Jupiter

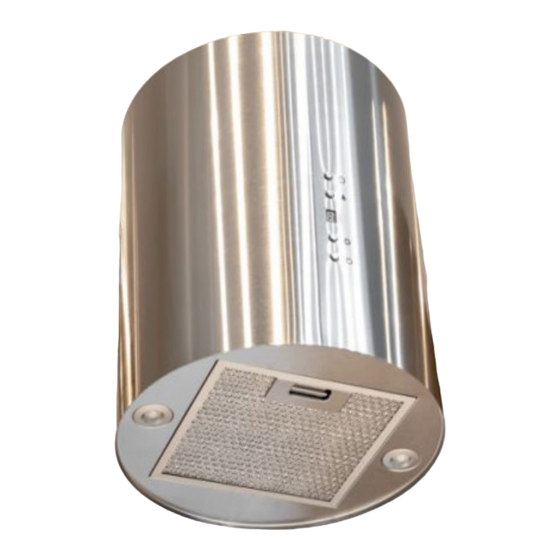

- Page 1 Installation Guide and Users Manual VICTORY Duct-less Island Range Hood Jupiter Model number: NOTICE: For residential use only. Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference. Rev. 3062u.3a...
-
Page 2: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance This manual explains the proper installation and use of your range hood. Please read it carefully before using the hood, even if you are familiar with the product. The manual should be kept in a safe place for any future reference. - Page 3 Important Safety Notice Read all Instructions before Installing and operating this appliance ALWAYS DO: ●Always put lids on pots and pans when cooking on a gas range. ●When in extraction mode, air in the room is being removed by the range hood. Please make sure that proper ventilation measures are being observed.
-
Page 4: To Reduce The Risk Of Fire, Electric Shock, Or Injury To Persons, Observe The Following
WARNING Before servicing or cleaning the unit, unplug or disconnect the range hood from the power supply. TO REDUCE THE RISK OF A COOK TOP GREASE FIRE: ● Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers that may ignite. -
Page 5: Installation
Installation 1. Before installation, turn the unit off. 2. The range hood should be placed at a distance of 65cm and 75cm from the cooking surface for best perfor- mance. See Pic 1. 3. The ceiling must be able to bear at least 120KGs weight, and the thickness of the ceiling must be ≥30MM. 4. - Page 6 Installation 7. Fix the decorative board onto the hanging plate. See pic 5. 8. Hang the hood on the wire-rope and use the ST4*8mm countersunk tapping screws to lock the wire-rope and avoid it slide out. See pic 6. 9. Loosen the decorative board to connect the power cord of the hood with the power supply, make sure that the electric wire is secured well with electrical insulating tapes to avoid any electric shock.
-
Page 7: Start Using Your Range Hood
Start Using Your Range Hood Push-Button Control Press the “Power” button. This controls the On and Off function of the hood. Press the “Speed” button to cycle through the 3 available speed settings. Press the “Lamp” button to turn the lights On or Off. Press the “Timer”... -
Page 8: Troubleshooting
Troubleshooting POSSIBLE FAULT SOLUTION CAUSE ● Fan Switch if OFF ● Select Fan Speed Lights are ON, but the ● Fan Switch Failed ● Contact Manufacturer motor does not work ● Motor Failed ● Contact Manufacturer ● A house fuse has blown ●... -
Page 9: Maintenance And Cleaning
Maintenance and Cleaning Caution: Before maintenance or cleaning is carried out, the range hood should be disconnected from the main- spower supply. Ensure that the hood is switched off at the wall socket. • External surfaces are susceptible to scratches and abrasions. Follow the cleaning instructions to ensure the best possible result is achieved without damage. -
Page 10: Carbon Filter
Maintenance and Cleaning CARBON FILTER Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed ev- ery 3 to 6 months according to your cooking habits. The installation procedure of the activated carbon filters is below. -
Page 11: Warranty
You must also include proof of the date of original purchase as evidence that the product is within the applicable warranty period, and that it is a genuine range hood from Victory Range Hoods. - Page 12 If your range hood is damaged in transit, please contact us within 14 days of receiving your new order to report the damages. Victory Range Hoods will, to the best of its ability, file a damage claim and investigate the matter.
- Page 13 VICTORY Range Hoods for Professionals 583 Nicola Ave Port Coquitlam, BC V3B 0M3 Canada...
