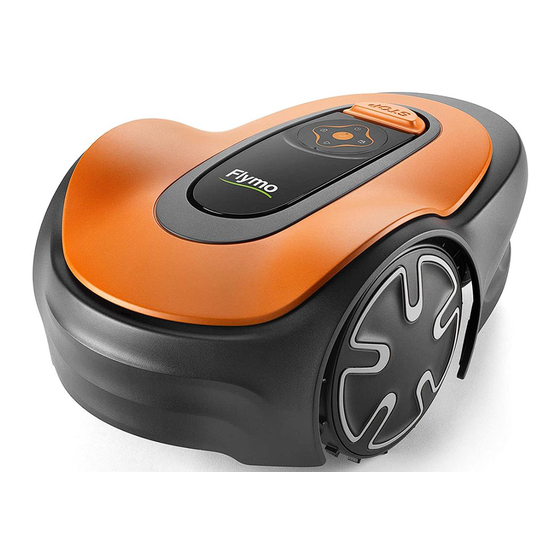

- Page 1 User Manual of Product 1: Flymo EasiLife 500 GO Robotic Lawn Mower - Cuts Up to 500 sq m, Ultra Quiet Mowing, Manicured Lawn, Bluetooth Application Control, Safety Sensors, Hose Washable, Lifestyle Functions, Orange/Grey...
- Page 2 Robotic Lawn mower EasiLife GO Operator‘s manual Easier by Design www.flymo.com/uk FRONTCOVER_Flymo_EasiLife.indd 1...
-
Page 3: Table Of Contents
5 Maintenance 5.1 Introduction - maintenance........27 5.2 Clean the product..........27 5.3 Replace the blades..........28 5.4 Firmware update..........28 5.5 Update of the Flymo EasiLife app....... 29 5.6 Battery..............29 5.7 Winter service............. 30 6 Troubleshooting 6.1 Introduction - troubleshooting......31 6.2 Fault messages...........31 6.3 Information and warning messages.... -
Page 4: Introduction
Product overview on page 4 . The serial number is on the product carton and on the product rating plate. Refer to • Use the serial number to register your product on www.flymo.com/uk. 1.1.1 Support The operator selects the operation settings in the Flymo For support about the Flymo product, speak to your EasiLife app or with the keys on the keypad. -
Page 5: Product Overview
1.2 Product overview ON/OFF button 13. Blade disc Keypad 14. Rear wheel Stop button 15. Hex key Top cover 16. Rating plate Body 17. Stakes Front wheels 18. Connector for the loop wire Charging station 19. Couplers for loop wire Contact plates 20. -
Page 6: Symbols On The Product
1.4 Symbols on the battery 24. Low-voltage cable 25. Operator’s Manual and Quick Guide 1.3 Symbols on the product Read the user instructions. These symbols can be found on the product. Study them carefully. WARNING: Read the user in- structions before operating Do not discard the battery into fire and do the product. -
Page 7: Led Status Indicator On The Keypad
1.7 LED status indicator on the keypad The LED status indicator on the keypad shows the status of the product. There are 2 light modes on the LED status indicator, flashing light (A) and solid light (B). Standby Idle 6 - Introduction 1622 - 001 - 03.03.2021... - Page 8 Waiting for PIN code Wrong PIN code Override schedule or Cutting, either in operating mode Schedule Cutting according to set Secondary area Parked Error 1622 - 001 - 03.03.2021 Introduction - 7...
-
Page 9: Safety
2 Safety 2.1 Safety information 2.1.1 IMPORTANT. READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE The operator is responsible for accidents or hazards occurring to other people or property. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities (that could affect a safe handling of the product), or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person... -
Page 10: Safety Definitions
The appliance must be disconnected from the supply mains when removing the battery. WARNING: The product CAUTION: Used if there is a risk of damage to the product, other materials or can be dangerous if used the adjacent area if the instructions in the manual are not obeyed. - Page 11 • Check that there are no foreign objects such as • Flymo does not guarantee full compatibility stones, branches, tools or toys on the lawn. If the between the product and other types of wireless blades hit foreign objects the blades can be systems such as remote controls, radio damaged.
- Page 12 The product is disabled when the indicator lamp on the ON/OFF button is not lit. WARNING: Use the plug to disconnect the charging station before cleaning or maintenance of the charging station or the loop wire. CAUTION: Do not use a high-pressure washer to clean the product.
-
Page 13: Installation
3.1 Introduction - Installation • Make a mark on the blueprint where to put the charging station, the boundary wire and the guide Refer to www.flymo.com/uk for more information about wire. installation and instruction videos. • Make a mark on the blueprint where the guide wire To install connects to the boundary wire. - Page 14 CAUTION: Make sure that the blades on the product do not cut the low-voltage cable. Max 3 cm/1.2" CAUTION: Do not put the low-voltage Max 3 cm/1.2" cable in a coil or below the charging station plate. The coil causes interference with the signal from the charging station.
- Page 15 eyelet with approximately 20 cm / 8 in. of the boundary wire. " > 3.5 cm / 1.4 " 35 cm /14 • Put the boundary wire 30 cm / 12 in. (C) from an obstacle that is 1-3.5 cm / 0.4-1.4 in. high. Note: Make a blueprint of the work area before you install the boundary wire and guide wire.
- Page 16 3.4.3.1 To put the boundary wire in a slope The product can operate in 25% slopes. Slopes that are too steep must be isolated with the boundary wire. The gradient (%) is calculated as height per m. Example: 10 cm / 100 cm = 10%. >60 cm / 24"...
- Page 17 Some obstacles are resistant to a collision, for example, Note: The boundary wire must be put as 1 loop trees or bushes that are more than 15 cm / 5.9 in. in around all of the work area (A + B). height.
-
Page 18: Installation Of The Product
• If the work area has areas which are connected by Flymo. a narrow passage (B), you can set the product to first follow and then leave the guide wire after a certain distance (C). - Page 19 Note: Do not attach the charging station with the screws to the ground until the guide wire is To install the guide wire on page installed. Refer to 18 . Connect the low-voltage cable to the charging station. Put the power supply at a minimum height of 30 cm / 12 in.
-
Page 20: To Put The Wire Into Position With Stakes
cause disruptions until several weeks or months later. Put the boundary wire and the guide wire on the ground. Put the stakes at a maximum of 100 cm / 40 in. distance from each other. Attach the stakes to the ground with a hammer or a plastic mallet. -
Page 21: After The Installation Of The Product
Use the Flymo EasiLife app to set all the settings for the battery. When the product has operated to the maximum product. - Page 22 Note: To prevent that the grass in the narrow passage is worn, Flymo recommends to set a low percentage for PassageSense . LawnSense automatically adjust the cutting time to the growth of the grass. The product is not permitted to In the factory settings the product follows the guide wire operate more than the schedule settings.
- Page 23 To start the product manually in the work area, push the STOP button before you remove the product from the charging station. If not, the product can not be Note: You can change the PIN code in the Flymo started in the work area. EasiLife app. 3.10.9 FrostSense 3.10.12 Reset all user settings...
-
Page 24: Operation
4 Operation 4.1 To use the ON/OFF button Note: The first weeks after installation the perceived sound level when cutting the grass may be higher than WARNING: Read the safety expected. When the product has cut the grass for some instructions carefully before you start the time, the perceived sound level is much lower. - Page 25 Push the STOP button. Push the Park button for 3 seconds. Push the OK button. 4.3.2 Secondary area Push the OK button. To mow secondary areas the operating mode Note: Secondary area must be selected. In this mode, the To change the operating mode of the product, operator must move the product manually between the push the STOP button and the product will be in idle main area and the secondary area.
-
Page 26: To Stop The Product
4.5 To switch off the product set to cut more than the maximum cutting time for each day. Push the STOP button. 4.3.5.1 To override the schedule Push the ON/OFF button for 3 seconds. This can be set in the dashboard in the app or with the keypad on the product: Push the STOP button. - Page 27 cutting disc. The factory setting for the cutting height is 4.7.1 To adjust the cutting height WARNING: Use protective gloves. Push the ON/OFF button for 3 seconds to switch off the product. Make sure that the product is disabled. The indicator lamp on the ON/OFF button is not lit when the product is disabled.
-
Page 28: Maintenance
Flymo recommends to use a special cleaning and maintenance kit as an accessory. Speak to your Flymo service. Clean the charging station regularly from grass, leaves, twigs and other objects that may impede docking. -
Page 29: Replace The Blades
H-mark logotype, refer to Make sure that the blades can pivot freely. 5.4 Firmware update If service is done by Flymo service then available firmware updates are downloaded to the product by the service technician. Owners of Flymo products can update the firmware if this is initiated by Flymo. -
Page 30: Update Of The Flymo Easilife App
Refer to indicator on the keypad on page 6 . Flymo regularly updates the Flymo EasiLife app. Update Turn the product upside down. Put the product on the app on App Store or on Google Play to make sure a soft and clean surface to prevent scratching the that you have the latest version. -
Page 31: Winter Service
18. Install the upper chassis and attach the 10 screws with a Torx 20 (Screw torque 1.8 Nm). 5.7 Winter service Take your product to your Flymo service for service prior to winter storage. Regular winter service will maintain the product in good condition and create the best conditions for a new season without any disruptions. -
Page 32: Troubleshooting
In this chapter you can find information and help about faults and symptoms of the product. You can find more information and FAQ (Frequently Asked Questions) on www.flymo.com/uk. 6.2 Fault messages The fault messages in the table below are shown in the app. Speak to your Flymo service if the same message shows frequently. Message... - Page 33 Wrong PIN code Incorrect PIN code has been entered. Enter the correct PIN code. Speak to your Flymo service if you forget the PIN code. No drive The product has got caught in something and Free the product and correct the cause of has been slipping.
- Page 34 Grass or other object around the drive wheel. Clean the wheels and around the wheels. right/left Electronic problem Temporary electronic or firmware related Restart the product. If the problem stays problem in the product. speak to your Flymo service. Loop sensor prob- lem, front/rear Tilt sensor problem Temporary problem Invalid sub-device...
- Page 35 Message Cause Action No loop signal The power supply or low-voltage cable are If the LED status indicator on the charging not connected. station is not lit, it shows that there is no power. Examine the power outlet connection and the residual-current device. Make sure that the low-voltage cable is connected to the charging station.
-
Page 36: Information And Warning Messages
6.3 Information and warning messages The information messages in the table below are shown in the app. Speak to your Flymo service if the same message shows frequently. Message Cause Action Low battery The product cannot find the charging station. -
Page 37: Indicator Lamp In The Charging Station
6.4 Indicator lamp in the charging station The indicator lamp in the charging station must show a solid or flashing green light for a correct installation. If not, follow the instructions in the troubleshooting table below. Speak to your Flymo service for more information. Light Cause... -
Page 38: Symptoms
6.5 Symptoms If the product does not operate as usual, follow the symptoms table below. Speak to your Flymo service if you cannot find the cause for the fault. Symptoms Cause Action The product has diffi- The guide wire is not put straight in a line... -
Page 39: Find Breaks In The Loop Wire
Symptoms Cause Action Make an Uneven mowing re- The product operates for a small number of Increase the cutting time. Refer to estimate of the necessary operating time on sults. hours per day. page 20 . For the shape of the work area it is necessa- Change the settings of the areas where the Lawn Coverage ry to adjust the settings for... - Page 40 GUIDE POWER Switch the connections between the guide wire and the boundary wire in the charging station. Start by switching connection L and GUIDE. If the indicator lamp is flashing yellow, then the break is somewhere on the boundary wire between L and the point where the guide wire is connected to the boundary wire (thick black line in the illustration).
- Page 41 Continue until only a very short section of the wire remains which is the difference between a solid green light and a flashing blue light. Then follow instruction in step 5 below. If indicator lamp still flashes blue in step 3 above: Put L and GUIDE back in their original positions.
-
Page 42: Transportation, Storage And Disposal
If you keep the charging station outdoors, do not disconnect the power supply and the connectors. • Speak to your Flymo service for information about available storage accessories for your product. 7.3 Disposal • Obey the local recycling requirements and applicable regulations. -
Page 43: Technical Data
8 Technical data 8.1 Technical data Dimensions EasiLife GO Length, cm / in. 52 / 20.5 Width, cm / in. 34 / 13.4 Height, cm / in. 22 / 8.7 Weight, kg / lb 6.1 / 13.4 Electrical system EasiLife GO Battery, Lithium-Ion 18 V/2.0 Ah Art.No 590 21 42-02, 590 21 42-04 Battery, Lithium-Ion 18.25 V/2.0 Ah Art.No... -
Page 44: Registered Trademarks
Bluetooth SIG, inc. and any use of such marks by Flymo is under license. The guide loop is the loop that if formed by the guide wire and the part of the boundary wire from the junction with the guide wire to the right connection in the charging station. -
Page 45: Warranty
The blades and wheels are seen as disposable and are not covered by the warranty. If an error occurs with your Flymo product, please contact Flymo service for further instructions. Please have the receipt and the product’s serial number at hand when contacting Flymo service. -
Page 46: Ec Declaration Of Conformity
Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46-36-146500, declares that the robotic lawn mowers Flymo EasiLife GO with serial numbers dating 2020 week 46 and onwards (the year and week is clearly stated on the rating plate, followed by the serial number), comply with the requirements of the COUNCIL’S DIRECTIVE as listed below including... - Page 47 46 - EC Declaration of Conformity 1622 - 001 - 03.03.2021...
- Page 48 1622 - 001 - 03.03.2021 EC Declaration of Conformity - 47...
- Page 49 Copyright © 2021 Flymo S.A. All rights reserved Flymo and other product and feature names are registered trademarks of Flymo S.A. The Husqvarna UK policy of continuous improvement and updating means that specifi cations can be altered without prior notice. All measurements quoted are approximate.
