Summary of Contents for Flymo Flymo

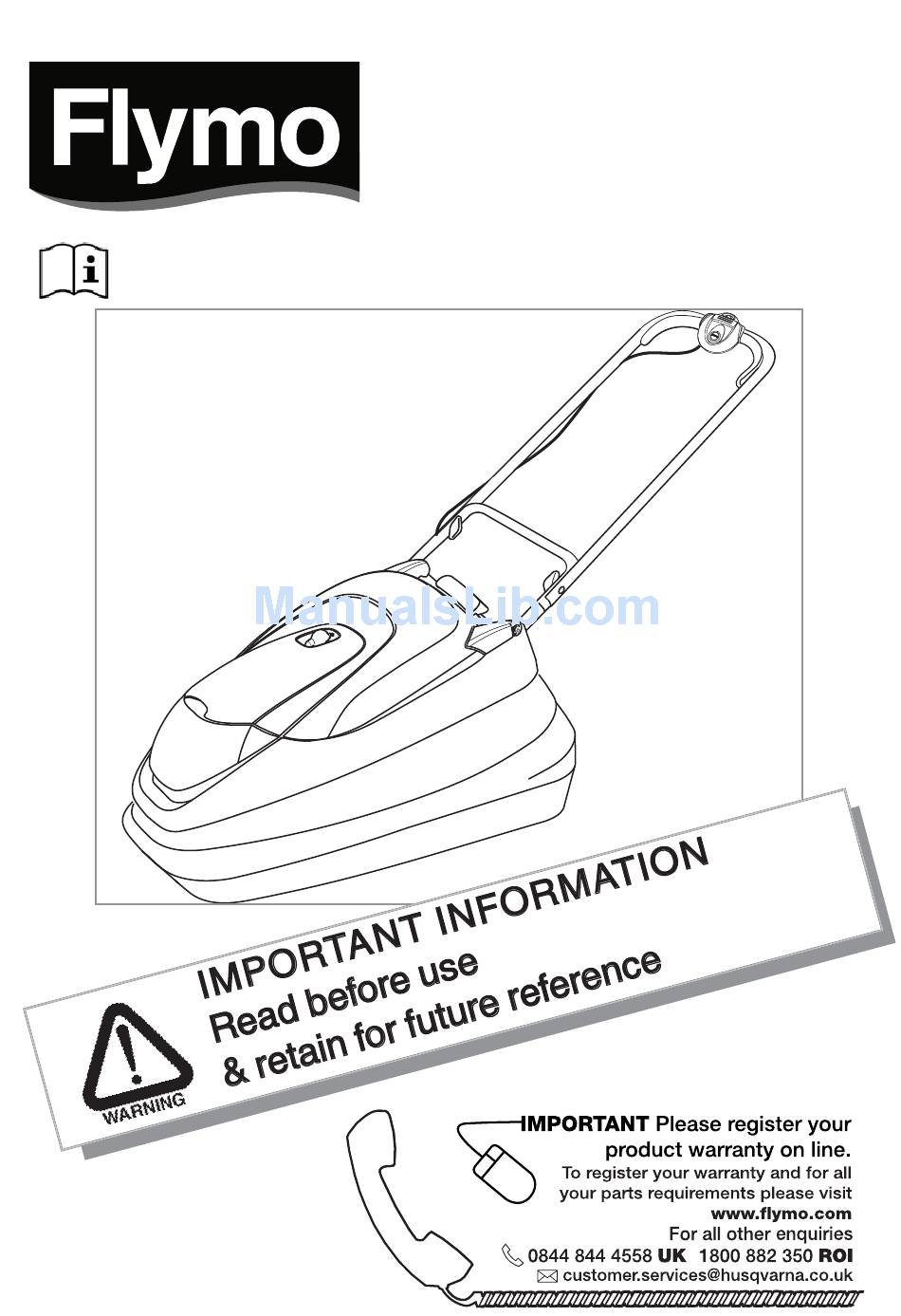

- Page 1 Turbo ® Compact Original Instructions...
-
Page 2: Carton Contents
IMPORTANT ! Please check the contents of the carton are correct BEFORE assembling your new Flymo product. IF ANY PARTS ARE MISSING CONTACT:- Husqvarna UK Ltd. Customer Service Department direct Telephone : 0844 844 4558 UK 1800 882 350 ROI... - Page 3 13 amp socket. • Use only 1.00mm size cable up to 40 metres length 1. No earth required. Flymo products are double insulated to EN60335 and under no circumstances should an earth maximum. Maximum rating : 1.00mm size cable, 10 amps 250 volts AC.
-
Page 4: Starting And Stopping
Starting and Stopping To Start your Lawnmower The Flymo Turbo Compact uses an advanced belt drive system, between the motor and the blade which im- proves cutting power and flotation in all conditions. Due to the high turning force (Torque) which this motor devel-... -
Page 5: Adjusting The Cutting Height
The switchbox is provided with a lock-off button (H1) to prevent accidental starting. 6. Press and hold the lock-off button (H) on the switchbox, then squeeze one of the Start/Stop levers towards the upper handle (J). 7. Continue to squeeze the start/stop lever towards the upper handle and release the lock-off button. -
Page 6: Removing And Fitting The Blade And Fan
Removing and fitting the Blade and Fan Removing the Blade and Fan blade bolt 1. To remove the blade bolt, hold the fan firmly and with the spanner provided loosen the blade bolt by blade turning it anti-clockwise (K). 2. Remove the blade bolt, blade, spacers and fan. (L) 3. -
Page 7: Caring For Your Lawnmower
Caring for your Lawnmower Cleaning IMPORTANT: It is very important that you keep your lawnmower clean. Grass clippings left in any of the air intakes or under the hood could become a poten- tial fire hazard. USE GLOVES It is recommended that you clean your lawnmower straight after mowing while the grass is still wet. -
Page 8: Replacement Parts
Yellow Pages. 2. Always use genuine Flymo Spare Parts. To obtain service on your Flymo product simply telephone or 3. Prepacked spares are available from most Husqvarna UK visit your local Service Centre. -
Page 9: Environmental Information
Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Copyright © 2008 Flymo S.A. All rights reserved. Flymo® and other product and feature names are registered or unregistered trademarks of Flymo S.A.
