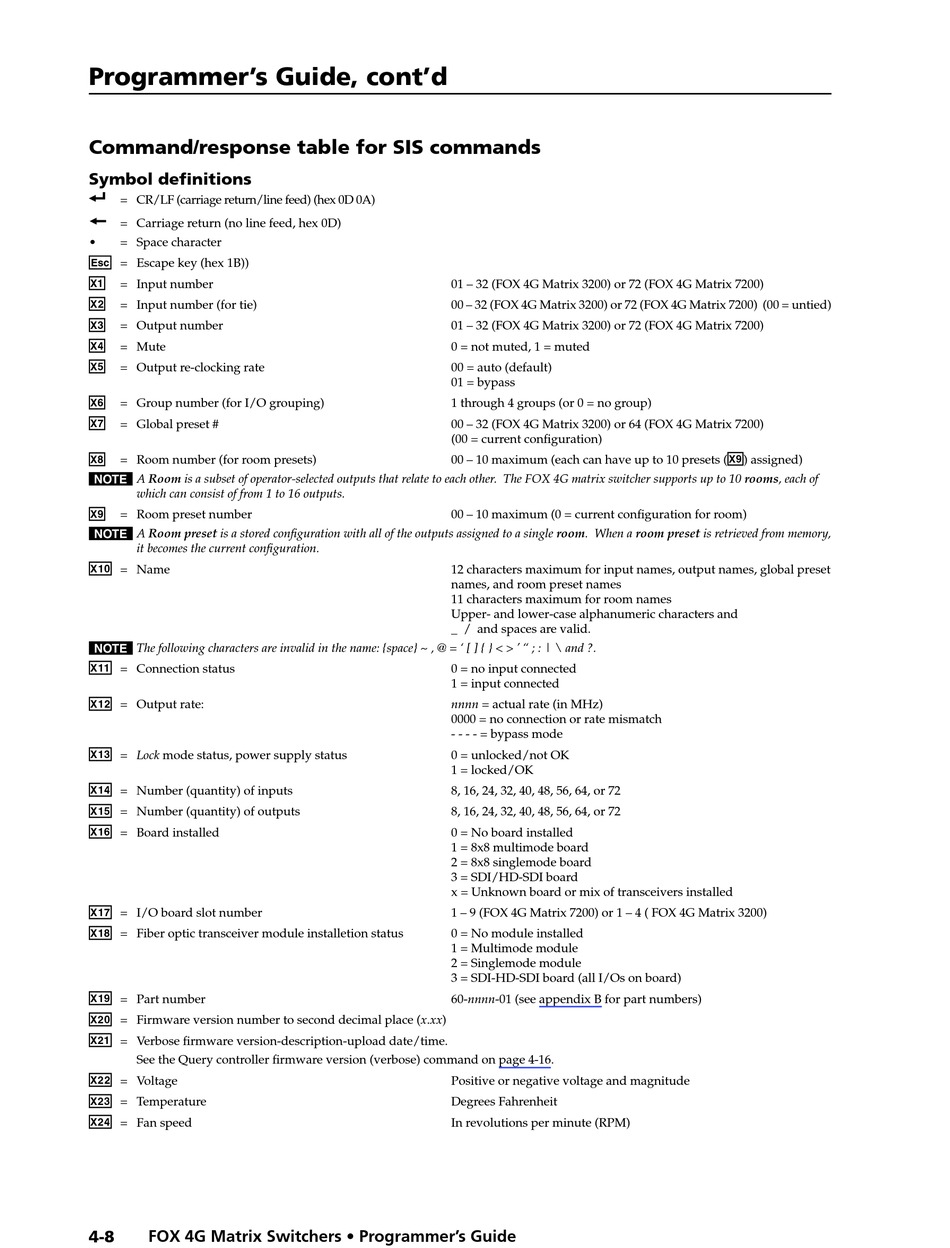

Command/response table for SIS commands
Symbol definitions
]
= CR/LF (carriage return/line feed) (hex 0D 0A)
}
= Carriage return (no line feed, hex 0D)
•
= Space character
E
= Escape key (hex 1B))
X!
= Input number
X@
= Input number (for tie)
X#
= Output number
X$
= Mute
X%
= Output re-clocking rate
X^
= Group number (for I/O grouping)
X&
= Global preset #
X*
= Room number (for room presets)
N A Room is a subset of operator-selected outputs that relate to each other. The FOX 4G matrix switcher supports up to 10 rooms, each of
which can consist of from 1 to 16 outputs.
X(
= Room preset number
N A Room preset is a stored configuration with all of the outputs assigned to a single room. When a room preset is retrieved from memory,
it becomes the current configuration.
X1)
= Name
N The following characters are invalid in the name: {space} ~ , @ = ' [ ] { } < > ' " ; : | \ and ?.
X1!
= Connection status
X1@
= Output rate:
X1#
= Lock mode status, power supply status
X1$
= Number (quantity) of inputs
X1%
= Number (quantity) of outputs
X1^
= Board installed
X1&
= I/O board slot number
X1*
= Fiber optic transceiver module installetion status
X1(
= Part number
X2)
= Firmware version number to second decimal place (x.xx)
X2!
= Verbose firmware version-description-upload date/time.
See the Query controller firmware version (verbose) command on page 4-16.
X2@
= Voltage
X2#
= Temperature
X2$
= Fan speed
4-8
FOX 4G Matrix Switchers • Programmer's Guide
01 – 32 (FOX 4G Matrix 3200) or 72 (FOX 4G Matrix 7200)
00 – 32 (FOX 4G Matrix 3200) or 72 (FOX 4G Matrix 7200) (00 = untied)
01 – 32 (FOX 4G Matrix 3200) or 72 (FOX 4G Matrix 7200)
0 = not muted, 1 = muted
00 = auto (default)
01 = bypass
1 through 4 groups (or 0 = no group)
00 – 32 (FOX 4G Matrix 3200) or 64 (FOX 4G Matrix 7200)
(00 = current configuration)
00 – 10 maximum (each can have up to 10 presets (
00 – 10 maximum (0 = current configuration for room)
12 characters maximum for input names, output names, global preset
names, and room preset names
11 characters maximum for room names
Upper- and lower-case alphanumeric characters and
_ / and spaces are valid.
0 = no input connected
1 = input connected
nnnn = actual rate (in MHz)
0000 = no connection or rate mismatch
- - - - = bypass mode
0 = unlocked/not OK
1 = locked/OK
8, 16, 24, 32, 40, 48, 56, 64, or 72
8, 16, 24, 32, 40, 48, 56, 64, or 72
0 = No board installed
1 = 8x8 multimode board
2 = 8x8 singlemode board
3 = SDI/HD-SDI board
x = Unknown board or mix of transceivers installed
1 – 9 (FOX 4G Matrix 7200) or 1 – 4 ( FOX 4G Matrix 3200)
0 = No module installed
1 = Multimode module
2 = Singlemode module
3 = SDI-HD-SDI board (all I/Os on board)
60-nnnn-01 (see appendix B for part numbers)
Positive or negative voltage and magnitude
Degrees Fahrenheit
In revolutions per minute (RPM)
X(
) assigned)
