Page 1 User’s Manual of WGSW-2620HP User’s Manual WGSW-2620HP 24-Port 10/100Mbps + 2 Gigabit TP/SFP Managed 802.3at PoE Switch...
Page 2 PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
Page 3: Table Of Contents
User’s Manual of WGSW-2620HP TABLE OF CONTENTS 1. INTRODUCTION ......................8 1.1 Package Contents ..........................8 1.2 Product Description..........................9 1.3 How to Use This Manual........................11 1.4 Product Features..........................12 1.5 Product Specification ........................14 2. INSTALLATION......................16 2.1 Hardware Description ........................16 2.1.1 Switch Front Panel ........................
Page 4 User’s Manual of WGSW-2620HP 4.2.3 Console Port Info ........................41 4.2.4 SNMP Configuration........................42 4.2.5 Syslong Setting.......................... 50 4.2.6 System Log..........................51 4.2.7 SNTP Setting ..........................52 4.2.8 Firmware Upgrade........................53 4.2.9 Configuration Backup ........................ 55 4.2.10 Factory Default ........................57 4.2.11 System Reboot ........................
Page 5 4.15.3 TOS/DSCP ..........................133 4.16 Power over Ethernet ........................136 4.16.1 Power over Ethernet Powered Device .................. 136 4.16.2 WGSW-2620HP Power Management ................... 137 5. CONSOLE MANAGEMENT ..................141 5.1 Login in the Console Interface ...................... 141 5.2 Configure IP address ........................142 5.3 Commands Level ..........................
Page 6 User’s Manual of WGSW-2620HP 6.4.2 LACP Command........................152 6.5 VLAN Configuration........................154 6.5.1 Virtual LANs..........................154 6.5.2 VLAN Mode: Port-based......................155 6.5.3 Advanced 802.1Q VLAN Configuration................... 156 6.6 Misc Configuration.......................... 159 6.7 Administration Configuration ......................160 6.7.1 Change Username / Password....................160 6.7.2 IP Configuration ........................
Page 7 User’s Manual of WGSW-2620HP 6.18.4 Configure PoE -- Port ......................198 7. SWITCH OPERATION....................201 7.1 Address Table ..........................201 7.2 Learning ............................201 7.3 Forwarding & Filtering........................201 7.4 Store-and-Forward .......................... 201 7.5 Auto-Negotiation ..........................202 8. POWER OVER ETHERNET OVERVIEW..............203 What is PoE? ............................
Page 8: Introduction
The PLANET Layer 2 Managed Switch – WGSW-2620HP is 24-Port 10/100Mbps + 2 Gigabit TP/SFP Managed 802.3at PoE Switch, with two Gigabit TP/SFP fiber optical combo connective ability and robust layer 2 features; the WGSW-2620HP also provide IEEE 802.3af / IEEE 802.3at Power over Ethernet system to fill further PoE demand and application.
Page 9: Product Description
User’s Manual of WGSW-2620HP 1.2 Product Description Power over Ethernet The PoE in-line power following the standard IEEE 802.3af and IEEE 802.3at makes the Managed Switch able to power on 24 IEEE 802.3af PoE devices or 11 IEEE 802.3at PoE devices at the distance up to 100 meters through the 4-pair Cat 5/5e UTP wire.
Page 10 User’s Manual of WGSW-2620HP Configuration. Additionally, the firmware includes advanced features such as IGMP snooping, QoS (Quality of Service), broadcast storm and bandwidth control, to enhance bandwidth utilization. Powerful Security The Managed Switch offers comprehensive Access Control List (ACL) for enforcing security to the edge. Its protection mechanisms comprises of Port-based 802.1X user and device authentication.
Page 11: How To Use This Manual
User’s Manual of WGSW-2620HP 1.3 How to Use This Manual This User Manual is structured as follows: Section 2, INSTALLATION The section explains the functions of the Switch and how to physically install the Managed Switch. Section 3, SWITCH MANAGEMENT The section contains the information about the software function of the Managed Switch.
Page 12: Product Features
User’s Manual of WGSW-2620HP 1.4 Product Features Physical Port 24-Port 10/100Base-TX Fast Ethernet ports with IEEE 802.3af / IEEE 802.3at PoE injector 2 10/100/1000Base-T TP combo interfaces 2 1000Base-X mini-GBIC/SFP slots, shared with Port-25 and Port-26 Reset button for system management...
Page 13 User’s Manual of WGSW-2620HP − Cisco ether-channel (Static Trunk) Spanning Tree Protocol STP, IEEE 802.1D (Classic Spanning Tree Protocol) MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN) Port Mirroring to monitor the incoming or outgoing traffic on a particular port...
Page 14: Product Specification
User’s Manual of WGSW-2620HP 1.5 Product Specification WGSW-2620HP Product 24-Port 10/100Mbps + 2 Gigabit TP / SFP Managed 802.3at PoE Switch Hardware Specification 24 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports 10/100Mbps Copper Ports 2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports 1000Mbps Copper Ports...
Page 15 User’s Manual of WGSW-2620HP Auto negotiation status, trunk status. TX / RX / Both Port Mirroring 1 to 1 monitor Ingress / Egress Rate Control Bandwidth Control • Allow to configure per 128Kbps IEEE 802.1Q Tag-based VLAN, up to 255 VLANs groups, out of 4041 VLAN IDs...
Page 16: Installation

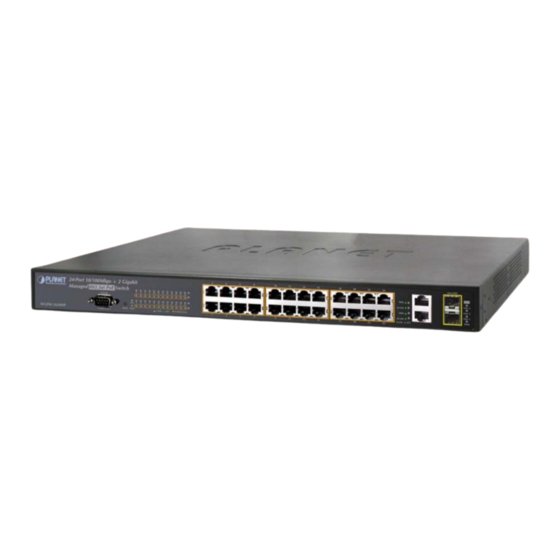

Figure 2-1 shows the front panel of the Managed Switches. WGSW-2620HP Front Panel Figure 2-1: WGSW-2620HP Front Panel ■ 10/100Mbps TP Interface Port-1~Port-24: 10/100Base-TX Copper, RJ-45 Twist-Pair: Up to 100 meters. ■ Gigabit TP Interface Port-25, Port-26: 10/100/1000Base-T Copper, RJ-45 Twist-Pair: up to 100 meters.
Page 17: Led Indications
2.1.2 LED Indications The front panel LEDs indicates instant status of port links, data activity and system power; helps monitor and troubleshoot when needed. WGSW-2620HP LED indication Figure 2-2: WGSW-2620HP LED Panel System Color Function Lights to indicate that the Switch has power.
Page 18 User’s Manual of WGSW-2620HP Per 10/100Mbps port, PoE interfaces (Port-1 to Por-24) Color Function To indicate the link through that port is successfully established. Lights: LNK/ACT Green To indicate that the Switch is actively sending or receiving data over that port.
Page 19: Switch Rear Panel
Managed Switch. WGSW-2620HP Rear Panel Figure 2-3: WGSW-2620HP Rear Panel. The device is a power-required device, it means, it will not work till it is powered. If your networks should active all the time, please consider using UPS (Uninterrupted Power Supply) for your device.
Page 20: Install The Switch
User’s Manual of WGSW-2620HP 2.2 Install the Switch This section describes how to install the Managed Switch and make connections to it. Please read the following topics and perform the procedures in the order being presented. 2.2.1 Desktop Installation To install the Managed Switch on desktop or shelf, please follows these steps: Step1: Attach the rubber feet to the recessed areas on the bottom of the Managed Switch.
Page 21: Rack Mounting
User’s Manual of WGSW-2620HP 2.2.2 Rack Mounting To install the Managed Switch in a 19-inch standard rack, please follows the instructions described below. Step1: Place the Managed Switch on a hard flat surface, with the front panel positioned towards the front side.
Page 22: Installing The Sfp Transceiver
Figure 2-7: Plug-in the SFP transceiver Approved PLANET SFP Transceivers PLANET Managed switch supports both single mode and multi mode SFP transceiver. The following list of approved PLANET SFP transceivers is correct at the time of publication: 1000Base-SX/LX SFP transceiver:...
Page 23 User’s Manual of WGSW-2620HP Before connect the other switches, workstation or Media Converter. Make sure both side of the SFP transceiver are with the same media type, for example: 1000Base-SX to 1000Base-SX, 1000Bas-LX to 1000Base-LX. Check the fiber-optic cable type match the SFP transceiver model.
Page 24: Switch Management
User’s Manual of WGSW-2620HP 3. SWITCH MANAGEMENT This chapter explains the methods that you can use to configure management access to the Managed Switch. It describes the types of management applications and the communication and management protocols that deliver data between your management device (work-station or personal computer) and the system.
Page 25: Management Access Overview
User’s Manual of WGSW-2620HP 3.2 Management Access Overview The Managed Switch gives you the flexibility to access and manage it using any or all of the following methods: Web browser interface An external SNMP-based network management application An administration console The administration console and Web browser interface support are embedded in the Managed Switch software and are available for immediate use.
Page 26: Web Management
User’s Manual of WGSW-2620HP 3.3 Web Management The Managed Switch offers management features that allow users to manage the Managed Switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer. After you set up your IP address for the switch, you can access the Managed Switch's Web interface applications directly in your Web browser by entering the IP address of the Managed Switch.
Page 27: Snmp-Based Network Management
User’s Manual of WGSW-2620HP 3.4 SNMP-Based Network Management You can use an external SNMP-based application to configure and manage the Managed Switch, such as SNMPc Network Manager, HP Openview Network Node Management (NNM) or What’sup Gold. This management method requires the SNMP agent on the switch and the SNMP Network Management Station to use the same community string.
Page 28 User’s Manual of WGSW-2620HP Direct Access Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a terminal-emulation program (such as HyperTerminal) to the Managed Switch console (serial) port. When using this management method, a straight DB9 RS-232 cable is required to connect the switch to the PC. After...
Page 29: Protocols
User’s Manual of WGSW-2620HP 3.6 Protocols The Managed Switch supports the following protocols: Virtual terminal protocols, such as Telnet Simple Network Management Protocol (SNMP) 3.6.1 Virtual Terminal Protocols A virtual terminal protocol is a software program, such as Telnet, that allows you to establish a management session from a Macintosh, a PC, or a UNIX workstation.
Page 30: Web-Based Management
User’s Manual of WGSW-2620HP 4. Web-Based Management This section introduces the configuration and functions of the Web-Based management. 4.1 About Web-based Management The Managed Switch offers management features that allow users to manage the Managed Switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.
Page 31: Requirements
User’s Manual of WGSW-2620HP 4.1.1 Requirements • The operate system of subscriber PC that running Windows XP/2003, Vista, Windows 7, MAC OS X , Linux, Fedora, Ubuntu or other platform compatible with TCP/IP protocols. • Workstation installed with Ethernet NIC (Network Card).
Page 32 User’s Manual of WGSW-2620HP After entering the username and password, the main screen appears as Figure 4-1-2. Figure 4-1-2: Web Main Page Screenshot The Switch Menu on the left of the Web page let you access all the commands and statistics the Switch provides.
Page 33: Main Web Page
User’s Manual of WGSW-2620HP 4.1.3 Main WEB PAGE The Managed Switch provides a Web-based browser interface for configuring and managing it. This interface allows you to access the Managed Switch using the Web browser of your choice. This chapter describes how to use the Managed Switch’s Web browser interface to configure and manage it.
Page 34 User’s Manual of WGSW-2620HP Main Menu Using the onboard web agent, you can define system parameters, manage and control the Managed Switch, and all its ports, or monitor network conditions. Via the Web-Management, the administrator can setup the Managed Switch by select the functions those listed in the Main Function.
Page 35: System
User’s Manual of WGSW-2620HP 4.2 System Use the System menu items to display and configure basic administrative details of the Managed Switch. Under System the following topics are provided to configure and view the system information: This section has the following items: Provides basic system description, including contact information.
Page 36: System Information
User’s Manual of WGSW-2620HP 4.2.1 System Information In System information, it has two parts of setting – Basic and Misc Config. We will describe the configure detail in following. 4.2.1.1 Basic The Basic System Info page provides information for the current device information. Basic System Info page helps a switch administrator to identify the model name, firmware / hardware version and MAC address.
Page 37 User’s Manual of WGSW-2620HP 4.2.1.2 Misc Config Choose Misc Config from System Information of Managed Switch, the screen in Figure 4-2-2 appears. Figure 4-2-2: Switch Misc Config Screenshot The page includes the following fields: Object Description Type the number of seconds that an inactive MAC address remains in the MAC Address Age-out switch’s address table.
Page 38 User’s Manual of WGSW-2620HP threshold you set, broadcast storm control becomes active. The valid threshold values are 1/2, 1/4, 1/8, 1/16 and OFF. Default is “OFF”. To select broadcast storm Filter Packets type. If no packets type by selected, mean can not filter any packets .The Broadcast Storm Filter Mode will show OFF.
Page 39: Ip Configuration
User’s Manual of WGSW-2620HP 4.2.2 IP Configuration The Managed Switch is a network device which needs to be assigned an IP address for being identified on the network. Users have to decide a means of assigning IP address to the Managed Switch.
Page 40 User’s Manual of WGSW-2620HP The page includes the following fields: Object Description Enable or disable the DHCP client function. When DHCP function is enabled, the Managed Switch will be assigned an IP address from the network DHCP server. The default IP address will be replaced DHCP by the assigned IP address on DHCP server.
Page 41: Console Port Info
User’s Manual of WGSW-2620HP 4.2.3 Console Port Info The Managed Switch provide local console interface for switch command line management, console port info contains console baud rate information and the screen in Figure 4-2-4 appears. Figure 4-2-4: Console Information Screenshot...
Page 42: Snmp Configuration
User’s Manual of WGSW-2620HP 4.2.4 SNMP Configuration 4.2.4.1 SNMP Overview The Simple Network Management Protocol (SNMP) is an application layer protocol that facilitates the exchange of management information between network devices. It is part of the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol suite.
Page 43 User’s Manual of WGSW-2620HP Management information base (MIB)：A MIB is a collection of managed objects residing in a virtual information store. Collections of related managed objects are defined in specific MIB modules. network-management protocol：A management protocol is used to convey management information between agents and NMSs.
Page 44 User’s Manual of WGSW-2620HP • System Contact The textual identification of the contact person for this managed node, together with information on how to contact this person. • SNMP Status Indicates the SNMP mode operation. Possible modes are: • Enabled: Enable SNMP mode operation.
Page 45 User’s Manual of WGSW-2620HP 4.2.4.4 Trap Managers A trap manager is a management station that receives the trap messages generated by the switch. If no trap manager is defined, no traps will be issued. To define a management station as a trap manager, assign an IP address, enter the SNMP community strings, and select the SNMP trap version.
Page 46 User’s Manual of WGSW-2620HP The page includes the following fields: Object Description A string identifying the group name that this entry should belong to. Group Name: The allowed string length is 1 to 15. Indicates the security model that this entry should belong to. Possible security...
Page 47 User’s Manual of WGSW-2620HP The page includes the following fields: Object Description A string identifying the view name that this entry should belong to. View Name: The allowed string length is 1 to 15. Indicates the view type that this entry should belong to. Possible view type are:...
Page 48 User’s Manual of WGSW-2620HP The page includes the following fields: Object Description A string identifying the group name that this entry should belong to. Group Name: The allowed string length is 1 to 15. Indicates the security model that this entry should belong to. Possible security models are: •...
Page 49 User’s Manual of WGSW-2620HP 4.2.4.8 SNMP V3 usm-user Configure SNMPv3 users table on this page. The entry index keys are Engine ID and User Name. The SNMPv3 Users Configuration screen in Figure 4-2-12 appears. Figure 4-2-12: SNMP Configuration Interface Screenshot...
Page 50: Syslong Setting
User’s Manual of WGSW-2620HP 4.2.5 Syslong Setting The Syslog Setting page allows you to configure the logging of messages that are sent to remote syslog servers or other management stations. You can also limit the event messages sent to only those messages below a specified level.
Page 51: System Log
User’s Manual of WGSW-2620HP 4.2.6 System Log It provides the functions allowing the user to update the switch firmware via the Trivial File Transfer Protocol (TFTP) server. Before updating, make sure the TFTP server is ready and the firmware image is located on the TFTP server.
Page 52: Sntp Setting
User’s Manual of WGSW-2620HP 4.2.7 SNTP Setting It provides the functions allowing the user to update the switch firmware via the Trivial File Transfer Protocol (TFTP) server. Before updating, make sure the TFTP server is ready and the firmware image is located on the TFTP server.
Page 53: Firmware Upgrade
User’s Manual of WGSW-2620HP 4.2.8 Firmware Upgrade It provides the functions allowing the user to update the switch firmware via the Trivial File Transfer Protocol (TFTP) server. Before updating, make sure the TFTP server is ready and the firmware image is located on the TFTP server.
Page 54 User’s Manual of WGSW-2620HP 4.2.8.2 HTTP Firmware Upgrade The HTTP Firmware Upgrade page contains fields for downloading system image files from the Local File browser to the device. The Web Firmware Upgrade screen in Figure 4-2-17 appears. Figure 4-2-17: HTTP Firmware Upgrade Interface Screenshot To open Firmware Upgrade screen perform the following: Click System ->...
Page 55: Configuration Backup
User’s Manual of WGSW-2620HP Select on the firmware then click “Upload”, the Software Upload Progress would show the file upload status. Firmware upgrade needs several minutes. Please wait a while, and then manually refresh the webpage. 4.2.9 Configuration Backup 4.2.9.1 TFTP Restore Configuration You can restore a previous backup configuration from the TFTP server to recover the settings.
Page 56 User’s Manual of WGSW-2620HP 4.2.9.2 TFTP Backup Configuration You can back up the current configuration from flash ROM to the TFTP server for the purpose of recovering the configuration later. It helps you to avoid wasting time on configuring the settings by backing up the configuration.
Page 57: Factory Default
User’s Manual of WGSW-2620HP 4.2.10 Factory Default Default Reset switch to default configuration. Click to reset all configurations to the default value. Figure 4-2-21: Factory Default Interface Screenshot 4.2.11 System Reboot Reboot Reboot the switch in software reset. Click to reboot the system.
Page 58: Port Configuration
User’s Manual of WGSW-2620HP 4.3 Port Configuration Use the Port Configuration Menu to display or configure the Managed Switch's ports. This section has the following items: Configures port connection settings Port Control Display the current Port link status and speed etc.
Page 59 User’s Manual of WGSW-2620HP Indicate per port link up and link down status. Link: Auto and Force. Being set as Auto, the speed and duplex mode are negotiated automatically. When you set it as Force, you have to set the speed and duplex Negotiation: mode manually.
Page 60: Rate Control
User’s Manual of WGSW-2620HP 4.3.2 Rate Control This page provides rate control on each port - it contains Ingress and Egress items and the unit is 128Kbps. The rate control screen is displayed as in Figure 4-3-2. Figure 4-3-2: Rate Control Interface Screenshot...
Page 61: Port Status
User’s Manual of WGSW-2620HP 4.3.3 Port Status This page displays current port configurations and operating status - it is a ports’ configurations summary table. Via the summary table, you can know status of each port clear at a glance, like per port description, Port Link Up/Link Down status, negotiation, Link Speed, Duplex mode and Flow Control, security, jumbo frame.
Page 62: Port Statistics
User’s Manual of WGSW-2620HP 4.3.4 Port Statistics The following chart provides the current statistic information which displays the real-time packet transfer status for each port. The user might use the information to plan and implement the network, or check and find the problem when the collision or heavy traffic occurs.
Page 63: Port Sniffer
User’s Manual of WGSW-2620HP 4.3.5 Port Sniffer The Port Sniffer (mirroring) is a method for monitor traffic in switched networks. Traffic through a port can be monitored by one specific port. That is, traffic goes in or out a monitored port will be duplicated into sniffer port.
Page 64 User’s Manual of WGSW-2620HP Figure 4-3-6: Port Sniffer Interface Screenshot The page includes the following fields: Object Description Select a sniffer mode: • Disable • Rx Sniffer Type: • Tx • Both It’ means Analysis port can be used to see the traffic on another port you want to Analysis (Monitoring) Port: monitor.
Page 65: Protect Port
User’s Manual of WGSW-2620HP 4.3.6 Protect Port There are two protected port groups; ports in different groups can't communicate. In the same group, protected ports can't communicate with each other, but can communicate with unprotected ports. Unprotected ports can communicate with any ports, including protected ports...
Page 66: Vlan Configuration
User’s Manual of WGSW-2620HP 4.4 VLAN configuration 4.4.1 VLAN Overview A Virtual Local Area Network (VLAN) is a network topology configured according to a logical scheme rather than the physical layout. VLAN can be used to combine any collection of LAN segments into an autonomous user group that appears as a single LAN.
Page 67 User’s Manual of WGSW-2620HP VLAN can also provide a level of security to your network. IEEE 802.1Q VLAN will only deliver packets between stations that are members of the VLAN. Any port can be configured as either tagging or untagging. The untagging feature of IEEE 802.1Q VLAN allows VLAN to work with legacy switches that don't recognize VLAN tags in packet headers.
Page 68 User’s Manual of WGSW-2620HP Adding an IEEE802.1Q Tag Original Ethernet Dest. Addr. Src. Addr. Length/E. type Data Old CRC Dest. Addr. Src. Addr. Length/E. type Data New CRC E. type New Tagged Packet Priority VLAN ID Port VLAN ID Packets that are tagged (are carrying the 802.1Q VID information) can be transmitted from one 802.1Q compliant network device to another with the VLAN information intact.
Page 69: Static Vlan Configuration
User’s Manual of WGSW-2620HP 4.4.2 Static VLAN Configuration A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain. It allows you to isolate network traffic so only members of the VLAN receive traffic from the same VLAN members. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch.
Page 70: Port-Based Vlan
User’s Manual of WGSW-2620HP 4.4.3 Port-based VLAN Packets can go among only members of the same VLAN group. Note all unselected ports are treated as belonging to another single VLAN. If the port-based VLAN enabled, the VLAN-tagging is ignored. In order for an end station to send packets to different VLANs, it itself has to be either capable of tagging packets it sends with VLAN tags or attached to a VLAN-aware bridge that is capable of classifying and tagging the packet with different VLAN ID based on not only default PVID but also other information about the packet, such as the protocol.
Page 71 User’s Manual of WGSW-2620HP By adding ports to the VLAN you have created one port-based VLAN group completely. Figure 4-4-3: Static VLAN Interface Screenshot The page includes the following fields: Object Description Use this optional field to specify a name for the VLAN. It can be up to 16 VLAN Name alphanumeric characters long, including blanks.
Page 72: Q Vlan
User’s Manual of WGSW-2620HP 4.4.4 802.1Q VLAN Tagged-based VLAN is an IEEE 802.1Q specification standard. Therefore, it is possible to create a VLAN across devices from different switch venders. IEEE 802.1Q VLAN uses a technique to insert a "tag" into the Ethernet frames. Tag contains a VLAN Identifier (VID) that indicates the VLAN numbers.
Page 73 User’s Manual of WGSW-2620HP 4.4.4.1 VLAN Group Configuration VLAN Group Configuration Figure 4-4-4: VLAN Group Configuration Interface Screenshot Click the hyperlink "VLAN” \ “Static VLAN" to enter the VLAN configuration interface. Select “802.1Q” at the VLAN Operation Mode, to enable the 802.1Q VLAN function.
Page 74 User’s Manual of WGSW-2620HP Figure 4-4-5: VLAN Group Configuration Interface Screenshot Select specific port as member port and the screen in Figure 4-4-6 appears. After setup completed, please press “Apply” button to take effect. Please press “Back” for return to VLAN configuration screen to add other VLAN group, the screen in Figure 4-33 appears.
Page 75 User’s Manual of WGSW-2620HP Figure 4-4-6: 802.1Q VLAN Setting Interface Screenshot The page includes the following fields: Object Description Use this optional field to specify a name for the VLAN. It can be up to 16 VLAN Name alphanumeric characters long, including blanks.
Page 76 User’s Manual of WGSW-2620HP 4.4.4.2 VLAN Filter 802.1Q VLAN Port Configuration This page is used for configuring the Switch port VLAN. The VLAN per Port Configuration page contains fields for managing ports that are part of a VLAN. The port default VLAN ID (PVID) is configured on the VLAN Port Configuration page. All untagged packets arriving to the device are tagged by the ports PVID.
Page 77 User’s Manual of WGSW-2620HP The VLAN ID must as same as the VLAN ID that the port belong to VLAN group, or the untagged traffic will be dropped. Ingress filtering lets frames belonging to a specific VLAN to be forwarded if the Ingress Filtering 1 port belongs to that VLAN.
Page 78: Gvrp Vlan
User’s Manual of WGSW-2620HP 4.4.5 GVRP VLAN GVRP (GARP VLAN Registration Protocol or Generic VLAN Registration Protocol) is a protocol that facilitates control of virtual local area networks (VLANs) within a larger network. GVRP conforms to the IEEE 802.1Q specification, which defines a method of tagging frames with VLAN configuration data.
Page 79 User’s Manual of WGSW-2620HP 4.4.5.1 GVRP Setting To configure GVRP Enable global GVRP function: select GVRP enable "Enable". Enable port GVRP function: select GVRP checkbox for special port. Figure 4-4-8: GVRP Configuration Interface Screenshot The page includes the following fields:...
Page 80 User’s Manual of WGSW-2620HP 4.4.5.2 GVRP Table The GVRP Table can be used to display dynamic VLANs from being learned via GVRP. Figure 4-4-9: GVRP Table Interface Screenshot The page includes the following fields: Object Description Display the learned VLANs via GVRP protocol on GVRP enabled ports.
Page 81: Q-In-Q Vlan
User’s Manual of WGSW-2620HP 4.4.6 Q-in-Q VLAN ■ IEEE 802.1Q Tunneling (Q-in-Q) IEEE 802.1Q Tunneling (QinQ) is designed for service providers carrying traffic for multiple customers across their networks. QinQ tunneling is used to maintain customer-specific VLAN and Layer 2 protocol configurations even when different customers use the same internal VLAN IDs.
Page 82 User’s Manual of WGSW-2620HP The Managed Switch supports multiple VLAN tags and can therefore be used in MAN applications as a provider bridge, aggregating traffic from numerous independent customer LANs into the MAN (Metro Access Network) space. One of the purposes of the provider bridge is to recognize and use VLAN tags so that the VLANs in the MAN space can be used independent of the customers’...
Page 83 User’s Manual of WGSW-2620HP The page includes the following fields: Object Description Sets the Managed Switch to QinQ mode, and allows the QinQ tunnel port to Enable: be configured. QinQ The Managed Switch operates in its normal VLAN mode. Disable: The default is for the Managed Switch to function in Disable mode.
Page 84 User’s Manual of WGSW-2620HP 4.4.6.2 Q-in-Q Tunnel Setting Business customers of service providers often have specific requirements for VLAN IDs and the number of VLANs to be supported. The VLAN ranges required by different customers in the same service-provider network might overlap, and traffic of customers through the infrastructure might be mixed.
Page 85: Trunking
User’s Manual of WGSW-2620HP 4.5 Trunking Port trunking is the combination of several ports or network cables to expand the connection speed beyond the limits of any one single port or network cable. The Managed Switch supports two types of port trunk technology:...
Page 86: Aggregator Setting
User’s Manual of WGSW-2620HP 4.5.1 Aggregator setting This section provides Port Trunk-Aggregator Setting of each port from the Managed Switch, the screen in Figure 4-5-1 appears. Figure 4-5-1: Port Trunk—Aggregator Setting Interface (two ports are added to the left field with LACP enabled)
Page 87: Aggregator Information
User’s Manual of WGSW-2620HP This column field allows the user to type in the total number of active port up to four. With LACP static trunk group, e.g. you assign four ports to be the members of a trunk group whose work ports column field is set as two; the...
Page 88 User’s Manual of WGSW-2620HP Figure 4-5-3: Static Trunking Group Information Screenshot The page includes the following fields: Object Description This is a read-only column field that displays the trunk group ID. Group Key: This is a read-only column field that displays the members of this static trunk Port Member: group.
Page 89 User’s Manual of WGSW-2620HP Figure 4-5-4: Aggregation Information of Screenshot Switch 1 Click on the tab of Aggregator Information to check the trunked group information as the illustration shown above after the two switches configured. Switch 2 configuration Set System Priority of the trunk group. For example: 1.
Page 90 User’s Manual of WGSW-2620HP Configuration Interface Screenshot Figure 4-5-5: Switch 2 10. Click on the tab of Aggregator Information to check the trunked group information as the illustration shown above after the two switches configured. Aggregator Information Screenshot Figure 4-5-6:...
Page 91: State Activity
User’s Manual of WGSW-2620HP 4.5.3 State Activity Having set up the LACP aggregator on the tab of Aggregator Setting, you can configure the state activity for the members of the LACP trunk group. You can tick or cancel the checkbox beside the state label. When you remove the tick mark of the...
Page 92: Forwarding And Filtering
User’s Manual of WGSW-2620HP 4.6 Forwarding and Filtering The frames of Ethernet Packets contain a MAC address (SMAC address), which shows the MAC address of the equipment sending the frame. The SMAC address is used by the switch to automatically update the MAC table with these dynamic MAC addresses.
Page 93: Static Mac Table
User’s Manual of WGSW-2620HP 4.6.2 Static MAC Table You can add a static MAC address that remains in the switch's address table regardless of whether the device is physically connected to the switch. This saves the switch from having to re-learn a device's MAC address when the disconnected or powered-off device is active on the network again.
Page 94: Mac Filtering
User’s Manual of WGSW-2620HP 4.6.3 MAC Filtering By filtering MAC address, the switch can easily filter the pre-configured MAC address and reduce the un-safety. You can add and delete filtering MAC address. Figure 4-6-3: MAC Filtering Interface Screenshot The page includes the following fields:...
Page 95: Igmp Snooping
User’s Manual of WGSW-2620HP 4.7 IGMP Snooping 4.7.1 Theory The Internet Group Management Protocol (IGMP) lets host and routers share information about multicast groups memberships. IGMP snooping is a switch feature that monitors the exchange of IGMP messages and copies them to the CPU for feature processing.
Page 96 User’s Manual of WGSW-2620HP Figure 4-7-2: Multicast Flooding Figure 4-7-3: IGMP Snooping Multicast Stream Control...
Page 97 User’s Manual of WGSW-2620HP IGMP Versions 1 and 2 Multicast groups allow members to join or leave at any time. IGMP provides the method for members and multicast routers to communicate when joining or leaving a multicast group. IGMP version 1 is defined in RFC 1112. It has a fixed packet size and no optional data.
Page 98 User’s Manual of WGSW-2620HP The states a computer will go through to join or to leave a multicast group are shown below: Figure 4-7-4: IGMP State Transitions IGMP Querier A router, or multicast-enabled switch, can periodically ask their hosts if they want to receive multicast traffic. If there is more than one router/switch on the LAN performing IP multicasting, one of these devices is elected “querier”...
Page 99: Igmp Configuration
User’s Manual of WGSW-2620HP 4.7.2 IGMP Configuration The Managed Switch support IP multicast, you can enable IGMP protocol on web management’s switch setting advanced page, then the IGMP snooping information displays. IP multicast addresses range are from 224.0.0.0 through 239.255.255.255.
Page 100: Spanning Tree Protocol
User’s Manual of WGSW-2620HP 4.8 Spanning Tree Protocol 4.8.1 Theory The Spanning Tree protocol can be used to detect and disable network loops, and to provide backup links between switches, bridges or routers. This allows the switch to interact with other bridging devices in your network to ensure that only one route exists between any two stations on the network, and provide backup links which automatically take over when a primary link goes down.
Page 101 User’s Manual of WGSW-2620HP Bridge Protocol Data Units For STP to arrive at a stable network topology, the following information is used: The unique switch identifier The path cost to the root associated with each switch port The port identifier STP communicates between switches on the network using Bridge Protocol Data Units (BPDUs).
Page 102 User’s Manual of WGSW-2620HP Each port on a switch using STP exists is in one of the following five states: Blocking – the port is blocked from forwarding or receiving packets. Listening – the port is waiting to receive BPDU packets that may tell the port to go back to the blocking state.
Page 103: Illustration Of Stp
User’s Manual of WGSW-2620HP 4.8.2 Illustration of STP A simple illustration of three switches connected in a loop is depicted in the below diagram. In this example, you can anticipate some major network problems if the STP assistance is not applied.
Page 104: Stp Parameters
User’s Manual of WGSW-2620HP Figure 4-8-3: After Applying the STA Rules 4.8.3 STP Parameters STP Operation Levels The Switch allows for two levels of operation: the switch level and the port level. The switch level forms a spanning tree consisting of links between one or more switches. The port level constructs a spanning tree consisting of groups of one or more ports.
Page 105 User’s Manual of WGSW-2620HP A relative priority for each switch – lower Priority 32768 numbers give a higher priority and a greater chance of a given switch being elected as the root bridge. The length of time between broadcasts of...
Page 106: Stp System Configuration
User’s Manual of WGSW-2620HP Observe the following formulas when setting the above parameters: Max. Age _ 2 x (Forward Delay - 1 second) Max. Age _ 2 x (Hello Time + 1 second) 4.8.4 STP System Configuration This section provides STP-System Configuration from the Managed Switch, the screen in Figure 4-8-4 appears.
Page 107 User’s Manual of WGSW-2620HP The number of seconds a switch waits without receiving Spanning-tree Protocol configuration messages before attempting a reconfiguration. Max Age (6-40): Enter a value between 6 through 40. The time that controls the switch to send out the BPDU packet to check STP current status.
Page 108 User’s Manual of WGSW-2620HP The page includes the following fields: Object Description • Priority The bridge identifier of the root bridge. It is made up from the bridge priority and the base MAC address of the bridge. • MAC Address The bridge identifier of the root bridge.
Page 109: Port Configuration
User’s Manual of WGSW-2620HP 4.8.5 Port Configuration This web page provides the port configuration interface for STP. You can assign higher or lower priority to each port. Spanning tree protocol will have the port with the higher priority in forwarding state and block other ports to make certain that there is no loop in the LAN.
Page 110 User’s Manual of WGSW-2620HP The rapid state transitions possible within STP are dependent upon whether the port concerned can only be connected to exactly another bridge (i.e. it is served by a point-to-point LAN segment), or can be connected to two or more bridges (i.e.
Page 111: Dhcp Relay & Option 82
User’s Manual of WGSW-2620HP 4.9 DHCP Relay & Option 82 The Relay Agent Information option (Option82) is inserted by the DHCP relay agent when forwarding client-originated DHCP packets to a DHCP server (RFC 3046). Servers recognizing the Relay Agent Information option may use the information to implement IP address or other parameter assignment policies.
Page 112 User’s Manual of WGSW-2620HP Figure 4-9-1: DHCP Relay and Option 82 Function Interface Screenshot The page includes the following fields: Object Description Enable global option82 function DHCP Option 82 Enable global Relay function DHCP Relay Select the Router Port that is used to connect to the DHCP server in...
Page 113: Lldp
User’s Manual of WGSW-2620HP 4.10 LLDP Link Layer Discovery Protocol (LLDP) is used to discover basic information about neighboring devices on the local broadcast domain. LLDP is a Layer 2 protocol that uses periodic broadcasts to advertise information about the sending device.
Page 114: Per Port Configuration
User’s Manual of WGSW-2620HP 4.10.2 Per Port Configuration This page allows the user to inspect and configure the current LLDP port settings, the web screen in Figure 4-10-2 appears. Figure 4-10-2: LLDP Function Interface Screenshot The page includes the following fields:...
Page 115: Access Control List
User’s Manual of WGSW-2620HP 4.11 Access Control List The Access Control List (ACL) is a concept in computer security used to enforce privilege separation. It is a means of determining the appropriate access rights to a given object depending on certain aspects of the process that is making the request, principally the process's user identifier.
Page 116 User’s Manual of WGSW-2620HP The page includes the following fields: IPv4 ACL Object Description Default Vaule 1 ~ 200 Group ID Permit / Deny. Permit Action Permit: Permit packet cross switch. Deny: Drop packet. Any / VID. VLAN Any: Any VLAN id.
Page 117 User’s Manual of WGSW-2620HP Set this field if Packet Type is IPv4, else ignore. Any / FTP(21) / HTTP(80) Set this field if Packet Type is IPv4, else ignore. Port 0~65535 If TCP port not find in TCP field, you can direct assign number.
Page 118 User’s Manual of WGSW-2620HP Binding Let device that has specific IP address and MAC address can use network. We can set specific IP address, MAC address, VLAN id and port id to bind, and device can cross switch if all conditions match.
Page 119: User Configuration
User’s Manual of WGSW-2620HP 4.12 User Configuration This web page provide user configuration for switch management access level, the web screen in Figure 4-12-1 appears. Figure 4-12-1: User Configuration Interface Screenshot The page includes the following fields: Object Description Display Username of the Managed Switch.
Page 120: Mac Limit
User’s Manual of WGSW-2620HP 4.13 MAC Limit MAC limit allows users to set a maximum number of MAC addresses to be stored in the MAC address table. The MAC addresses chosen to be stored in MAC address table is the result of first-come-first-save policy. Once a MAC address is stored in the MAC address table, it stays in until it is aged out.
Page 121: Mac Limit Port Status
User’s Manual of WGSW-2620HP 4.13.2 MAC Limit Port Status This table displays current MAC Limit status of each port. Figure 4-13-2: MAC Limit – MAC Limit Port Status Interface Screenshot The page includes the following fields: Object Description Indicate port 1 to port 24.
Page 122: Configuration
User’s Manual of WGSW-2620HP 4.14 802.1X Configuration 802.1x is an IEEE authentication specification which prevents the client from accessing a wireless access point or wired switch until it provides authority, like the user name and password that are verified by an authentication server (such as RADIUS server).
Page 123 User’s Manual of WGSW-2620HP Control Server version 3.0. RADIUS operates in a client/server model in which secure authentication information is exchanged between the RADIUS server and one or more RADIUS clients. Switch (802.1X device)—controls the physical access to the network based on the authentication status of the client.
Page 124 User’s Manual of WGSW-2620HP Figure 4-14-2: EAP message exchange Ports in Authorized and Unauthorized States The switch port state determines whether or not the client is granted access to the network. The port starts in the unauthorized state. While in this state, the port disallows all ingress and egress traffic except for 802.1X protocol packets.
Page 125: System Configuration
User’s Manual of WGSW-2620HP 4.14.2 System Configuration 802.1x makes use of the physical access characteristics of IEEE802 LAN infrastructures in order to provide a means of authenticating and authorizing devices attached to a LAN port that has point-to-point connection characteristics, and of preventing access to that port in cases in which the authentication and authorization process fails.
Page 126 User’s Manual of WGSW-2620HP The page includes the following fields: Object Description Enable or disable 802.1x protocol. IEEE 802.1x Protocol: Assign the RADIUS Server IP address. Radius Server IP: Set the UDP destination port for authentication requests to the specified RADIUS Server Port: Server.
Page 127: Port Configuration
User’s Manual of WGSW-2620HP 4.14.3 802.1x Port Configuration In this page, you can select the specific port and configure the authorization state. The state provides No Authorization, Force Authorized, Force unauthorized, and Authorize. Figure 4-14-5: 802.1x Per Port Setting Interface Screenshot...
Page 128: Misc Configuration
User’s Manual of WGSW-2620HP 4.14.4 Misc Configuration In this page, you can change the default configuration for the 802.1x standard: Figure 4-14-6: 802.1x Misc Configuration interface Screenshot The page includes the following fields: Object Description Used to define periods of time during which it will not attempt to acquire a supplicant.
Page 129: Qos Configuration
User’s Manual of WGSW-2620HP 4.15 QoS Configuration 4.15.1 Understand QoS Quality of Service (QoS) is an advanced traffic prioritization feature that allows you to establish control over network traffic. QoS enables you to assign various grades of network service to different types of traffic, such as multi-media, video, protocol-specific, time critical, and file-backup traffic.
Page 130: Qos Configuration
User’s Manual of WGSW-2620HP 4.15.2 QoS Configuration QoS settings allow customization of packet priority in order to facilitate delivery of data traffic that might be affected by latency problems. When CoS / 802.1p Tag Priority is applied, the Switch recognizes 802.1Q VLAN tag packets and extracts the VLAN tagged packets with User Priority value.
Page 131 User’s Manual of WGSW-2620HP The table includes the following fields: Object Description The sequence of packets sent is depend on arrival order. First Come First Service The high priority packets sent before low priority packets. All High before Low Select the preference given to packets in the switch's higher-priority queue.
Page 132 User’s Manual of WGSW-2620HP 4.15.2.2 QoS PerPort Configuration Configure the priority level for each port. With the drop-down selection item of Priority Type above being selected as Port-based, this control item will then be available to set the queuing policy for each port.
Page 133: Tos/Dscp
User’s Manual of WGSW-2620HP 4.15.3 TOS/DSCP TOS/DSCP priority is obtained through a 6-bit Type-of-Service (TOS) or Differentiated Service Code Point (DSCP) to 3-bit priority mapping. The Type of Service (TOS) octet in the IPv4 header is divided into three parts; Precedence (3 bits), TOS (4 bits), and MBZ (1 bit).
Page 134 User’s Manual of WGSW-2620HP 4.15.3.1 TOS/DSCP Configuration The TOS/DSCP page provides fields for defining output queue to specific DSCP fields. When TCP/IP’s TOS/DSCP mode is applied, the Managed Switch recognizes TCP/IP Differentiated Service Codepoint (DSCP) priority information from the DS-field defined in RFC2474.
Page 135 User’s Manual of WGSW-2620HP 4.15.3.2 TOS/DSCP Port Configuration Set up IP TOS / DSCP mapping to 802.1p priority when receiving IPv4 packets, the Managed Switch allow to by port configuring the QoS Status. This TOS/DSCP Port Configuration page is to configure the IP TOS/DSCP mapping on the port and display the current port status.
Page 136: Power Over Ethernet
4.16 Power over Ethernet Providing up to 24 PoE, in-line power interface, the WGSW-2620HP PoE Switch can easily build a power central-controlled IP phone system, IP Camera system, AP group for the enterprise. For instance, 24camera / AP can be easily installed around the corner in the company for surveillance demands or build a wireless roaming environment in the office.
Page 137: Wgsw-2620Hp Power Management
User’s Manual of WGSW-2620HP 4.16.2 WGSW-2620HP Power Management In a power over Ethernet system, operating power is applied from a power source (PSU-power supply unit) over the LAN infrastructure to powered devices (PDs), which are connected to ports. Under some conditions, the total output power required by PDs can exceed the maximum available power provided by the PSU.
Page 138 User’s Manual of WGSW-2620HP The page includes the following fields: Object Description Allows user enable or disable PoE function. It will causes all of PoE ports System PoE Admin Mode supply or not supply power. Display current PoE power supply working status.
Page 139 User’s Manual of WGSW-2620HP Set port priority for the POE power management Priority It works on the “Classification” power limit mode only, value is : Critical High High priority is “Critical”. Class 0 is the default for PDs. However, to improve power management at the Device class PSE, the PD may opt to provide a signature for Class 1 to 3.
Page 140 User’s Manual of WGSW-2620HP PD Classifications A PD may be classified by the PSE based on the classification information provided by the PD. The intent of PD classification is to provide information about the maximum power required by the PD during operation. Class 0 is the default for PDs.
Page 141: Console Management
User’s Manual of WGSW-2620HP 5. CONSOLE MANAGEMENT The Managed Switch is equipped with a RS-232 DB9 connector as default. And support telnet management. 5.1 Login in the Console Interface To configure the system via console mode, connect a serial cable to a COM port on a PC or notebook computer and to RJ-45 type serial (console) port of the Managed Switch.
Page 142: Configure Ip Address
User’s Manual of WGSW-2620HP For security reason, please change and memorize the new username and password after this first setup. Username Max: 6, Min: 1 characters. Password Max: 6, Min: 1 characters. Only accept command in lowercase letter under console interface.
Page 143 User’s Manual of WGSW-2620HP Configure IP address On “Switch(config)# ” prompt, enter the following command and press <Enter>. As show in Figure 5-2-2. Switch(config)# ip address 192.168.1.100 255.255.255.0 Switch(config)# ip default-gateway 192.168.1.254 The previous command would apply the follow settings for the Switch.
Page 144: Commands Level
User’s Manual of WGSW-2620HP 5.3 Commands Level The following table lists the CLI commands and description. Modes Access Method Prompt Exit Method About This Mode1 The user commands available at the user level are a subset of those available at the...
Page 145: Command Line Interface
User’s Manual of WGSW-2620HP 6. COMMAND LINE INTERFACE 6.1 Operation Notice To enter the “configuration” mode, you need to be in the privileged mode, and then types in the command configure: Switch# configure Switch (config) # 6.1.1. Command Line Editing Keys Function ;...
Page 146: System Commands
User’s Manual of WGSW-2620HP 6.1.2. Command Help You may enter ? at any command mode, and the CLI will return possible commands at that point, along with some description of 6.2 System Commands show running-config Description: Display the running configuration of the switch.
Page 147: Switch Static Configuration
User’s Manual of WGSW-2620HP 6.3 Switch Static Configuration 6.3.1 Port Configuration and show status port state Turn the port state on or off. Syntax: port state <on | off> [<port-list>] Parameters: <port-list> specifies the ports to be turn on or off. If not entered, all ports are turn on or off.
Page 148 User’s Manual of WGSW-2620HP port rate Description: Set port effective ingress or egress rate. Syntax: port rate <ingress | egress> <0..8000> [<port-list>] Parameters: <0..8000> specifies the ingress or egress rate.<0..8000> <port-list> specifies the ports to be set. If not entered, all ports are set.
Page 149 User’s Manual of WGSW-2620HP Port Information ---------------------------------------------------------------------- State: on Link: down Trunking: none VLAN: DEFAULT Priority: disable Security: off ---------------------------------------------------------------------- Port Information ---------------------------------------------------------------------- State: on Link: down --More-- show port statistics Description: Show port statistics, including TxGoodPkt, TxBadPkt, RxGoodPkt, RxBadPkt, TxAbort, Collision, and DropPkt.
Page 150 User’s Manual of WGSW-2620HP show port protection Description: Show protected port information. Switch(config)# show port protection --------+-----------+------- Port | Protected | Group --------+-----------+------- 10 | Trk1 |...
Page 151: Trunk Configuration
User’s Manual of WGSW-2620HP 6.4 Trunk Configuration Trunk allows the switch to combine ports so that they function like a single high-speed link. It can be used to increase the bandwidth to some devices to provide a high-speed link. For example, trunk is useful when making connections between switches or connecting servers to the switch.
Page 152: Lacp Command
User’s Manual of WGSW-2620HP no trunk Description: Delete an existing trunk group. Syntax: no trunk <trunk-id> Parameters: <trunk-id> specifies the trunk group to be deleted 6.4.2 LACP Command [no] lacp Description: Enable/disable LACP. lacp system-priority Description: Set LACP system priority.
Page 153 User’s Manual of WGSW-2620HP show lacp agg Description: Show LACP aggregator information. Syntax: show lacp agg <trunk-id> Parameters: <trunk-id> specifies the trunk group to be shown. show lacp port Description: Show LACP information by port. Syntax: show lacp port <port-id>...
Page 154: Vlan Configuration
User’s Manual of WGSW-2620HP 6.5 VLAN Configuration 6.5.1 Virtual LANs A Virtual LAN (VLAN) is a logical network group that limits the broadcast domain. It allows you to isolate network traffic so only members of the VLAN receive traffic from the same VLAN members. Basically, creating a VLAN within a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch.
Page 155: Vlan Mode: Port-Based
User’s Manual of WGSW-2620HP The Managed Switch support both Port-based VLAN and Tag-based (802.1Q) VLAN modes. The default configuration is tag-based (802.1Q) VLAN. In the 802.1Q VLAN, initially, all ports on the switch belong to default VLAN, VID is 1.
Page 156: Advanced 802.1Q Vlan Configuration
User’s Manual of WGSW-2620HP 6.5.3 Advanced 802.1Q VLAN Configuration Ingress filters configuration When a packet was received on a port, you can govern the switch to drop it or not if it is an untagged packet. Furthermore, if the received packet is tagged but not belonging to the same VALN group of the receiving port, you can also control the switch to forward or drop the packet.
Page 157 User’s Manual of WGSW-2620HP This VLAN entry has four members (from port1 to port4) and all members are untagged. no vlan Description: Delete VLAN entry. Syntax: no vlan <1-4094> Parameters: <1-4094> specifies the VLAN id or group id (if port based VLAN).
Page 158 User’s Manual of WGSW-2620HP show vlan pvid Description: Show port default VLAN id. Syntax: show vlan pvid [LIST] Parameters: [LIST] specifies the ports to be showed. If not entered, all port’s PVID will be showed. e.g. Switch(config)# show vlan pvid...
Page 159: Misc Configuration
User’s Manual of WGSW-2620HP Switch(config)# show vlan filter Port | Rule 1 | Rule 2 Filter (nonmbr) (untag) -----------+------------+--------- Port1 | Drop | Forward Port2 | Drop | Forward Port3 | Drop | Forward Port4 | Drop | Forward Port5 | Drop...
Page 160: Administration Configuration
User’s Manual of WGSW-2620HP Unicast/Multicast: Flood unicast/multicast filter Control Packets: Control packets filter IP multicast: IP multicast packets filter Broadcast Packets: Broadcast Packets filter Syntax: broadcast select <unicast/multicast | control packet | ip multicast | broadcast > Collision-Retry Description: Collision-Retry setting Syntax: Collision-Retry <...
Page 161: Ip Configuration
User’s Manual of WGSW-2620HP Parameters: The manager username and password is also used by the web UI. 6.7.2 IP Configuration User can configure the IP setting and fill in the new value. ip address Description: Set IP address and subnet mask.
Page 162: Reboot Switch
User’s Manual of WGSW-2620HP dhcp Description: Set switch as dhcp client, it can get ip from dhcp server. If you set this command, the switch will reboot. show dhcp Description: show dhcp enable/disable. 6.7.3 Reboot switch boot Description: Reboot (warm-start) the switch.
Page 163: Restore Configure File
User’s Manual of WGSW-2620HP 6.7.6 Restore Configure File copy tftp <running-config | flash> Description: Retrieve configuration from the TFTP server. If the remote file is the text file of CLI commands, use the keyword running-config. If the remote file is the configuration flash image of the switch instead, use the keyword flash.
Page 164: Port Mirroring Configuration
User’s Manual of WGSW-2620HP no mac-limit Description: Disable MAC limit. Mac-limit Description: Set port MAC limit value, 0 to turn off MAC limit of port. Syntax: Mac-limit <port-list> <1-64> show mac-limit Description: Show MAC limit information, including MAC limit enable/disable, per-port MAC limit setting.
Page 165 User’s Manual of WGSW-2620HP show mirror-port Description: Show port monitoring information...
Page 166: Quality Of Service
User’s Manual of WGSW-2620HP 6.10 Quality of Service There are four transmission queues with different priorities in the Managed Switch: Highest, SecHigh, SecLow and Lowest. The Managed Switch will take packets from the four queues according to its QoS mode setting. If the QoS mode was set to “Disable”, the Managed Switch will not perform QoS on its switched network.
Page 167: Per Port Priority
User’s Manual of WGSW-2620HP [<highest-weight>][<sechighweight>][<sec low -weight>] [<lowest-weight>] e.g. qos priority weighted-round-robin 8,4,2,1 qos level Description: Set priority levels to highest, second-high, second-low and lowest. Syntax: qos level < highest | second-high | second-low | lowest > <level-list> Parameters: <level-list> specifies the priority levels to be high or low.
Page 168: Mac Address Configuration
User’s Manual of WGSW-2620HP 6.11 MAC Address Configuration clear mac-address-table Description: Clear all dynamic MAC address table entries. mac-address-table static Description: Set static unicast or multicast MAC address. If multicast MAC address (address beginning with 01:00:5E) is supplied, the last parameter must be port-list. Otherwise, it must be port-id.
Page 169 User’s Manual of WGSW-2620HP smac-address-table static Description: Set static unicast or multicast MAC address in secondary MAC address table. If multicast MAC address (address beginning with 01:00:5E) is supplied, the last parameter must be port-list. Otherwise, it must be port-id.
Page 170: Stp/Mstp Commands
User’s Manual of WGSW-2620HP 6.12 STP/MSTP Commands [no] spanning-tree Description: Enable or disable spanning-tree. spanning-tree forward-delay Description: Set spanning tree forward delay of CIST, in seconds. Syntax: spanning-tree forward-delay <4-30> Parameters: <4-30> specifies the forward delay, in seconds. Default value is 15.
Page 171 User’s Manual of WGSW-2620HP The parameters must enforce the following relationships: 2*(hello-time + 1) <= maximum-age <= 2*(forward-delay - 1) spanning-tree priority Description: Set spanning tree bridge priority of CIST and all MSTIs. Syntax: spanning-tree priority <0-61440> Parameters: <0-61440> specifies the bridge priority. The value must be in steps of 4096. Default value is 32768.
Page 172 User’s Manual of WGSW-2620HP spanning-tree max-hops Description: Set spanning tree bridge maximum hops of CIST and all MSTIs. Syntax: spanning-tree max-hops <1-40> Parameters: <1-40> specifies the bridge maximum hops. Default value is 20. spanning-tree name Description: Set spanning tree bridge name of CIST.
Page 173 User’s Manual of WGSW-2620HP Parameters: <0-240> specifies the port priority. The value must be in steps of 16. <port-list> specifies the ports to be set. Null means all ports. [no] spanning-tree port mcheck Description: Force the port of CIST to transmit MST BPDUs. No format means not force the port of CIST to transmit MST BPDUs.
Page 174 User’s Manual of WGSW-2620HP spanning-tree mst Description: Set spanning tree bridge priority of MSTI. Syntax: spanning-tree mst <0-15> priority <0-61440> Parameters: <0-15> specifies the MSTI instance ID. <0-61440> specifies the MSTI bridge priority. The value must be in steps of 4096. Default value is 32768.
Page 175 User’s Manual of WGSW-2620HP no spanning-tree mst Description: Delete the specific MSTI. Syntax: no spanning-tree mst <0-15> Parameters: <0-15> specifies the MSTI instance ID. show spanning-tree Description: Show spanning-tree information of CIST. show spanning-tree port Description: Show spanning tree port information of CIST.
Page 176 User’s Manual of WGSW-2620HP show spanning-tree mst <0-15> port <1-10> Parameters: <0-15> specifies the MSTI instance ID. <1-10> specifies port number. show vlan spanning-tree Description: Show per VLAN per port spanning tree status. Syntax: show vlan spanning-tree...
Page 177: Snmp
User’s Manual of WGSW-2620HP 6.13 SNMP Any Network Management running the simple Network Management Protocol (SNMP) can be management the switch. 6.13.1 System Options Snmp /no snmp Description: Enable or disable SNMP. Show snmp status Description: Show the enable or disable status of SNMP.
Page 178: Community Strings
User’s Manual of WGSW-2620HP e.g. snmp system-contact abc@sina.com show snmp system Description: Show SNMP system information. 6.13.2 Community Strings snmp community Description: Set SNMP community string. Syntax: snmp community <read-sysinfo-only | read-all-only | read-write-all><community-str> Parameters: <community-str> specifies the community string.
Page 179: Igmp
User’s Manual of WGSW-2620HP Parameters: <ip-addr> specifies the IP address. <community-str> specifies the community string. <1..65535> specifies the trap receiver port number. e.g. snmp trap 192.168.200.1 public no snmp trap Description: Remove trap receiver IP address and port number. Syntax: no snmp trap <ip-addr>...
Page 180 User’s Manual of WGSW-2620HP igmp querier Description: Enable/disable IGMP snooping querier. Syntax: [no] igmp querier igmp CrossVLAN Description: Enable/disable IGMP snooping CrossVLAN Syntax: [no] igmp CrossVLAN igmp debug Description: Enable/disable IGMP snooping debugging output. Syntax: [no] igmp debug show igmp Description: Show IGMP snooping information.
Page 181: Protocol
User’s Manual of WGSW-2620HP 6.15 802.1x Protocol dot1x Description: Enable or disable 802.1x. Syntax: [no] dot1x radius-server host Description: Set radius server IP, port number, and accounting port number. Syntax: radius-server host <ip-addr> <1024..65535> <1024..65535> Parameters: <ip-addr> specifies server’s IP address.
Page 182 User’s Manual of WGSW-2620HP dot1x timeout quiet-period Description: Set 802.1x quiet period. (default: 60 seconds) Syntax: dot1x timeout quiet-period <0..65535> Parameters: <0..65535> specifies the quiet period, in seconds. dot1x timeout tx-period Description: Set 802.1x Tx period. (default: 15 seconds). Syntax: dot1x timeout tx-period <0..65535>...
Page 183 User’s Manual of WGSW-2620HP Parameters: <1..10> specifies the maximum request retries. dot1x timeout re-authperiod Description: Set 802.1x re-auth period (default: 3600 seconds). Syntax: dot1x timeout re-authperiod <30..65535> Parameters: <30..65535> specifies the re-auth period, in seconds. show dot1x Description: Show 802.1x information, quiet period, Tx period, supplicant timeout, server timeout, maximum requests, and re-auth period.
Page 184: Access Control List
User’s Manual of WGSW-2620HP 6.16 Access Control List Packets can be forwarded or dropped by ACL rules include Ipv4 or non-Ipv4. The Managed Switch can be used to block packets by maintaining a table of packet fragments indexed by source and destination IP address, protocol, and so on 6.16.1 Ipv4 ACL commands...
Page 185 User’s Manual of WGSW-2620HP Port ID : Any Hit Octet Count : 165074 Hit Packet count : 472 acl (add|edit) <1-220> (permit|deny) <0-4094> ipv4 <0-255> Description: Add or edit ACL group for Ipv4. Syntax: acl (add|edit) <1-220> (permit|deny) <0-4094> ipv4 <0-255> A.B.C.D A.B.C.D A.B.C.D A.B.C.D (check|unCheck) <0-65535>...
Page 186: Non-Ipv4 Acl Commands
User’s Manual of WGSW-2620HP <0-FF> specifies the protocol value. <0-FF> specifies the protocol mask. <0-FFFF> specifies the source port value. <0-FFFF> specifies the source port mask. <0-FFFF> specifies the destination port value. <0-FFFF> specifies the destination mask. e.g. acl add 1 qosvoip 1 7 1 1 0 0 0 0 0 0 6.16.2 Non-Ipv4 ACL commands...
Page 187: Binding
User’s Manual of WGSW-2620HP 6.17 Binding Let device that has specific IP address and MAC address can use network. We can set specific IP address, MAC address, VLAN id and port id to bind, and device can cross switch if all conditions match.
Page 188 User’s Manual of WGSW-2620HP Parameters: <1-220> specifies the group id. A.B.C.D specifies the MAC address. <0-4094> specifies the VLAN id. 0 means don't care. A.B.C.D specifies the Source IP address. 0.0.0.0 means don't care. A.B.C.D specifies the IP Address. <1-10> specifies the Port id.
Page 189: Power Over Ethernet Commands
Enabling or disabling per port power output limit poe maximum-power WGSW-2620HP PoE power budget is 360W and support 24 ports PoE. This chapter will be described how to configure PoE feature by example of WGSW-2620HP. 6.18.1 Display System PoE status...
Page 190 User’s Manual of WGSW-2620HP show poe status Description: Show per PoE port information Command Level Global Configuration Syntax: show poe status [<port-list>] Parameters: <port-list> specifies the ports to be set. If not entered, all ports are set. Example 1: Switch(config)# show poe status 1...
Page 191: Configure Poe Over Temperature Protection
User’s Manual of WGSW-2620HP 6.18.2 Configure PoE Over Temperature Protection poe temperature-protection enable Description: Configure PoE over temperature protection to enable or disable Command Level Global Configuration Syntax: poe temperature-protection { enable } Parameters: <Enable > Enable PoE power budget change automatically by detected PoE unit temperature <Disable >...
Page 192: Configure Poe -- System
User’s Manual of WGSW-2620HP 6.18.3 Configure PoE -- System poe limit-mode Description: Configure System PoE power limit mode information Command Level Global Configuration Syntax: poe limit-mode { classification / consumption} Parameters: < classification > Deliver PoE power by port priority setting and device PoE power level <...
Page 193 User’s Manual of WGSW-2620HP Example: Switch(config)# poe limit-mode consumption Switch(config)# show poe Maximum Available Power :360Watts POE Admin mode :Enable Temperature Unit1 :34C/93F Temperature Unit2 :37C/98F Over Temperature :Enable PoE Power Consumption : 0 Watts Temperature Threshold Usage Usage Threshold...
Page 194 User’s Manual of WGSW-2620HP poe admin-mode Description: Configure System PoE Admin mode information Command Level Global Configuration Syntax: poe admin-mode { enable / disable } [no] poe admin-mode Parameters: <enable > Enable POE <disable > Disable POE. Example: Switch(config)# poe admin-mode enable...
Page 195 User’s Manual of WGSW-2620HP Switch (config)# poe admin-mode disable Switch(config)# show poe Maximum Available Power :360Watts POE Admin mode :Disable Temperature Unit1 :34C/93F Temperature Unit2 :37C/98F Over Temperature :Enable PoE Power Consumption : 0 Watts Temperature Threshold Usage Usage Threshold...
Page 196 User’s Manual of WGSW-2620HP poe temperature Description: Configure System PoE Temperature Threshold information Command Level Global Configuration Syntax: poe temperature { thershold } {0-100} Parameters: <thershold> Thershold <0-100> Temperature Threshold: 0~100 C Example: Switch(config)# poe temperature threshold 60 Switch(config)# show poe...
Page 197 User’s Manual of WGSW-2620HP poe usage Description: Configure System PoE Usage Threshold information Command Level Global Configuration Syntax: poe usage { thershold } {0-100} Parameters: <thershold> Thershold <0-100> Usage Threshold: 0~100% Example: Switch(config)# poe usage threshold 10 Switch(config)# show poe...
Page 198: Configure Poe -- Port
User’s Manual of WGSW-2620HP 6.18.4 Configure PoE -- Port poe enable Description: Enabling or disabling the port POE injects function. Command Level: Global Configuration Syntax: poe enable [<port-list>] [no] poe enable [<port-list>] Parameters: <port-list> specifies the ports to be set. If not entered, all ports are set.
Page 199 User’s Manual of WGSW-2620HP poe priority Description: Set port priority for the power supply management. Command Level: Global Configuration Syntax: poe priority { Critical | High | Low} [<port-list>] Parameters: {Critical | High | Low} • Critical — Indicates that operating the powered device is high.
Page 200 User’s Manual of WGSW-2620HP poe power-mode Description: Set poe power mode for the power supply management Command Level Global Configuration Syntax: poe power-mode{ 802.3af / 802.3at } [<port-list>] Parameters: <802.3af> <802.3af > Set maximum PoE output capability to 15.4Watts <802.3at> <802.3at > Set maximum PoE output capability to 30.8Watts <LIST>...
Page 201: Switch Operation
User’s Manual of WGSW-2620HP 7. SWITCH OPERATION 7.1 Address Table The Switch is implemented with an address table. This address table composed of many entries. Each entry is used to store the address information of some node in network, including MAC address, port no, etc. This in-formation comes from the learning process of Ethernet Switch.
Page 202: Auto-Negotiation
User’s Manual of WGSW-2620HP 7.5 Auto-Negotiation The STP ports on the Switch have built-in "Auto-negotiation". This technology automatically sets the best possible bandwidth when a connection is established with another network device (usually at Power On or Reset). This is done by detect the modes and speeds at the second of both device is connected and capable of, both 10Base-T and 100Base-TX devices can connect with the port in either Half- or Full-Duplex mode.
Page 203: Power Over Ethernet Overview
User’s Manual of WGSW-2620HP 8. POWER OVER ETHERNET OVERVIEW What is PoE? Based on the global standard IEEE 802.3af, PoE is a technology for wired Ethernet, the most widely installed local area network technology adopted today. PoE allows the electrical power necessary for the operation of each end-device to be carried by data cables rather than by separate power cords.
Page 204 User’s Manual of WGSW-2620HP The data pairs are used. Since Ethernet pairs are transformer coupled at each end, it is possible to apply DC power to the center tap of the isolation transformer without upsetting the data transfer. In this mode of operation the pair on pins 3 and 6 and the pair on pins 1 and 2 can be of either polarity.
Page 205: The Poe Provision Process
User’s Manual of WGSW-2620HP The PoE Provision Process While adding PoE support to networked devices is relatively painless, it should be realized that power cannot simply be transferred over existing CAT-5 cables. Without proper preparation, doing so may result in damage to devices that are not designed to support provision of power over their network interfaces.
Page 206: Start-Up
User’s Manual of WGSW-2620HP Start-up Once line detection and optional classification stages are completed, the PSE must switch from low voltage to its full voltage capacity (44-57 Volts) over a minimal amount of time (above 15 microseconds). A gradual startup is required, as a sudden rise in voltage (reaching high frequencies) would introduce noise on the data lines.
Page 207: Trouble Shooting
User’s Manual of WGSW-2620HP 9. TROUBLE SHOOTING This chapter contains information to help you solve problems. If the Ethernet Switch is not functioning properly, make sure the Ethernet Switch was set up according to instructions in this manual. ■ The Link LED is not lit...
Page 208 User’s Manual of WGSW-2620HP While IP Address be changed or forgotten admin password – To reset the IP address to the default IP Address “192.168.0.100” or reset the password to default value. Press the hardware reset button at the front panel about 10 seconds. After the device is rebooted, you can login the management WEB interface within the same subnet of 192.168.0.xx.
Page 209: Appendix A-Rj-45 Pin Assignment
User’s Manual of WGSW-2620HP Appendix A—RJ-45 Pin Assignment A.1 Switch's RJ-45 Pin Assignments 1000Mbps, 1000Base T Contact MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring panel, while not expressly forbidden, is beyond the scope of this standard.
Page 210 User’s Manual of WGSW-2620HP The standard cable, RJ-45 pin assignment The standard RJ-45 receptacle/connector There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection:...
Page 211 WGSW-2620HP * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive on (2004/108/EC).
