KA01611F/00/EN/01.23-00
71610090
2023-04-22
advanced physical layer
Products
Brief Operating Instructions

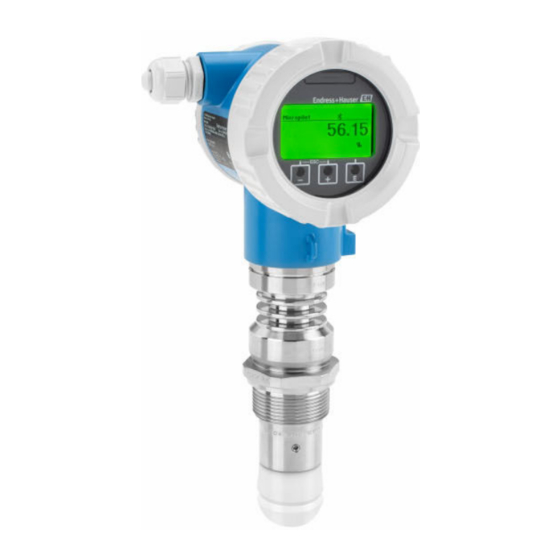

Micropilot FMR60B
PROFINET with Ethernet-APL
Free space radar
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information is provided in the Operating Instructions
and other documentation.
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot FMR60B

Summary of Contents for Endress+Hauser Micropilot FMR60B

  • Page 1 These Brief Operating Instructions are not a substitute for the Operating Instructions pertaining to the device. Detailed information is provided in the Operating Instructions and other documentation. Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smartphone/tablet: Endress+Hauser Operations app...
  • Page 2 Micropilot FMR60B PROFINET with Ethernet-APL Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Micropilot FMR60B PROFINET with Ethernet-APL Table of contents Table of contents Symbols ................4 Safety symbols .

  • Page 4: Symbols

    Symbols Micropilot FMR60B PROFINET with Ethernet-APL Symbols Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.

  • Page 5: Requirements For Personnel

    Do not touch or clean device surfaces with pointed or hard objects. Clarification of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.

  • Page 6: Workplace Safety

    It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Endress+Hauser...

  • Page 7: Incoming Acceptance

     All the information about the measuring device is displayed. ‣ Endress+Hauser Operations app; manually enter the serial number indicated on the nameplate or scan the 2D matrix code on the nameplate.  All the information about the measuring device is displayed.

  • Page 8: Manufacturer Address

    Storage and transport Micropilot FMR60B PROFINET with Ethernet-APL • Firmware version, hardware version • Approval-related information, reference to Safety Instructions (XA) • DataMatrix code (information about the device) Manufacturer address Endress+Hauser SE+Co. KG Hauptstraße 1 79689 Maulburg, Germany Place of manufacture: See nameplate.

  • Page 9: Mounting Requirements

    Micropilot FMR60B PROFINET with Ethernet-APL Mounting Install the device or turn the housing so that the cable entries do not point upwards.  A0029263 Always firmly tighten the housing cover and the cable entries. Counter-tighten the cable entries. A drip loop must be provided when laying the cables.
  • Page 10 Mounting Micropilot FMR60B PROFINET with Ethernet-APL 10.2.2 Avoiding interference echoes A0031813 Metal deflector plates, installed at an angle to scatter the radar signals, help prevent interference echoes. 10.2.3 Vertical alignment of antenna axis Align the antenna so that it is perpendicular to the product surface.

  • Page 11: Mounting The Measuring Device

    Micropilot FMR60B PROFINET with Ethernet-APL Mounting 10.3 Mounting the measuring device 10.3.1 Encapsulated antenna, PVDF 40 mm (1.5 in) Information concerning threaded connections • When screwing in, turn by the hex bolt only. • Tool: open-ended wrench 50 mm • Maximum permissible torque: 30 Nm (22 lbf ft)
  • Page 12 Mounting Micropilot FMR60B PROFINET with Ethernet-APL Maximum nozzle length H as a function of the nozzle diameter D D 50 to 80 mm (2 to 3.2 in) 750 mm (30 in) 80 to 100 mm (3.2 to 4 in) 1 150 mm (46 in)
  • Page 13 Micropilot FMR60B PROFINET with Ethernet-APL Mounting D 100 to 150 mm (4 to 6 in) 550 mm (22 in) ≥ 150 mm (6 in) 850 mm (34 in) In the case of longer nozzles, reduced measuring performance must be expected.
  • Page 14 Mounting Micropilot FMR60B PROFINET with Ethernet-APL Your benefits • Easy installation due to optimum alignment of housing • Easily accessible device operation • Optimum readability of the local display (optional) A0046660 Plastic single compartment housing (no locking screw) Aluminum single compartment housing...

  • Page 15: Post-Mounting Check

    Micropilot FMR60B PROFINET with Ethernet-APL Mounting 4 0.7 Nm A0038224 If fitted: release the screw of the cover lock for the electronics compartment cover using the Allen key. Unscrew the electronics compartment cover from the transmitter housing and check the cover seal.

  • Page 16: Electrical Connection

    Electrical connection Micropilot FMR60B PROFINET with Ethernet-APL  Are the securing screws and cover lock tightened securely?  Does the measuring device comply with the measuring point specifications? For example: •  Process temperature •  Process pressure •  Ambient temperature •  Measuring range Electrical connection 11.1...
  • Page 17 Micropilot FMR60B PROFINET with Ethernet-APL Electrical connection 11.1.2 Potential equalization The protective ground on the device must not be connected. If necessary, the potential matching line can be connected to the outer ground terminal of the transmitter before the device is connected.

  • Page 18: Connecting The Device

    Electrical connection Micropilot FMR60B PROFINET with Ethernet-APL 11.2 Connecting the device A0046659 Plastic single compartment housing Aluminum single compartment housing Single compartment housing, 316L hygiene Dual compartment housing Dual compartment housing, L-form Connection compartment cover Devices with a single compartment housing, 316L hygiene, and conduit gland must be connected as end-of-line devices.
  • Page 19 Micropilot FMR60B PROFINET with Ethernet-APL Electrical connection Cable outer diameter The cable outer diameter depends on the cable gland used • Coupling, plastic: ⌀5 to 10 mm (0.2 to 0.38 in) • Coupling, nickel-plated brass: ⌀7 to 10.5 mm (0.28 to 0.41 in) •...
  • Page 20 Electrical connection Micropilot FMR60B PROFINET with Ethernet-APL 11.2.4 Wiring WARNING Supply voltage might be connected! Risk of electric shock and/or explosion! ‣ If the device is used in hazardous areas, make sure to comply with national standards and the specifications in the Safety Instructions (XAs). The specified cable gland must be used.
  • Page 21 Micropilot FMR60B PROFINET with Ethernet-APL Electrical connection 11.2.5 Terminal assignment Single compartment housing A0042594  3 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Endress+Hauser...
  • Page 22 Electrical connection Micropilot FMR60B PROFINET with Ethernet-APL Dual compartment housing A0042803  4 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal Endress+Hauser...
  • Page 23 Micropilot FMR60B PROFINET with Ethernet-APL Electrical connection Dual compartment housing, L-form A0045842  5 Connection terminals and ground terminal in the connection compartment Positive terminal Negative terminal Internal ground terminal 11.2.6 Cable entries A0046584 Single compartment housing, plastic Single compartment housing, aluminum...

  • Page 24: Ensuring The Degree Of Protection

    Electrical connection Micropilot FMR60B PROFINET with Ethernet-APL The type of cable entry depends on the device version ordered. Always route connecting cables downwards so that moisture cannot penetrate the connection compartment. If necessary, create a drip loop or use a weather protection cover.

  • Page 25: Operation

    Micropilot FMR60B PROFINET with Ethernet-APL Operation  Cover lock tightened correctly? Operation 12.1 Reading off the device locking status Displaying active write protection: • In the Locking status parameter Menu path of local display: at the top operating level Menu path of operating tool: System → Device management •...

  • Page 26: Establishing A Connection Via Fieldcare And Devicecare

    Computer with Web browser or with operating tool (e.g.,, DeviceCare) Automation system Field Xpert SMT70 Mobile handheld terminal Local operation via display module 13.3.2 Via service interface (CDI) A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Endress+Hauser...

  • Page 27: Configuring The Operating Language

    Micropilot FMR60B PROFINET with Ethernet-APL Commissioning 13.4 Configuring the operating language 13.4.1 Local display Setting the operating language To set the operating language, the display first needs to be unlocked: Press the  key for at least 2 s.  A dialog box appears.

  • Page 28: Configuring The Device

    Commissioning Micropilot FMR60B PROFINET with Ethernet-APL 13.5 Configuring the device 13.5.1 Level measurement in liquids 100% A0016933  7 Configuration parameters for level measurement in liquids Reference point of measurement Length of antenna + 10 mm (0.4 in) 50 to 80 mm (1.97 to 3.15 in); medium εr < 2...
  • Page 29 Micropilot FMR60B PROFINET with Ethernet-APL Commissioning 13.5.2 Commissioning with the Commissioning wizard In FieldCare, DeviceCare, SmartBlue and on the display, the Commissioning wizard is available to guide the user through the initial commissioning steps. Complete this wizard to commission the device.
  • Page 32 *71610090* 71610090 www.addresses.endress.com...
