TI01304F/00/EN/03.17
Products
Technical Information

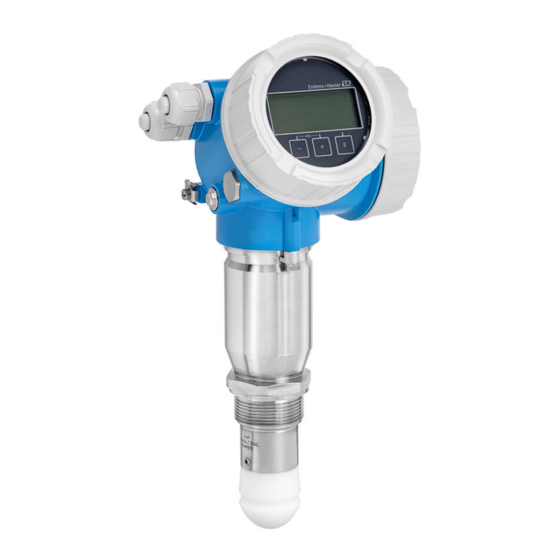

Micropilot FMR67
Free space radar
Level measurement in bulk solids
Application
• Continuous, non-contact level measurement of bulk solids
ranging from powdery to lumpy
• PTFE drip-off antenna or PTFE-plated, flush-mounted antenna
• Maximum measuring range: 125 m (410 ft)
• Temperature: –40 to +200 °C (–40 to +392 °F)
• Pressure: –1 to +16 bar (–14.5 to +232 psi)
• Accuracy: ± 3 mm (0.12 in)
• International explosion protection certificates
• Linearity protocol (3-point, 5-point)
Your benefits
• Innovative drip-off antenna made of PTFE for maximum system availability
• Reliable measurement thanks to improved focusing and small beam angle,
particularly in silos with many internal fittings
• Large measuring ranges up to 125 m (410 ft)
• Safety by design - ensures highest safety
• Easy, guided commissioning with intuitive user interface in
local language
• Reliable measurement even in variable product and process conditions
• Maximum reliability thanks to multi-echo tracking
• HistoROM configuration memory makes for easier commissioning,
maintenance and diagnostics
• Antenna design not sensitive to buildup
• Purge air connection for cleaning in extreme conditions
• Alignment device for easy adaptation of sensor
• SIL2 as per IEC 61508, SIL3 for homogeneous or diverse redundancy, 3rd party
approved
• Easy proof testing for SIL
• Seamless integration in process control and asset management systems
• RFID TAG - easy identification of measuring points for improved data access
• Heartbeat Technology
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Micropilot FMR67

Summary of Contents for Endress+Hauser Micropilot FMR67

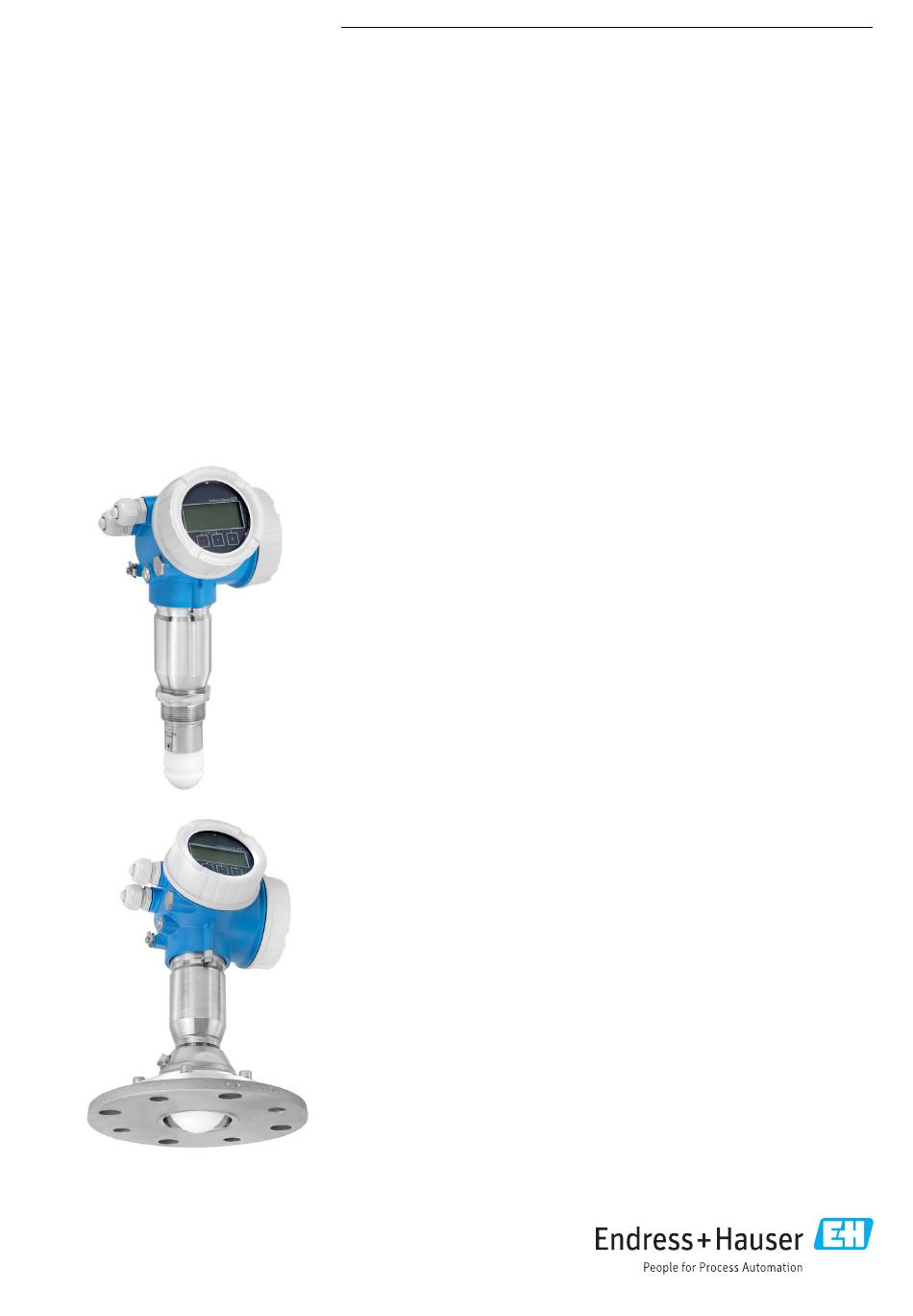

  • Page 1 TI01304F/00/EN/03.17 Products Solutions Services Technical Information Micropilot FMR67 Free space radar Level measurement in bulk solids Application • Continuous, non-contact level measurement of bulk solids ranging from powdery to lumpy • PTFE drip-off antenna or PTFE-plated, flush-mounted antenna • Maximum measuring range: 125 m (410 ft) •...

  • Page 2: Table Of Contents

    Micropilot FMR67 Table of contents Important document information ....4 Storage temperature ......
  • Page 3 Micropilot FMR67 Application Packages ..... . . 68 Heartbeat Diagnostics ......

  • Page 4: Important Document Information

    Micropilot FMR67 Important document information Safety symbols Symbol Meaning DANGER! This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in DANGER serious or fatal injury. WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in WARNING serious or fatal injury.

  • Page 5: Symbols At The Device

    Micropilot FMR67 Symbol Meaning Hazardous area Indicates a hazardous area. Safe area (non-hazardous area) Indicates the non-hazardous area. Symbols at the device Symbol Meaning Safety instructions Observe the safety instructions contained in the associated Operating Instructions. Temperature resistance of the connection cables Specifies the minimum value of the temperature resistance of the connection cables.

  • Page 6: Terms And Abbreviations

    FieldCare Scalable software tool for device configuration and integrated plant asset management solutions DeviceCare Universal configuration software for Endress+Hauser HART, PROFIBUS, FOUNDATION Fieldbus and Ethernet field devices Device Type Manager Device Description for HART communication protocol Relative dielectric constant ε...

  • Page 7: Registered Trademarks

    Micropilot FMR67 Registered trademarks HART® Registered trademark of the HART Communication Foundation, Austin, USA KALREZ®, VITON® Registered trademark of DuPont Performance Elastomers L.L.C., Wilmington, USA TEFLON® Registered trademark of E.I. DuPont de Nemours & Co., Wilmington, USA Endress+Hauser V. 1, Rev. 3, 11-04-2017...

  • Page 8: Function And System Design

    Micropilot FMR67 Function and system design Measuring principle The Micropilot is a "downward-looking" measuring system, operating based on the frequency modulated continuous wave method (FMCW). The antenna emits an electromagnetic wave at a continuously varying frequency. This wave is reflected by the product and received again by the antenna.

  • Page 9: Input

    Tables in preparation For dielectric constants (DC values) of many media commonly used in various industries refer • the Endress+Hauser DC manual (CP01076F) • the Endress+Hauser "DC Values App" (available for Android and iOS) Approx. 80 GHz Operating frequency Several FMR6x devices can be installed in one tank thanks to the short measuring duration and the high beam focus.

  • Page 10: Output

    Micropilot FMR67 Output Output signal HART Signal coding FSK 0.5 mA over current signal Data transmission rate 1 200 Bit/s Galvanic isolation Switch output For HART devices, the switch output is available as an option. See product structure, feature 20: "Power Supply, Output", option B: "2-wire;...

  • Page 11: Galvanic Isolation

    Micropilot FMR67 Galvanic isolation All circuits for the outputs are galvanically isolated from each other. Protocol-specific data HART Manufacturer ID 17 (0x11) Device type ID 0x112B HART specification Device description files (DTM, DD) Information and files under: • www.endress.com •...

  • Page 12: Power Supply

    Micropilot FMR67 Power supply Terminal assignment 2-wire: 4-20mA HART – – 4...20 mA – – 4...20 mA A0011294  3 Terminal assignment 2-wire; 4-20mA HART Without integrated overvoltage protection With integrated overvoltage protection Active barrier with power supply (e.g. RN221N): Observe terminal voltage HART communication resistor (≥...
  • Page 13 Micropilot FMR67 2-wire: 4-20mA HART, switch output – ≥250 Ω 4...20 mA – ≥250 Ω 4...20 mA A0013759  4 Terminal assignment 2-wire; 4-20mA HART, switch output Without integrated overvoltage protection With integrated overvoltage protection Active barrier with power supply (e.g. RN221N): Observe terminal voltage HART communication resistor (≥...
  • Page 14 Micropilot FMR67 2-wire: 4-20mA HART, 4-20mA – 4...20 mA – 4...20 mA – 4...20 mA – 4...20 mA A0013923  5 Terminal assignment 2-wire, 4-20 mA HART, 4...20mA Without integrated overvoltage protection With integrated overvoltage protection Connection current output 2 Connection current output 1 Supply voltage for current output 1 (e.g.
  • Page 15 Micropilot FMR67 4-wire: 4-20mA HART (10.4 to 48 V ≥250 Ω 4...20 mA A0011340  6 Terminal assignment 4-wire; 4-20mA HART (10.4 to 48 V Evaluation unit, e.g. PLC HART communication resistor (≥ 250 Ω): Observe maximum load Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem)
  • Page 16 Micropilot FMR67 4-wire: 4-20mA HART (90 to 253 V ≥250 Ω 4...20 mA A0018965  7 Terminal assignment 4-wire; 4-20mA HART (90 to 253 V Evaluation unit, e.g. PLC HART communication resistor (≥ 250 Ω): Observe maximum load Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem)
  • Page 17 Micropilot FMR67 Connection examples for the switch output For HART devices, the switch output is available as an option. See product structure, feature 20: "Power Supply, Output", option B: "2-wire; 4-20mA HART, switch output" Devices with PROFIBUS PA and FOUNDATION Fieldbus always have a switch output.

  • Page 18: Device Plug Connectors

    Micropilot FMR67 Device plug connectors For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing. Pin assignment of the M12 plug connector Meaning Signal + not connected Signal - Ground A0011175 Pin assignment of the 7/8"...
  • Page 19 Micropilot FMR67 Supply voltage An external power supply is necessary. Various power supply units can be ordered as an accessory from Endress+Hauser. 2-wire, 4-20mA HART, passive "Power "Approval" Terminal Maximum load R, supply, voltage U depending on the supply voltage output"...

  • Page 20: Supply Voltage

    Micropilot FMR67 "Power "Approval" Terminal Maximum load R, supply, voltage U at depending on the supply voltage output" device of the power supply unit 16 to 30 V R [ ] W 2-wire; 4-20mA HART, 4-20mA U 0 [V] A0031746...

  • Page 21: Cable Entries

    Micropilot FMR67 Cable entries Connection of power supply and signal line To be selected in feature 050 "Electrical connection" • Gland M20; Material dependent on the approval: – For Non-Ex, ATEX, IECEx, NEPSI Ex ia/ic: Plastics M20x1.5 for cable ⌀5 to 10 mm (0.2 to 0.39 in) –...
  • Page 22 Micropilot FMR67 External overvoltage protection HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K V. 1, Rev. 3, 11-04-2017 Endress+Hauser...

  • Page 23: Performance Characteristics

    Micropilot FMR67 Performance characteristics Reference operating • Temperature = +24 °C (+75 °F) 5 °C (9 °F) conditions • Pressure = 960 mbar abs. (14 psia) 100 mbar (1.45 psi) • Humidity = 60 % 15 % • Reflector: metal plate with diameter ≥ 1 m (40 in) •...

  • Page 24: Response Time

    Micropilot FMR67 Response time The response time can be configured. The following step response times (in accordance with DIN EN IEC 61298-2 / DIN EN IEC 60770-1) are when damping is switched off: Sampling rate ≥1.3 s –1 at U ≥ 24 V Response time <...

  • Page 25: Installation

    Micropilot FMR67 Installation Installation conditions Mounting position A0016883 • Recommended distance A wall - nozzle outer edge: ~ 1/6 of the container diameter. However, the device must not under any circumstances be mounted closer than 20 cm (7.87 in) to the container wall.
  • Page 26 Micropilot FMR67 Internal container fittings A0031814 Avoid the location of internal fittings (limit switches, temperature sensors, struts etc.) inside the signal beam. Pay attention to the beam angle . V. 1, Rev. 3, 11-04-2017 Endress+Hauser...
  • Page 27 Micropilot FMR67 Avoiding interference echoes A0031817 Metal deflection plates installed at an angle to scatter the radar signals help prevent interference echoes. Optimization options • Antenna size The larger the antenna the smaller the beam angle α,resulting in fewer interference echoes .
  • Page 28 Micropilot FMR67 Beam angle α α A0031824  11 Relationship between beam angle α, distance D and beamwidth diameter W The beam angle is defined as the angle α where the energy density of the radar waves reaches half the value of the maximum energy density (3dB width). Microwaves are also emitted outside the signal beam and can be reflected off interfering installations.

  • Page 29: Installation: Drip-Off Antenna Ptfe 50 Mm / 2

    Micropilot FMR67 FMR67 A0032084 A0032083 Antenna Drip-off, PTFE 50 mm / 2" PTFE flush mount 80 mm / 3" Beam angle α 6 ° 4 ° Distance (D) Beamwidth diameter W 5 m (16 ft) 0.52 m (1.70 ft) 0.35 m (1.15 ft) 10 m (33 ft) 1.05 m (3.44 ft)

  • Page 30: Installation: Flush Mount Antenna

    • The end of the nozzle must be smooth and free from burrs. The edge of the nozzle should be rounded if possible. • Mapping must be performed. • Please contact Endress+Hauser for applications with nozzles that are higher than indicated in the table. Information concerning threaded connections •...
  • Page 31 • The end of the nozzle must be smooth and free from burrs. The edge of the nozzle should be rounded if possible. • Mapping must be performed. • Please contact Endress+Hauser for applications with nozzles that are higher than indicated in the table. Endress+Hauser...

  • Page 32: Purge Air Connection For Fmr67

    Micropilot FMR67 Purge air connection for Purge air adapter for Drip-off antennas FMR67 Purge air connection Meaning without Purge air adapter G 1/4" Purge air adapter NPT 1/4" Feature 110 in the product structure A0032098 Purge air connection NPT 1/4" or G 1/4"...

  • Page 33: Container With Heat Insulation

    Micropilot FMR67 In applications with strong dust emissions, the integrated purge air connection can prevent the antenna from becoming clogged. Pulse operation is recommended. Purge air pressure range • Pulse operation : Max. 6 bar (87 psi) • Continuous operation: 200 to 500 mbar (3 to 7.25 psi)

  • Page 34: Environment

    Micropilot FMR67 Environment Ambient temperature range Measuring device –40 to +80 °C (–40 to +176 °F) Local display –20 to +70 °C (–4 to +158 °F), the readability of the display may be impaired at temperatures outside the temperature range.

  • Page 35: Storage Temperature

    Micropilot FMR67 FMR67 Antenna PTFE flush mount DN80 Seal FKM Viton GLT, –40 to 200 °C (–40 to 392 °F) Temperature specifications: °C (°F) A0032024 Housing type –40 –40 –40 –40 GT18 two-chamber (–40) (168.8) (168.8) (168.8) (392) (145.4) (392) (–40)

  • Page 36: Altitude According To Iec61010-1 Ed.3

    Micropilot FMR67 Altitude according to • Generally up to 2 000 m (6 600 ft) above MSL. • Above 2 000 m (6 600 ft) if the following conditions are met: IEC61010-1 Ed.3 – Ordering feature 020 "Power supply; Output" = A, B, C, E or G (2-wire versions) –...

  • Page 37: Process

    Micropilot FMR67 Process Process temperature, process The pressure ranges indicated can be reduced by the choice of process connection. The nominal pressure pressure (PN) indicated on the nameplate refers to a reference temperature of 20 °C, and of 100 °F for ASME flanges. Observe pressure-temperature dependency.
  • Page 38 Micropilot FMR67 FMR67, flush mount antenna, PTFE DN80, standard flange 316L [bar] ([psi]) 16 (232) 0 (0) -1 (-14.5) [°C] +200 +150 ([°F]) (-40) (+32) (+392) (+302) A0032187  14 FMR67: Permitted range for process temperature and process pressure, antenna, PTFE DN80, standard...

  • Page 39: Dielectric Constant

    For bulk solids ε ≥ 1.6 Please contact Endress+Hauser for applications with lower dielectric constants than indicated. For dielectric constants (DC values) of many media commonly used in various industries refer • the Endress+Hauser DC manual (CP01076F) • the Endress+Hauser "DC Values App" (available for Android and iOS) Endress+Hauser V.

  • Page 40: Mechanical Construction

    Micropilot FMR67 Mechanical construction Dimensions Dimensions of the electronics housing 98 (3.86)* 78 (3.07) 90 (3.54) A0011666  17 Housing GT18 (316L); Dimensions in mm (in) *for devices with integrated overvoltage protection. 99.5 (3.92)* 90 (3.54) 78 (3.07) A0011346  18 Housing GT19 (Plastics PBT);...
  • Page 41 Micropilot FMR67 FMR67 Drip-off antenna, w/o purge air connection ø60 (2.36) ø42.5 (1.67) ø42.5 (1.67) øD A0031560  20 Dimensions: mm (in) Process connection: G1-1/2" or MNPT1-1/2" thread Process connection: UNI flange 3"/DN80/80A to 6"/DN150/150A Bottom edge of housing Feature 100: process connection Suitable for øD...
  • Page 42 Micropilot FMR67 FMR67 Drip-off antenna, purge air connection ø100 (3.94) ø60 (2.36) ø42.5 (1.67) øD A0032154  21 Dimensions: mm (in) Bottom edge of housing Feature 100: process connection Suitable for øD • 3" 150lbs XJG: • DN80 PN16 200 mm (7.87 in) UNI flange 3"/DN80/80A, PP...
  • Page 43 Micropilot FMR67 FMR67 DN80 antenna, purge air connection ø80 (3.15) ø60 (2.36) ø70 (2.76) øD A0032172  22 Dimensions: mm (in) Seal: FKM Viton GLT, -40 to 150°C/-40 to 302°F Seal: FKM Viton GLT, -40 to 200°C/-40 to 392°F Bottom edge of housing Feature 100 "Process...
  • Page 44 Micropilot FMR67 FMR67 DN80 antenna, purge air connection, UNI flange 316L ø86 (3.39) ø60 (2.36) ø70 (2.76) øD A0032180  23 Dimensions: mm (in) Seal: FKM Viton GLT, -40 to 150°C/-40 to 302°F Seal: FKM Viton GLT, -40 to 200°C/-40 to 392°F Bottom edge of housing Feature 100 "Process connection"...
  • Page 45 Micropilot FMR67 FMR67 DN80 antenna, purge air connection, UNI flange with alignment device ø60 (2.36) ø70 (2.76) ø95 (3.74) øD A0032173  24 Dimensions: mm (in) Seal: FKM Viton GLT, -40 to 150°C/-40 to 302°F Seal: FKM Viton GLT, -40 to 200°C/-40 to 392°F...
  • Page 46 Micropilot FMR67 ø19 (0.75) ø12 (0.47) ø23 (0.91) ø26 (1.02) ø175 (6.89) ø240 (9.45) ø185.5 (7.3) ø280 (11.02) ø225 (8.86) ø26 (1.02) ø26 (1.02) ø26 (1.02) ø294.5 (11.6) ø358 (14.1) ø405 (15.9) ø340 (13.4) A0032136 Item Feature 100: process connection...

  • Page 47: Weight

    Micropilot FMR67 Weight Housing Part Weight GT18 housing - stainless steel Approx. 4.5 kg (9.9 lb) GT19 housing - plastic Approx. 1.2 kg (2.7 lb) GT20 housing - aluminum Approx. 1.9 kg (4.2 lb) Antenna and process connection Device Antenna...

  • Page 48: Materials: Gt18 Housing (Stainless Steel, Corrosion- Resistant)

    Micropilot FMR67 Materials: GT18 housing (stainless steel, corrosion- resistant) A0013788 No. Part Material Housing CF3M similar to 316L/1.4404 2.1 Cover of the electronics compartment • Cover: CF3M (similar to 316L/1.4404) • Window: glass • Cover seal: NBR • Seal of the window: NBR •...

  • Page 49: Materials: Gt19 Housing (Plastic)

    Micropilot FMR67 Materials: GT19 housing (plastic) A0013788 No. Part Material Housing 2.1 Cover of the electronics compartment • Cover glass: PC • Cover frame: PBT-PC • Cover seal: EPDM • Thread-coating: Graphite-based lubricant varnish 2.2 Cover of the terminal compartment •...

  • Page 50: Materials: Gt20 Housing (Die-Cast Aluminum, Powder- Coated, Seawater-Resistant)

    Micropilot FMR67 Materials: GT20 housing (die-cast aluminum, powder- coated, seawater-resistant) A0013788 Nr. Part Material Housing, RAL 5012 (blue) • Housing: AlSi10Mg(<0,1% Cu) • Coating: Polyester 2.1 Cover of the electronics compartment; RAL 7035 • Cover: AlSi10Mg(<0,1% Cu) (gray) • Window: Glass •...

  • Page 51: Materials: Antenna And Process Connection

    Micropilot FMR67 Nr. Part Material Ground terminal • Screw: A2 • Spring washer: A2 • Clamp: 304 (1.4301) • Holder: 304 (1.4301) Adhesive nameplate Plastic For the version with M12 plug the sealing material is Viton. For the version with 7/8" plug, the sealing material is NBR.
  • Page 52 Micropilot FMR67 Component part Material Antenna PTFE Seals Viton: FKM Flange / process connection Aluminum Antenna adapter, 316L / 1.4404 housing adapter Housing seal EPDM Threaded adapter, 316L / 1.4404 screw plug Purge air adapter Sensor adapter with alignment device 316L / 1.4404...

  • Page 53: Materials: Weather Protection Cover

    Micropilot FMR67 Materials: Weather protection cover A0015473 Part: Material Protection cover: 316L (1.4404) Molded rubber part (4x): EPDM Clamping screw: 316L (1.4404) + carbon fibre Bracket: 316L (1.4404) • Cheese head screw: A4-70 • Nut: A4 • Spring washer: A4 Ground terminal •...

  • Page 54: Operability

    Micropilot FMR67 Operability Operating concept Operator-oriented menu structure for user-specific tasks • Commissioning • Operation • Diagnostics • Expert level Operating languages • English • Deutsch • Français • Español • Italiano • Nederlands • Portuguesa • Polski • русский язык (Russian) •...

  • Page 55: Operation With Remote Display And Operating Module Fhx50

    Micropilot FMR67 Format for displaying measured variables and status variables can be individually configured Permitted ambient temperature for the display: –20 to +70 °C (–4 to +158 °F) The readability of the display may be impaired at temperatures outside the temperature range.
  • Page 56 Micropilot FMR67 Via service interface (CDI) A0032466 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Commubox FXA291 Computer with "FieldCare" operating tool V. 1, Rev. 3, 11-04-2017 Endress+Hauser...

  • Page 57: System Integration Via Fieldgate

    The number of instruments which can be connected in mutidrop mode can be calculated by the "FieldNetCalc" program. A description of this program can be found in Technical Information TI 400F (Multidrop Conncector FXN520). The program is available form your Endress+Hauser sales organisation or in the internet at: www.de.endress.com/Download...

  • Page 58: Certificates And Approvals

    The measuring system meets the legal requirements of the applicable EC guidelines. These are listed in the corresponding EC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. RoHS The measuring system complies with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS 2).

  • Page 59: Marine Approval

    Micropilot FMR67 Note: A partial examination shall be performed for pressure instruments that are part of safety equipment for the protection of a pipe or vessel from exceeding allowable limits (equipment with safety function in accordance with Pressure Equipment Directive 2014/68/EU, Article 2, point 4).

  • Page 60: Radio Standard En 302372-1/2

    Micropilot FMR67 Country Name of the station Latitude Longitude Sweden Onsala 57°23' 4 5" North 11°55' 3 5" East Switzerland Bleien 47°20' 2 6" North 08°06' 4 4" East Spain Yebes 40°31' 2 7" North 03°05' 2 2" West Robledo 40°25' 3 8"...

  • Page 61: Crn Approval

    Micropilot FMR67 CRN approval Some device versions have CRN approval. Devices are CRN approved if the following two conditions are met: • The device has a CSA approval (product structure: feature 010 "Approval") • The device has a CRN-approved process connection as per the following table:...

  • Page 62: Test, Certificate

    Micropilot FMR67 Test, certificate Feature 580 "Test, Description certificate" 3.1 Material certificate, wetted metal parts, EN10204-3.1 inspection certificate 3.1 Material certificate, pressurized parts, EN10204-3.1 inspection certificate Declaration of Conformity ASME B31.3: The construction, the material used, the pressure and temperature ranges and the labeling of the devices meet the requirements of ASME B31.3...

  • Page 63: Other Standards And Guidelines

    Micropilot FMR67 Other standards and • EN 60529 Degrees of protection provided by enclosures (IP code) guidelines • EN 61010-1 Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use • IEC/EN 61326 "Emission in accordance with Class A requirements". Electromagnetic compatibility (EMC requirements).

  • Page 64: Ordering Information

    • Automatic verification of exclusion criteria • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop V. 1, Rev. 3, 11-04-2017 Endress+Hauser...

  • Page 65: 3-Point Linearity Protocol

    Micropilot FMR67 3-point linearity protocol The following points must be considered if option F3 (3-point linearity protocol) was selected in feature 550 ("Calibration"). The 3 points of the linearity protocol are defined as follows: A0032642  28 Points of the 3-point linearity protocol; engineering unit: mm (in)

  • Page 66: 5-Point Linearity Protocol

    Micropilot FMR67 5-point linearity protocol The following points must be considered if option F4 (5-point linearity protocol) was selected in feature 550 ("Calibration"). The 5 points of the linearity protocol are evenly distributed over the measuring range (0% - 100%).

  • Page 67: Customer-Specific Configuration

    Micropilot FMR67 Customer-specific If the option IJ: "Customized parameterization HART", IK "Customized parameterization PA" or IL "Customized parameterization FF" has been selected in feature 570 "Service", presettings that differ configuration from the default settings can be selected for the following parameters:...

  • Page 68: Application Packages

    Micropilot FMR67 Application Packages Heartbeat Diagnostics Availability Available in all device versions. Function • Continuous self-monitoring of the device. • Diagnostic messages output to – the local display. – an asset management system (e.g. FieldCare/DeviceCare). – an automation system (e.g. PLC).

  • Page 69: Heartbeat Verification

    Micropilot FMR67 Heartbeat Verification Availability Available for the following options of feature 540 "Application Package": • EH: Heartbeat Verification + Monitoring • EJ:   Heartbeat Verification Device functionality checked on demand • Verification of the correct functioning of the measuring device within specifications.

  • Page 70: Heartbeat Monitoring

    Micropilot FMR67 Heartbeat Monitoring Availability Available for the following options of feature 540 "Application Package": EH: Heartbeat Verification + Monitoring Function • In addition to the verification parameters, the corresponding parameter values are also logged. • Existing measured variables, such as the echo amplitude, are used in the Foam detection and Build-up detection wizards.

  • Page 71: Accessories

    Micropilot FMR67 Accessories Device-specific accessories Weather protection cover Accessory Description Weather protection cover A0015466 298.5 (11.8) 273.7 (10.8) 255.1 (10) 164 (6.46) A0015472  29 Weather protection cover; Dimensions: mm (in) 37,8 mm (1,5 in) 54 mm (2,1 in) ...
  • Page 72 Micropilot FMR67 Adjustable flange seal Accessories Description Adjustable flange seal ød øD A0032292 UNI slip-on flange Adjustable flange seal Nozzle  The material properties and process conditions of the adjustable flange seal must be compatible with the properties (temperature, pressure, resistance) of the process.
  • Page 73 Micropilot FMR67 Accessories Description Technical data: version ASME/JIS Order number 71249070 71249072 71249073 Compatible with • ASME 3" 150lbs ASME 4" 150lbs ASME 6" 150lbs • JIS 80A 10K Recommended screw length 100 mm (3.9 in) 100 mm (3.9 in) 110 mm (4.3 in)
  • Page 74 Micropilot FMR67 Mounting bracket adjustable Accessories Description Mounting bracket adjustable 260 (10.2) 9(0.4) 12(0.5) 16 (0.6) 100 (3.9) 35(1.4) A0032295 Material: 304 (1.4301) Suitable for housing – A: GT19 dual compartment, plastic PBT – C: GT20 dual compartment, Alu, coated...
  • Page 75 Micropilot FMR67 Remote display FHX50 Accessories Description Remote display FHX50 A0019128 • Material: – Plastic PBT – 316L/1.4404 • Degree of protection: IP68 / NEMA 6P and IP66 / NEMA 4x • Suitable for display modules: – SD02 (push buttons) –...
  • Page 76 Micropilot FMR67 Overvoltage protection Accessory Description Overvoltage protection for 2-wire-devices OVP10 (1 channel) OVP20 (2 channel) A0021734 Technical data • Resistance per channel: 2 * 0.5 Ω • Threshold DC voltage: 400 to 700 V • Threshold impulse voltage: < 800 V •...

  • Page 77: Communication-Specific Accessories

    For details refer to Technical Information TI00404F Accessory Description Commubox FXA291 Connects Endress+Hauser field devices with CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a computer. Order code: 51516983  For details refer to Technical Information TI00405C...

  • Page 78: Service-Specific Accessories

    Service-specific accessories Accessory Description FieldCare / DeviceCare Endress+Hauser' s FDT-based Plant Asset Management tool. Helps to configure and maintain all field devices of your plant. By supplying status information it also supports the diagnosis of the devices.  For details refer to Operating Instructions BA00027S and BA00059S.

  • Page 79: Supplementary Documentation

    • The W@M Device Viewer: enter the serial number from the nameplate (www.endress.com/deviceviewer) • The Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2-D matrix code (QR code) on the nameplate. The following document types are available: In the Download Area of the Endress+Hauser Internet site: www.endress.com →...
  • Page 80 Micropilot FMR67 Feature 010 Approval Feature 020 "Power Supply; Output" FM IS Cl.I Div.1 Gr.A-D FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia, NI Cl.1 Div.2 FM XP Cl.I Div.1 Gr.A-D FM XP Cl.I,II,III Div.1 Gr.A-G, AEx db, NI Cl.1 Div.2 FM DIP Cl.II,III Div.1 Gr.E-G...
  • Page 81 Micropilot FMR67 Feature 010 Approval Feature 020 "Power Supply; Output" NEPSI Ex d[ia] IIC T6 Ga/Gb, DIP A20/21 T85…90oC IP66 FM/CSA IS+XP Cl.I,II,III Div.1 Gr.A-G 2-wire; 4-20mA HART 2-wire; 4-20mA HART, switch output 2-wire; 4-20mA HART, 4-20mA 2-wire; FOUNDATION Fieldbus, switch output 2-wire;...
