Brief Operating Instructions

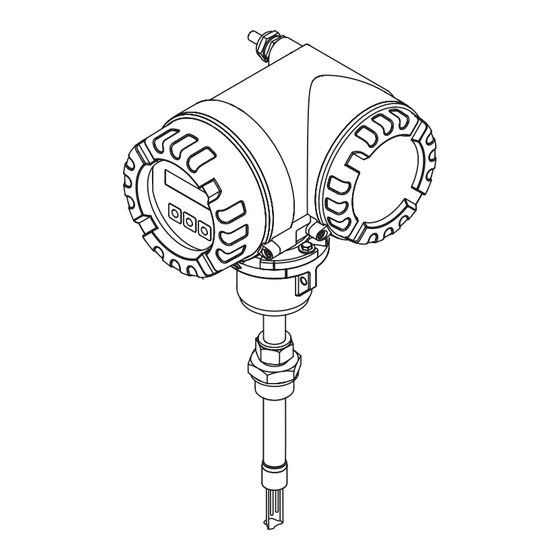

Proline t-mass 65
Thermal Mass Flow Measuring System
6
8
9
MODBUS
These Brief Operating Instructions are not intended to replace the
Operating Instructions provided in the scope of supply.
Detailed information is provided in the Operating Instructions and
the additional documentation on the CD-ROM supplied.
The complete device documentation consists of:
• These Brief Operating Instructions
• Depending on the device version:
– Operating Instructions and the Description of Device Functions
– Approvals and safety certificates
– Special safety instructions in accordance with the approvals for
the device (e.g. explosion protection, pressure equipment
directive etc.)
– Additional device-specific information
KA021D/06/en/06.10
71115118
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Proline t-mass 65
Summary of Contents for Endress+Hauser Proline t-mass 65
- Page 1 Brief Operating Instructions Proline t-mass 65 Thermal Mass Flow Measuring System MODBUS These Brief Operating Instructions are not intended to replace the Operating Instructions provided in the scope of supply. Detailed information is provided in the Operating Instructions and the additional documentation on the CD-ROM supplied.
-
Page 2: Table Of Contents
Table of contents Proline t-mass 65 Table of contents 1 Safety instructions ........3 1.1 Designated use . -
Page 3: Safety Instructions
European standards have been observed. • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser distributor will supply you with current information and updates to these Operating Instructions. • The information on the warning notices, nameplates and connection diagrams affixed to the device must be observed. -
Page 4: Safety Conventions
For this reason, Endress+Hauser does not accept any responsibility with regard to the corrosion resistance of wetted materials in a specific application. The user is responsible for the choice of suitable wetted materials in the process. -
Page 5: Installation
Proline t-mass 65 Installation Installation Transporting to the measuring point • Transport the measuring device to the measuring point in the original packaging. • The covers or caps fitted on the process connections prevent mechanical damage to the sensors during transport and storage. For this reason, do not remove the covers or caps until immediately before installation. - Page 6 Installation Proline t-mass 65 2.2.2 Pipework requirements Good engineering practice should be followed at all times. Further information is provided in ISO Standard 14511. Note! Measuring errors will result due to a mismatch of the pipes or gaskets. Avoid A0007520...
- Page 7 Proline t-mass 65 Installation m In the case of saturated or unclean gases, upward flow in a vertical pipe section is preferred to minimize condensation/contamination. n Not recommended if the vibrations are too high or if the installation is unstable.
- Page 8 Installation Proline t-mass 65 Insertion version 20 x DN 5 x DN 20 x DN 5 x DN 20 x DN 5 x DN A0007529 A0007530 A0007531 40 x DN 5 x DN 50 x DN 5 x DN 25 x DN...
- Page 9 Proline t-mass 65 Installation Adjustment of the insertion version Insert the sensor into the socket and tighten the lower nut of compression fitting first by hand and then tighten it 1¼ revolutions using a wrench (42 mm). " Caution! • NPT thread: use a thread sealing tape or paste •...
- Page 10 Installation Proline t-mass 65 Aligning the calculated insertion depth Tighten the upper nut of compression fitting such that the sensor can still be adjusted. Align the scale to the calculated insertion depth. A0011848 Aligning the insertion version to flow direction 90°...
- Page 11 Proline t-mass 65 Installation To fix the insertion version Tighten the compression fitting (1) by hand to secure the position of the sensor. Then, using an open-ended wrench (36 mm), tighten another 1¼ revolutions in a clockwise direction. Fix the two securing screws (4) (Allen key 3 mm;...
-
Page 12: Installation Instructions
Installation Proline t-mass 65 Installation instructions 2.3.1 Turning the aluminum field housing Aluminum field housing for non-Ex area £ 180° £ 180° A0007540 Aluminum field housing for Zone 1 or Class I Div. 1 Release the setscrew. max. 360° Turn the transmitter housing gently clockwise until the stop (end of the thread). - Page 13 Proline t-mass 65 Installation 2.3.3 Installing the wall-mount housing " Caution! • Make sure that the ambient temperature does not exceed the permitted range. • Always install the wall-mount housing in such a way that the cable entries point downwards.
-
Page 14: Post-Installation Check
Installation Proline t-mass 65 Panel mounting +0.5 (+0.019) –0.5 (–0.019) 210 (8.27) +0.5 (+0.019) –0.5 (–0.019) 245 (9.65) mm (inch) ~110 (~4.33) A0007544 Post-installation check • Is the measuring device damaged (visual inspection)? • Does the device correspond to specifications at the measuring point? •... -
Page 15: Wiring
Proline t-mass 65 Wiring Wiring Warning! Risk of electric shock! • Never mount or wire the measuring device while it is connected to the power supply. • Prior to connecting the power supply, connect the protective earth to the ground terminal on the housing. -
Page 16: Connecting The Various Housing Types
Wiring Proline t-mass 65 Connecting the various housing types Wire the unit using the terminal assignment diagram inside the cover. 3.1.1 Compact version (transmitter) Transmitter connection: Connection diagram inside the connection compartment cover Power supply cable Signal cable or fieldbus cable... -
Page 17: Degree Of Protection
Proline t-mass 65 Wiring Degree of protection The devices fulfill all the requirements for IP 67 (NEMA 4X). After mounting in the field or service work, the following points have to be observed to ensure that IP 67 (NEMA 4X) protection is retained: •... -
Page 18: Hardware Settings
Hardware settings Proline t-mass 65 Hardware settings This section only deals with the hardware settings needed for commissioning. All other settings (e.g. output configuration, write protection, etc.) are described in the associated Operating Instructions on the CD-ROM. Note! No hardware settings are needed for measuring devices with HART or FOUNDATION Fieldbus type communication. - Page 19 Proline t-mass 65 Hardware settings PROFIBUS Device address range: 0 to 126 OFF ON Factory setting: 126 Miniature switches for the device address (example shown: 1+16+32 = device address 49) Miniature switches for the addressing mode: OFF = software addressing via local...
-
Page 20: Terminating Resistors
Hardware settings Proline t-mass 65 Terminating resistors Note! If the measuring device is used at the end of a bus segment, termination is required. This can be performed in the measuring device by setting the terminating resistors on the I/O board. -
Page 21: Commissioning
Proline t-mass 65 Commissioning Commissioning Switching on the measuring device On completion of the installation (successful post-installation check), wiring (successful post-connection check) and after making the necessary hardware settings, where applicable, the permitted power supply (see nameplate) can be switched on for the measuring device. -
Page 22: Operation
Commissioning Proline t-mass 65 Operation 5.2.1 Display elements Display lines/fields Main line for primary measured values Additional line for additional measured 48.25 xx/yy variables/status variables 3702.6 x Current measured values Engineering units/time units A0011838 5.2.2 Operating elements Operating keys (–) Minus key for entering, selecting... -
Page 23: Navigating Within The Function Matrix
Proline t-mass 65 Commissioning Navigating within the function matrix > 3 s – – – – A0007562 F → Enter the function matrix (starting with measured value display) P → Select the group (e.g. OPERATION) F → Confirm selection N→ Select function (e.g. LANGUAGE) P →... -
Page 24: Calling The Commission Quick Setup
Commissioning Proline t-mass 65 Calling the Commission Quick Setup All the functions needed for commissioning are called up automatically with the Quick Setup. The functions can be changed and adapted to the process in question. F → Enter the function matrix (starting with measured value display) P →... -
Page 25: Software Settings
Proline t-mass 65 Commissioning Software settings 5.5.1 Device address Has to be set for measuring devices with the following communication methods: • PROFIBUS DP/PA Device address range 0 to 126, factory setting 126 • MODBUS RS485 Device address range 1 to 247, factory setting 247 The device address can be configured via: •... -
Page 26: Troubleshooting
Commissioning Proline t-mass 65 Troubleshooting The error messages that can occur most frequently when a measuring device is commissioned are described here. A complete description of all the error messages → Operating Instructions on the CD-ROM. HART Error message / Type Cause/remedy S: RANGE CUR.OUTn... - Page 27 Proline t-mass 65 Commissioning FOUNDATION Fieldbus Error messages: Analog Input function block Cause/remedy FOUNDATION Fieldbus (FF)* Error messages (onsite display) Device status message (FF): OUT. QUALITY = UNCERTAIN See HART table Measured flow exceeds max limit – Err. No. 422 OUT.
- Page 28 www.endress.com/worldwide KA021D/06/en/06.10 71115118 FM+SGML 6.0...
