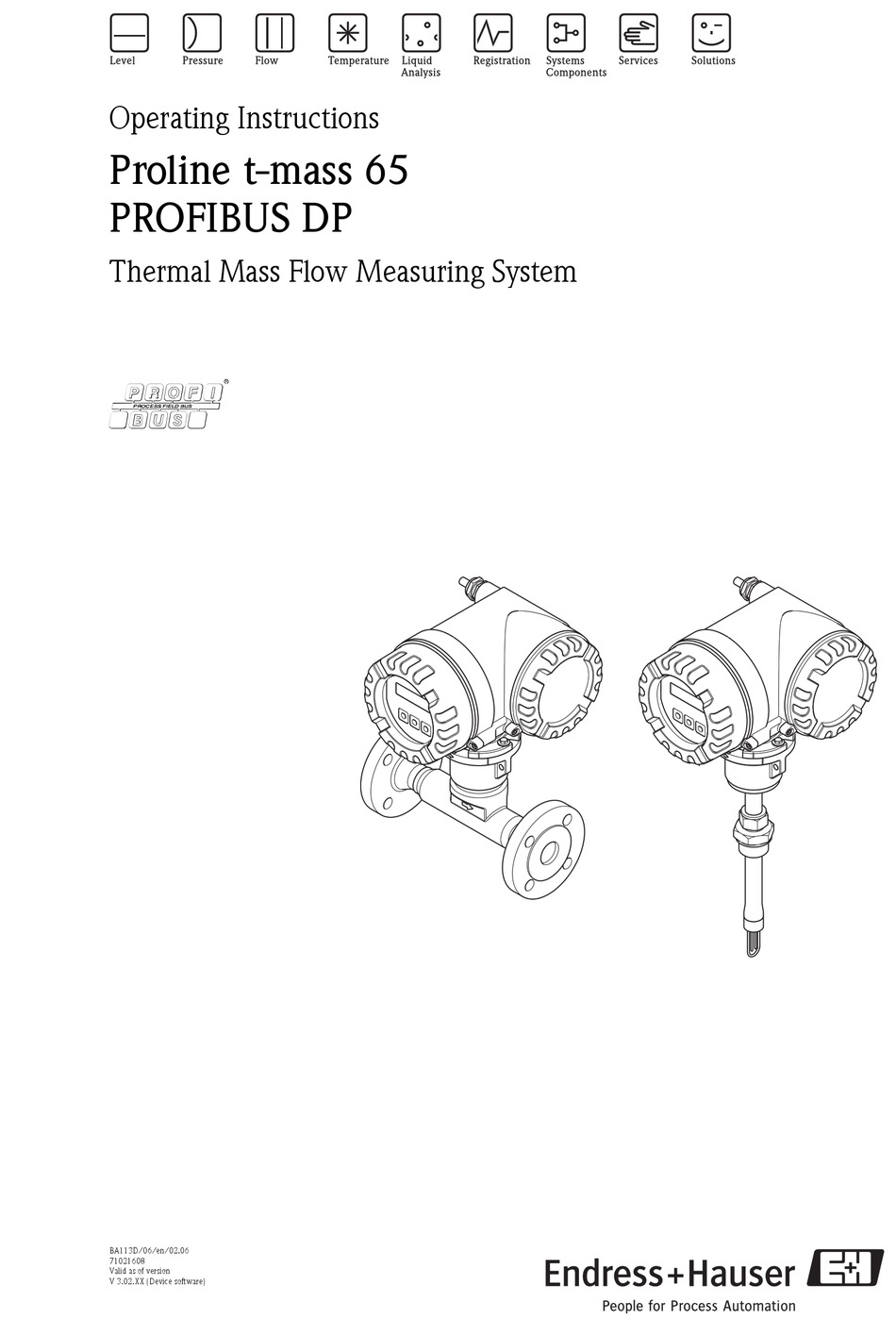

Operating Instructions
Proline t-mass 65
PROFIBUS DP
Thermal Mass Flow Measuring System
8
BA113D/06/en/02.06
71021608
Valid as of version
V 3.02.XX (Device software)

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline t-mass 65 PROFIBUS DP

Summary of Contents for Endress+Hauser Proline t-mass 65 PROFIBUS DP

  • Page 1 Operating Instructions Proline t-mass 65 PROFIBUS DP Thermal Mass Flow Measuring System BA113D/06/en/02.06 71021608 Valid as of version V 3.02.XX (Device software)

  • Page 3: Table Of Contents

    Proline t-mass 65 PROFIBUS DP Table of contents Table of contents Safety instructions ....5 Wiring ......29 Designated use .
  • Page 4 Proline t-mass 65 PROFIBUS DP Table of contents Commissioning ....47 Trouble-shooting ....72 Function check .

  • Page 5: Safety Instructions

    • The device must be operated by persons authorised and trained by the facility's owner-operator. Strict compliance with the instructions in the Operating Instruction is mandatory. • Endress+Hauser is willing to assist in clarifying the chemical resistance properties of parts wetted by special fluids, including fluids used for cleaning. However small changes in temperature, concentration or the degree of contamination in the process can result in changes of the chemical resistance properties.

  • Page 6: Operational Safety

    Category II, III or IV installations in accordance with the Pressure Equipment Directive. • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser distributor will supply you with current information and updates to these Operating Instructions.

  • Page 7: Identification

    Proline t-mass 65 PROFIBUS DP Identification Identification Device designation The “t-mass 65” flow measuring system consists of the following components: • t-mass 65 transmitter • t-mass F, t-mass I sensors Two versions are available: • Compact version: transmitter and sensor form a single mechanical unit.

  • Page 8: Nameplate Of The Sensor

    Identification Proline t-mass 65 PROFIBUS DP 2.1.2 Nameplate of the sensor Proline t-mass F Order Code: 65F50-XXXXXXXXXXXX IP67 / NEMA/Type 4X 12345678901 Ser.No.: ABCDEFGHIJKLMNOPQRST TAG-No.: DN50 DIN/EN PN40 -0.5...40bar / -7.25...+580 psi gauge -40°C...+100°C / -40°F...+212°F 316/316L/1.4404/Alloy C 22 Materials:...

  • Page 9: Nameplate For Connections

    Proline t-mass 65 PROFIBUS DP Identification 2.1.3 Nameplate for connections active See Operating manual passive Betriebsanleitung beachten normally open contact Observer Manuel d'Instruction normally closed contact 12345678912 Ser. No.: L1 / L+ Supply / Versorgung / N / L- Tension d'alimentation 26 = B (RxD/TxD-P) PROFIBUS DP (Profile 3.0)

  • Page 10: Certificates And Approvals

    Laboratory Procedures” and with the EMC requirements of EN 61326/A1. The measuring system described in these Operating Instructions thus complies with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.

  • Page 11: Installation

    Proline t-mass 65 PROFIBUS DP Installation Installation Incoming acceptance, transport and storage 3.1.1 Incoming acceptance On receipt of the goods, check the following points: • Check the packaging and the contents for damage. • Check the shipment, make sure nothing is missing and that the scope of supply matches your order.

  • Page 12: Installation Conditions

    Installation Proline t-mass 65 PROFIBUS DP Installation conditions Note the following points: • The thermal dispersion principle is very sensitive to low flow rates and disturbed flow conditions. • Observe the recommended inlet and outlet requirements. • Good engineering practice is necessary for the associated pipe work and installation.

  • Page 13: Orientation

    Proline t-mass 65 PROFIBUS DP Installation 3.2.3 Orientation The device can generally be installed in any position in the piping. In the case of wet/dirty gases, upward flow is prefered in vertical pipes to minimise condensation/contamination. Where free condensation can occur (e.g. Biogas) the sensor should be orientated to prevent water collecting on or around the transducer.

  • Page 14: Inlet And Outlet Runs

    Installation Proline t-mass 65 PROFIBUS DP 3.2.4 Inlet and outlet runs The sensitivity of the thermal dispersion principle to low flow rates means the flowmeter can also be sensitive to internal disturbances in the flowing gas stream (e.g. swirl), especially in the larger pipe diameters ≥...
  • Page 15 Proline t-mass 65 PROFIBUS DP Installation 15 x DN 2 x DN 20 x DN 5 x DN 15 x DN 2 x DN 20 x DN 5 x DN 15 x DN 2 x DN 20 x DN 5 x DN...

  • Page 16: Outlet Runs With Pressure Measuring

    Flow conditoner (19 hole) for use with flanged sensors This is a special Endress+Hauser version designed specially for use with the t-mass F sensor (Sizes DN 25 to 100 /1" to 4"). The flow conditioner should be fitted immediately upstream of the flanged sensor.

  • Page 17: The Flanged Version

    Proline t-mass 65 PROFIBUS DP Installation The flow conditioner is fitted between two piping flanges and centered with mounting bolts. a0005116 Fig. 8: Flow conditioner mounting arrangement (example) 1 = Perforated plate flow conditioner 2 = Seal/gasket 3 = Notch Note! The flow conditioner has a notch to indicate the alignment position (mount vertically).

  • Page 18: Insertion Depth For The Insertion Version

    Installation Proline t-mass 65 PROFIBUS DP Vertical alignment It is important that the sensor mounting boss is welded to the pipe or duct such that the sensor is mounted at 90 degrees to the flow direction. Any deviation from this angle in any plane may cause flow disturbances around the measuring point that could cause errors.

  • Page 19: Low Pressure Retractable Process

    Proline t-mass 65 PROFIBUS DP Installation Note! These mounting guidelines assume that a standard mounting boss provided by Endress+Hauser is being used (see Accessories on Page 70). Warning! The following tightening tensions for the compression fitting must be observed: • Locking nut: Hand tight, then 1¼ turns with a wrench •...
  • Page 20 Installation Proline t-mass 65 PROFIBUS DP Installing The mounting location is determined by the installation requirements for an insertion type sensor. Pay particular attention to mounting orientation and inlet and outlet length. See this chapter for details. Warning! Stop the process gas flow and de-pressurize the process line. Purge the line with an inert gas to remove any hazardous or toxic gases.
  • Page 21 Proline t-mass 65 PROFIBUS DP Installation a0005130 Fig. 13: Mounting the insertion sensor into the cold tap. Warning! The following tightening tensions for the compression fitting must be observed: - Locking nut: Hand tight, then 1¼ turns with a wrench...

  • Page 22: System Pressure

    Installation Proline t-mass 65 PROFIBUS DP Removing Warning! • The insertion sensor can only be safely removed at atmospheric conditions. • Stop the process gas flow and de-pressurize the process line. Purge the line with an inert gas to remove any hazardous or toxic gases. Allow the installation to cool to a safe temperature before handling any metal parts.

  • Page 23: External Pressure Compensation

    Proline t-mass 65 PROFIBUS DP Installation 3.2.12 External pressure compensation An external pressure compensating via PROFIBUS communication is useful in cases where: • Large variations of pressure are likely to occur e.g. 2 to 8 bar (30 to 120 psi) with air applications •...

  • Page 24: Thermal Insulation

    Installation Proline t-mass 65 PROFIBUS DP 3.2.15 Thermal insulation When the gas is very humid or saturated with water (eg. Bio Gas) the pipeline and flowmeter body should be insulated to prevent water droplets condensing on the pipe wall and/or flow transducer.

  • Page 25: Installation Instructions

    Carefully lift the transmitter housing as far as it will go. Turn the transmitter housing to the desired position (max. 2 x 90° in either direction). Lower the housing into position and re-engage the bayonet catch. Retighten the two securing screws (only Endress+Hauser screws to be used). a0004302 Fig. 16: Turning the transmitter housing (aluminium field housing) 3.3.2...
  • Page 26 Installation Proline t-mass 65 PROFIBUS DP Mounted directly on the wall Drill the holes as illustrated in the diagram. Remove the cover of the connection compartment (a). Push the two securing screws (b) through the appropriate bores (c) in the housing.

  • Page 27: Turning The Local Display

    Proline t-mass 65 PROFIBUS DP Installation Pipe mounting The assembly should be performed by following the instructions in the diagram. " Caution! If a warm pipe is used for installation, make sure that the housing temperature does not exceed the max.

  • Page 28: Post-Installation Check

    Installation Proline t-mass 65 PROFIBUS DP Post-installation check Perform the following checks after installing the measuring device in the pipe: Device condition and specifications Notes Is the device damaged (visual inspection)? – → Page 92 ff. Does the device correspond to specifications at the measuring point, including process temperature and pressure, ambient temperature, measuring range, etc.?

  • Page 29: Wiring

    Wiring Wiring Warning! When connecting Ex-certified devices, see the notes and diagrams in the Ex-specific supplement to these Operating Instructions. Please do not hesitate to contact your Endress+Hauser representative if you have any questions. PROFIBUS cable specifications 4.1.1 PROFIBUS DP cable specification Cable type Two versions of the bus line are specified in IEC 61158.

  • Page 30: Shielding And Grounding

    Wiring Proline t-mass 65 PROFIBUS DP Spurs Note the following points: • Length of spurs < 6.6 m (at max.1.5 MBit/s) • No spurs should be used for transmission rates >1.5 MBit/s. The line between the connector and the bus driver is described as a spur. Experience has shown that you should proceed with caution when configuring spurs.

  • Page 31: Connecting The Remote Version

    Proline t-mass 65 PROFIBUS DP Wiring Connecting the remote version 4.2.1 Connecting connecting cable for sensor/transmitter Warning! • Risk of electric shock. Switch off the power supply before opening the device. Do not install or wire the device while it is connected to the power supply.

  • Page 32: Cable Specification, Connecting

    Wiring Proline t-mass 65 PROFIBUS DP 4.2.2 Cable specification, connecting cable The specifications of the cable connecting the transmitter and the sensor of the remote version are as follows: • 2 x 2 x 0.5 mm² (AWG 20) PVC cable with common shield (2 twisted pairs) •...

  • Page 33: Profibus Dp Connection Diagram

    Proline t-mass 65 PROFIBUS DP Wiring 4.3.3 PROFIBUS DP connection diagram +5 V N (L–) DGND L1 (L+) RxD/TxD-P A (RxD/TxD-N) A (RxD/TxD-N) RxD/TxD-P DGND +5 V 20 21 22 23 24 25 26 27 N (L-) L1 (L+) a0005465 Fig.

  • Page 34: Degree Of Protection

    Wiring Proline t-mass 65 PROFIBUS DP Degree of protection The devices fulfill all the requirements for IP 67. Compliance with the following points is mandatory following installation in the field or servicing, in order to ensure that IP 67 protection is maintained: •...

  • Page 35: Post-Connection Check

    Proline t-mass 65 PROFIBUS DP Wiring Post-connection check Perform the following checks after completing electrical installation of the measuring device: Device condition and specifications Notes Are cables or the device damaged (visual inspection)? Electrical connection Notes Does the supply voltage match the specifications on the nameplate?

  • Page 36: Operation

    Operation Proline t-mass 65 PROFIBUS DP Operation Quick operation guide The user has a number of options for configuring and commissioning the device: Local display (option) → Page 37 The local display enables you to read all important parameters directly at the measuring point, configure device parameters in the field and perform commissioning.

  • Page 37: Local Display

    Proline t-mass 65 PROFIBUS DP Operation Local display 5.2.1 Display and operating elements The local display enables you to read all important parameters directly at the measuring point and configure the device using the function matrix. The display consists of two lines; this is where measured values and/or status variables (process/system error messages, bar graph, etc.) are...

  • Page 38: Brief Operating Instructions To The Function Matrix

    Operation Proline t-mass 65 PROFIBUS DP Brief operating instructions to the function matrix Note! • See the general notes → Page 39. • Function descriptions → see the “Description of Device Functions” manual HOME position → F → Entry into the function matrix Select a function group (e.g.

  • Page 39: General Notes

    • If programming is disabled and the P operating elements are pressed in any function, a prompt for the code automatically appears on the display. • If “0” is entered as the customer's code, programming is always enabled. • Your Endress+Hauser representative can be of assistance if you mislay your personal code. " Caution! Changing certain parameters such as all sensor characteristics, for example, influences numerous functions of the entire measuring system, particularly measuring accuracy.

  • Page 40: Error Messages

    Operation Proline t-mass 65 PROFIBUS DP Error messages 5.4.1 Type of error Errors that occur during commissioning or measuring are displayed immediately. If two or more system or process errors occur, the error with the highest priority is the one shown on the display.

  • Page 41: Operating Options

    5.5.2 Operating program “FieldCare” FieldCare is Endress+Hauser’s FDT-based plant Asset Management Tool and allows the configuration and diagnosis of intelligent field devices. By using status information, you also have a simple but effective tool for monitoring devices. The Proline flowmeters are accessed via the service interface FXA 193.

  • Page 42: Device Drivers For Operating

    SIMATIC PDM • www.feldgeraete.de ToF Tool - Fieldtool Package • www.tof-fieldtool.endress.com (operation via service protocol) • Update CD-ROM (Endress+Hauser order number: 50099820) Tester/simulator: Device: How to acquire: Fieldcheck • Update by means of ToF Tool - Fieldtool Package via Fieldflash Note! The Fieldcheck tester/simulator is used for testing flowmeters in the field.

  • Page 43: Profibus Dp Hardware Settings

    Proline t-mass 65 PROFIBUS DP Operation PROFIBUS DP hardware settings 5.6.1 Configuring the write protection A jumper on the I/O board provides the means of switching hardware write protection on or off. When the hardware write protection is switched on, it is not possible to write to the device parameters via PROFIBUS (acyclic data transmission, e.g.

  • Page 44: Device Address

    Operation Proline t-mass 65 PROFIBUS DP 5.6.2 Configuring the device address The address must always be configured for a PROFIBUS DP measuring device. The valid device addresses are in the range from 0 to 126. In a PROFIBUS DP network, each address can only be assigned once.

  • Page 45: Terminating Resistors

    Proline t-mass 65 PROFIBUS DP Operation 5.6.3 Configuring the terminating resistors Note! It is important to terminate the RS485 line correctly at the start and end of the bus segment since impedance mismatch results in reflections on the line which can cause faulty data transfer.
  • Page 46 Operation Proline t-mass 65 PROFIBUS DP...

  • Page 47: Commissioning

    Proline t-mass 65 PROFIBUS DP Commissioning Commissioning Function check Make sure that all final checks have been completed before you start up your measuring point: • Checklist for “Post-installation check” → Page 28 • Checklist for “Post-connection check” → Page 35...

  • Page 48: Quick Setup

    Commissioning Proline t-mass 65 PROFIBUS DP Quick Setup 6.3.1 Quick Setup “Commissioning” If the device is equipped with a local display, the Commissioning Quick Setup menu can be used to configure all the important device parameters for standard measuring quickly and easily.
  • Page 49 Proline t-mass 65 PROFIBUS DP Commissioning QUICK SETUP - COMMISSION Use the O or S key at the prompt “QS-COMMISSION NO” and the device access code entry appears. Enter the device access code “65” and press F; programming is enabled.

  • Page 50: Communication

    Commissioning Proline t-mass 65 PROFIBUS DP 6.3.2 Quick Setup “Communication” To establish cyclic data transfer, various arrangements between the PROFIBUS Master (class 1) and the slave are required which have to be taken into consideration when configuring various functions. These functions can be configured quickly and easily by means of the Communication Quick Setup.

  • Page 51: Data Back-Up With T-Dat Save/Load Function

    Proline t-mass 65 PROFIBUS DP Commissioning 6.3.3 Data back-up with T-DAT SAVE/LOAD function The T-DAT SAVE/LOAD function can be used to store all the settings and parameters of the device to the HistoROM/T-DAT data storage device. XXX.XXX.XX Quick Setup HOME...

  • Page 52: Commissioning The Profibus Interface

    Commissioning Proline t-mass 65 PROFIBUS DP Commissioning the PROFIBUS interface Note! • All functions required for commissioning are described in detail in the “Description of Device Functions” manual which is a separate part of this Operating Manual. • A code (factory setting: 65) must be entered to change device functions, numerical values or factory settings →...
  • Page 53 Proline t-mass 65 PROFIBUS DP Commissioning Configuration of the Analog Input function blocks 1 to 3: The measuring device has three Analog Input function block (AI modules), through which the various measured variables can be cyclically transmitted to the PROFIBUS Master (class 1).

  • Page 54: Profibus Dp System Integration

    PROFIBUS DP 1545 (Hex) Extended Format (recommended): EH3x1545.gsd EH_1545_d.bmp/.dib Standard Format: EH3_1545.gsd EH_1545_n.bmp/.dib EH_1545_s.bmp/.dib Source • Internet (Endress+Hauser) → www.endress.com (→ Download → Software → Device Drivers) • CD-ROM with all GSD files for Endress+Hauser devices → Order No.: 56003894...
  • Page 55 Proline t-mass 65 PROFIBUS DP Commissioning Contents of the download file from the Internet and the CD-ROM • All Endress+Hauser GSD files (standard and extended format) • Endress+Hauser bitmap files • Useful information relating to the devices PROFIBUS Profile GSD file: The function scope of the profile GSD file is defined by the PROFIBUS Profile Specification 3.0.

  • Page 56: Selection Of The Gsd File In The Measuring Device

    Commissioning Proline t-mass 65 PROFIBUS DP 6.5.2 Selection of the GSD file in the measuring device Depending on which GSD file is used in the PROFIBUS Master (class 1) system, the corresponding GSD file has to be configured in the device by means of the COMMUNICATION → SELECTION GSD function.

  • Page 57: Profibus Dp Cyclic Data Transmission

    Proline t-mass 65 PROFIBUS DP Commissioning PROFIBUS DP cyclic data transmission Below is a description of the cyclic data transmission when using the t-mass GSD file (complete device functionality). 6.6.1 Block model The block model illustrated shows which input and output data the measuring device provides for cyclic data transmission via PROFIBUS DP.

  • Page 58: Modules For Cyclic Data Transmission

    Commissioning Proline t-mass 65 PROFIBUS DP 6.6.2 Modules for cyclic data transmission The measuring device is a so-called modular PROFIBUS slave. In contrast to a compact slave, the structure of a modular slave is variable - it consists of several individual modules. In the GSD file, the individual modules (input and output data) are described with their individual properties.

  • Page 59: Description Of The Modules

    Proline t-mass 65 PROFIBUS DP Commissioning 6.6.3 Description of the modules AI (Analog Input) module The AI module (slots 1...3) cyclically transmits the corresponding measured variable, including the status, to the PROFIBUS Master (class 1). The measured variable is represented in the first four bytes in the form of floating point numbers in accordance with the IEEE 754 standard.
  • Page 60 Commissioning Proline t-mass 65 PROFIBUS DP Assignment of the measured variables to the TOTAL module The TOTAL module can transmit different totalizer variables to the PROFIBUS Master (class 1). The measured variables are assigned to the totalizer function blocks 1 to 2 by means of the local display or with the aid of an operating program (e.g.
  • Page 61 Proline t-mass 65 PROFIBUS DP Commissioning SETTOT_MODETOT_TOTAL module The module combination SETTOT_MODETOT_TOTAL (slots 4 to 5) consists of the functions SETTOT, MODETOT and TOTAL. With this module combination: • The totalizer can be controlled via the PROFIBUS Master (SETTOT). • The totalizer can be configured via the PROFIBUS Master (MODETOT).
  • Page 62 Commissioning Proline t-mass 65 PROFIBUS DP DISPLAY_VALUE module Any value (IEEE 754 floating point number), including status, can be cyclically transmitted via the PROFIBUS Master (class 1) directly to the local display using the DISPLAY_VALUE module (slot 6). Display value assignment to line 1 or line 2 can be configured via the local display itself or an operating program (e.g.
  • Page 63 Proline t-mass 65 PROFIBUS DP Commissioning PRESSURE_VALUE module The process pressure value (IEEE 754 floating point number), including status, can be cyclically transmitted via the PROFIBUS Master (class 1) directly to the measuring device using the PRESSURE_VALUE module (slot 8).

  • Page 64: Configuration Examples With

    Commissioning Proline t-mass 65 PROFIBUS DP 6.6.4 Configuration examples with Simatic S7 HW-Konfig Example 1 a0005497 Fig. 35: Complete configuration using the t-mass 65 GSD file It is essential to adhere to the following sequence when configuring the modules in the...
  • Page 65 Proline t-mass 65 PROFIBUS DP Commissioning Example 2 a0005498 Fig. 36: In this example, modules that are not needed are replaced by the module EMPTY_MODULE. The t-mass 65 GSD file is used . With this configuration, the Analog Input function block 1 (slot 1), the totalizer value TOTAL (slot 4) and the cyclic control of device functions CONTROL_BLOCK (slot 7) are activated.

  • Page 66: Profibus Dp Acyclic Data Transmission

    Commissioning Proline t-mass 65 PROFIBUS DP PROFIBUS DP acyclic data transmission Acyclic data transmission is used to transmit parameters during commissioning or maintenance, or to display additional measured variables that are not included in data transmission. Thus parameters for identification, control or adjustment in the various blocks (physical block, transducer block, function block) can be changed while the device is in the process of data transmission with a PLC.

  • Page 67: Adjustment

    Proline t-mass 65 PROFIBUS DP Commissioning Adjustment 6.8.1 Zero point adjustment At zero flow conditions, the output of most thermal mass flow devices has a strong dependency on the process pressure. The effect on the true zero point of the device, by the static line pressure, is dependant on the gas type and the application demands and in many cases the use of the low flow cut-off function is adequate to zero the device output.

  • Page 68: Data Storage Device (Historom)

    The zero point adjustment is now reset. Data storage device (HistoROM) At Endress+Hauser, the term HistoROM refers to various types of data storage modules on which process and measuring device data are stored. By plugging and unplugging such modules, device configurations can be duplicated onto other measuring devices to cite just one example.

  • Page 69: Maintenance

    The compression fitting and bonded seal are available as spare parts. In-situ calibration The t-mass flowmeters are designed to support in-situ calibration using a reference meter signal, thus saving time and cost by reducing the need for factory re-calibration. Please discuss your specific requirements with your Endress+Hauser service representative.

  • Page 70: Accessories

    Accessories Proline t-mass 65 PROFIBUS DP Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. Detailed information on the order code in question can be obtained from your Endress+Hauser representative. Device-specific accessories...

  • Page 71: Service-Specific Accessories

    Contact your Endress+Hauser representative for more information. FieldCare FieldCare is Endress+Hauser's FDT based Plant Asset Please refer to the product page of Management Tool. It can configure all intelligent field the Endress+Hauser Internet page: devices in your plant and supports you in managing www.endress.com...

  • Page 72: Trouble-Shooting

    Trouble-shooting Proline t-mass 65 PROFIBUS DP Trouble-shooting Trouble-shooting instructions Always start trouble-shooting with the following checklist if faults occur after commissioning or during operation. The routine takes you directly to the cause of the problem and the appropriate remedial measures.

  • Page 73: System Error Messages

    In the event of a serious fault, a flowmeter might have to be returned to the manufacturer for repair. Important procedures must be carried out before you return a flowmeter to Endress+Hauser. → Page 6. Always enclose a duly completed "Declaration of contamination" form. You will find a preprinted blank of this form at the back of this manual.
  • Page 74 Trouble-shooting Proline t-mass 65 PROFIBUS DP Display in the PROFIBUS master system (cyclic data transmission) If the AI or TOTAL modules are configured for cyclic data transmission, the device status is coded in accordance with PROFIBUS Profile Specification 3.0 and transmitted with the variable to the PROFIBUS master by means of the quality byte (byte 5).

  • Page 75: List Of System Error Messages

    Proline t-mass 65 PROFIBUS DP Trouble-shooting 9.2.2 List of system error messages PROFIBUS measured value status Extended diagnostic Device status message Remedy / spare parts message in the (local display) PROFIBUS master S = System error $ = Fault message (with an effect on the current operation) ! = Notice message (without any effect on the current operation) No.
  • Page 76 Trouble-shooting Proline t-mass 65 PROFIBUS DP PROFIBUS measured value status Extended diagnostic Device status message Remedy / spare parts message in the (local display) PROFIBUS master S: SENSOR SW DAT 0x10 Sensor Failure O.K. S-DAT data Cause: $: # 032...
  • Page 77 Proline t-mass 65 PROFIBUS DP Trouble-shooting PROFIBUS measured value status Extended diagnostic Device status message Remedy / spare parts message in the (local display) PROFIBUS master S: TRANSM. HW-DAT 0x0F Device Failure Constant T-DAT failure Cause: $: # 041 1. HistoROM/T-DAT is defective.
  • Page 78 Trouble-shooting Proline t-mass 65 PROFIBUS DP PROFIBUS measured value status Extended diagnostic Device status message Remedy / spare parts message in the (local display) PROFIBUS master S: A/D REF ERROR 0x13 Sensor Failure Constant Drift in A/D ref. Cause: $: # 072...
  • Page 79 Proline t-mass 65 PROFIBUS DP Trouble-shooting PROFIBUS measured value status Extended diagnostic Device status message Remedy / spare parts message in the (local display) PROFIBUS master S: LOAD S-DAT 0x0F Device Failure Constant Save to S-DAT Cause: $: # 215...
  • Page 80 Trouble-shooting Proline t-mass 65 PROFIBUS DP PROFIBUS measured value status Extended diagnostic Device status message Remedy / spare parts message in the (local display) PROFIBUS master S: FLUIDTEMP.MIN. 0x40 UNCERTAIN O.K. O.K. Fluid temperature Cause: !: # 381 0x41 min.
  • Page 81 Proline t-mass 65 PROFIBUS DP Trouble-shooting PROFIBUS measured value status Extended diagnostic Device status message Remedy / spare parts message in the (local display) PROFIBUS master No. # 6xx → Simulation mode active S: POS. ZERO-RET. 0x53 UNCERTAIN Sensor Constant...

  • Page 82: Process Error Messages

    Trouble-shooting Proline t-mass 65 PROFIBUS DP Process error messages Note! Also observe the information on the following pages: → Page 40 and → Page 73 9.3.1 List of process error messages PROFIBUS measured value status Extended diagnostic Device status message...

  • Page 83: Process Errors Without Messages

    – Nameplate specifications : Order code and serial number → Page 7 ff. Returning devices to Endress+Hauser The procedures on must be carried out before you return a flowmeter requiring repair or calibration to Endress+Hauser. → Page 6 Always enclose a duly completed “Declaration of contamination” form with the flowmeter. You will find a preprinted “Declaration of contamination”...

  • Page 84: Spare Parts

    The illustration below shows the available scope of spare parts. Note! You can order spare parts directly from your Endress+Hauser representative by providing the serial number printed on the transmitter's nameplate. → Page 7 Spare parts are shipped as sets comprising the following parts: •...

  • Page 85: Removing And Installing Printed

    Proline t-mass 65 PROFIBUS DP Trouble-shooting 9.5.1 Removing and installing printed circuit boards Field housing Warning! • Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment.
  • Page 86 Trouble-shooting Proline t-mass 65 PROFIBUS DP a0005494 Fig. 40: Field housing: removing and installing printed circuit boards Local display Latch Ribbon cable (display module) Screws of electronics compartment cover Aperture for installing/removing boards Power unit board Amplifier board Signal cable (sensor)
  • Page 87 Proline t-mass 65 PROFIBUS DP Trouble-shooting Wall-mount housing Warning! • Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment. • Risk of damaging electronic components (ESD protection). Static electricity can damage electronic components or impair their operability.
  • Page 88 Trouble-shooting Proline t-mass 65 PROFIBUS DP a0005496 Fig. 41: Wall-mount housing: removing and installing printed circuit boards Housing cover Electronics module Ribbon cable (display module) Screws of electronics compartment cover Aperture for installing/removing boards Power unit board Amplifier board Signal cable (sensor)
  • Page 89 Proline t-mass 65 PROFIBUS DP Trouble-shooting Electronics housing sensor remote version Warning! • Risk of damaging electronic components (ESD protection). Static electricity can damage electronic components or impair their operability. Use a workplace with a grounded working surface purposely built for electrostatically sensitive devices! •...

  • Page 90: Replacing The Device Fuse

    Trouble-shooting Proline t-mass 65 PROFIBUS DP 9.5.2 Replacing the device fuse Warning! Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment. The main fuse is on the power unit board.

  • Page 91: Return

    Endress+Hauser: • Always enclose a duly completed “Declaration of contamination” form. Only then can Endress+Hauser transport, examine and repair a returned device. • Enclose special handling instructions if necessary, for example a safety data sheet as per EN 91/155/EEC.

  • Page 92: Technical Data

    The tables below define the ranges available for air without flow conditoner. Please refer to your Endress+Hauser representative or to Applicator (the Endress+Hauser sizing and selection software) for other gases and process conditions. Measuring range for the flanged version, metric units: kg/h /h at 0°C, 1.013 bar a...
  • Page 93 Proline t-mass 65 PROFIBUS DP Technical data Measuring range for the flanged version, US units: lb/h /h at 59 °F, 14.7 psi a scf/min. at 59 °F, 14.7 psi a minimum maximum minimum maximum minimum maximum 1/2" 0.23 1" 1 1/2"...

  • Page 94: Output

    To correctly size and select a meter, it is recommended that you either contact your local Endress+Hauser representative or refer to Applicator (the Endress+Hauser sizing and selection software).

  • Page 95: Performance Characteristics

    Proline t-mass 65 PROFIBUS DP Technical data Cable entry Power supply and signal cables (inputs/outputs): • Cable entry M20 x 1.5 (8 to 12 mm (0.31 to 0.47 inch)) • Threads for cable entries, ½" NPT, G ½" Connecting cable for remote version: •...

  • Page 96: Operating Conditions: Environment

    Technical data Proline t-mass 65 PROFIBUS DP 10.1.8 Operating conditions: Environment Ambient temperature Standard: –20 to +60 °C (–4 to +140 °F), available on request –40 to +60 °C (–40 °F to +140 °F) Note! • Install the device at a shady location. Avoid direct sunlight, particularly in warm climatic regions.

  • Page 97: 10.1.10 Mechanical Construction

    Proline t-mass 65 PROFIBUS DP Technical data Limiting medium pressure The material load diagrams (pressure-temperature diagrams) for the process connections are to be range (rated pressure) found in the following documents: • Technical Information: Proline t-mass 65F, 65I (TI069D/06/en), with SI units •...
  • Page 98 Technical data Proline t-mass 65 PROFIBUS DP Material Transmitter housing: • Compact housing: powder coated die-cast aluminium • Wall-mount housing: powder coated die-cast aluminium • Remote field housing: powder coated die-cast aluminium Connection housing, sensor (remote version): powder coated die-cast aluminium...

  • Page 99: 10.1.11 Human Interface

    Proline t-mass 65 PROFIBUS DP Technical data Bonded seals: EPDM, Kalrez, Nitrile 316/316L (outer ring) Low pressure retractable insertion fitting (Cold tap): Lower tube section: 1.4404 to EN 10272 and 316/316L to A479 Upper tube section: 1.4404 to EN 10216-5 and 316/316L to A312 Ball valve: 1.4408 to EN 10213-4 and CF8M...

  • Page 100: 10.1.12 Certificates And Approvals

    CE mark The measuring system is in conformity with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-Tick mark The measuring system meets the EMC requirements of the Australian Communications and Media Authority (ACMA).

  • Page 101: 10.1.13 Ordering Information

    10.1.14 Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. → Page 70 Your Endress+Hauser representative can provide detailed information on the order codes of your choice.

  • Page 102: Index

    Proline t-mass 65 PROFIBUS DP Index Index Device description data PROFIBUS DP....... 42 Accessories.
  • Page 103 Proline t-mass 65 PROFIBUS DP Index Icons......... 37 Nameplate Incoming acceptance.
  • Page 104 Proline t-mass 65 PROFIBUS DP Index PROFIBUS DP cyclic data transmission AI (Analog Input) module..... . . 59 T-DAT BATCHING_QUANTITY module ....63 Save/Load .
  • Page 105 Declaration of Contamination Erklärung zur Kontamination Because of legal regulations and for the safety of our employees and operating equipment, we need the "declaration of contamination", with your signature, before your order can be handled. Please make absolutely sure to include it with the shipping documents, or - even better - attach it to the outside of the packaging.
  • Page 106 www.endress.com/worldwide BA113D/06/en/02.06 71021608 FM+SGML6.0 ProMoDo...
