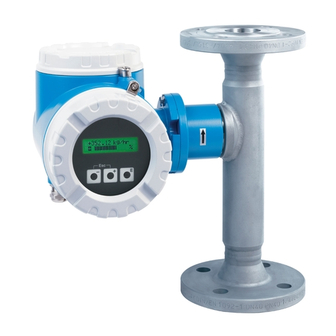

Thermal mass flow measuring system
Hide thumbs Also See for Proline t-mass 65F:
Table of Contents

Advertisement

Quick Links

See also: Technical Information
Description of Device Functions
Proline t-mass 65F, 65I
Thermal Mass Flow Measuring System
BA112D/06/en/12.05
71009066
Valid as of version:
V 1.00.XX (device software)

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline t-mass 65F

Summary of Contents for Endress+Hauser Proline t-mass 65F

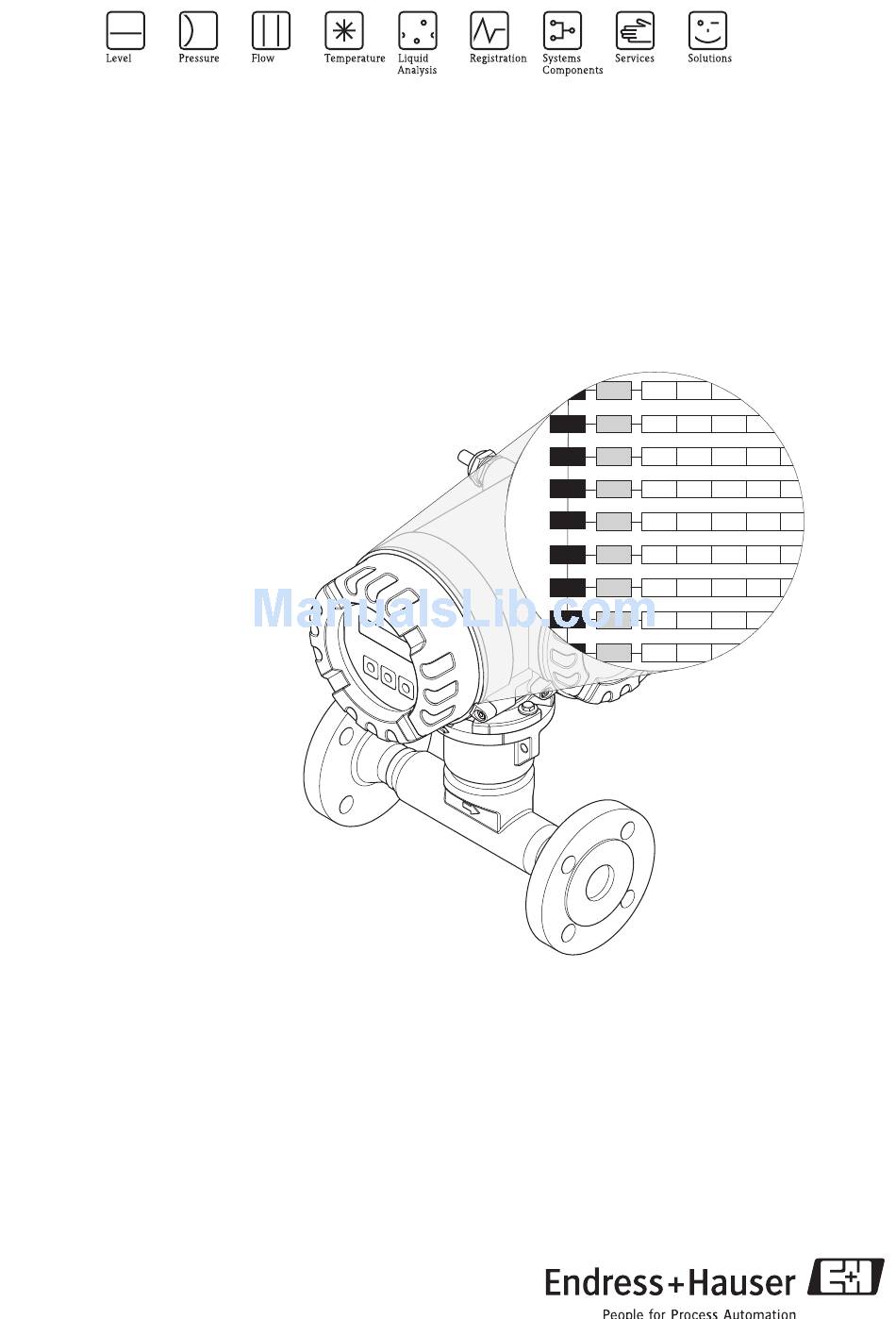

  • Page 1 Description of Device Functions Proline t-mass 65F, 65I Thermal Mass Flow Measuring System BA112D/06/en/12.05 71009066 Valid as of version: V 1.00.XX (device software)
